1000KW Containerized Generator Sets for gensets



Order(MOQ): 1

Product Origin: China

Color: color options with white blue red green yellow

Shipping Port: Xiamen, China





BA 1000kw Power Container Type series generator set is designed in accordance with ISO/TC104 standard size, rational construction, to make sure the generator set will not be damaged due to under high pressure in transport, and It is suitable for ship transportation. We can supply the 20FT and 40FT container, and widen or heighten container type.



Cummins engine model: KTA50-GS8



Manufacturer Chongqing Cummins Engine Co. Ltd.
Model KTA50-GS8
Engine speed 1500rpm
Engine power
--------------------Prime power 1287kw /1725HP
--------------------Standby power 1429kw /1915HP
Type 4 cycle, 60°Vee, 16-cylinder
Aspiration Turbocharged and aftercooled
Bore * Stroke 159*159 mm
Displacement 50.3 L
Compression ratio 14.9:1
Idle speed 725 – 775 r/min
Brake mean effective pressure under prime power 2062kpa
Piston speed 7.9 m/s
Friction horsepower 116kw(155BHP)

This series generator set can be easily moved to the desired location, and run under the most demanding working conditions.

These gensets are all with high quality and reliable diesel engine as a driving source, and with the International quality brushless synchronous alternator.



Performance Features:

  • Accord with international standard container size, easy to transport.
  • Keep standard container main body structure, strong and stand wear and tear.
  • High degree of protection, being suitable for used under the bad environment.
  • More reasonable design in exhaust, to ensure continuous power supply of the generator set.



The container type genset can be divided into 20FT and 40FT sea container, which can be directly shipping as a standard container, greatly save transportation costs. We use 20ft container type for gensets under 1250kva, and 40ft container type for gensets above 1250kva.

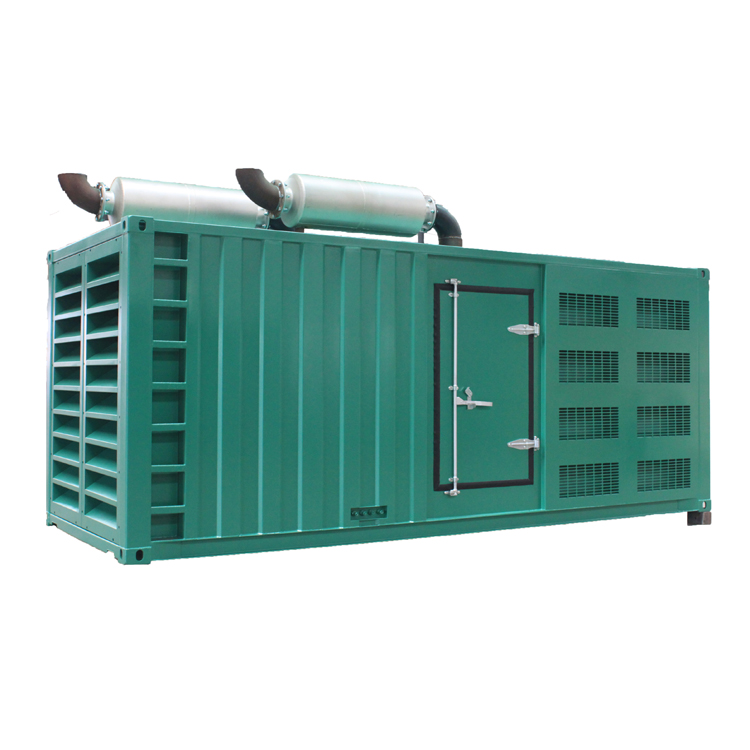

20ft standard container type, as shown below:

BA Power generator set container type

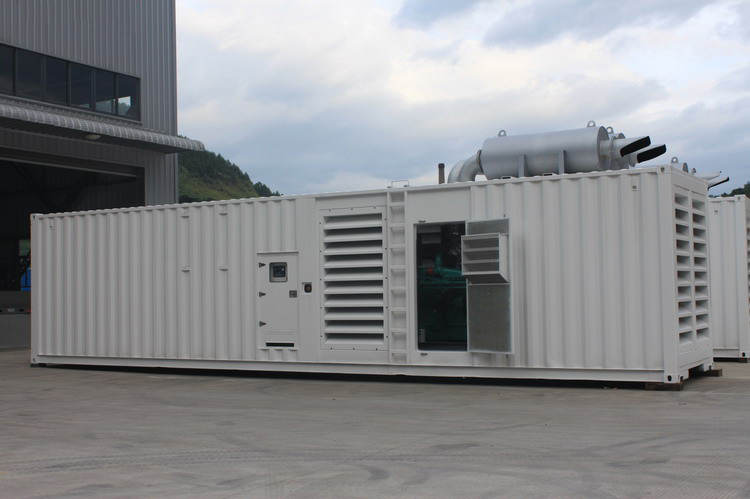

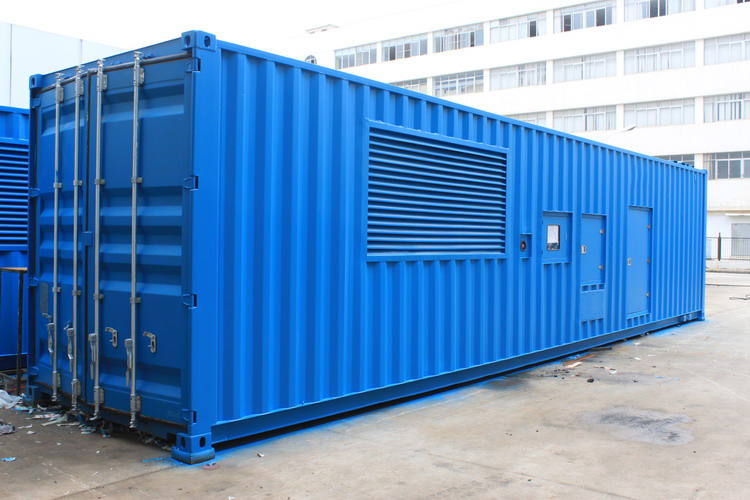

40FT standard container type as below show:

BA Power container type generator set


Product Tags Perkins container generator set          800kva container diesel generator set          1000kva MTU genset
