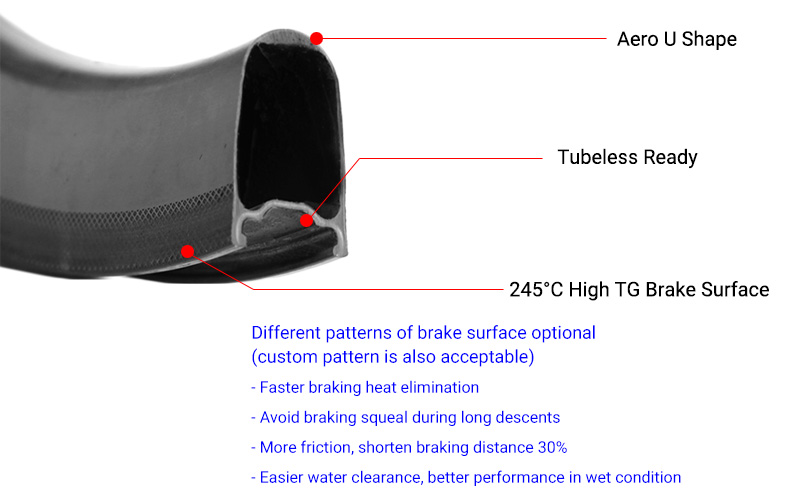

Features:
- Use 245°C high TG
resin system, can tolerate max 245°C high temperature from braking.

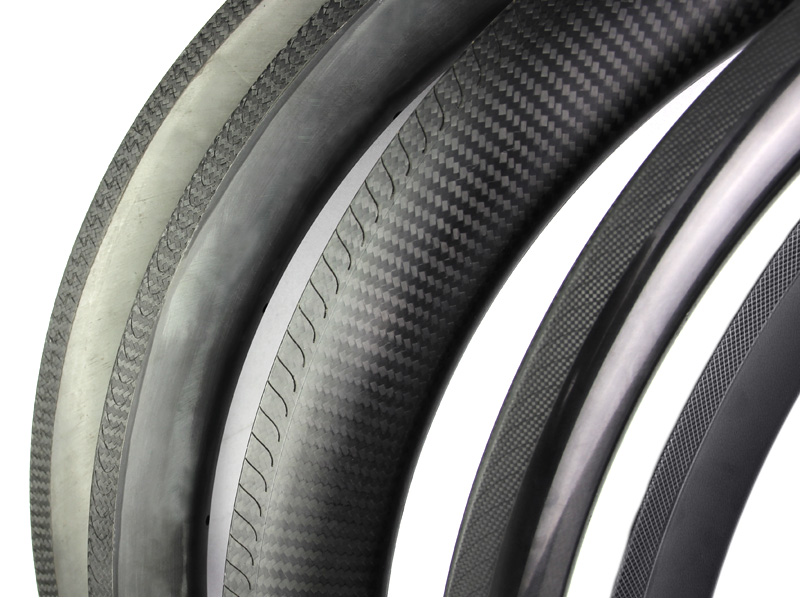

- Different patterns of brake surface optional (customs patterns can also be made).
Advantages of such new brake surface:
1) Small grooves on brake surface, for easier water clearance, almost equal performance in wet and dry condition.
2) High TG resin system combinating with small grooves, for faster braking heat elimination.
3) More friction, less lever force needed, and shorten about 30% braking distance.
4) Avoid braking squeal during long descents.

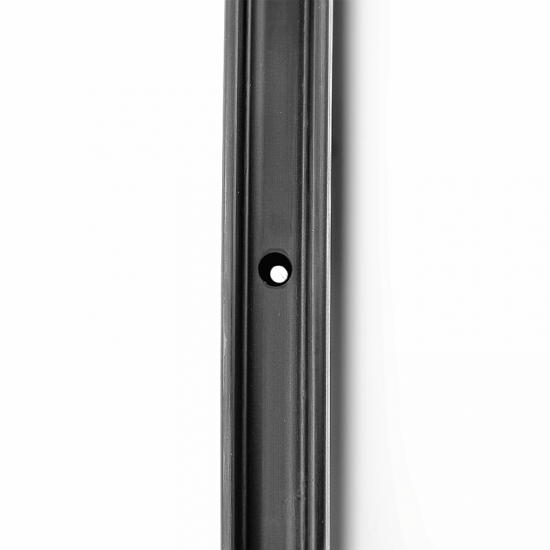

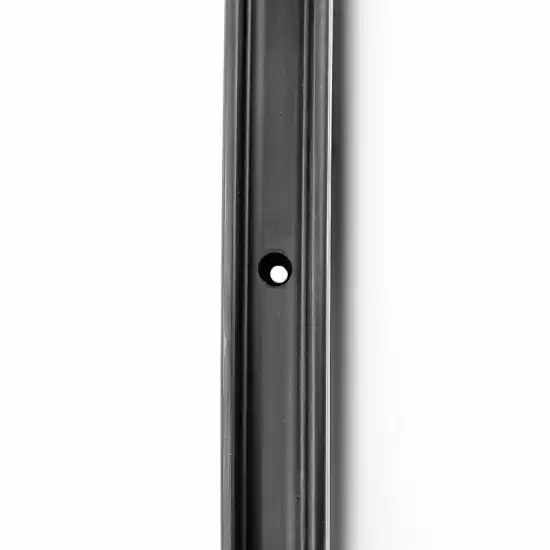

- Tubeless ready design, easy for tire mount.
- Wide U shape design, of better aerodynamics and stiffness.
- High quality carbon clincher rim with competitive price.
- 2 years' quality warranty.

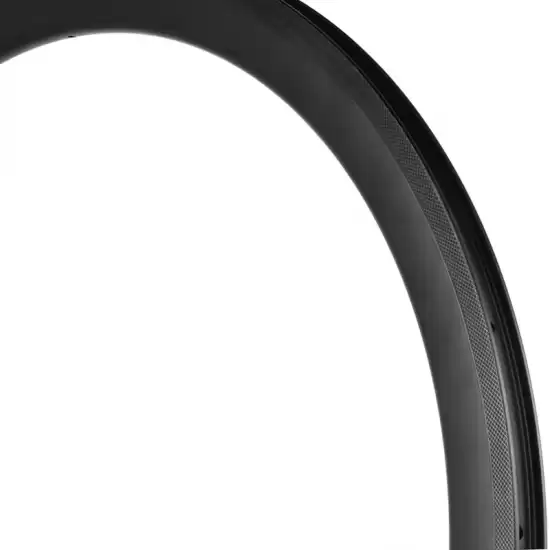

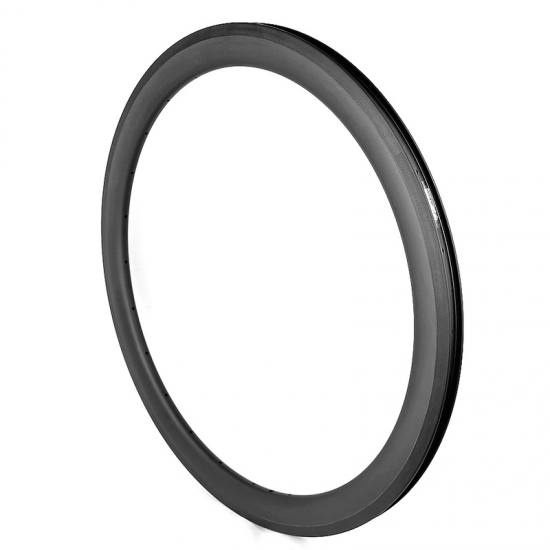

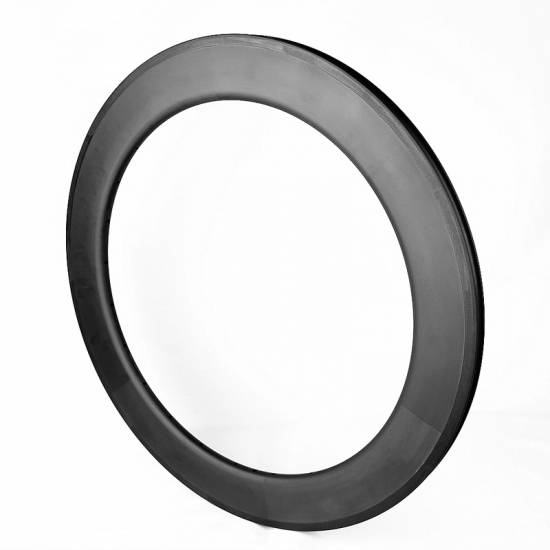

245TG 700C Carbon Road Rim For With Rim Brake Clincher (tubeless ready)
| Model |
245TG-30C |
245TG-35C |
245TG-38C |
245TG-45C |
245TG-50C |
245TG-55C |
245TG-60C |
245TG-75C |
245TG-88C |

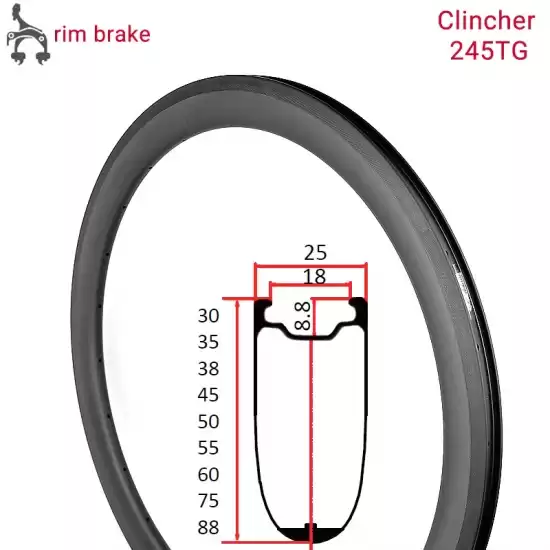

| Cross Section |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Sectional Drawing |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Depth |
30mm |
35mm |
38mm |
45mm |
50mm |
55mm |
60mm |
75mm |
88mm |
| Weight |
430±15g |
440±15g |
465±15g |
500±15g |
510±15g |
525±15g |
560±15g |
700±15g |
750±15g |
| ERD |
587mm |
577mm |
571mm |
557mm |
547mm |
537mm |
527mm |
497mm |
471mm |
| Max Weight Limit |
100kg/220lb |
105kg/230lb |
110kg/240lb |
110kg/240lb |
115kg/250lb |
115kg/250lb |
115kg/250lb |
120kg/265lb |
120kg/265lb |
| Carbon Weave |
UD/3K |
UD/3K |
UD/3K |
UD/3K |
UD/3K |
UD/3K |
UD/3K |
UD/3K |
UD/3K |
| Max Tire Pressure |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
125psi/8.6bar |
| Tire Size Recommended |
700*25-28c |
700*25-28C |
700*25-28C |
700*25-28C |
700*25-28C |
700*25-28C |
700*25-28C |
700*25-28C |
700*25-28C |
| Terrian Recommended |
Climbing |
Climbing |
Climbling/Flat |
Climbling/Flat |
Climbling/Flat |
Flat |
Flat |
Flat |
Flat |
