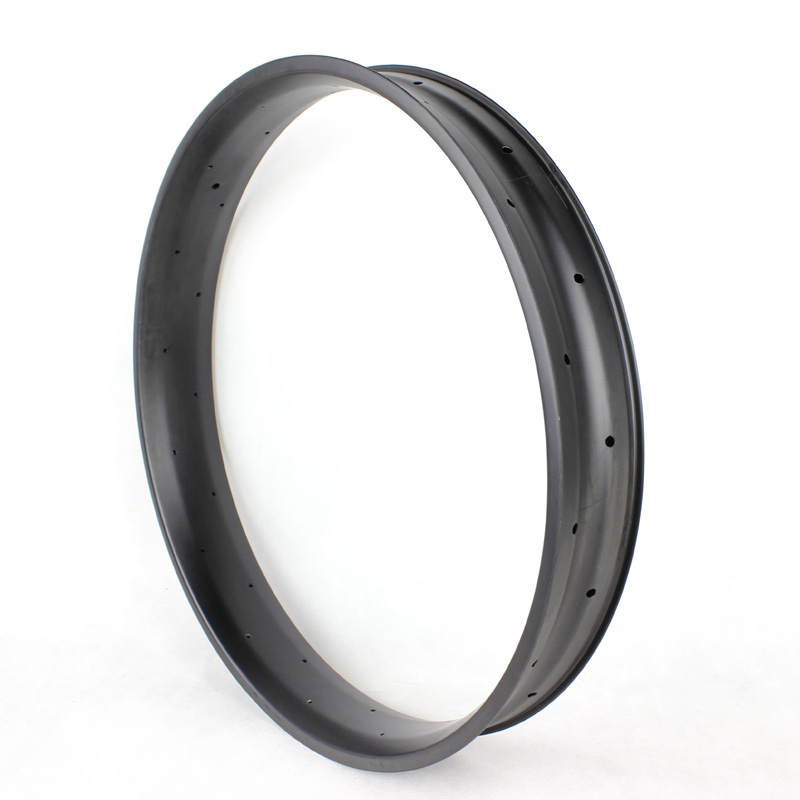

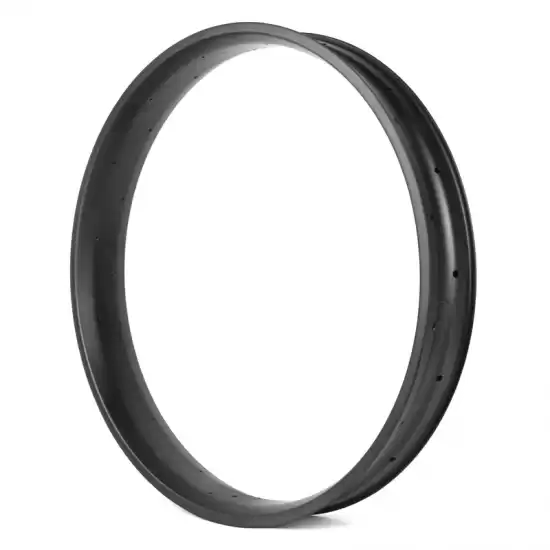

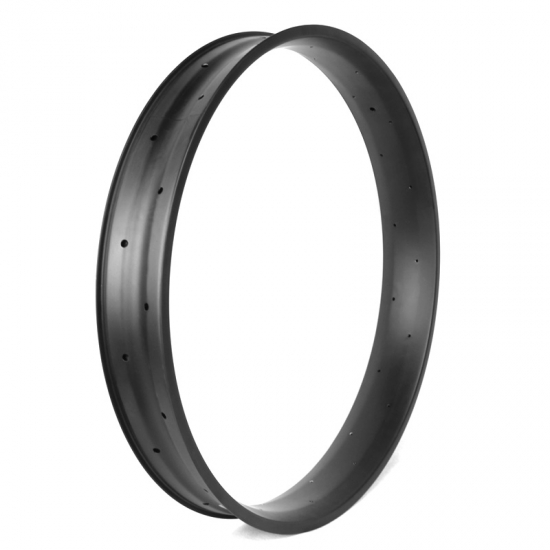

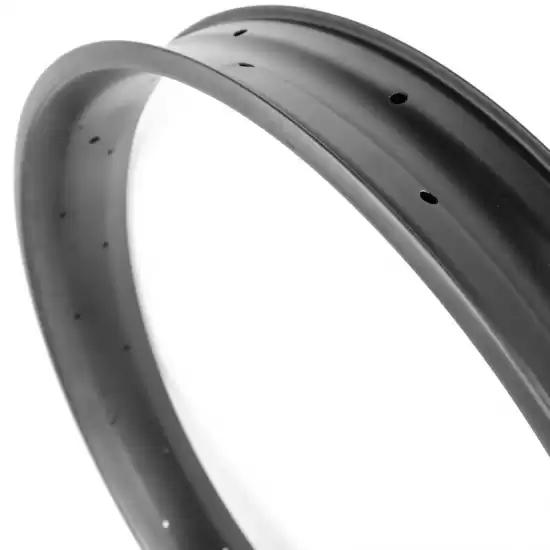

26er Fat Bike Carbon Rim 65/85/90mm Wide Snow Bike Carbon Rims
Features:
- Hookless design, with thicker rim bead for better strength..
- Double wall design, for better strength and stiffness.
- Tubeless ready.
- Great strength but still light.
- Different width optional (65/85/90mm).
| 26er Fat Bike/Snow Bike Carbon Rim 65/85/90mm Width |
| Model |
FAT26-65S |
FAT26-85S |
FAT26-90S |
| Cross Section |
 |
 |
 |
| Sectional Drawing |
 |
 |
 |
| Width |
65mm |
85mm |
90mm |
| Weight |
480±15g |
620±15g |
650±15g |
| ERD |
547mm |
543mm |
498mm |
| Max Weight Limit |
120kg/265lb |
120kg/265lb |
120kg/265lb |
| Carbon Weave |
UD/3K/12K |
UD/3K/12K |
UD/3K/12K |
| Max Tire Pressure |
25psi/1.7bar |
25psi/1.7bar |
25psi/1.7bar |
| Tire Size Recommended |
26*3.5''-4.9'' |
26*4.0''-4.9'' |
26*4.0''-4.9'' |
| Use Recommended |
fat bike/snow bike |
fat bike/snow bike |
fat bike/snow bike |
