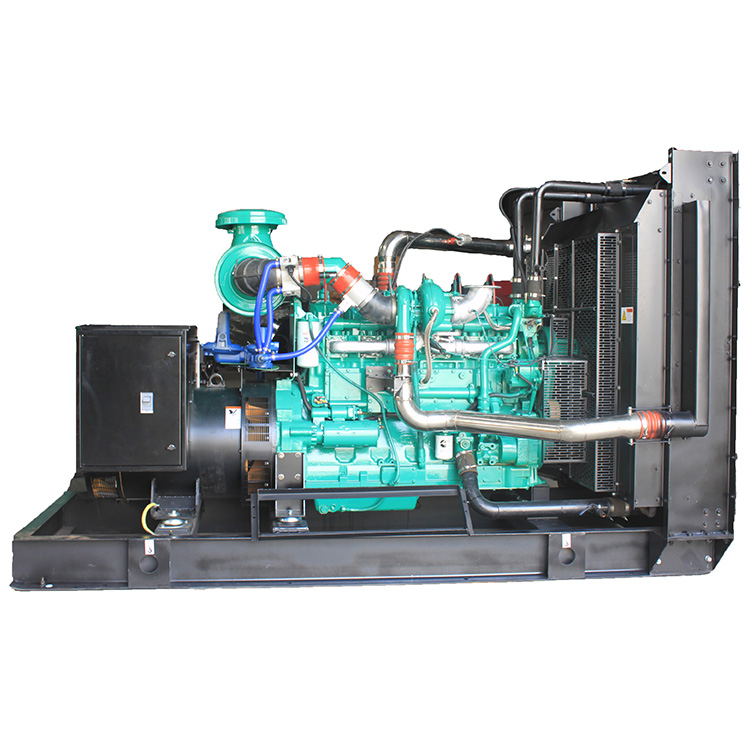

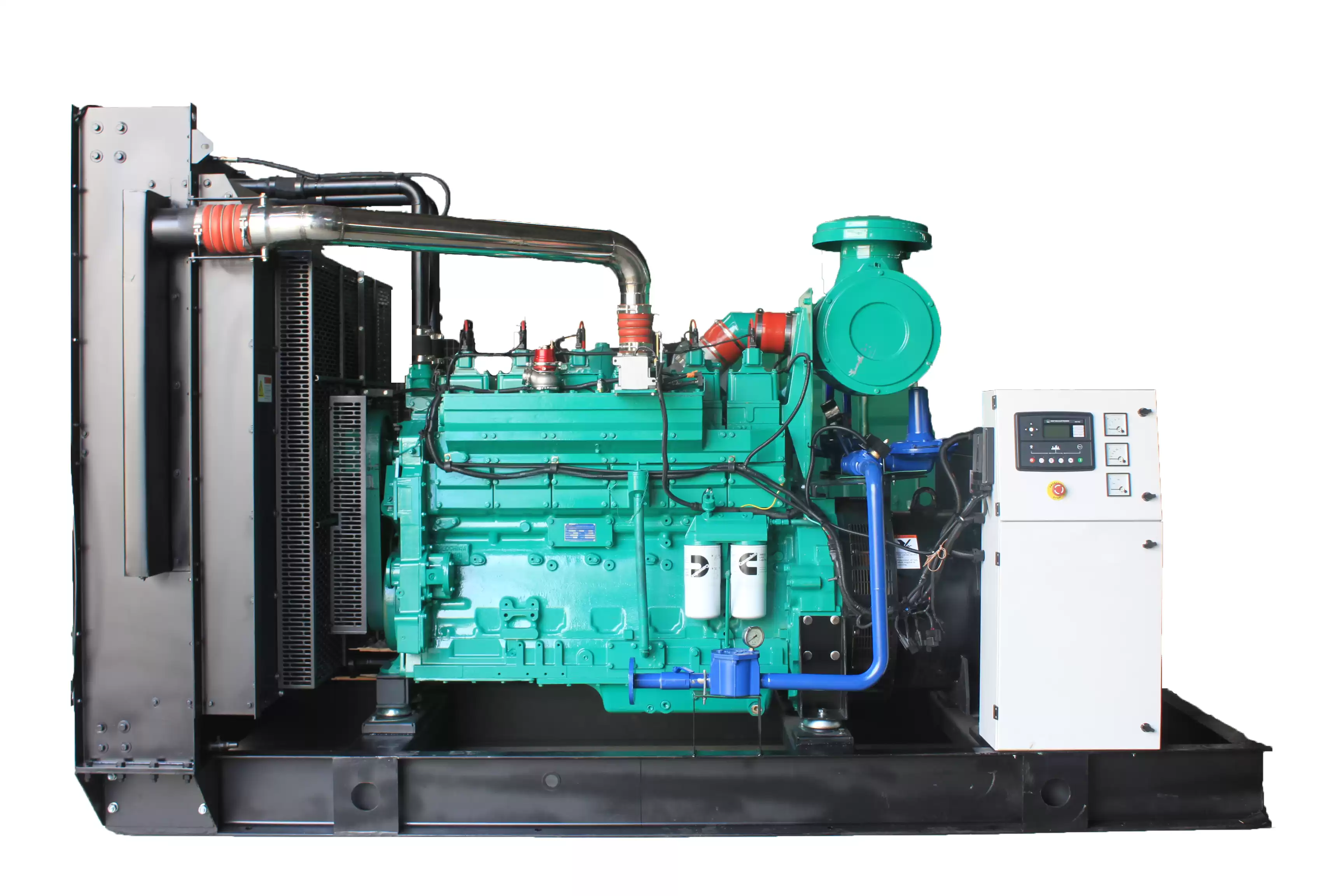

Cummins Engine Powered Gas Genset

Cummins oil engine modified gas genset which is a late-model genset, developed to adapt the world enviromental protection and new market requirement. The power adopts modified DCEC and CCEC oil engine from 25kw to 500kw with ultra-high cost performance.

Cummins oil engine modified gas genset has the following features:


♦ Most parts preserve oil engine general model besides gas genset, which is easy to maintain, reduce the delivery time and increase the compatibility.

 ♦There are multiple ignition system and air intake hybrid control system for options, which can option according to the requirement together with high flexibility.

 ♦ The Gas dynamic performance structure parts are similar to other original brands, of which the modified model power all has passed the experiment, and the power is almost consistent with oil engine.

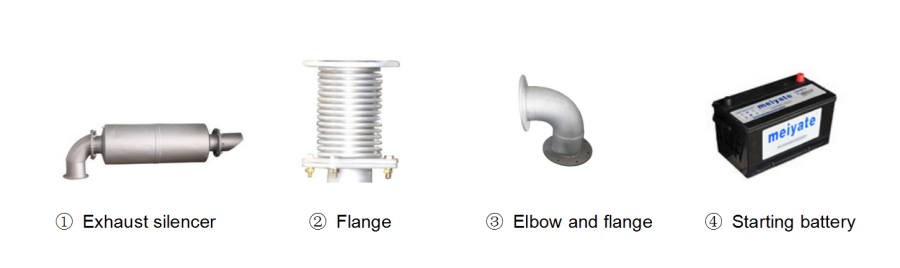

Standard Supply Scope

Exhaust Silencer, Flange, Elbow and Flange, Starting Battery

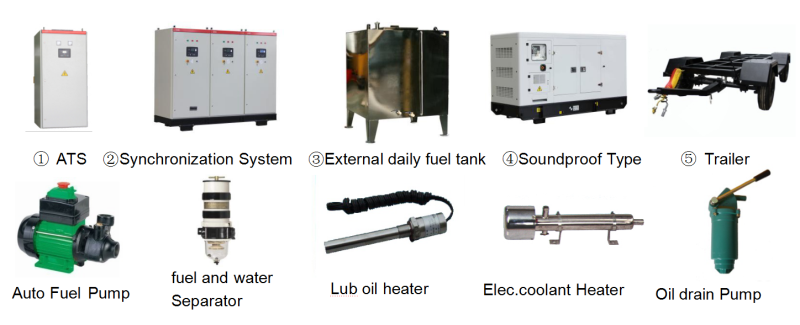

Optional Supply Scope

ATS, Synchronize System, Daily fuel tank, Soundproof canopy, Trailer, Auto Fuel Pump, Fuel and Water Separator, Lub oil heater, Elec .coolant heater, Oil drain Pump

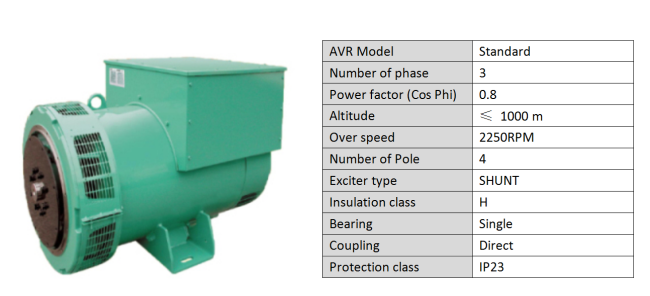

Alternator Technical Data

Alternator adopts brushless synchronization alternator of world famous brand, based on a variety of operating voltage requirements, optimizing winding design and eliminating effectively the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG (optional) in with superior performance in generating Non-liner loads.

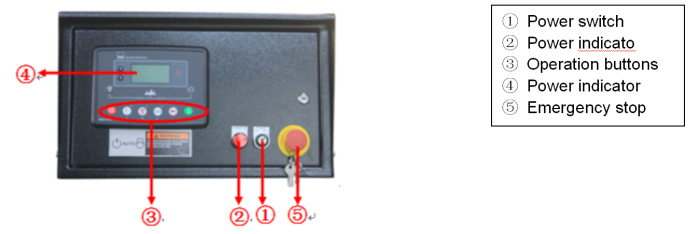

Control Panel

We can supply UK Deepsea, Czech Comap, China Smartgen with below features:

♦ Protection: Automatic start/stop, load transfer and alarming of generator
♦ CAN and magnetic pick-up versions
♦ PC and front panel configurable
♦ 6 digital inputs, 4 analogue inputs, 6 outputs
♦ 3 phase generator and mains voltage monitoring
♦ Advanced metering capability
♦ Test button

♦ Power switch for city and power generation unit
♦ Reasonable structure and key layout
♦ Supports 6 languages display (Chinese, English, France, Thailand, Turkey, Arabia)
♦ Can simultaneously detect a variety of engine parameters
♦ Modules can be configured according to customer needs
♦ IP65 protection class (silent type)

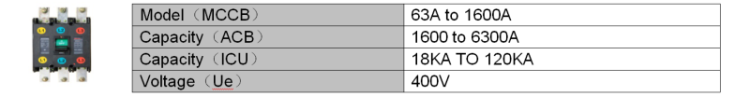

Circuit Breaker Specification

Starting Battery Specification

Our Sales Promise

★ Products and services comply with ISO8528 and GB/T2820 manufacturing standards.

★ In accordance with ISO9001 and ISO14001 management system implementation.
★ All products are certified by CE.
★ All products are passed strict factory testing to ensure the high quality of product.
★ Strictly according to the product warranty terms.
★ High efficiency assembly line, ensure on-time delivery.
★ Professional, timely, thoughtful, enthusiastic service quality.
★ Preferential supply of pure original factory.
★ Regular and occasional technical training.
★ Customer service center provides the full year 365/24 hours service with rapid and effective response.
