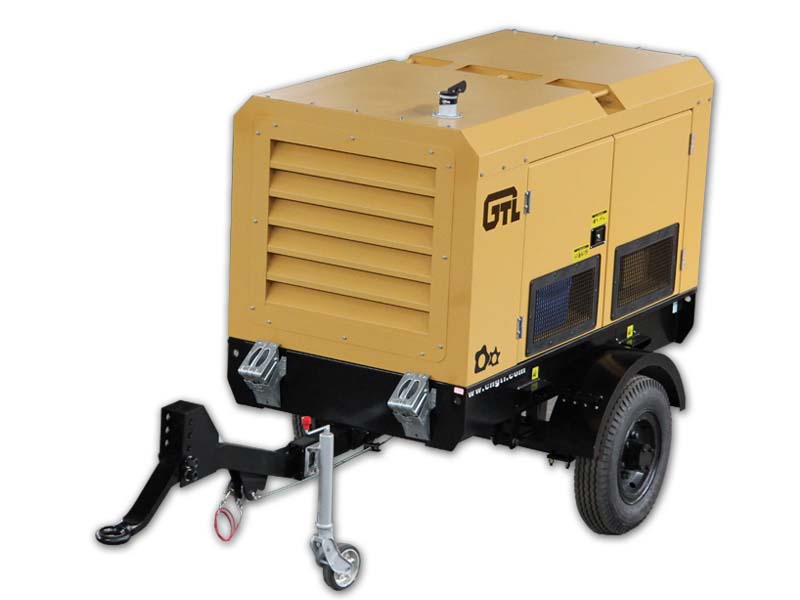

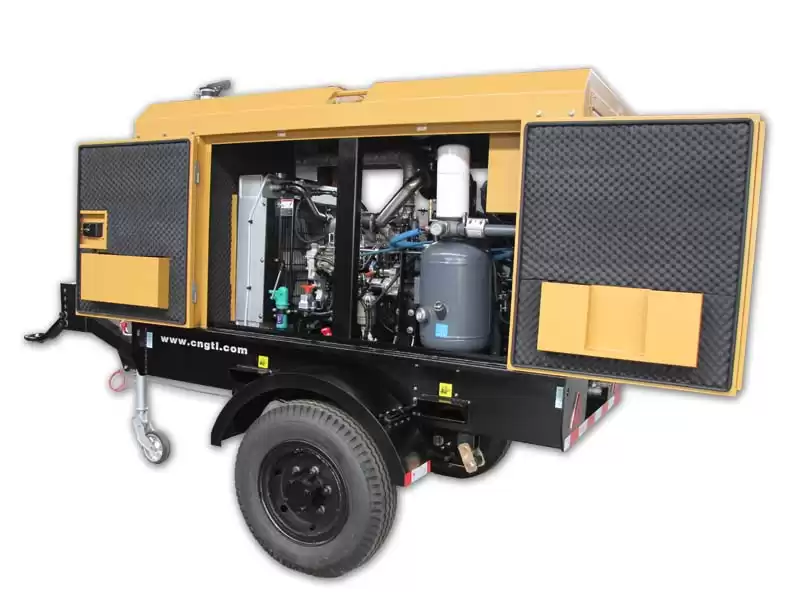

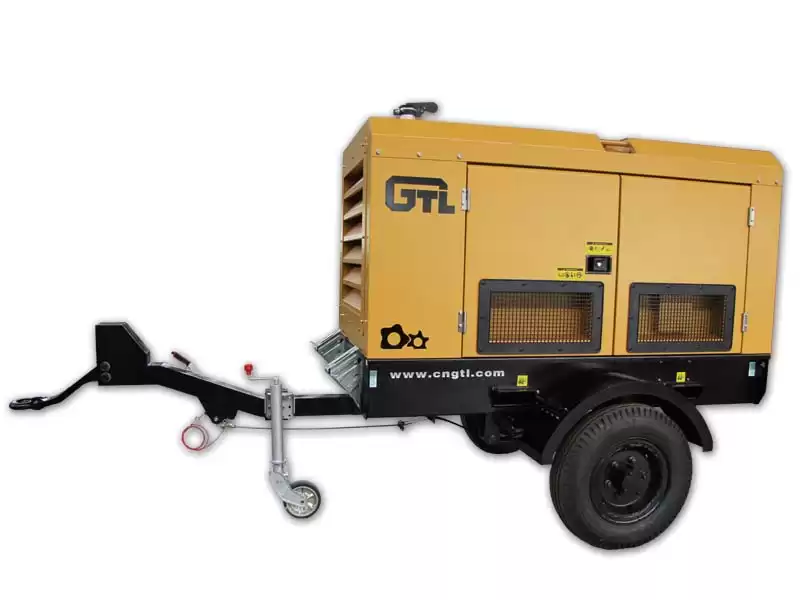

5m³ 7Bar Diesel Screw Trailer Air Compressor

GTL Screw Air Compressor Applications: mining, hydropower, oil and gas exploitation, borehole, shipyard, construction, chemical industry, quarry, sandblasting, clothing industry,pipeline pressure test, public works, etc.

Facebook Twitter Pinterest LinkedIn 分享



Name of  produce  Screw Air Compressor with trailer
Place of Origin: Xiamen, China
Type:  Screw
 Colour customer's color
 Warranty time 24 months or 2000 hours
 Air delivery m3/min 5
cu.ft/min 182
Discharge pressure  bar 7
psig 101.5
  Manufacture Model FOXAIR & 4JB1T
 Capacity of pressure reservoir (L) 20
 Cylinder Number 4
Displacement (L) 2.779
Rotation speed  Rated speed 2200
 Idle speed (r/min) 1400
 Rated power (KW [HP] 52
 Lubricating Oil ( L ) 6.5
 Fuel capacity ( L ) 90
 Voltage of battery 12V
Cooling method: Water Cooling
 Pipe size No. 3/4" *2pcs
 Dimension mm 2080*1020*1675
Weight

1565kg

GTL Air Compressor



GTL Screw Air Compressor

Heavy industry high pressure Screw Air Compressor
7 bar Diesel Portable Screw Air Compressor
Product Tags trailer Air Compressor          Screw Air Compressor          Diesel Screw Compressor          Diesel Air Compressor          trailer Diesel Air Compressor          trailer screw Compressor
