BA Power UKKMS Series Diesel Generator Sets, which is from UKKMS Engine Co., LTD, a company we registered in UK, It has a factory in China called Gongtai (Xiamen) New Engery Co., Ltd, which are authorized to produce UKKMS brand engine. The quality is very reliable, and the price is very competitive and cheaper a lot than Cummins. It has top sale in our domestic market, most of items are for governments' tender, and we won the orders finally. and It has high reputation and great recognized from our customers home and abroad.

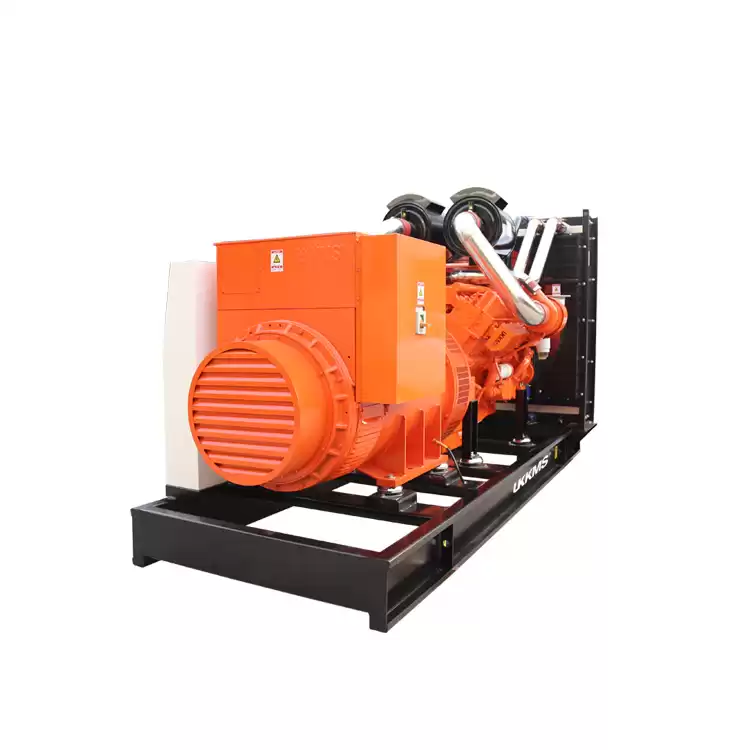

Open Type BA Power 600kw 750kva UKKMS diesel Generator Set on Show
Engine Brand & Model: UKKMS UK666-G6
Alternator Brand & Model: UKKMS BA400-600
BA Power Diesel Generator Set Standard Configuration:
- Brand new engine with starting motor, charging alternator, Filters, etc.
- High quality brushless AC alternator with AVR, single bearing, flange connection, IP23, H insulation class.
- Heavy duty steel channel base frame, with or without base fuel tank for option, 8hrs base fuel tank provided as the standard for gensets under 500kw. Or external fuel tank is available with extra cost.
- Heavy duty industrial type silencer with flexible pipe, exhaust elbow, etc.
- Strong Vibration damping supports between Engine/Alternator and base frame.
- Cooling Radiator with safety guard,engine driven fan mounted on skid.
- Auto mains failure control panel, Deepsea 6120 model as standard supply.
- High capacity Free Maintenance lead acid battery with connecting cables.
- 3P output manual circuit breaker as standard, 4P is optional.
- Standard tool kits, Electric Drawing, Test Report and complete operation & maintenance manuals to Engine/Alternator/control panel.
- Optional soundproof/Container canopy, ATS cabinet, remote control panel, synchronization panel, movable trailers, heat exchanger, remote horizontal water tank system, external fuel tank, etc.

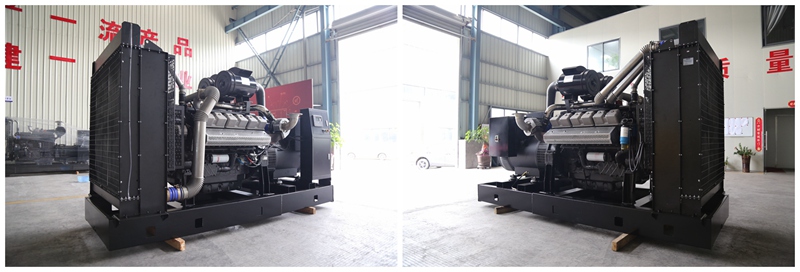

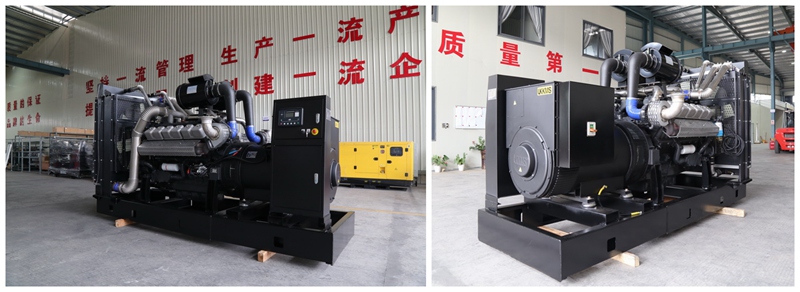

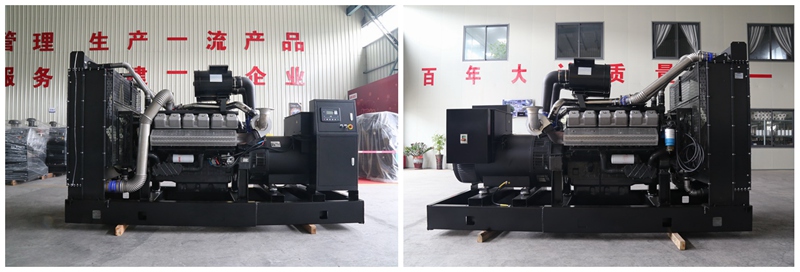

UKKMS Power Generator Set Open Genset 600kw 750kva in details show

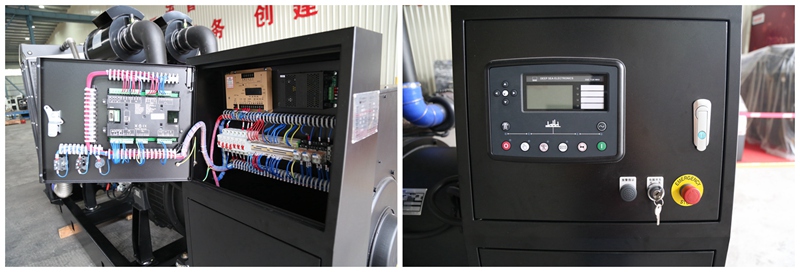

Genset Control system

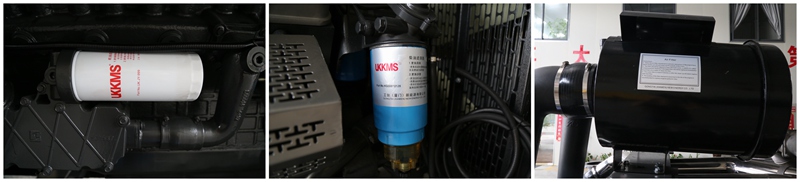

Generator Set Filters

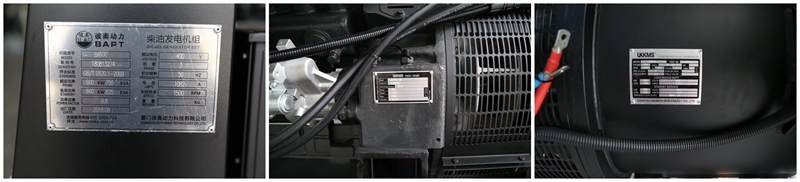

Genset/Engine/Alternator Nameplate

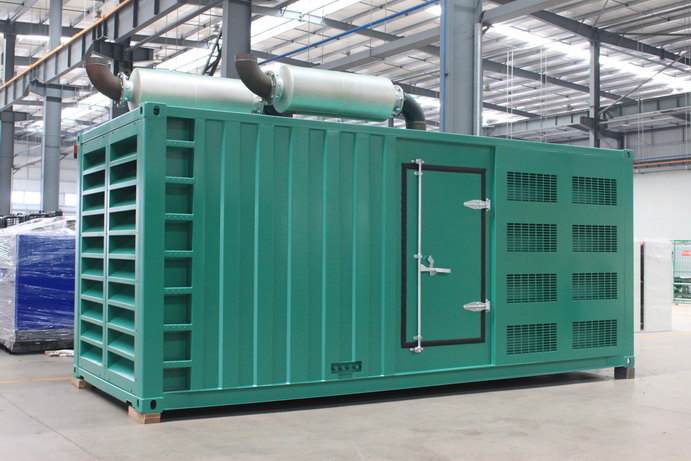

Imitate Container Type 600kw UKKMS Diesel Genset on Show
BA Power Silent Type Diesel Genset Performance Features:
● More than 2mm thick steel to make the canopy.
● High quality paint materials and strict powder paint processing.
● Large-scale impedance combined type silencer effectively reducing noise of the generator.
● Stainless steel door locks and hinges and 1800Crevolvable and disassemble door for easy maintenance.
● High quality soundproof and insulation materials could efficiently reduce noise.
● Transparent viewing window make the control panel clear at a glance.
● Lifting ear is mounted in the base frame for easy pull.
● Elegant appearance and reliable quality.
● From 10kva to 700kva we use normal silent canopy, more than 700kva we are using containerized canopy.
● ISO standard 20GP, 40GP and 40HQ sea container canopy for options.
● Standard sea container canopy is easier for shipping.
