750kva to 1250kva Genset Cummins Power System



Brand: Chongqing Cummins

Order(MOQ): 1

Shipping Port: Xiamen, China

Product Origin: China



600kw to 1000kw big power generator sets adopts cummins geradores diesel coupled with leroy-somer, stamford, marathon and so on diesel generator sets as the standard supply, There are open and container silent type for options, 50hz and 60hz are available.





Cummins big power generator sets





BA Power Cummins Series Generating sets





Engine Data:

Manufacturer
Chongqing Cummins Engine Co., Ltd.
Model
KTA38-G2
Air intake way
Turbochanger& Aftercooler
Type
4 stroke cycle , Verticle In-line, 6-cylinder
Bore * Stroke
159*159 mm
Displacement

38L



Alternator Specifications

Manufacturer
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Model
LSA49.1M65
Output power
600KW
Number of phase
3
Power factor (Cos Phi)
0.8
Altitude
≤ 1000 m
Overspeed
2250RPM

Main Features:

1) Assembled by Cummins diesel engine and Leroy Somer alternator.

2) Three filters as standard, fuel and water separator as optional.

3) Radiator and fan with safety guard.

4) Single bearing alternator IP 23, Insulation Class H.

5) Heavy duty steel as base frame and 8hrs operation base fuel tank.

6)Automatic control panel and 3 poles circuit breaker, internal cable.

7)Optional soundproof canopy, ATS, synchronization panel, movable trailers.

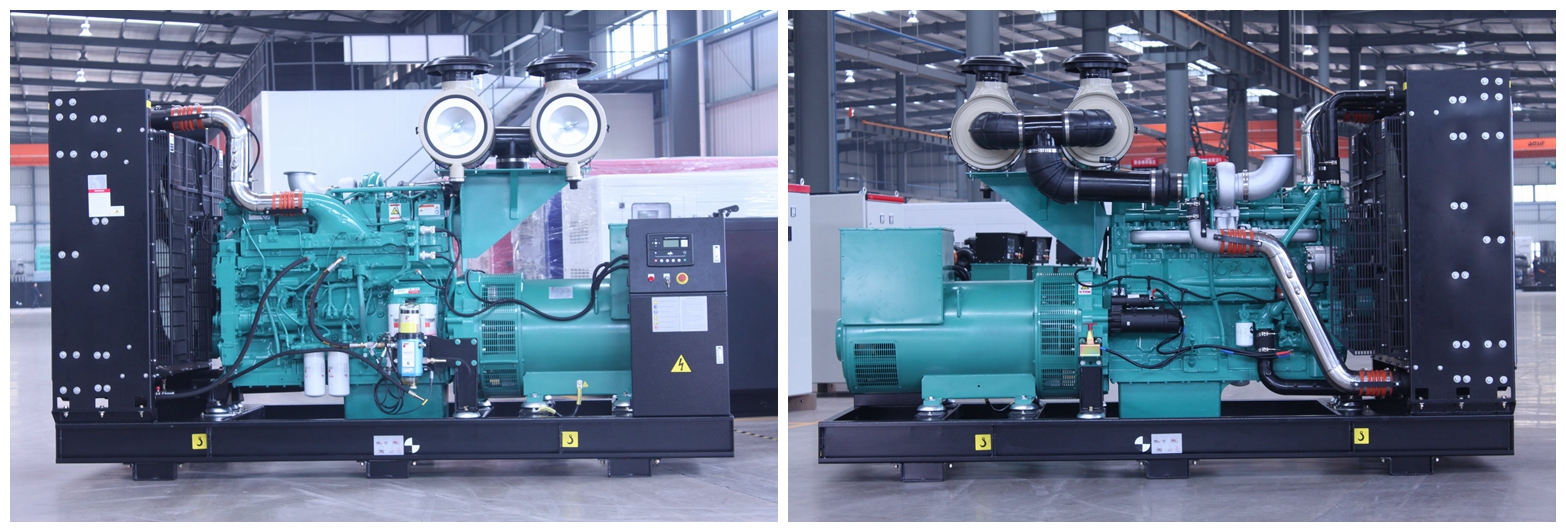

Heavy duty Cummins power genset

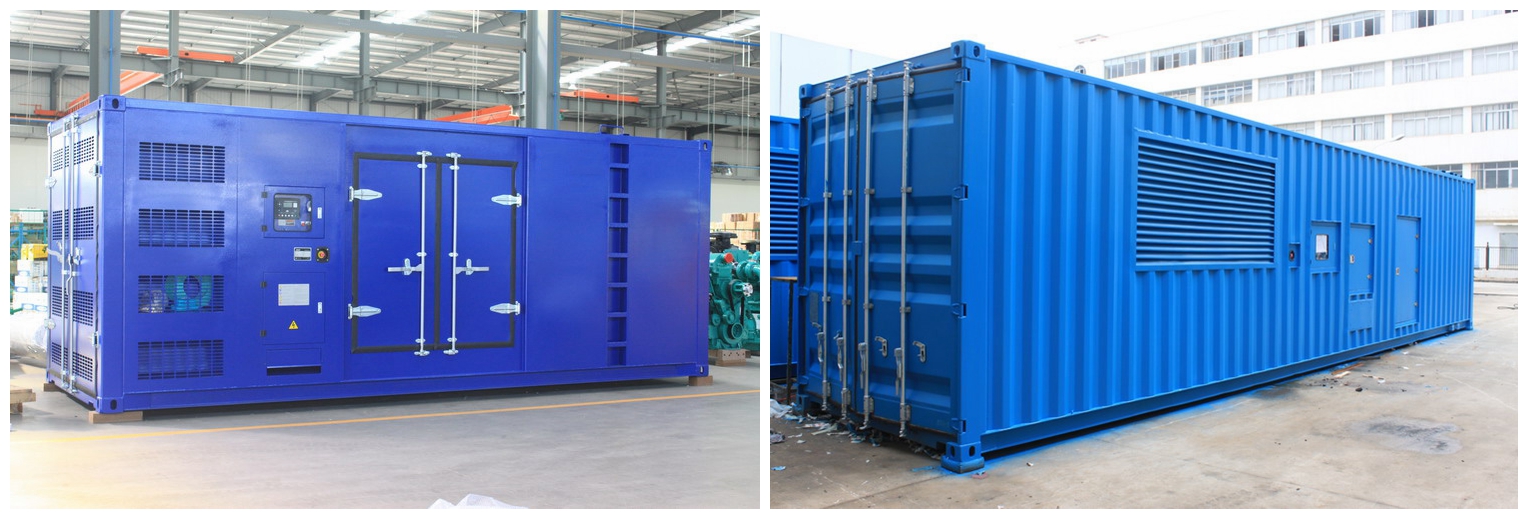

Cummins genset with container silent canopy

★Guarantee to respond customers' requirement within 24 hours and solve clients' problem within the shortest period of time.
★On the basis of in-house service network, service resources from global partners could be shared to ensure international warranty service.
★Established spare parts management system and with automatic storage to satisfy clients' demand on spare parts.
★Services for remote monitor, diagnosis and maintenance.
★According to customer's requirement, we are able to establish service center at project site to provide service around the clock.
