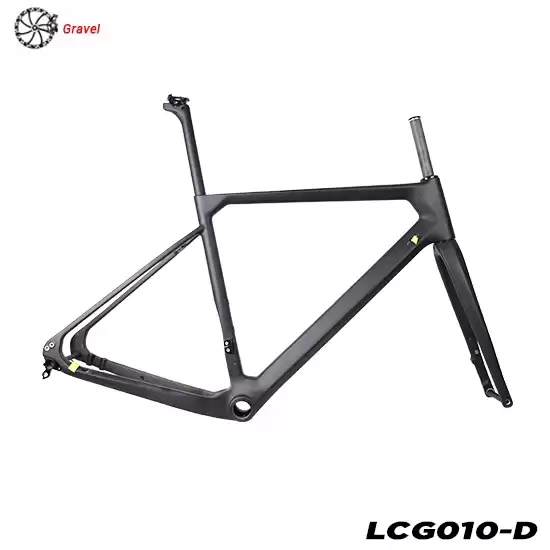

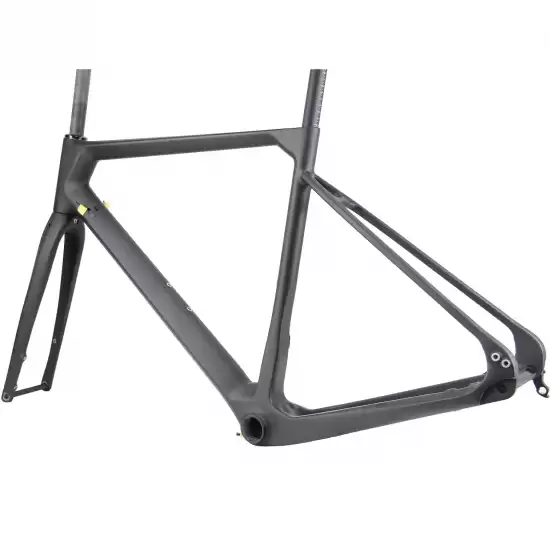

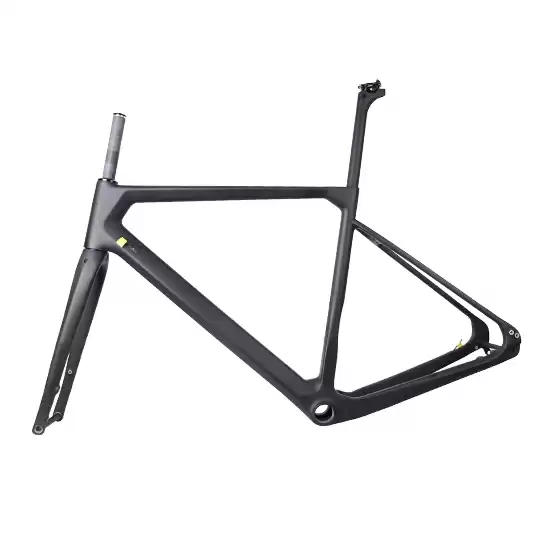

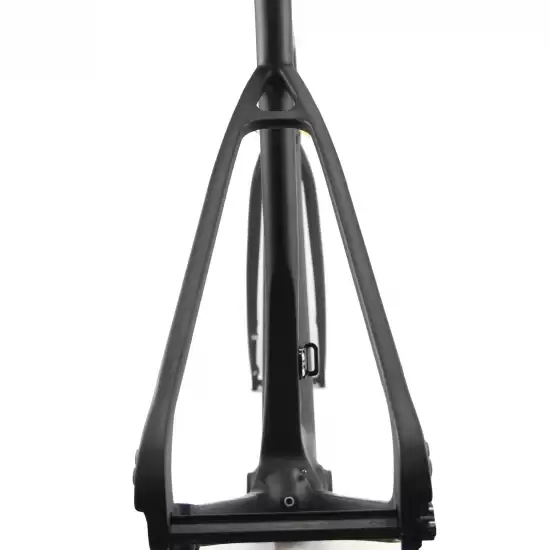

Lightcarbon addict best carbon gravel bike frame
|
Frame
|
Lightcarbon addict best carbon gravel bike frame
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
52, 54, 56, 58 (cm)
|
|
Fork
|
Lightcarbon specify carbon fork
|
|
Headtube
|
Tapered 1 1/8''- 1 1/2'' head tube(upper 42mm lower 52mm)
|
|
Weight
|
Frame 1060g/fork 460g/seat post 183g/Medium size
|
|
Seatpost
|
27.2mm diameter round
|
|
Bottom bracket
|
BB86
|
|
Max tire clearance
|
700*41C or 650B*1.9''
|
| Max Chainring |
Max 54T- Small 34T |
|
Brake mount type
|
Shimano flat mount disc brake (disc brake bolts length 43.2mm)
|
| Dropout |
Front 12*100mm TA Rear 12*142mm TA |
| Groupset |
Machanical and Di2 compatible |
| Test Standard |
ISO4210 |
| Warranty |
2 years |
Recommended Shimano Gravel Groupset GRX
LightCarbon gravel frameset geometry and size chart
| |
520 |
540 |
560 |
580 |
| SEATPOST INSERT LENGTH |
200mm |
220mm |
240mm |
260mm |
| REACH |
377.9mm |
382.4mm |
390.2mm |
385.1mm |
| TOP TUBE LENGTH, HORIZONTAL |
525mm |
545mm |
565mm |
575mm |
| STACK |
530.3mm |
549.1mm |
571.8mm |
602.3mm |
| WHEELBASE |
1018.2mm |
1025.5mm |
1031mm |
1034mm |
| CHAINSTAY LENGTH |
430mm |
430mm |
430mm |
430mm |
| FRONT CENTER |
598.1mm |
604.7mm |
610.3mm |
613.3mm |
| BB DROP |
70mm |
68mm |
68mm |
68mm |
| BB HEIGHT |
280mm |
282mm |
282mm |
282mm |
| SEAT TUBE ANGLE |
74.5° |
73.5° |
73° |
72.5° |
| HEAD TUBE ANGLE |
70.5° |
71° |
72° |
72.5° |
| SEAT TUBE LENGTH |
460mm |
480mm |
500mm |
520mm |
| HEAD TUBE LENGTH |
110mm |
130mm |
150mm |
180mm |
| BIKE STANDOVER HEIGHT(700C*41C) |
757.5mm |
777.6mm |
796.3mm |
817.2mm |
| FORK RAKE/OFFSET |
50mm |
50mm |
50mm |
50mm |
| FORK LENGTH, FULL |
395mm |
395mm |
395mm |
395mm |
| TRAIL |
71mm |
68mm |
61mm |
58mm |
