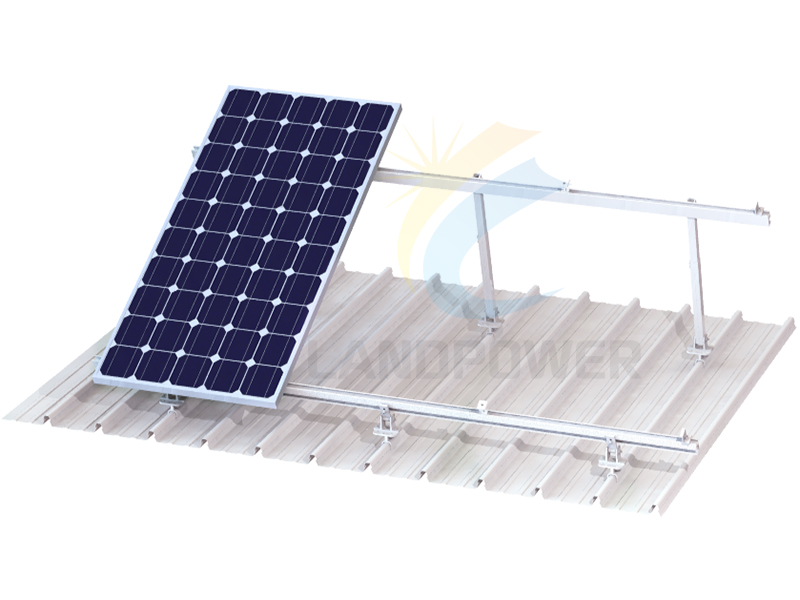

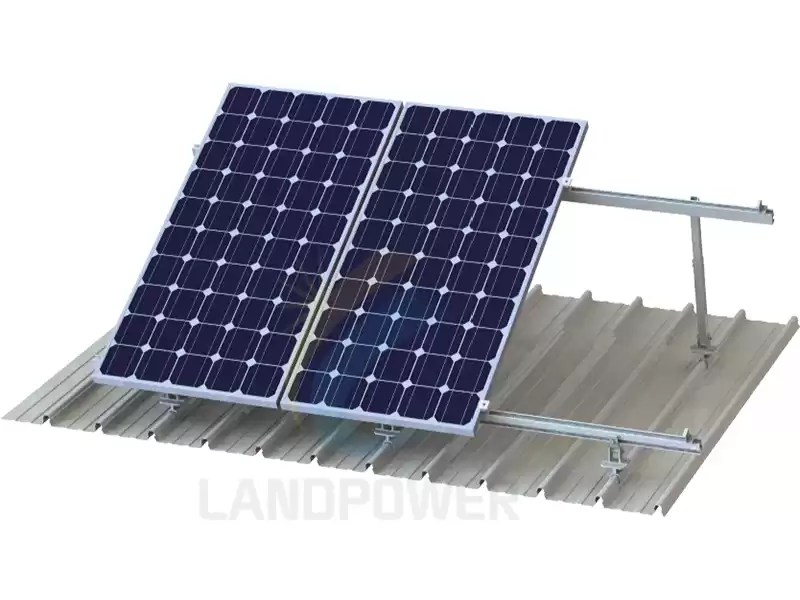

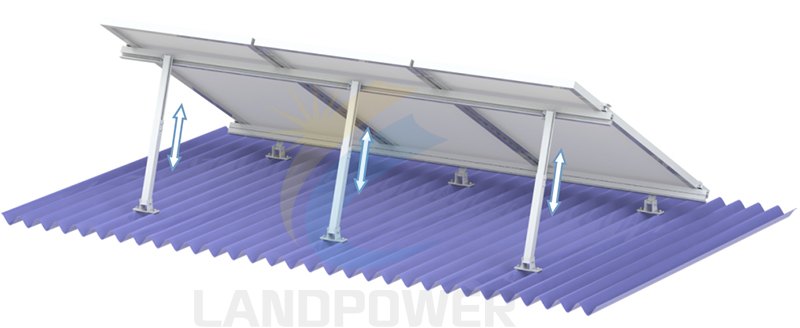

Tilt Adjustable Roof Solar Mounting Mounting is designed to adjust tilt angle according to different seasons, the angle adjustable ranges are 10-15 degree, and 15-30 degree and 30-60 degree. It is a simple tilt adjustable mounting systems,suitable for corrugated roof, trapezoidal roof and concrete flat roof. Few pre-assembled parts,easy to be installed on roof, it is cost-effective mounting solutions.

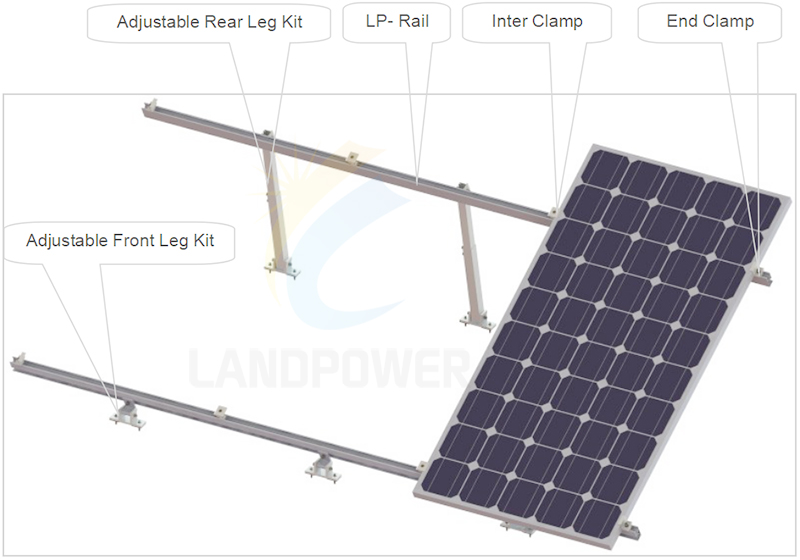

System Overview
All components of the system are listed below. The version and quantities of the parts can vary, depending of Type of roof,type of module, no. of module,and installation site specifics.
Main Components:
|
LP standard rail
ü length can be customized
ü 6005-T5 extruded aluminum
ü 2560,3400mm for 808-826mm module
ü 3200,4200mm for 990-1020mm module
|
|
|
Rail Splice Kit
ü Fastened with a 6mm Allen key
|
|
|
Mid (Inter) Clamp Kit for Framed Modules
üFit between two panels
üFastened with a 6mm Allen key
üStandard pre-assembly for the usual panels with
thickness 30~35, 35~40, 45~50, 57~60mm
|
|
|
End Clamp Kit for Framed Modules
üHold the edge of each end panels
üFastened with a 6mm Allen key
ü Standard pre-assembly for the usual panels with thickness 30, 35, 40, 46, 50, 57mm
|
|
|
Adjustable Front Leg
üPre-assembly
üInclude 2pcs st6.3x80 wood screws
|
|
|

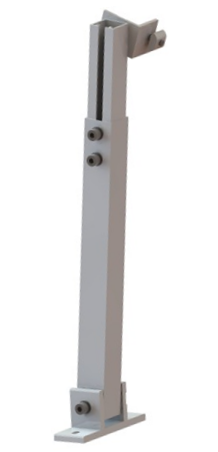

Adjustable Rear Leg 10/15
üPre-assembly
üAdjust angle from 10 deg to 15
üInclude 2pcs st6.3x80 wood screws
|
|
|
Adjustable Rear Leg 15/30
üPre-assembly
ü Adjust angle from 15 deg to 30
ü Include 2pcs st6.3x80 wood screws
|
|
Adjustable Rear Leg 30/60
üPre-assembly
üAdjust angle from 30 deg to 60
üInclude 2pcs st6.3x80 wood screws
|

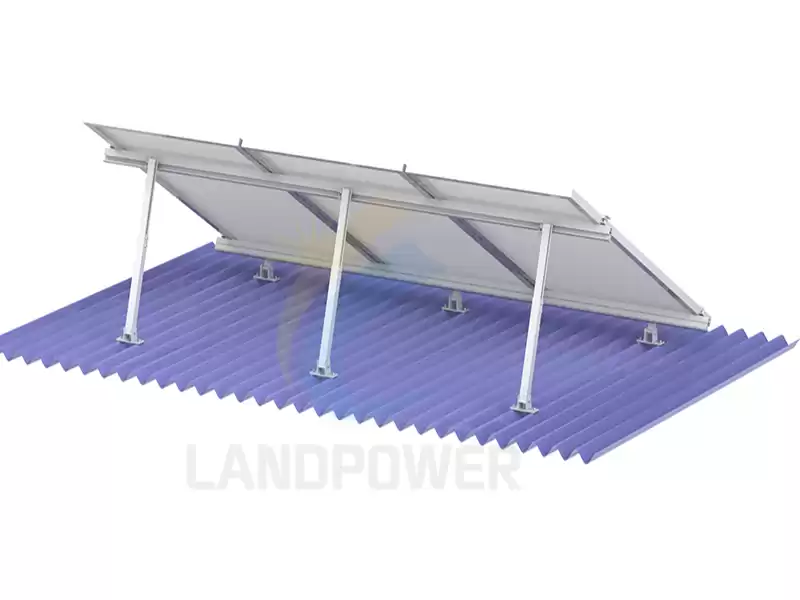

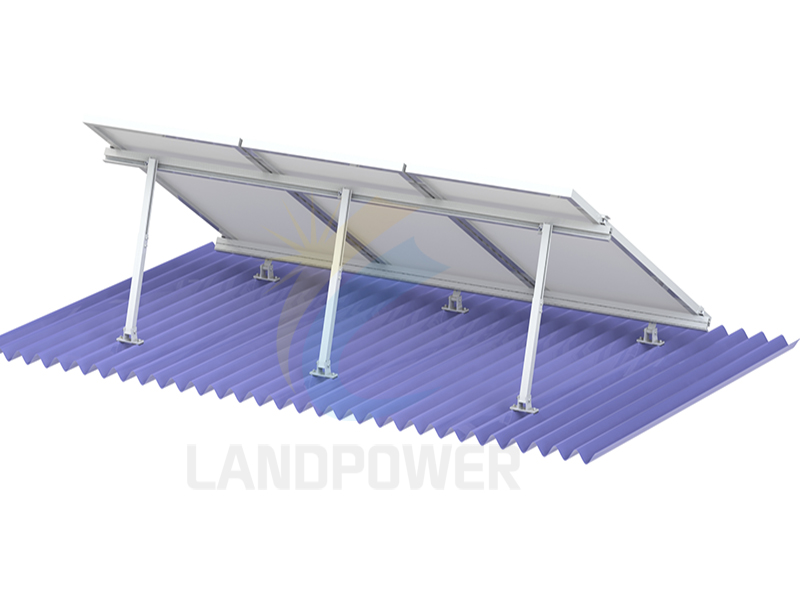

This Angle adustable roof mounting is widely use on both residential and commercial corrugated metal roof, corrugated roof, trapezoidal metal roof,some time need to use with roof attachments, it is flexible on installtion. please click here for one of installatons: Angle Adustable Foof Mounting
