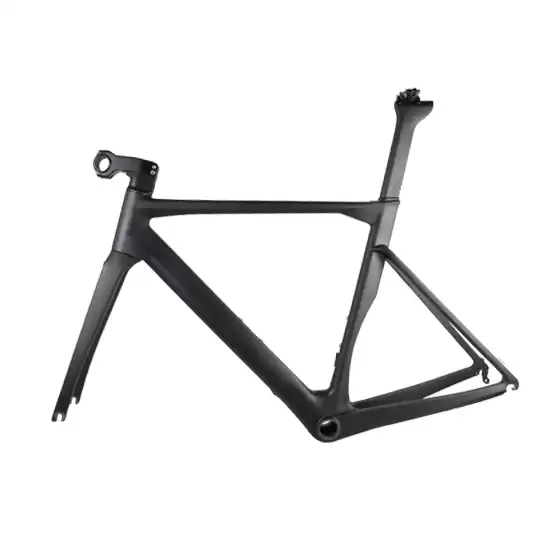

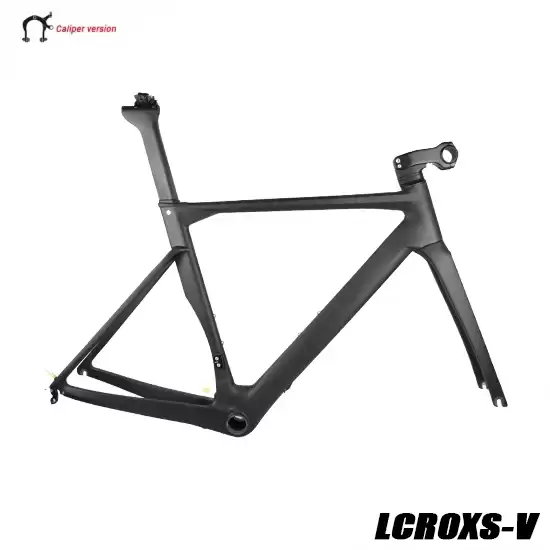

All New Road Caliper Brake frame design with integrated stem
*If you install SRAM groupset, only compatible with electric shifting derailleur, both compatible with SHIMANO mechanical and Di2 shifting system.
|
Frame
|
All New Road Caliper Brake frame design with integrated stem
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
48, 51, 54, 56, 59
|
|
Fork
|
Lightcarbon specify aero carbon fork
|
| Stem |
90/100/110/120mm compatible with HBR05 handlebar |
|
Headtube
|
Straight 1 1/2" head tube
|
|
Weight
|
1160g/54cm
|
|
Seatpost length
|
specify setback adjustable seatpost
|
|
Bottom bracket
|
PressFit BB86
|
|
Max tire clearance
|
700*28c
|
|
Brake type
|
Caliper brake (direct mount)
|
| Groupset |
Recommended install electronic shifting groupset |
| Handlebar&stem |
Compatible with handlebar HBR07 Only |
| Test Standard |
ISO4210 |
| Warranty |
2 years |
New Integrated Caliper Brake Road Frame Geometry
| |
480 |
510 |
540 |
560 |
590 |
| SEATPOST INSERT LENGTH |
170mm |
200mm |
230mm |
250mm |
270mm |
| REACH |
371.1mm |
379.1mm |
391.3mm |
396.9mm |
404.9mm |
| TOP TUBE LENGTH, HORIZONTAL |
520mm |
535mm |
550mm |
560mm |
575mm |
| STACK |
506.1mm |
529.8mm |
536.3mm |
550.6mm |
574.4mm |
| WHEELBASE |
966mm |
981.9mm |
992.6mm |
1002.9mm |
1018.8mm |
| CHAINSTAY LENGTH |
408mm |
408mm |
408mm |
408mm |
408mm |
| FRONT CENTER |
568.4mm |
583.8mm |
594.5mm |
604.6mm |
620.2mm |
| BB DROP |
69mm |
69mm |
69mm |
69mm |
69mm |
| BB HEIGHT |
275.1mm |
275.1mm |
275.1mm |
275.1mm |
275.1mm |
| SEAT TUBE ANGLE |
73.5° |
73.5° |
73.5° |
73.5° |
73.5° |
| HEAD TUBE ANGLE |
71.5° |
71.5° |
72° |
72° |
72° |
| SEAT TUBE LENGTH |
480mm |
510mm |
540mm |
560mm |
590mm |
| HEAD TUBE LENGTH |
115mm |
130mm |
135mm |
150mm |
175mm |
| BIKE STANDOVER HEIGHT(700C*28C) |
755.6mm |
782.5mm |
795.4mm |
812.2mm |
836.5mm |
| FORK RAKE/OFFSET |
45mm |
45mm |
45mm |
45mm |
45mm |
| FORK LENGTH, FULL |
371mm |
371mm |
371mm |
371mm |
371mm |
| TRAIL |
64.5mm |
64.5mm |
64.5mm |
64.5mm |
64.5mm |

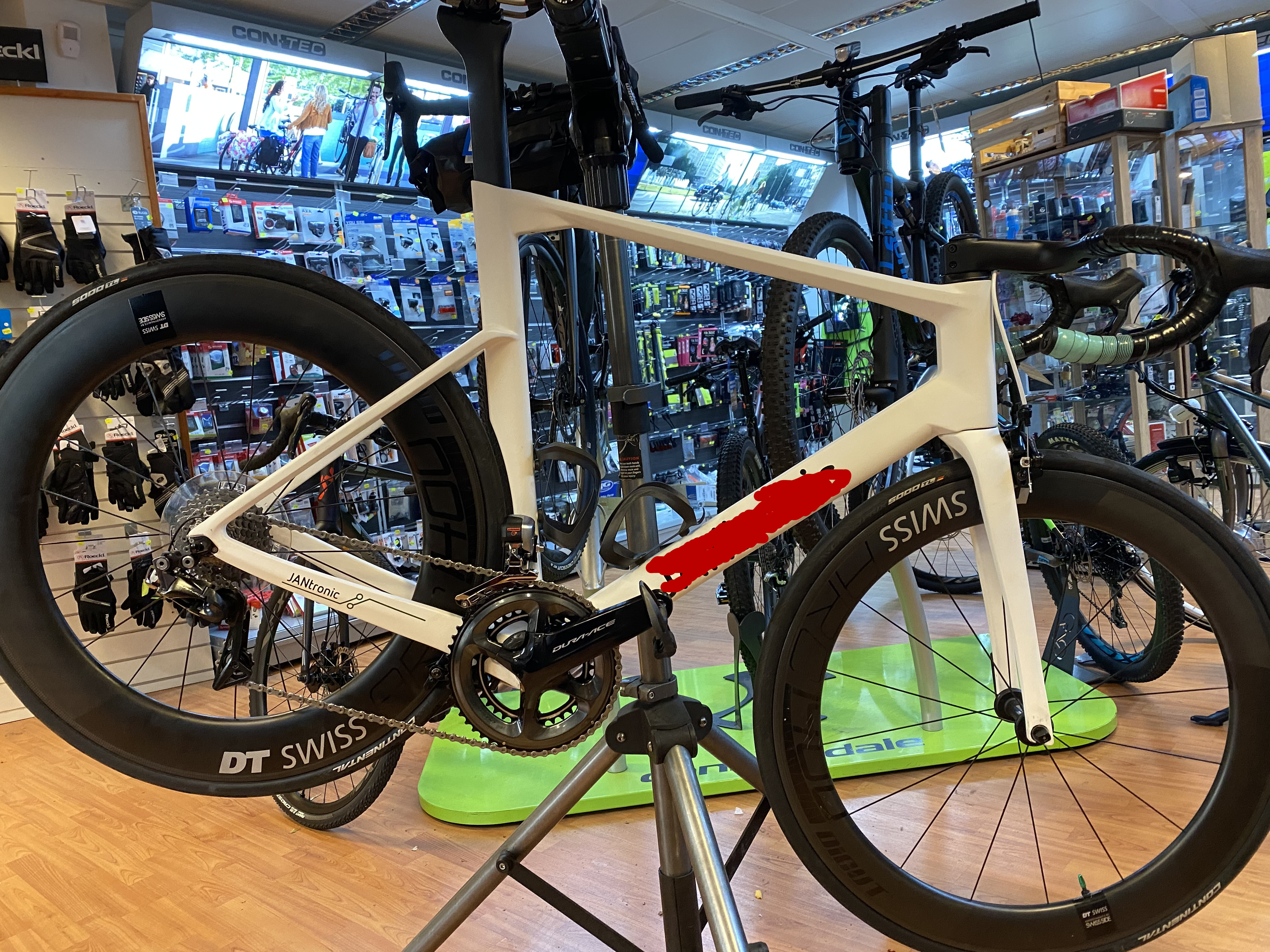

Complete bike show
