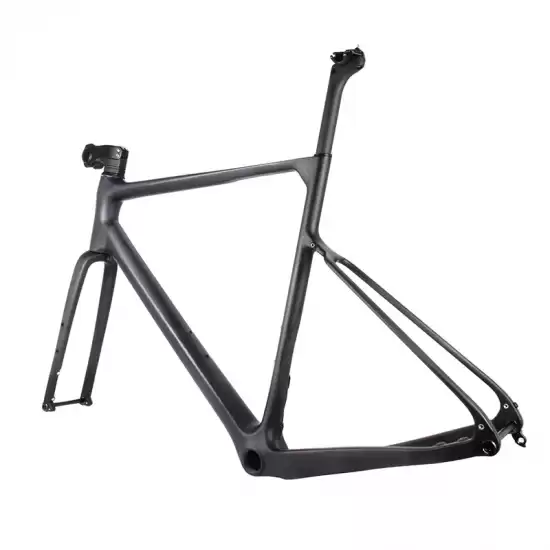

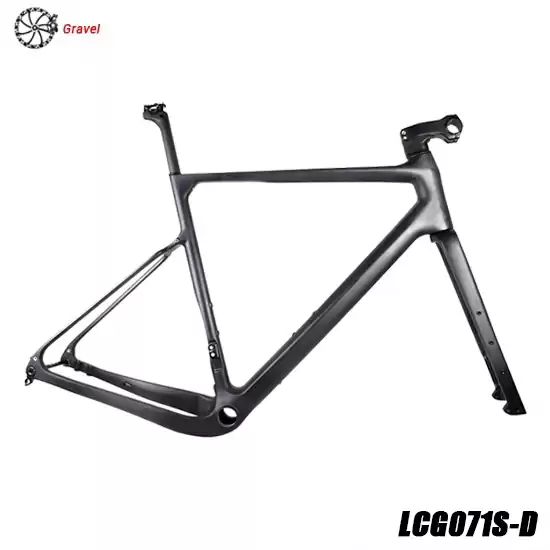

2021 New Carbon Gravel Frameset with Integrated Stem System
Frame
|
2021 New Carbon Gravel Frameset with Integrated Stem System
|
Material
|
High modulus Toray T700 carbon fiber
|
Size
|
49, 52, 55, 58(cm)
|

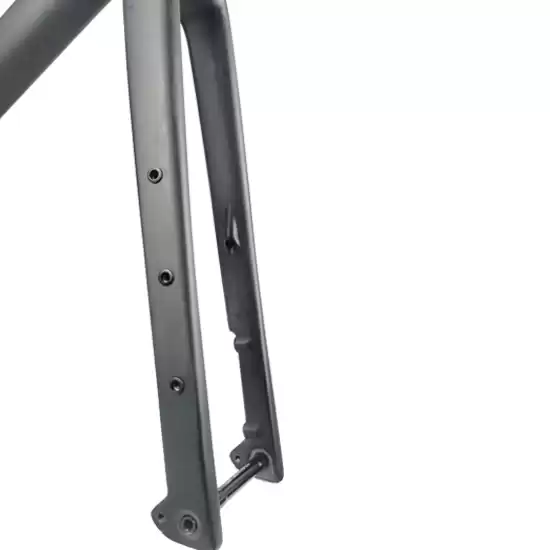

Fork
|
Lightcarbon specify carbon fork
|
Stem size |
90/100/110/120mm |
Headtube
|
Straight 1 1/2'' head tube(upper 52mm lower 52mm)
|
Weight
|
Frame 980+/-40g/fork 430+/-15g/seat post 190+/-10g/stem (size 52)
|
Seatpost
|
27.2mm*400mm (with 25mm offset)
|

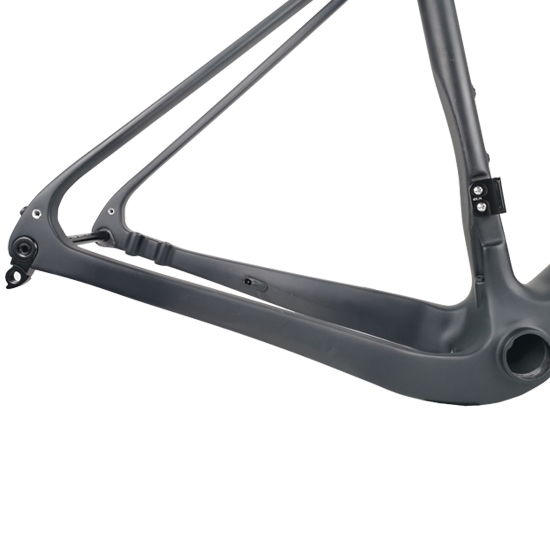

Bottom bracket
|
Press-Fit BB86
|
Max tire clearance
|
700*53C or 650B*2.1''
|
Max Chainring |
Max 53T- Small 39T |
Brake mount type
|
Shimano flat mount disc brake (disc brake bolts length 38.2mm)
|

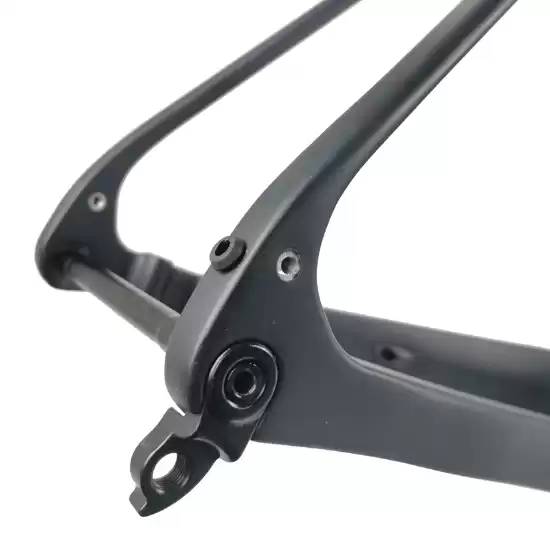

Dropout |
Front 12*100mm TA Rear 12*142mm TA |
Groupset |
Mechanical and Di2 compatible |
Test Standard |
ISO4210 |
Warranty |
2 years |
LightCarbon gravel frameset geometry and size chart
|
490 |
520 |
550 |
580 |
SEATPOST INSERT LENGTH |
180mm |
220mm |
250mm |
270mm |
REACH |
374.1mm |
377.5mm |
386mm |
397.1mm |
TOP TUBE LENGTH, HORIZONTAL |
535mm |
550mm |
575mm |
595mm |
STACK |
542.6mm |
563.4mm |
598.6mm |
627.1mm |
WHEELBASE |
1008.9mm |
1014.5mm |
1029.6mm |
1049.8mm |
CHAINSTAY LENGTH |
430mm |
430mm |
430mm |
430mm |
FRONT CENTER |
593.8mm |
599.4mm |
614.5mm |
634.5mm |
BB DROP |
70mm |
70mm |
70mm |
70mm |
BB HEIGHT |
285mm |
285mm |
285mm |
285mm |
SEAT TUBE ANGLE |
73.5° |
73° |
72.5° |
72.5° |
HEAD TUBE ANGLE |
71° |
71.5° |
72° |
72° |
SEAT TUBE LENGTH |
490mm |
520mm |
550mm |
580mm |
HEAD TUBE LENGTH |
120mm |
140mm |
175mm |
205mm |
BIKE STANDOVER HEIGHT(700C*53C) |
776.4mm |
793.4mm |
833.4mm |
863.9mm |
BIKE STANDOVER HEIGHT(650B*2.1") |
766.4mm |
783.4mm |
823.4mm |
853.9mm |
FORK RAKE/OFFSET |
50mm |
50mm |
50mm |
50mm |
FORK LENGTH, FULL |
397mm |
397mm |
397mm |
397mm |
TRAIL |
69.3mm |
66.1mm |
62.7mm |
62.7mm |
Technology we use on gravel frame production
Use the newest one-piece latex 3D mandrel and molding technology.
Such technology helps to optimize the orthodromic and strength of carbon fiber, and avoid wrinkle inside (wrinkle is a key factor that may cause crack)
Even using the same material, the strength is improved 30%.
One-piece 3D latex mandrel helps to make smooth inner side of frame.
To achieve same strength, tradition method requires thickness 1mm-1.2mm, while such new technology only requires 0.5mm-0.8mm thickness. Thus, we are able to make the frame about 15% lighter, given strength unchanged
