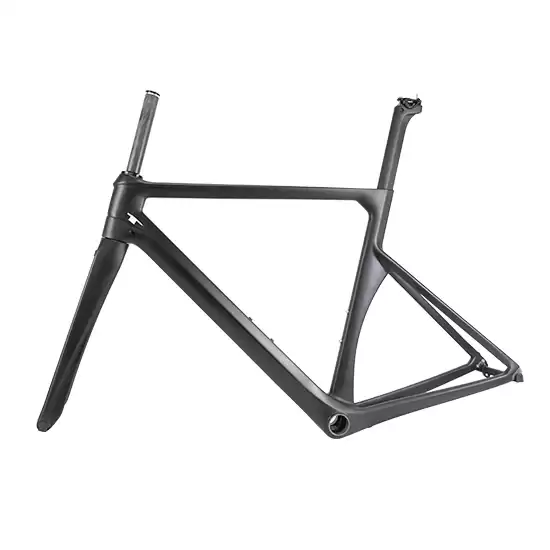

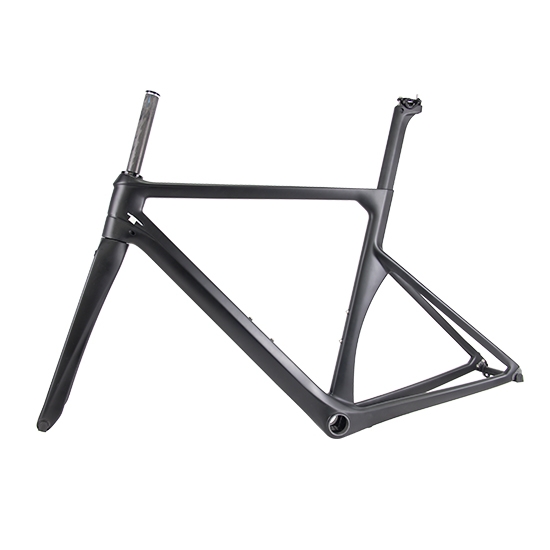

LightCarbon new road frame with direct mount brakes
|
Frame
|
LightCarbon new road frame with direct mount brakes
|
|
Material
|
High modulus Toray T700 carbon fiber
|
|
Size
|
51, 54, 57
|
|
Fork
|
Lightcarbon specify carbon fork
|
|
Headtube
|
Tapered 1 1/8-1 1/2'' head tube
|
|
Weight
|
Fork-370g/Seat post-180g/frame-1090g-54cm
|
|
Seatpost
|
aero seatpost
|
|
Bottom bracket
|
Press fit BB86
|
|
Max tire clearance
|
700*28c
|
|
Brake mount type
|
Direct mount/Rear brake install on chain stay
|
| Dropout |
Front 9*100mm |Rear 10*130mm QR |
| Groupset |
Mechanical and Di2 compatible |
| Test Standard |
ISO4210 |
| Warranty |
2 years |

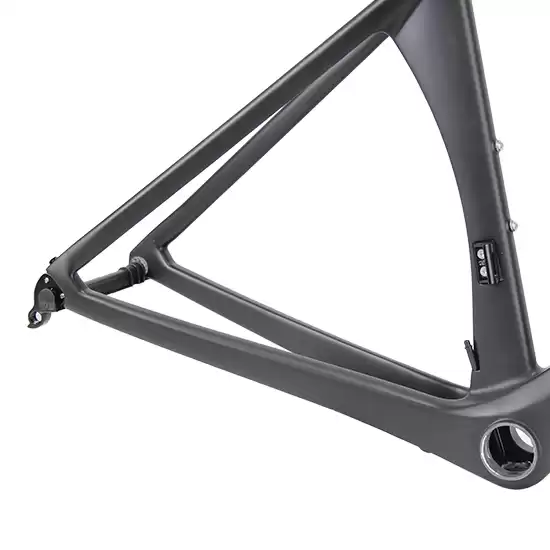

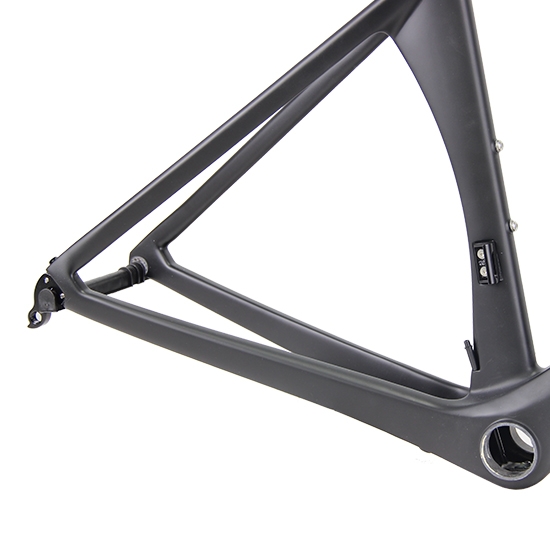

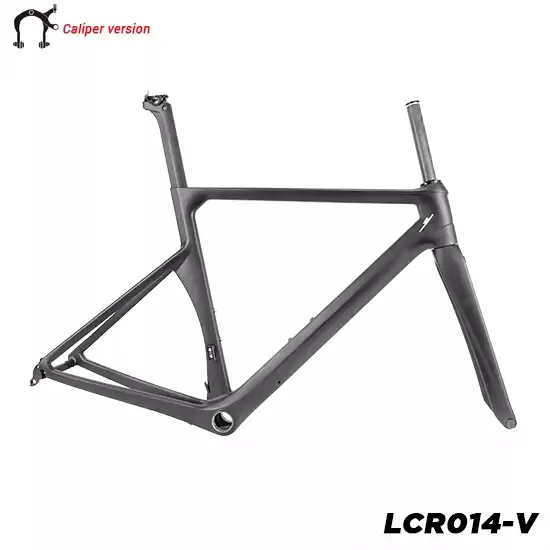

LCR014 design with direct mount brakes, the rear brake was installation on chain stay
LightCarbon new road frame geometry
| |
510 |
540 |
570 |
| SEATPOST INSERT LENGTH |
250mm |
270mm |
280mm |
| REACH |
392.8mm |
395.4mm |
404.3mm |
| TOP TUBE LENGTH, HORIZONTAL |
550mm |
570mm |
590mm |
| STACK |
533mm |
553.8mm |
571.2mm |
| WHEELBASE |
985mm |
985.5mm |
1002.6mm |
| CHAINSTAY LENGTH |
405mm |
405mm |
405mm |
| FRONT CENTER |
586.6mm |
590.2mm |
604.2mm |
| BB DROP |
68mm |
68mm |
68mm |
| BB HEIGHT |
372mm |
372mm |
372mm |
| SEAT TUBE ANGLE |
73.5° |
72.5° |
72° |
| HEAD TUBE ANGLE |
73° |
73.5° |
73.5° |
| SEAT TUBE LENGTH |
510mm |
540mm |
570mm |
| HEAD TUBE LENGTH |
130mm |
150mm |
170mm |
| BIKE STANDOVER HEIGHT(700C*28C) |
776mm |
800mm |
822mm |
| FORK RAKE/OFFSET |
45mm |
45mm |
45mm |
| FORK LENGTH, FULL |
370mm |
370mm |
370mm |
| TRAIL |
58.4mm |
53.8mm |
53.8mm |
