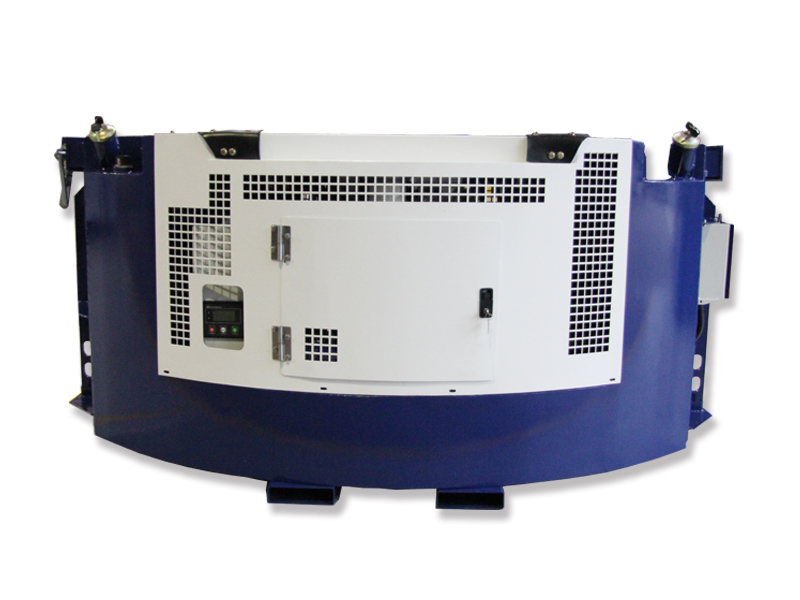

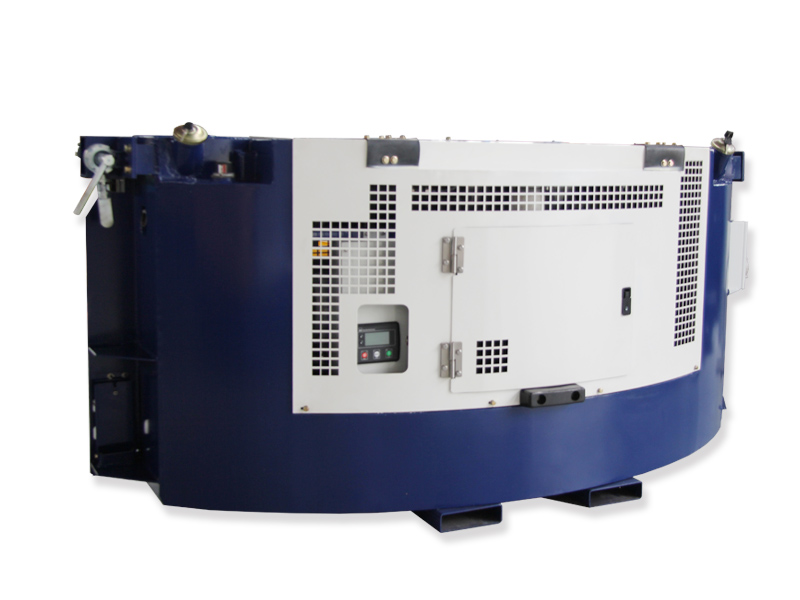

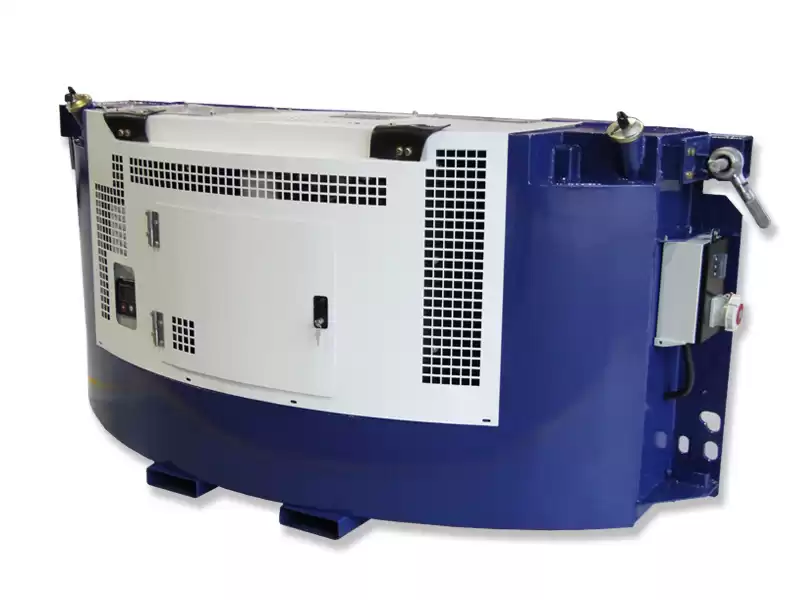

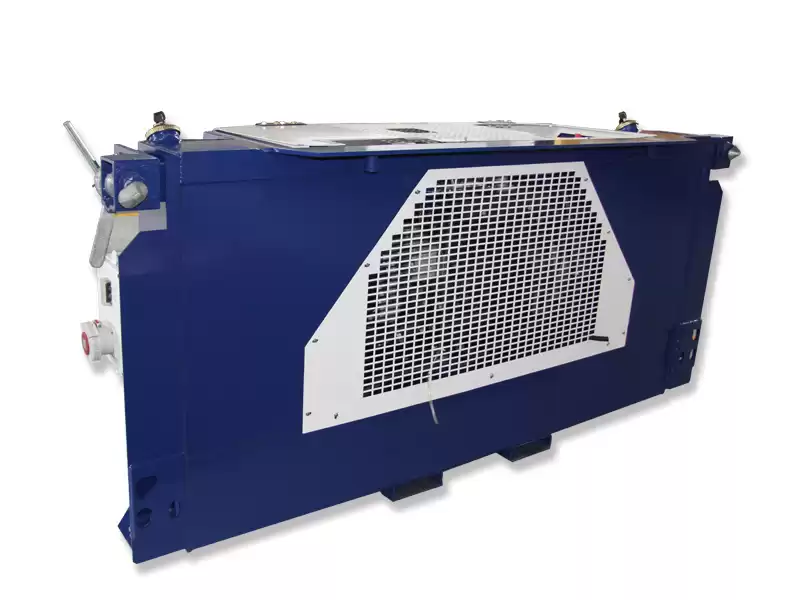

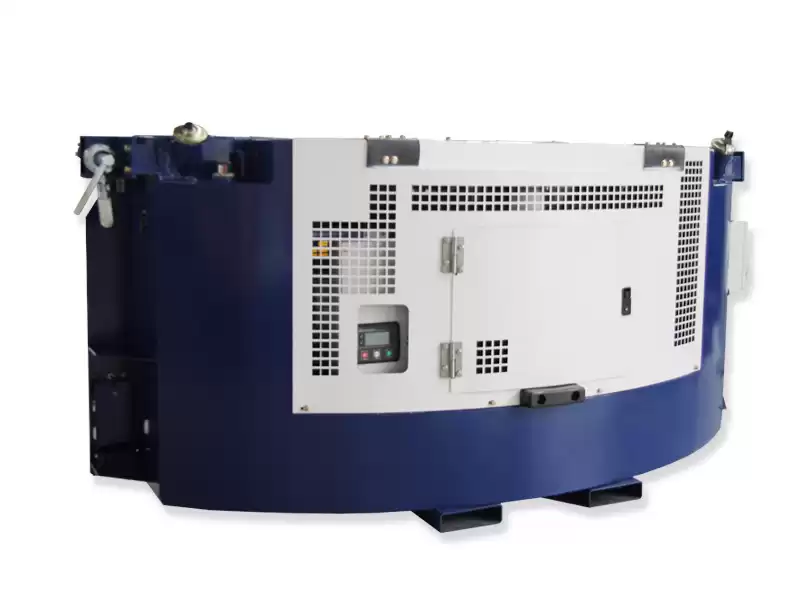

The model RG15 mounts to properly equipped ISO containers, in front of the refrigeration unit's upper face. Generator sets are typically provided with "pin” mounting to attach to the container’s header rail. Clamp mounting to the corner casting of the container is available as an option. In either case, when mounted, the RG15 envelope allows access to the refrigeration unit control box.
Additionally the design of the equipment considered a deep footprint to avoid tipping due to rough handling by yard forklifts, and fork pockets are extended and reinforced to eliminate fork tine damage.
The FuelWise™ option is available and can reduce fuel consumption up to 28%. This directly translates to a reduction of the unit’s carbon footprint by up to 28%.
Standard Features:
GTL Reefer Generator equipped with perkins 404D-22 orForwin 404D-24G3 Reliable Diesel Engine.
Nominal 1 5kw high-efficiency PMG generator .Controller with enhanced Fuelsmart functionality.
Ambient temperature range:
1. Structure -40 to +52°C (-40 to +125°F)
2. Operation - Start -26 to +52°C (-15 to +125°F)
2. Operation - Run -40 to +52°C (-40 to +125°F)
Functionality - The UG15 provides a full 15kW output to power ISO reefer containers.
Accessories and Options:
Auto Restart
Clamp-mount sysem or provision for clamp mount
Approximate Weight: 1875lb/851 kg,
GTL reserves the right to discontinue or change any specification or design without prior notice or obligation.
|
Rated Frequency (Hz)
|
60
|
|
Dimension
|
L (mm)
|
2324
|
|
W (mm)
|
706
|
|
H (mm)
|
1078
|
|
Weight (kg)
|
830
|
|
Diesel Engine
|
Model
|
404D-22(EPA/EU IIIA)
|
404D-24G3
|
|
Manufacturer
|
Perkins
|
FORWIN
|
|
Type
|
Direct-injection,4-stroke,4-cylinder, water-cooled, diesel engine
|
|
Cylinder Number
|
4
|
4
|
|
Cylinder Diameter (mm)
|
84
|
87
|
|
Intake Stroke (mm)
|
100
|
103
|
|
Maximum Power (kw)
|
24.5
|
24.2
|
|
Displacement (L)
|
2.216
|
2.45
|
|
Rotation (r/min)
|
1800
|
1800
|
|
Coolant Capacity (L)
|
7
|
7.8
|
|
Lubricating Oil Capacity (L)
|
14
|
9.5
|
|
Fuel Capacity(L)
|
492
|
|
Fuel Consumption (L/H)
|
1.5∽2.5
|
|
Air Filter Mode
|
Heavy Oil-immersed Type
|
|
Start System
|
12V Electric Start
|
|
Auxiliary Device of Cold Start
|
Air Heater
|
|
Alternator
|
Model
|
RF4
|
|
Insulation Grade
|
F/H
|
|
Exciting mode
|
Brushless PMG
|
|
Control System
|
Control System Model
|
PCC1420
|
|
Parameter Display
|
Generator Set：Voltage V, Current A, Frequency HZ, Active Power KW, Apparent Power KVA,Power Factor Cos∮, Cumulative Power of Generator Set KWH；
Engine：Coolant Temperature, Lubrication Pressure, Rotation,Working hours,Battery Voltage, Fuel Level ect.
|
|
Safety Protection
|
Generator Protection：Overvoltage / undervoltage, over frequency / under frequency, overload, short circuit.
Engine Protection：Low Oil Pressure, High Water Temperature, Low Fuel Level, Charging Failure, Over Speed
|
|
Optional Function
|
1.Energy Saving via Frequency Conversion ；2.Automatic Start and Stop System.
|
|
Auxiliary System
|
Battery
|
12VDC-100AH Free Maintenance Battery
|
|
Power Outlet
|
ISO Standard Junction Box 、Meet the Standard of CEE-17 ,32 A,It is the pointer at 3’s clock when connect the grounding pole.
|
|
Fuel Level Gauge
|
Mechanical Fuel Level Gauge
|
|
Quality Assessment System
|
ISO9001:2000
|
|
Safety Certificate
|
CE
|
