Solar Roof Mounting System with Concrete Foundation
Solar First Roof Mounting system is a triangle mounting system with a fastness concrete foundation. Any angle can be customized for your PV system maximum power.This is a real innovative mounting system. All parts can be pre-fabricated into only one module. The installation is extremely labor-saving and low-cost, No need adjusting, no sawing in the field. Just need a cordless screw-deliver.What is more, it is quite competitive with simple drawing and maximum optimized material.
Product Specification:
|
Roof Type
|
Flat roof or Tilt roof
|
|
Material
|
AL6005 &SS304
|
|
PV Type
|
With or without frame
|
|
Module Orientation
|
Horizontal or vertical
|
|
Surface Roughness
|
B&C
|
|
Wind Speed
|
<60m/s
|
|
Snow Load
|
<1.4KN/M2
|
|
Warranty
|
20years
|
Advantages of Solar first Flat Roof Solar Mounting System
1.Extremely fast, low-cost and labor-saving;
2.Modular designed, pre-assembled in factory;
3.Self-adjustment, adaptable to rooftop unevenness≤5°
4.Flexible layout, adapt to complicate rooftop
5.Self-grounding,reduce grounding wire and lug
6.Can be applied in large and small scale solar energy project
7.Material: Aluminum Alloy& Stainless Steel

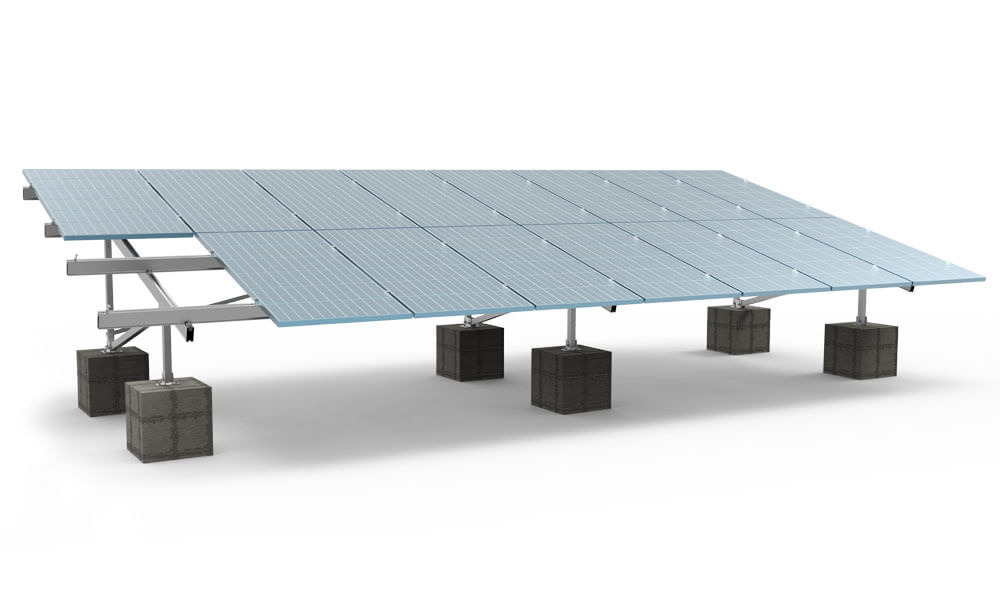

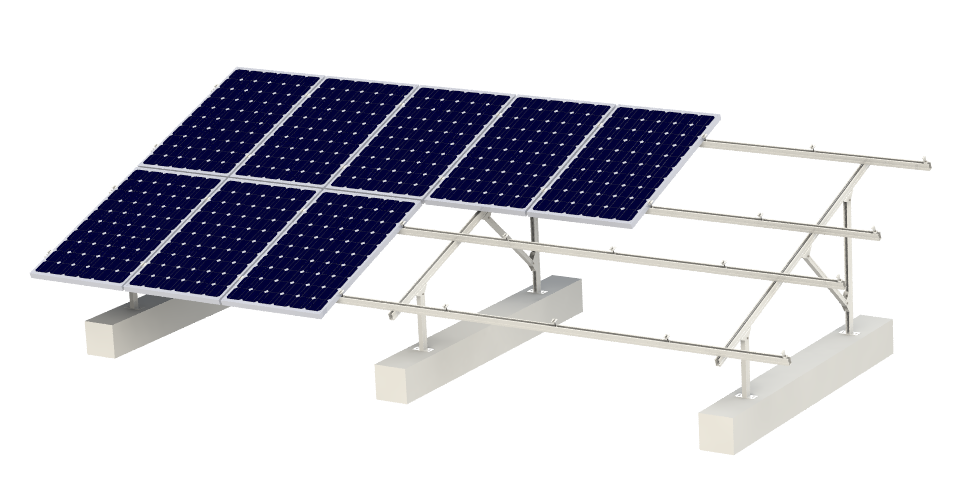

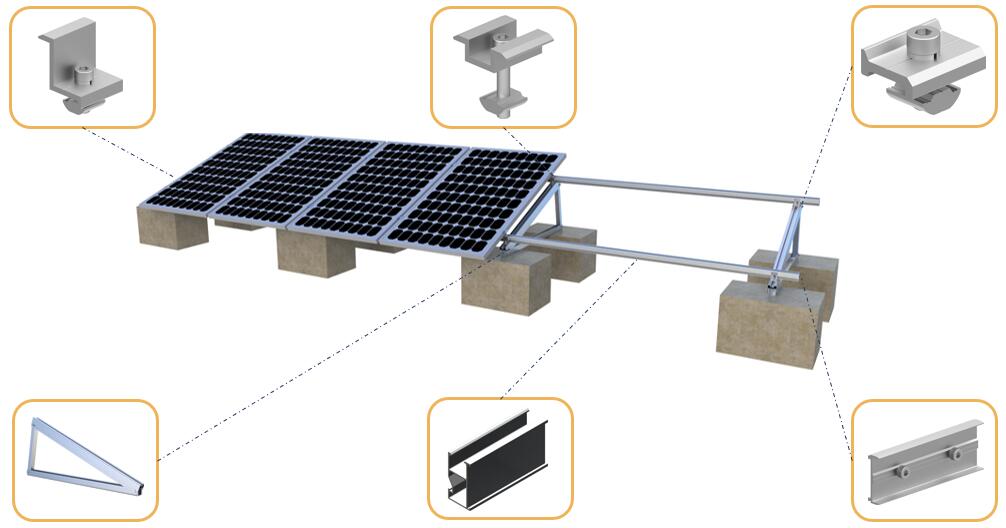

Products Details

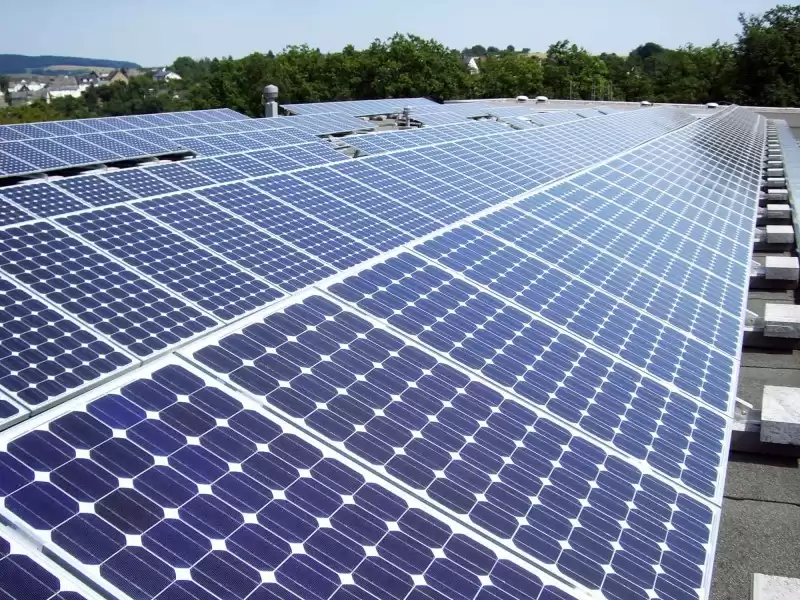

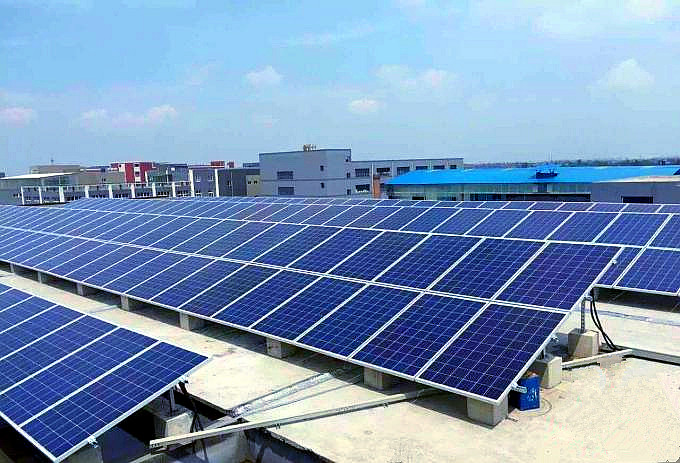

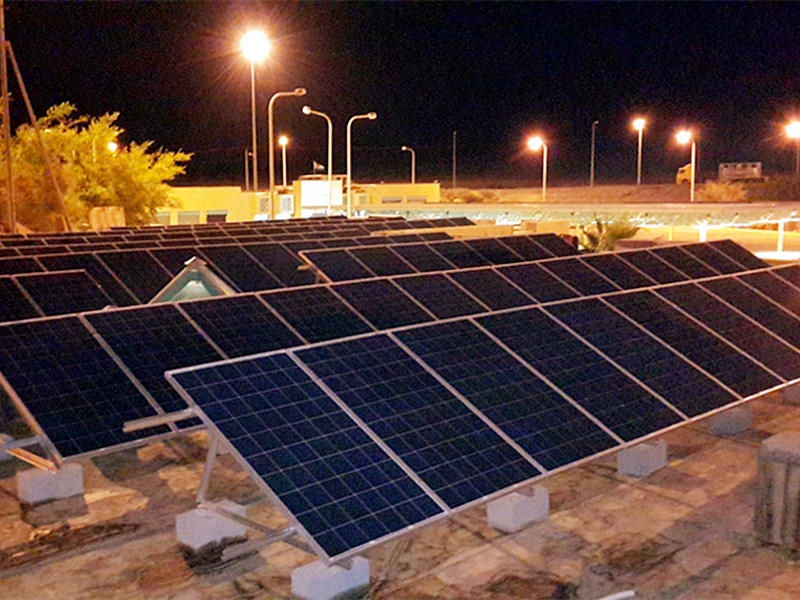

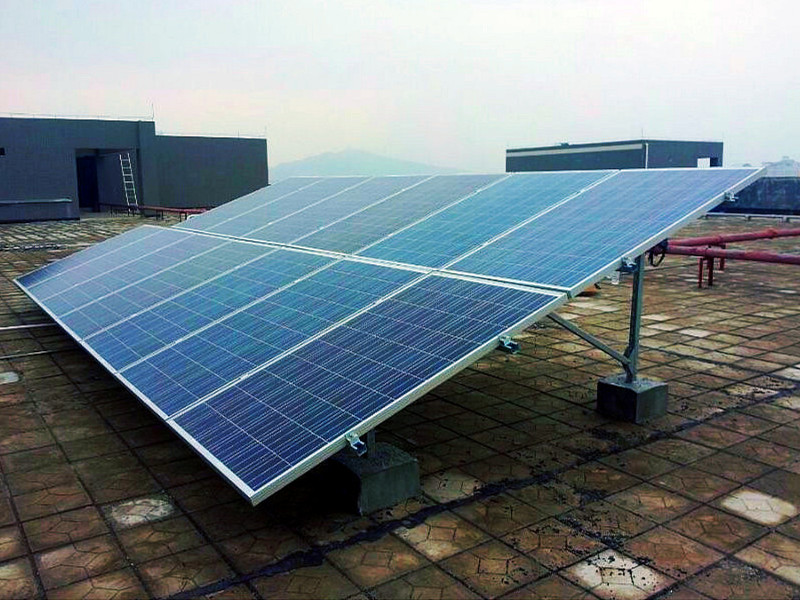

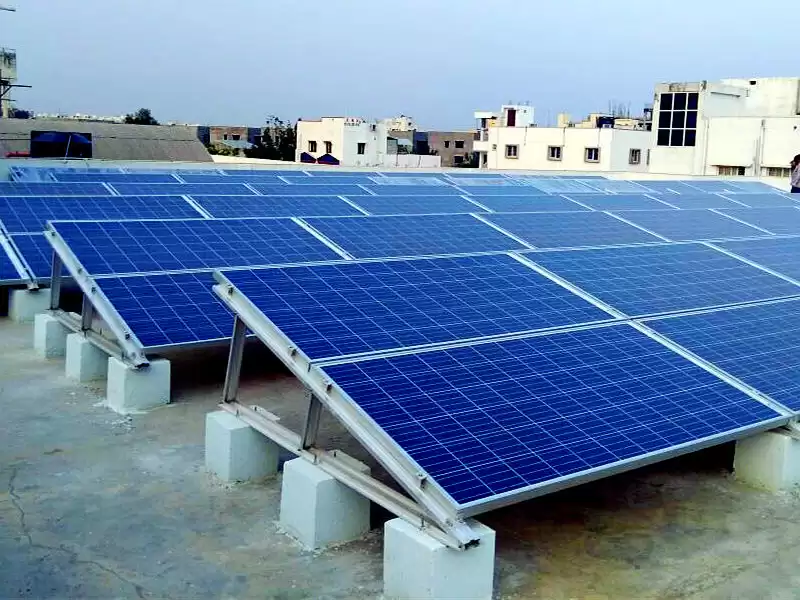

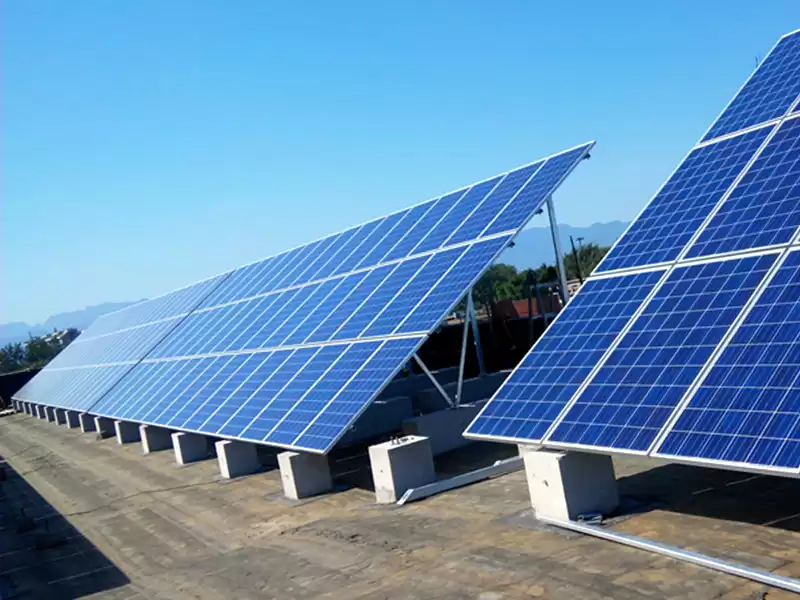

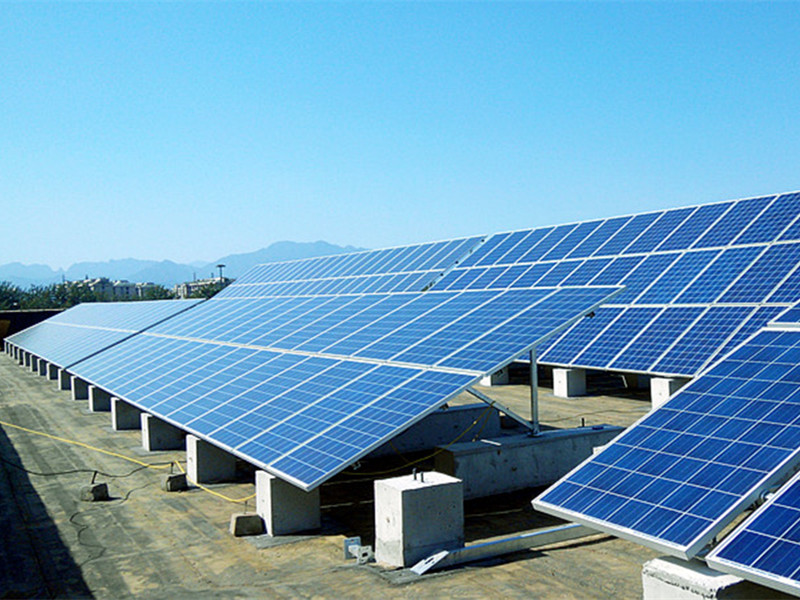

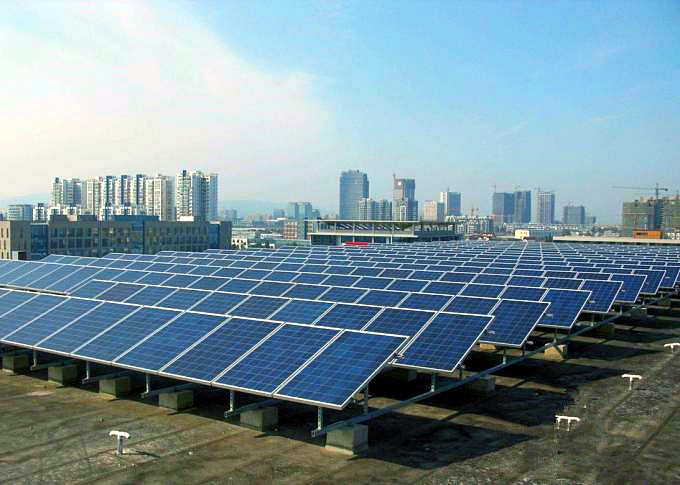

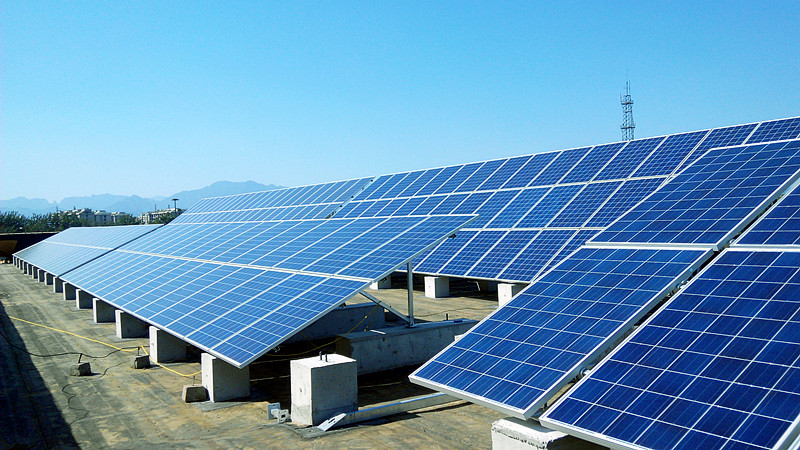

Project Show
