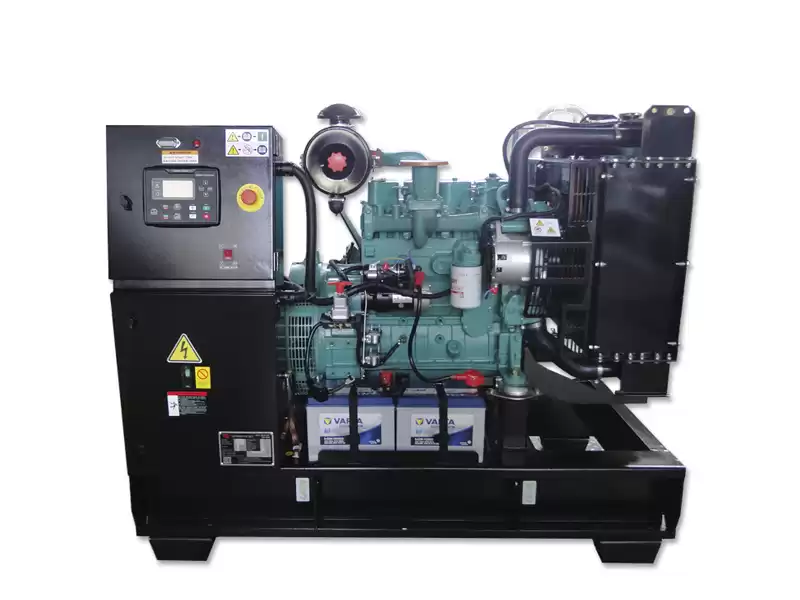

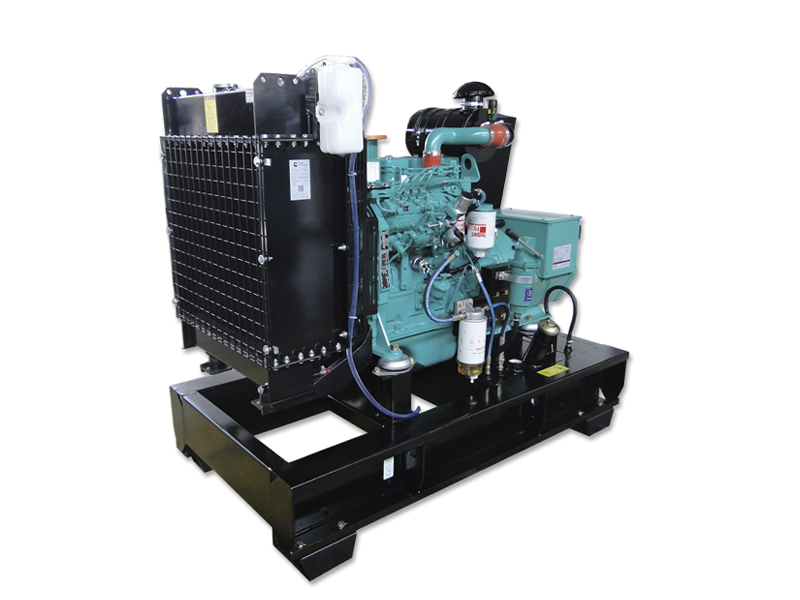

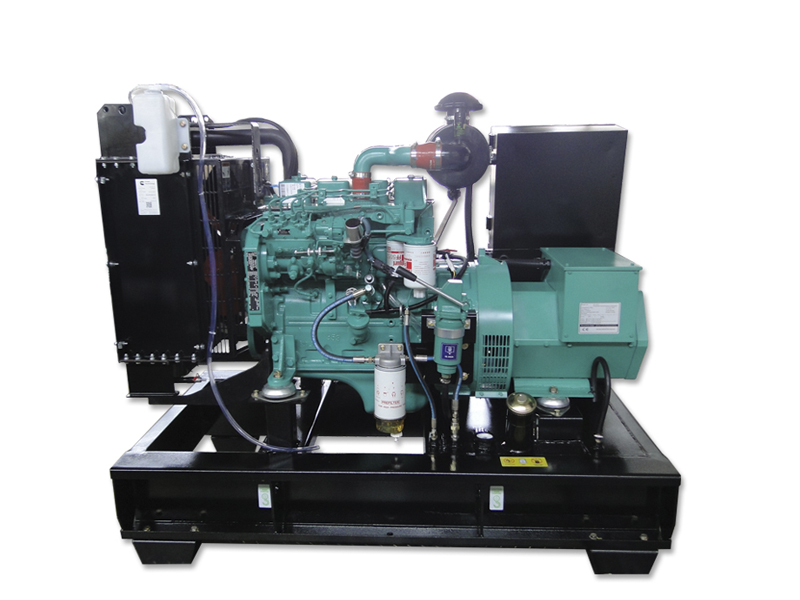

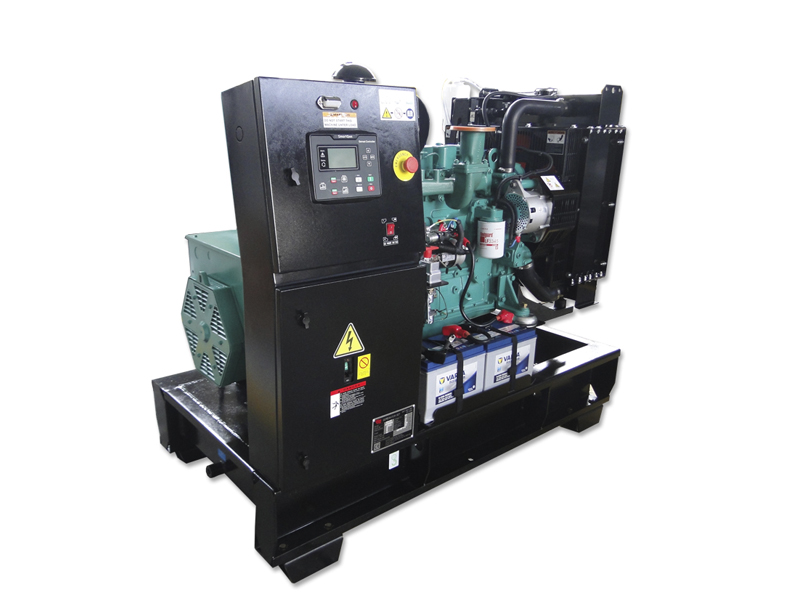

+ Assembled by Cummins diesel engine and Leroy Somer/Stanford alternator.
+ Three filters as standard， fuel and water separator as optional.
+ Radiator and fan with safety guard.
+ Single bearing alternator IP 23， Insulation Class H.
+ Heavyduty steel as base frame and 8hrs operation base fuel tank.
+ Automatic controlpanel and 3poles circuit breaker， internal cable
+ 12V battery， battery wires.
+ Battery charger and float battery charger as standard supply scope.

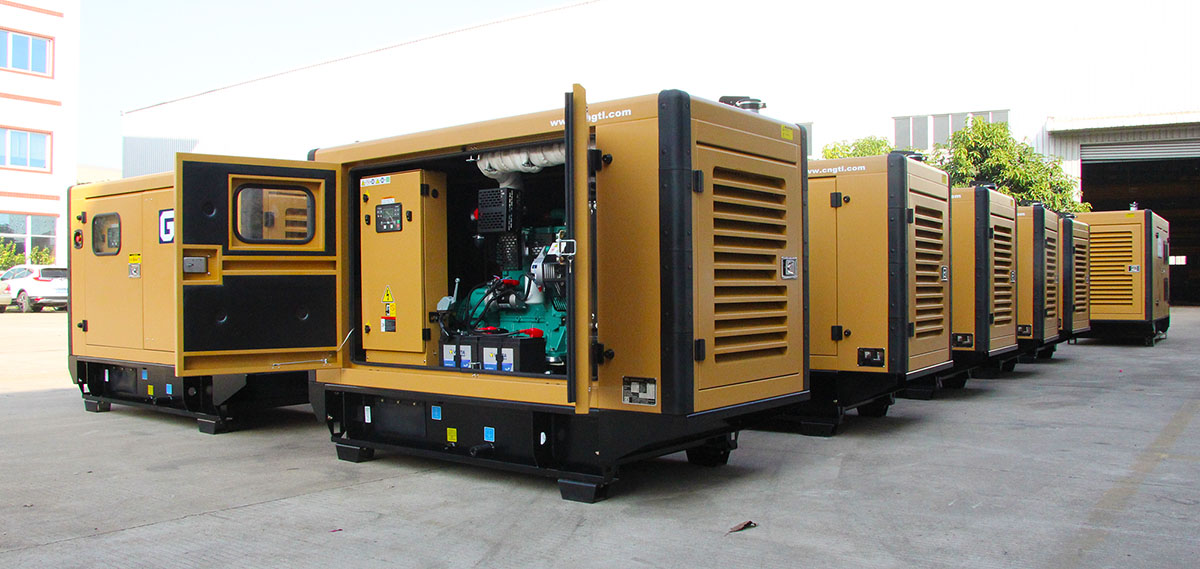

+ Optional soundproof canopy，ATS，synchronization panel，trailers.

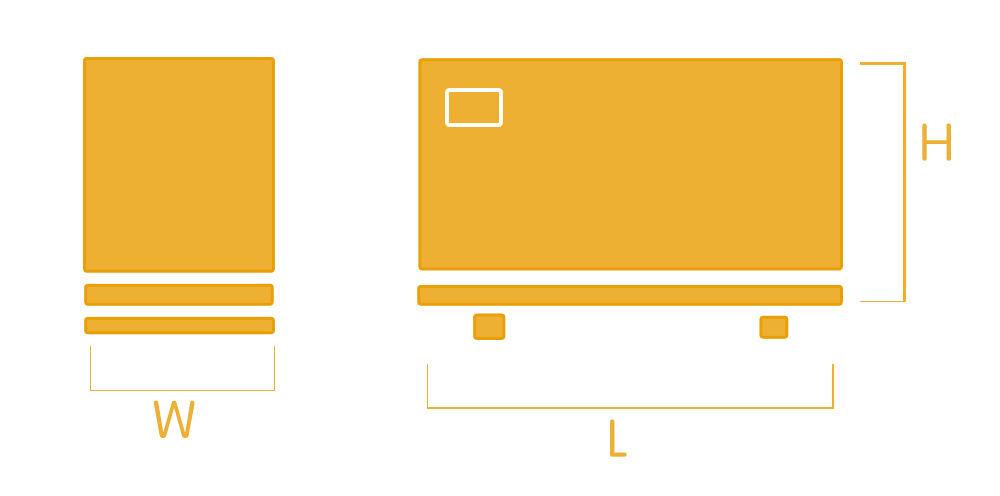

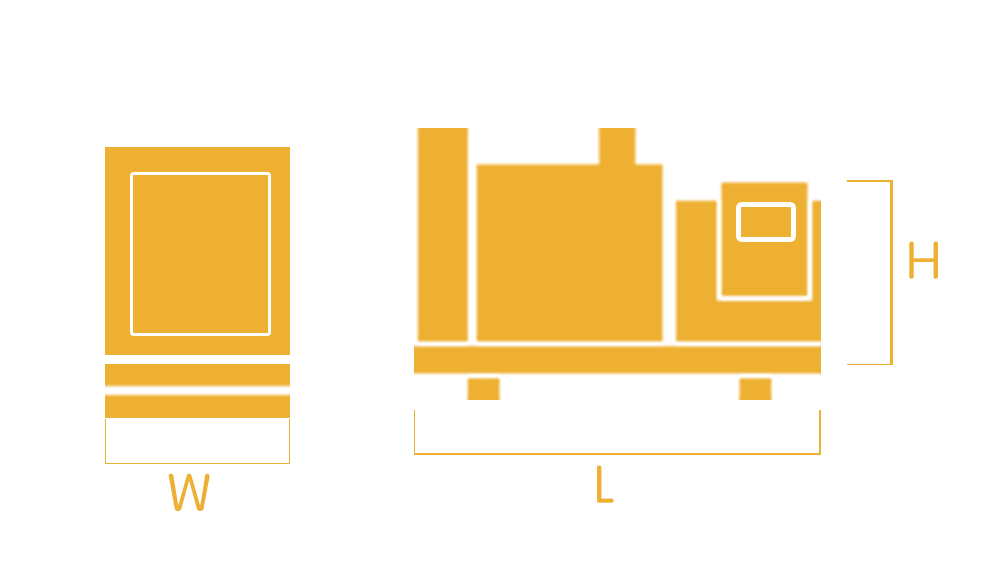

Model	1500 rmp/400v 3P 4W/50HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
DCW-20T5	20	16	22	17.6	4B3.9-G11	1600*860*1360	820	2250*1060*1750	1200
DCW-28T5	27.5	22	30.3	24	4B3.9-G1	1600*860*1360	820	2250*1060*1750	1200
DCW-28T5	27.5	22	30.3	24	4B3.9-G2	1600*860*1360	820	2250*1060*1750	1200
DCW-30T5	30	24	33	26.4	4B3.9-G12	1600*860*1360	820	2250*1060*1750	1200
DCW-40T5	40	32	44	35	4BT3.9-G1	1700*860*1360	900	2250*1060*1750	1300
DCW-40T5	40	32	44	35	4BT3.9-G2	1700*860*1360	900	2250*1060*1750	1300
DCW-50T5	50	40	55	44	4BTA3.9-G2	1770*860*1360	950	2400*1060*1750	1400
DCW-56T5	56.3	45	61.9	50	4BTA3.9-G2	1860*860*1360	1000	2400*1060*1750	1450
DCW-60T5	60	48	66.3	53	QSB3.9-G2	1920*860*1360	1050	2650*1060*1750	1550
DCW-65T5	65	52	70	56	4BTA3.9-G2	1860*860*1360	1050	2500*1060*1750	1500
DCW-80T5	80	64	90	72	4BTA3.9-G11	1890*860*1360	1100	2500*1060*1750	1550

Model	1800 rmp/480v 3P 4W/60HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
DCW-30T6	30	24	34	27	4B3.9-G2	1600*860*1360	820	2250*1060*1750	1200
DCW-41T6	41.3	33	45	36	4BT3.9-G2	1700*860*1360	900	2250*1060*1750	1300
DCW-64T6	64	51	70	56	4BTA3.9-G2	1770*860*1360	950	2400*1060*1750	1400
DCW-75T6	75	60	85	68	4BTA3.9-G2	1860*860*1360	1000	2400*1060*1750	1450
DCW-88T6	90	72	100	80	4BTA3.9-G11	1860*860*1360	1050	2500*1060*1750	1500
