Model
|
Delux Mini / Toilet Seat No.U147
|
|
Features
|

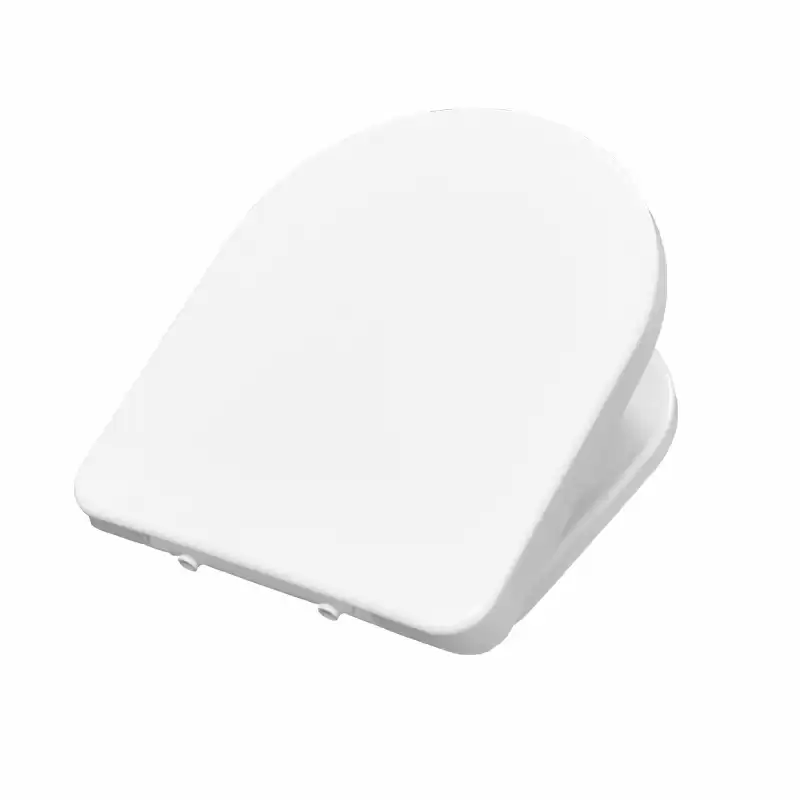

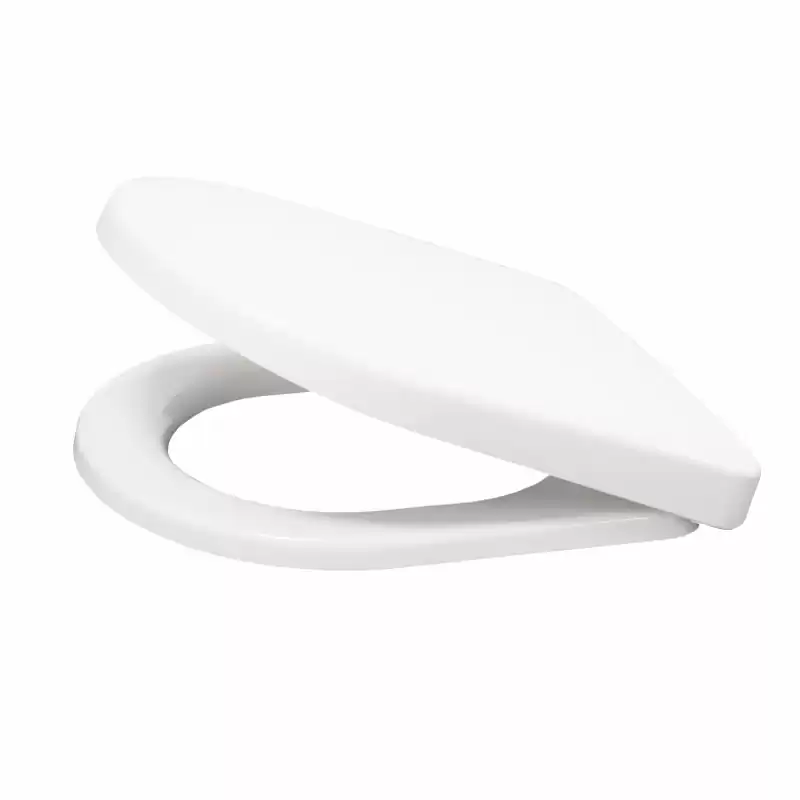

D shape with straight wrap-over cover, fits for most D shape pans
|
|
Hinge Spacing
|
155±10 MM
|
|
Seat Color
|
White, Black, Beige, Red, Orange, Etc.
Color can be customized.
|
|
Surface
|
Manual Polished
|
|
Type
|
D shape with straight wrap-over cover, fits V&B SUBWAY pans
|
|
Lid buffer
|
2 pcs
|
|
Ring buffer
|
4 pcs
|
|
Hinge
|
Slow close and take off hinge
|
|
Guarantee
|
10 years for soft close, DIN 19516 conformed
|
|
Certificate
|
CE, ROHS certified
|

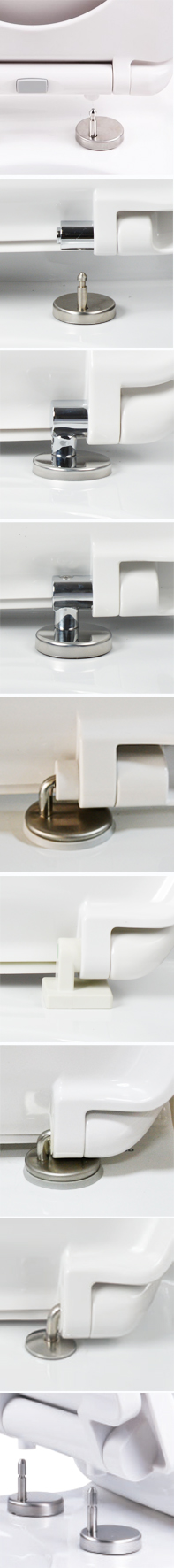

Hinge No.01 / Hinge No.17
Click N Clean: Soft Close & Quick Release (One Push Button)

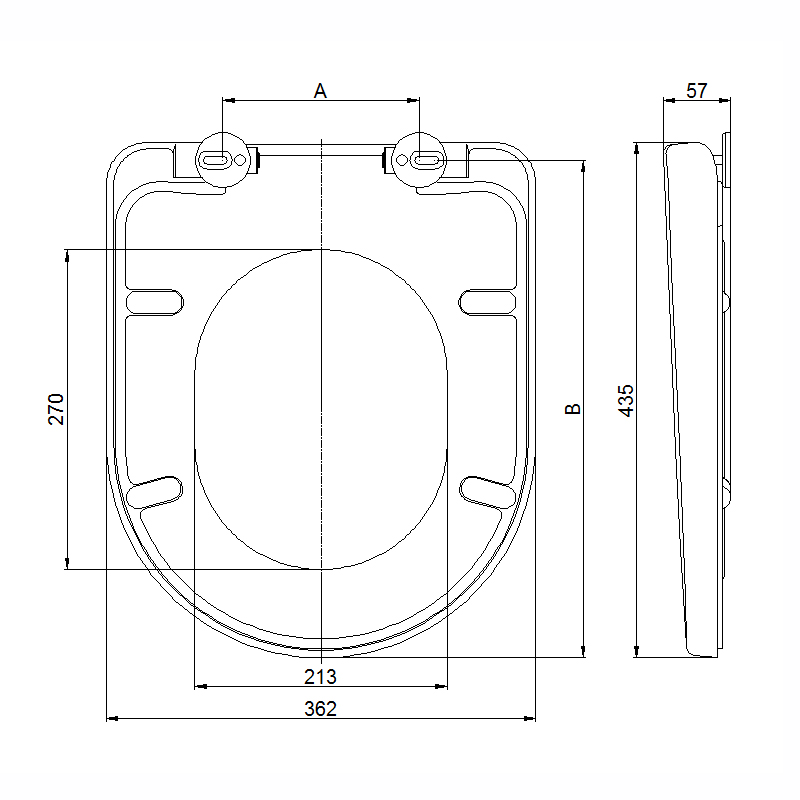

A Size: 155±20 mm
B Size: 420±20 mm
Fixing: Top & Bottom
Hinge No.06
Click N Clean: Soft Close & Quick Release (Two Push Button)
A Size: 175±20 mm
B Size: 420±20 mm
Fixing: Top & Bottom
Hinge No.07
Tool-aided Easy Release (Metal Hinge Body)
A Size: 170±20 mm
B Size: 420±20 mm
Fixing: Top & Bottom
Hinge No.02
Tool-aided Easy Release (Plastic Hinge Body)
A Size: 155±20 mm
B Size: 420±20 mm
Fixing: Top & Bottom
Hinge No.04
Standard Stainless Steel Soft Close
A Size: 150±20 mm
B Size: 420±10 mm
Fixing: Bottom
Hinge No.12
Plastic Soft Close
A Size: 165±10 mm
B Size: 420±10 mm
Fixing: Bottom
Hinge No.05
Standard Stainless Steel Normal Close
A Size: 175±20 mm
B Size: 420±10 mm
Fixing: Bottom
Hinge No.10
Stainless Steel Normal Close
A Size: 152 mm
B Size: 420 mm
Fixing: Top
Hinge No.33
Lift N Clean: Soft Close & Quick Release
A Size: 155±20 mm
B Size: 430±20 mm
Fixing: Top & Bottom
- Toilet seat color can be customized.
- The colors are made into grains of the duroplast material.
- Can last long, and never fade.
