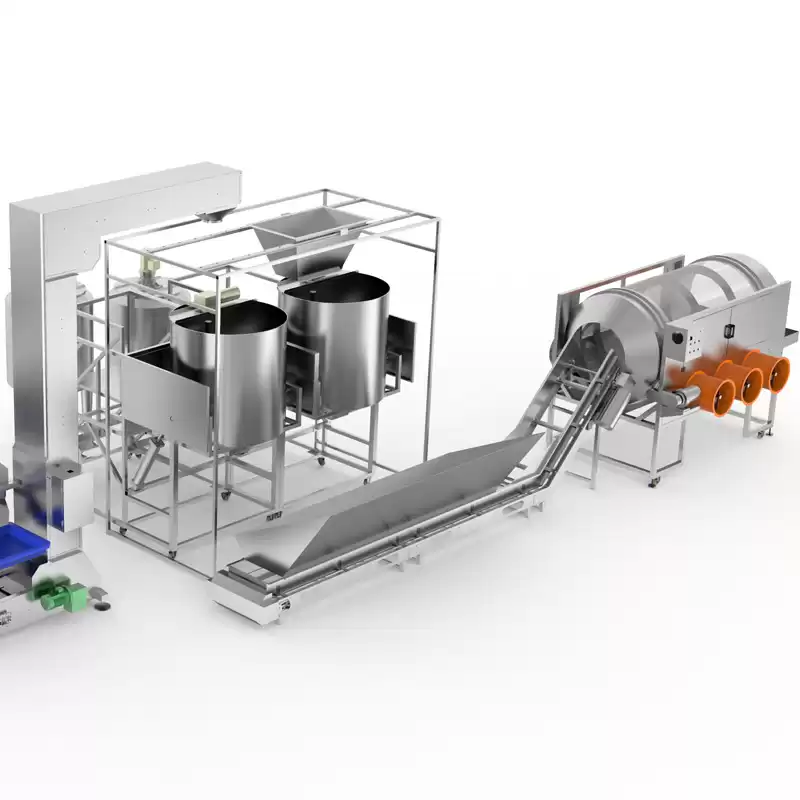

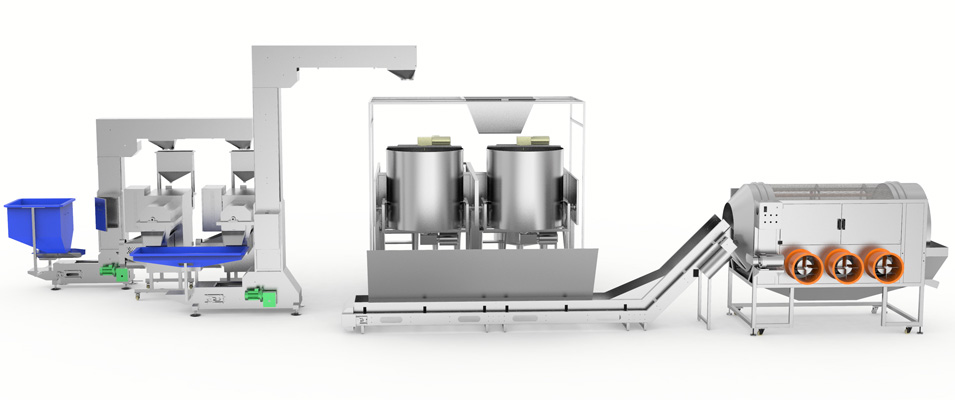

Industrial Hot Air Popper and Caramelizer Production Line Popcorn Production and Flavoring Line
1. Description
Support to add more popcorn machines and caramelizers directly to enlarge the capacity, this line is fully automatic for popcorn production and coating. It is cost-effective, suitable for popcorn factory who need 180-250kg/h output and will enlarge their output in the future.
2. Basic Parameters
|
|
XFD
|
Quality
|
High guarantee
|
|
MOQ
|
1 Set
|
Technique
|
Hot air popcorn machine
|
|
Certification
|
CE, ISO 9001
|
Main Material
|
USU 304 stainless steel
|
|
Condition
|
New
|
Application
|
Popcorn production
|
|
Warranty
Time
|
1 year
|
Type
|
Automatic
|
3. Details and Features
* Support to add more popcorn machines and caramelizers directly in this line to enlarge the capacity.* Modularization design, easy to maintain and replace.* Equipped with an automatic alarm system, an adjustable digital display and control for precise temperature settings and measuring actual product temperature.* High quality spare parts from World-famous Brand ABB, SIEMENS and DELTA，ensure the safe stable operation and longer working life.* 304 USU Stainless steel for the whole line.

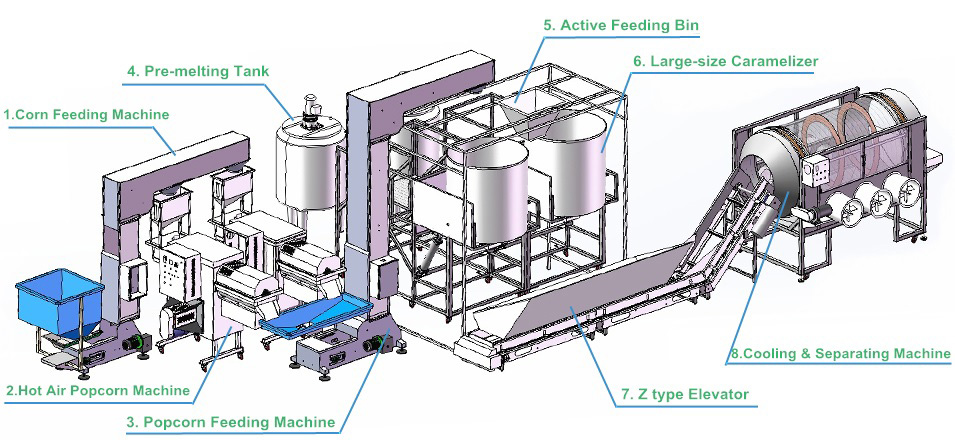

4. Structure and Characteristic
|
NO.
|
ITEM
|
|
TECHNICAL PARAMETERS
|
UNIT
|
CHARACTERISTICS
|
|
|

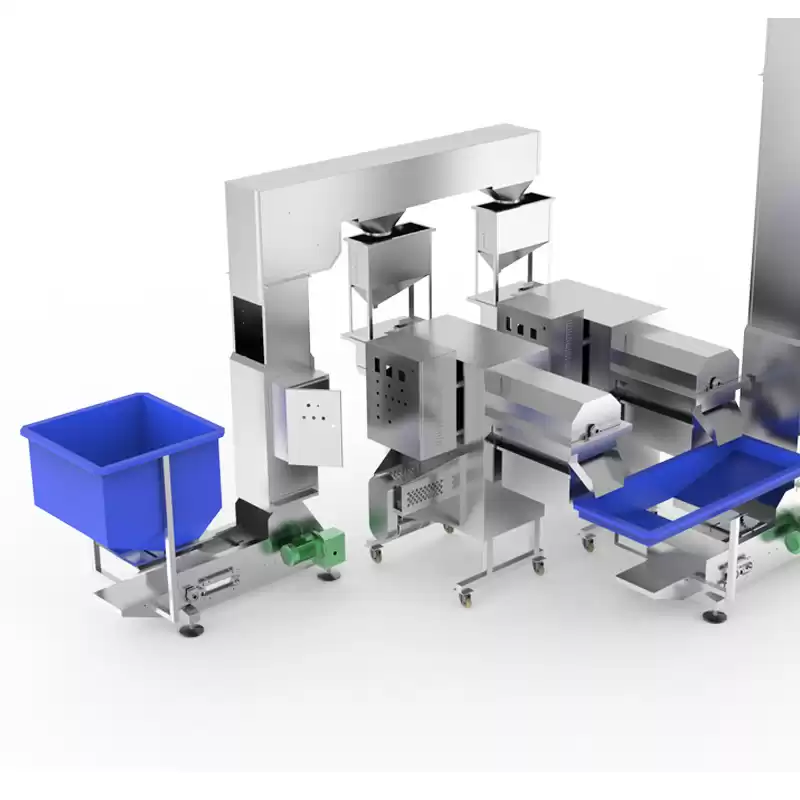

1
|
Corn
Feeding Machine
|
|
Function
|
1
|
One
Corn Feeding Machine with Two Feeding Hoppers, applied to Optic Sensor, high
cost effective, and hidden circuit, safer and easier to clean.
|
|
Convey the raw corns into the hot air popcorn
machine.
|
|
Technical parameter
|
|
Size: 3732*890*2650mm
|
|
2
|
Hot Air
Popcorn Machine
|
|
Function
|
2
|
Easy
to adjust production capacity with Two Hot air Popcorn Machine, Besides, the
most important part is this machine comes with cooling and filtering popcorn
function, economizing on electricity.
|
|
Popping the raw corns into popcorn with hot
air.
|
|
Technical parameter
|
|
Capacity: 60~90kg/h
|
|
Size: 2190*1029*2135mm
|
|
3
|
Popcorn
Feeding Machine
|
|
Function
|
1
|
Hidden
convey to protect popcorn from dust. Hidden circuit, safer and easier to
clean.
|
|
Convey the pocorn into the popcorn feeding bin.
|
|
Technical parameter
|
|
Size: 4028*711*3800 mm
|
|
4
|
Pre-melting
Tank
|
|
Function
|
2
|
Easy
to inhale materials ( caramel, chocolate…) with Fully enclosed pre-melting
tank, safter and health.
|
|
Melting the flavoring materials when the
coating machine is working, such as chocolate, cheese, caramel, etc.
|
|
Technical parameter
|
|
Size: 1000*1000*2000mm
|
|
5
|
Active
Feeding Bin
|
|
Function
|
1
|
Equipped
with high quality and accurate senors on location, volume and so on. It could
be lengthened according to your needs.
|
|
Through the sliding track, feeding the popcorn
into the caramelizer.
|
|
Technical parameter
|
|
Size: 3000*1560*3030mm
|
|

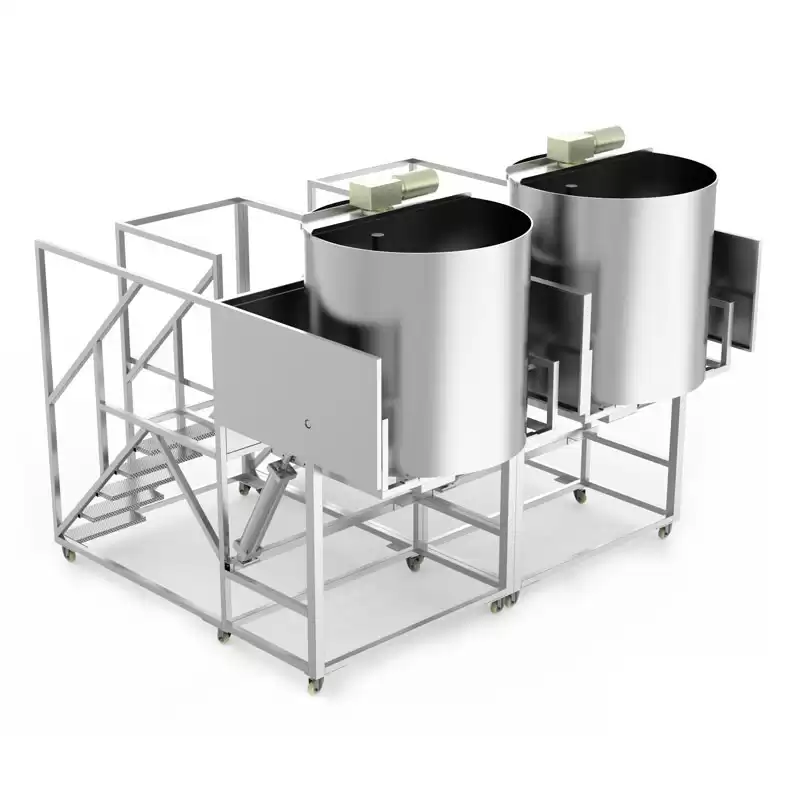

6
|
Large
Size Caramelizer
|
|
Function
|
2
|
Equipped
with automatic kettle-dumping and self-clean system. Energy saving.
|
|
Coating different flavored popcorn with
chocolate, cheese, caramel, etc.
|
|
Technical parameter
|
|
Size: 2659*900*2330mm
|
|
7
|
Z Type
Elevator
|
|
Function
|
1
|
Easy
to clean.
|
|
Cooling and conveying the flavored popcorn into
the cooling and separating machine.
|
|
Technical parameter
|
|
Size: 5462*1178*1505mm
|
|
8
|
Cooling
and Separating Machine
|
|
Function
|
1
|
Easy
to clean, high capacity.
|
|
Cooling, filtering and separating the finished
popcorn.
|
|
Technical parameter
|
|
Dimension:3500*2100*1950mm
|
You can choose any part from 1 to 8 according to your needs. For more details, please feel free to contact us soon.
5. Why Choose Us?
* World-class quality* Factory sale directly with competitive price* Flexible payment terms including T/T,L/C and so on* Fast delivery within 15 days receiving the deposit* Professional sales team,quality inspection and report, maritime logistics guidance* After-sale services:video technical support, 24 h online support
