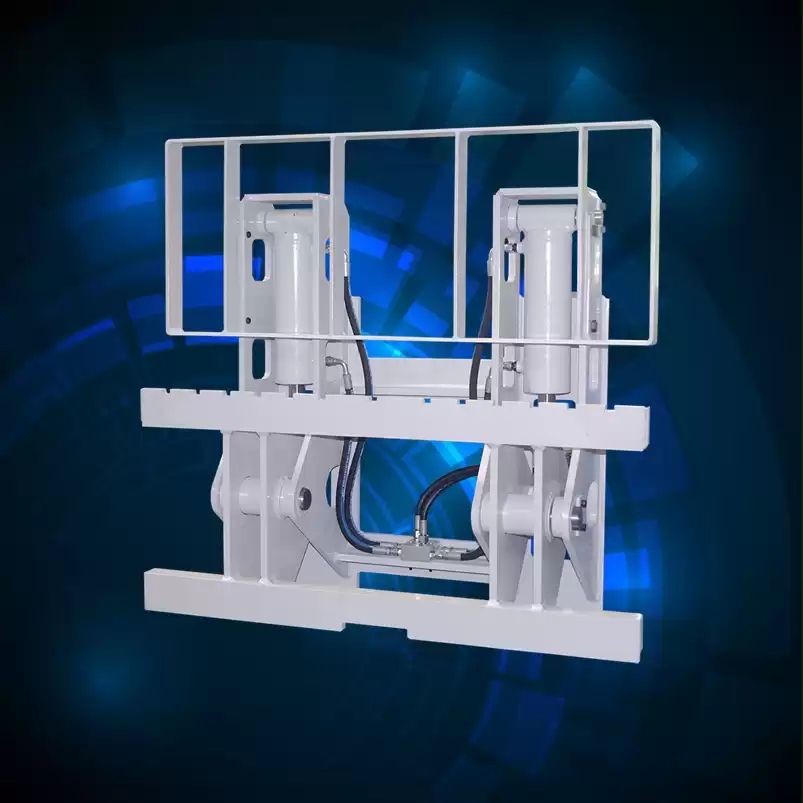

forklift attachments 3T hinged carriage

Hinged Carriage was designed to increase forklift mast tilting angles.


  • Hydraulic Function1
  • ColorWhite or Custom
  • MOQ2 pcs
  • Payment termT/T or L/C at sight

A regular forklift mast tilting angle is too limited to dump cargo practically and the cargo are too heavy to handle them by human. To improve dumping operation efficiency, a forklift hinged forks were invented with tilting forward 45 degree and backward 25 degree with loading capacity close to forklifts’.The optional buckets and containers allow forklift to handle bulk materials,such as coal,gravel,sand and so on.

Hinged Forks
Model No.
Capacity
(kg@mm)
Mounting Class
Forward
Backward
Carriage
Width(mm)
Over
Height(mm)
Weight
(kg)
HGC-2.5TD
2500@500
II
45°/25°
1100
1170
300
HGC-3.5TD
3500@500
III
45°/25°
1100
1170
320
HGC-3.5TD
3500@500
III
45°/25°
1100
1170
350
HGC-4.5TD
4500@600
IV
45°/25°
1500
1380
425
HGC-6TD
6000@600
IV
45°/25°
1830
1380
1000
