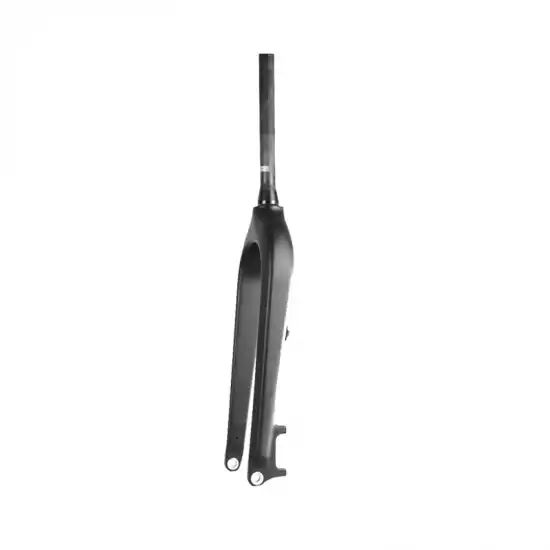

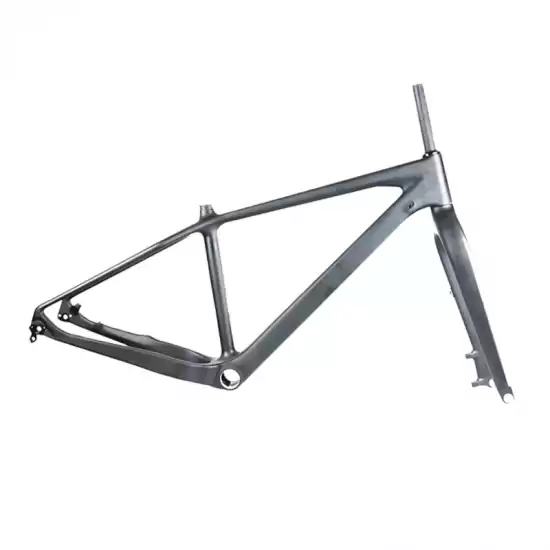

Full Carbon 26 Fatbike Frameset With Carbon Fork

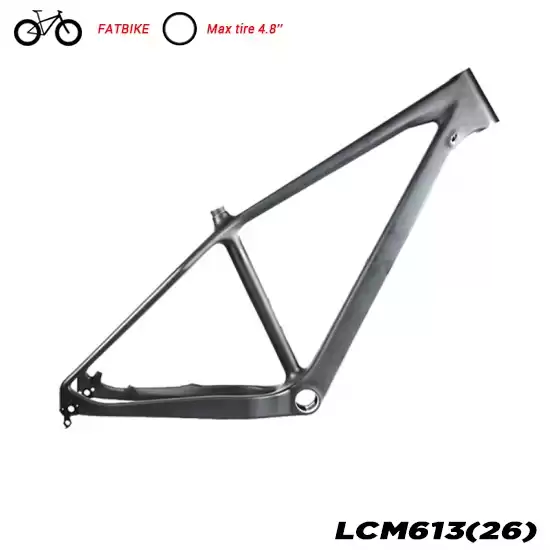

- Full carbon 26 fatbike frameset

- Max tire 4.8''

  • Item No.: LCM613

  • Product Orgin: China

  • Payment: Paypal, Bank Transfer, West Union

  • Color: UD Matt(Customized Painting Acceptable)



Frame Lightcarbon full carbon 26 fatbike frameset with carbon fork
Material High modulus Toray T700  carbon fiber
Size 15'', 17'', 19''(Small, Medium, Large)
Headtube Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
Weight 1100g/Medium
Seatpost Diameter 31.6mm(34.9 clamp)
Bottom Bracket BSA*100mm
Max Tire Clearance 26*4.8''
Max Compatible Chainring         30T
Brake Type Post Mount Disc brake 160mm
Front Derailleur Clamp on
Dropout Front 15*150mm TA Rear 12*197mm TA
Test Standard ISO4210
Warranty  2 years

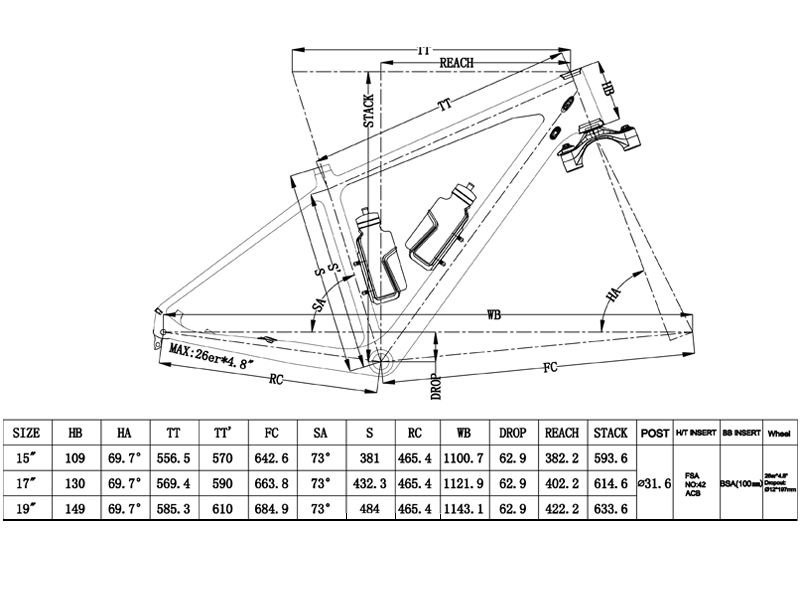

Frame Geometry


Product Tags carbon bicycle frames          Chinese carbon frame          26 Fatbike Frameset
