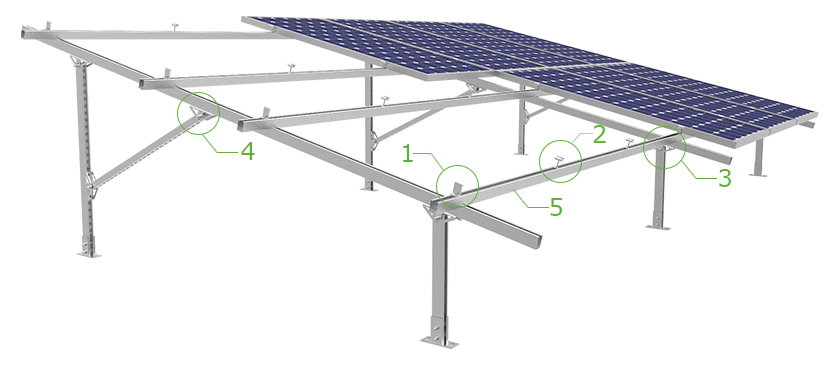

GM3 Galvanized Steel Ground Mounting System

CORIGY SOLAR Steel ground mount solar panel racking systems are suitable for large photovoltaic power stations, galvanized carbon steel is corrosion resistant, affordable and easy to install.





GM3 Galvanized Steel Ground Mounting System





GM3 Galvanized Steel Ground Mounting System


 GM3 Galvanized Steel Solar Racking System

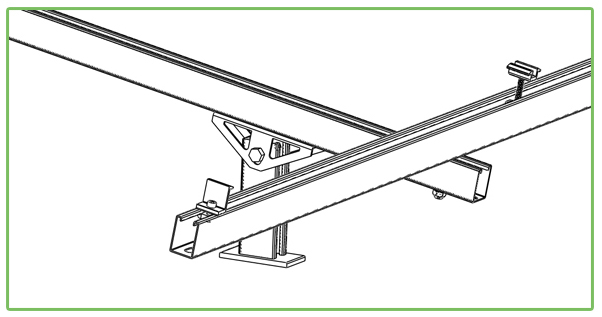

1. The unique design allows the mid clamp/end clamp to quickly enter the desired position at any position, saving a lot of solar racing installation time.

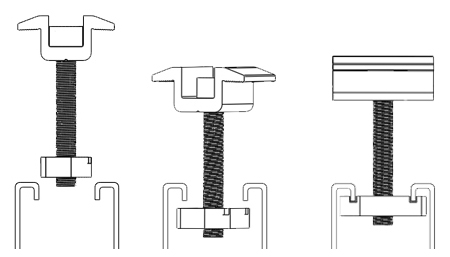

mid clamp/end clamp design

End Clamp/Mid Clamp installation

End Clamp/Mid Clamp installation

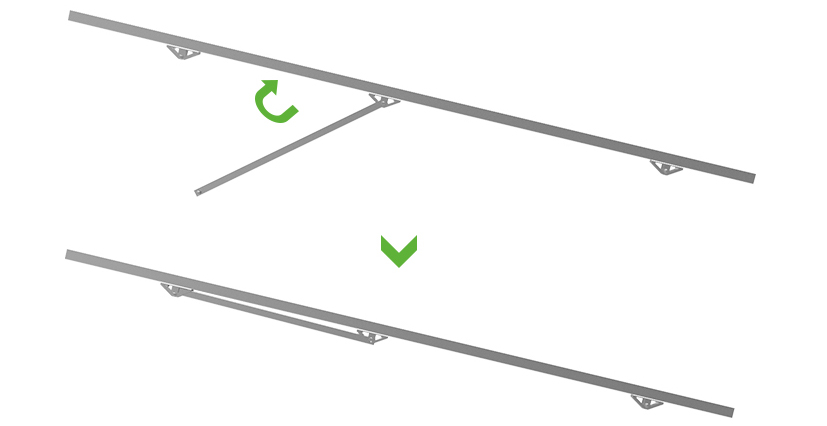

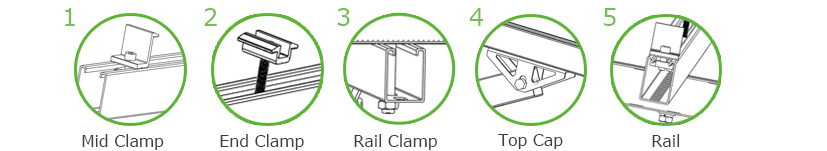

2. High Pre-assembled, saving installation time and labor cost

Before delivery, we will assemble and fix the parts to be positioned in advance, so that you can save a lot of installation time and labor cost.

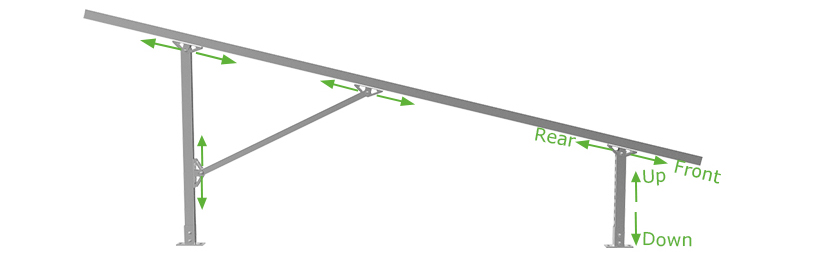

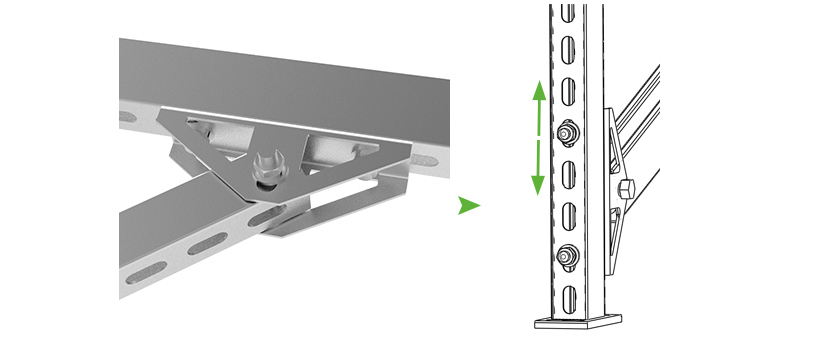

3. When the foundation and the pv racking system are not suitable, the unique design can be adjusted in multiple directions, and the adjustment range is large.





Pre-punched holes



Pre-punched holes help you adjust quickly

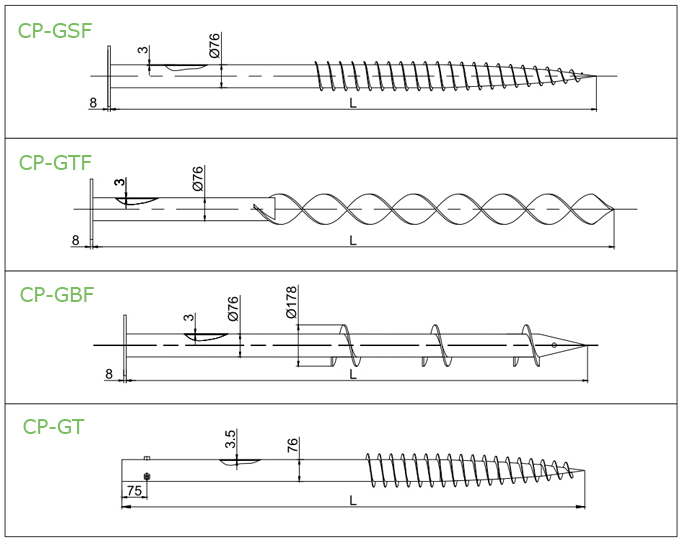

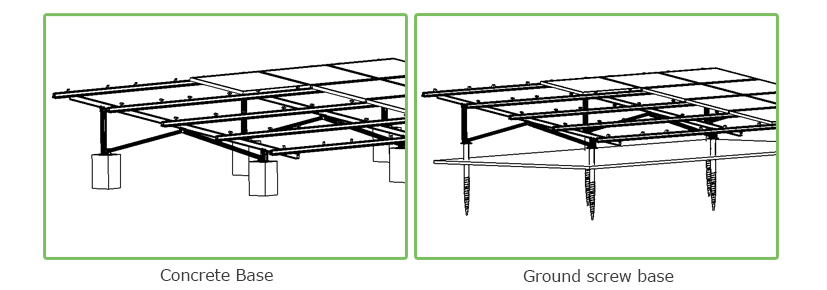

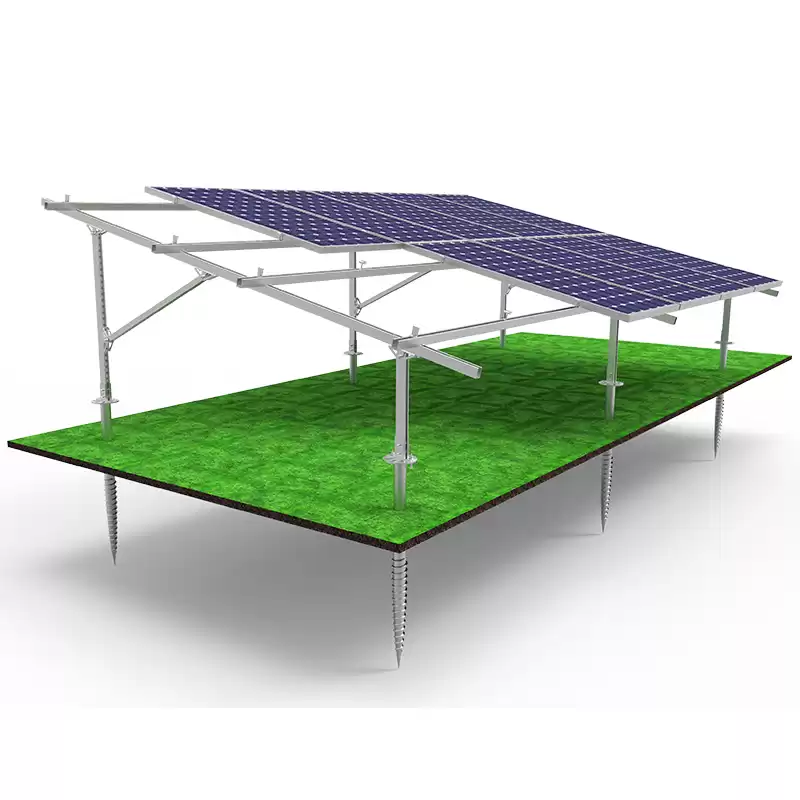

Ground screw options

The following shows the conventional size, the conventional length of the solar ground screw is 1200mm / 1600mm / 1800mm / 2000mm, and the customized length is less than or equal to 3200mm

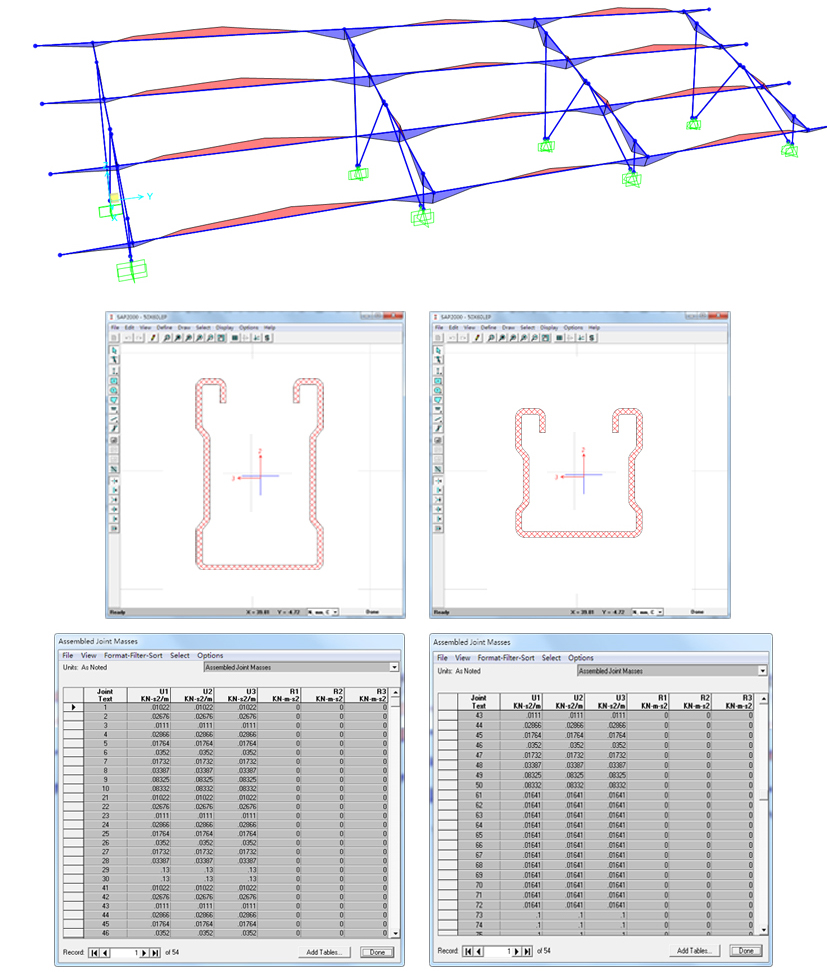

Accurate calculation

Each ground mounted solar racking design provided by CORIGY is based on careful calculation by the team of engineers.





ground mounted solar racking design
