Ground Screw anchor

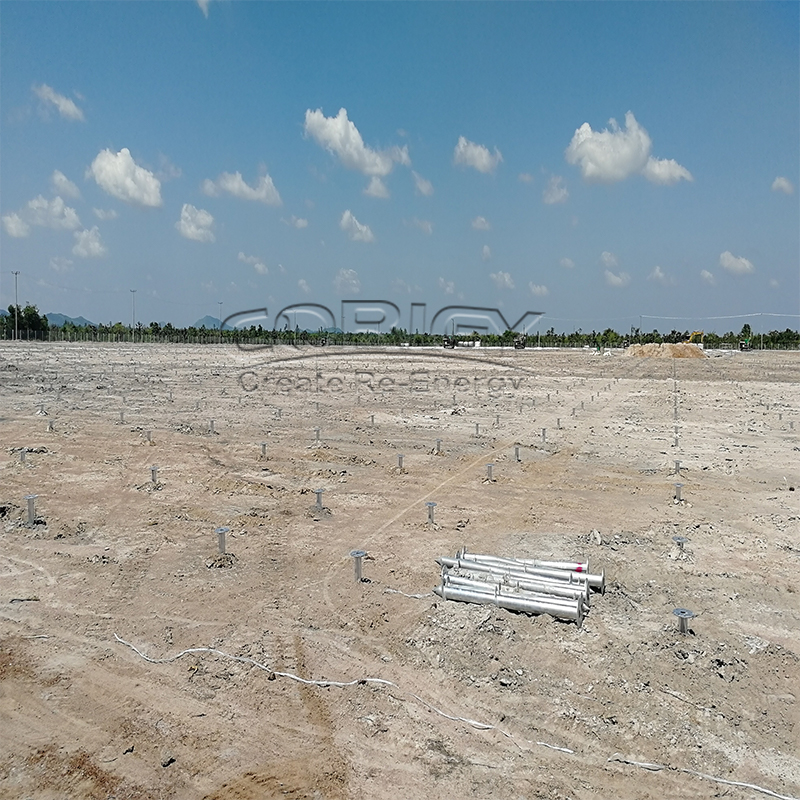

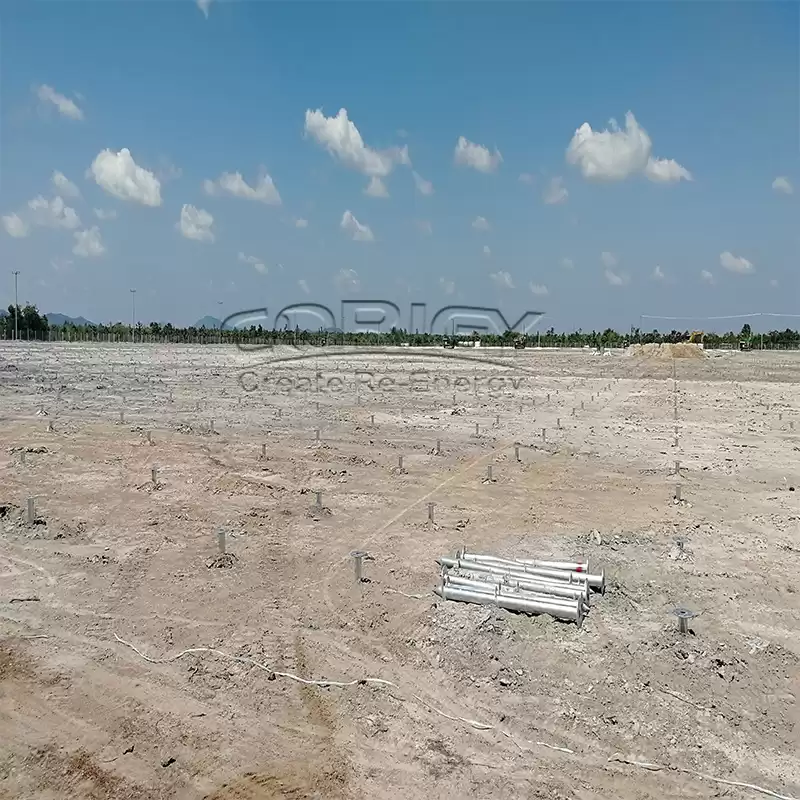

CORIGY SOLAR ground screw&ground screw anchor is a kind of product used to replace concrete foundation. It can minimize the field installation work and eliminate the need of field welding, drilling or other field manufacturing. After the ground pile is fixed, it can be used, which can greatly shorten the construction period.

Facebook Twitter Pinterest LinkedIn 分享

Product Name

GROUND SCREW

Material

Carbon steel Q235B

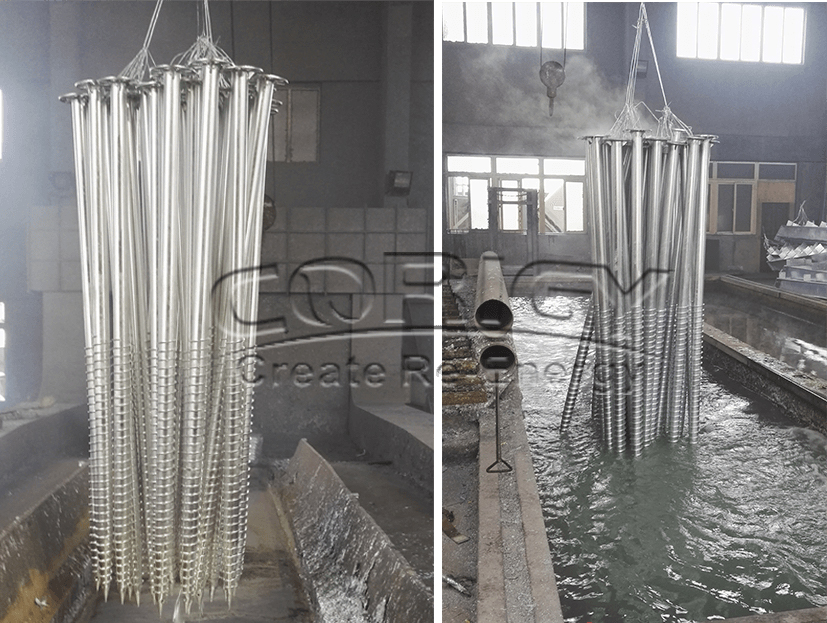

Anti-rust treatment

High class hot dip galvanized

 Pipe Diameters

76mm~200mm

Pipe Length

500mm~3600mm

Warranty

Ten years warranty

Duration

More than 20 years

Loading Port

Xiamen Port,China



1. Standard ground screw




Item No.

Out Dia. (mm)

Length (mm)

Thickness

CP-76GSF-L-3.0T

76

L < 3600

3.0

CP-89GSF-L-3.0T

89

L < 3600

3.5

CP-76GSF-L-3.5T

76

L < 3600

3.0

CP-89GSF-L-3.5T

89

L < 3600

3.5



2. Big blade ground screw


Item No.

Out Dia. (mm)

Length (mm)

Thickness

CP-76GBF-L-3.0T

76

L < 3600

3.0

CP-89GBF-L-3.0T

89

L < 3600

3.5

CP-76GBF-L-3.5T

76

L < 3600

3.0

CP-89GBF-L-3.5T

89

L < 3600

3.5



3. Adjustable ground screw


Item No.

Out Dia. (mm)

Length (mm)

Thickness

CP-76GT-L-3.0T

76

L < 3600

3.0

CP-89GT-L-3.0T

89

L < 3600

3.5

CP-76GT-L-3.5T

76

L < 3600

3.0

CP-89GT-L-3.5T

89

L < 3600

3.5

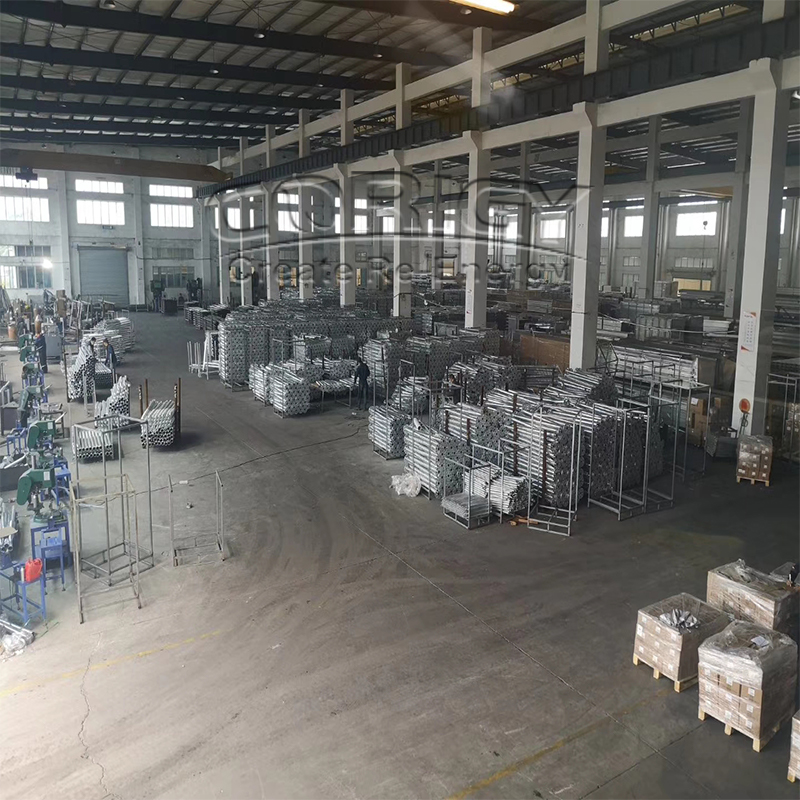

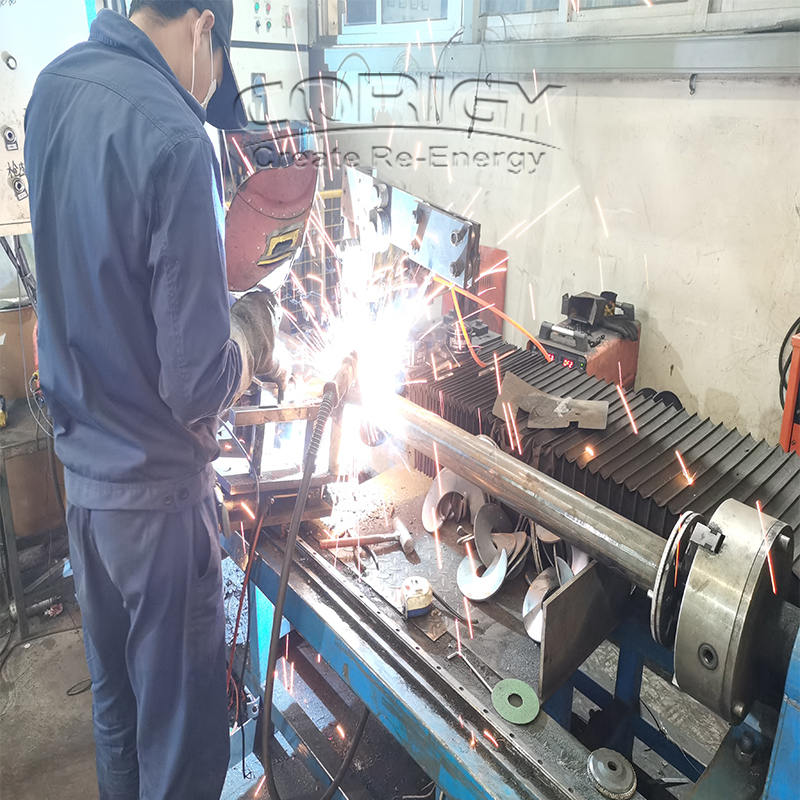

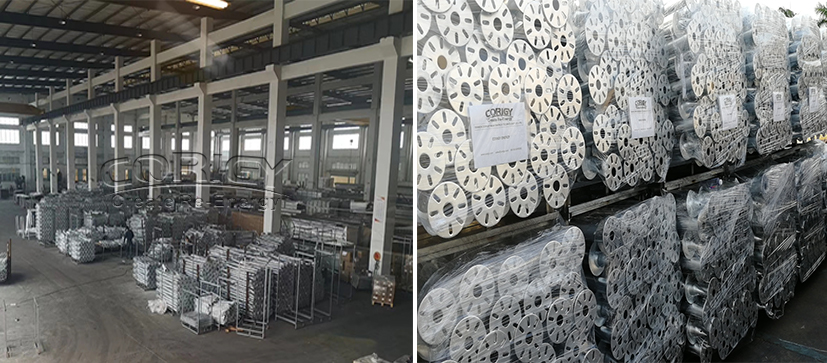

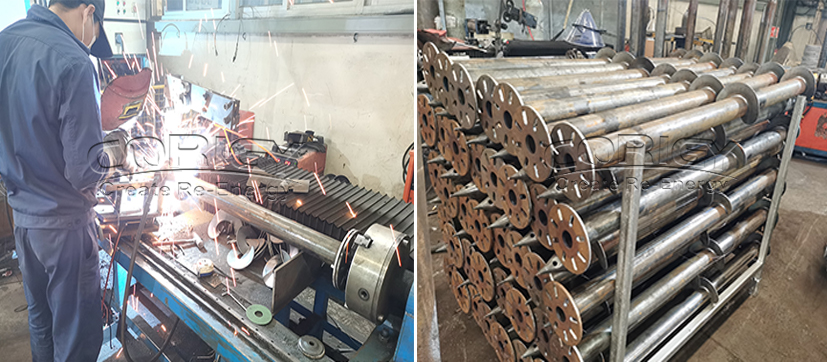

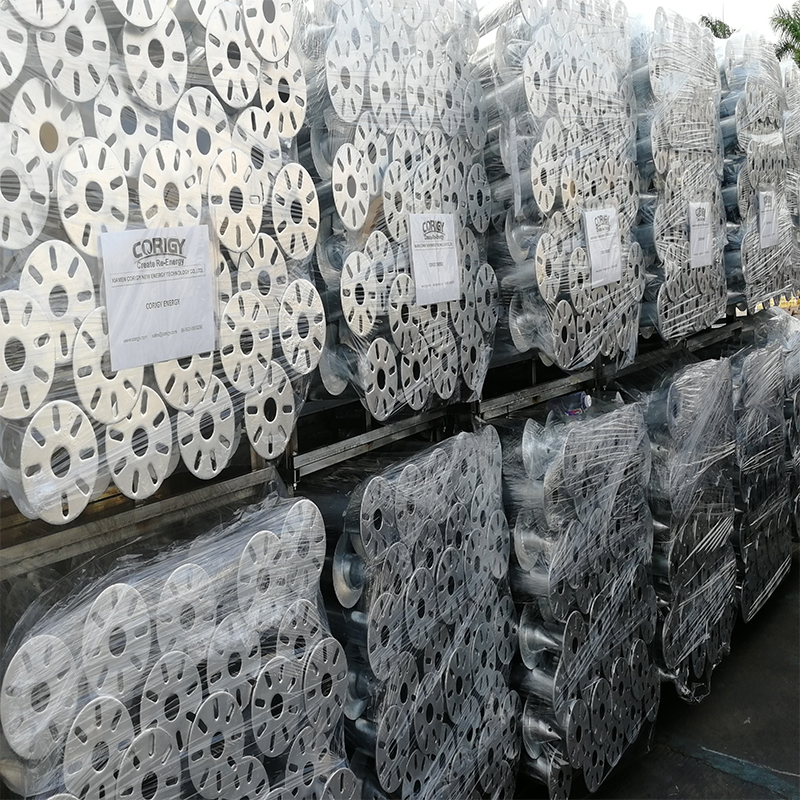

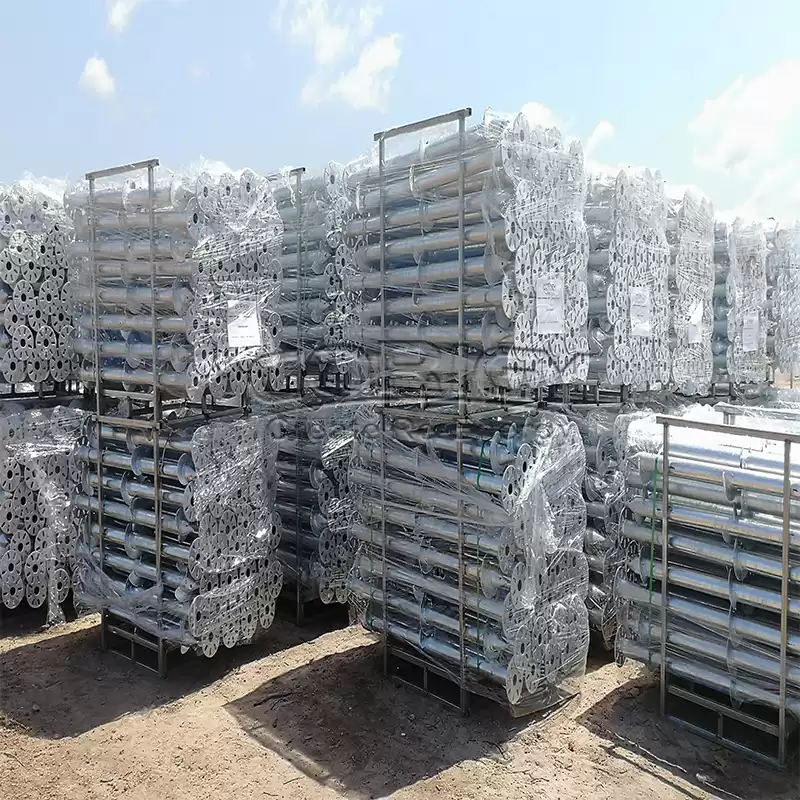

Our Production
