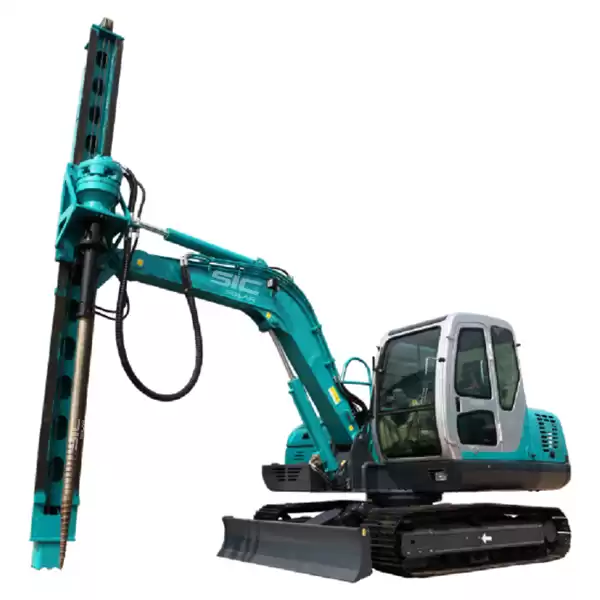

Ground Screw Spiral Pile Drilling Machine

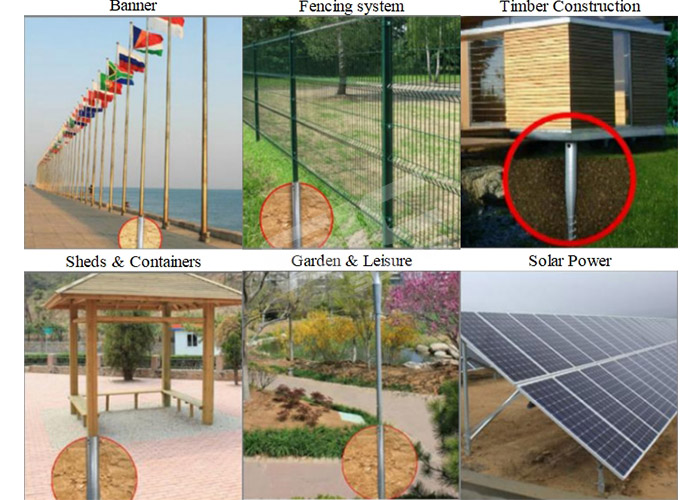

Ground Spiral Pile Drilling Machine is easy to operate, mainly applied for large solar photovotaic construction, fence construction, flagpole, billboard, street lamp and so on. It could meet each kind of ground screws and ground, on the other hand, the rotation and drilling could be adjusted easily.
| Pile diameter (mm) |
76 |
| Pile depth (mm) |
1800 |
| Blade length (mm) |
1400 |
| Power/Speed (kW/rpm) |
16/2200 |
| Length of drilling (mm) |
3400 |
| Feed speed (m/min) |
2 |
| Travel speed (km/h) |
4.7/2.6 |
| Traction force, max (kN) |
19 |
| Hill climbing ability (°) |
20 |
| Rotary speed, max (rpm) |
40 |
| Rotary torque, max (Nm) |
3000 |
☆ Strong Adaptability - Suitable for most ground and strong power.
☆ Adjustable - The rotation and drilling can be adjusted easily.
☆ Easily equipped - equipped with different tools according to different ground.
☆ Efficient - Short assembly time and quick mounting.
