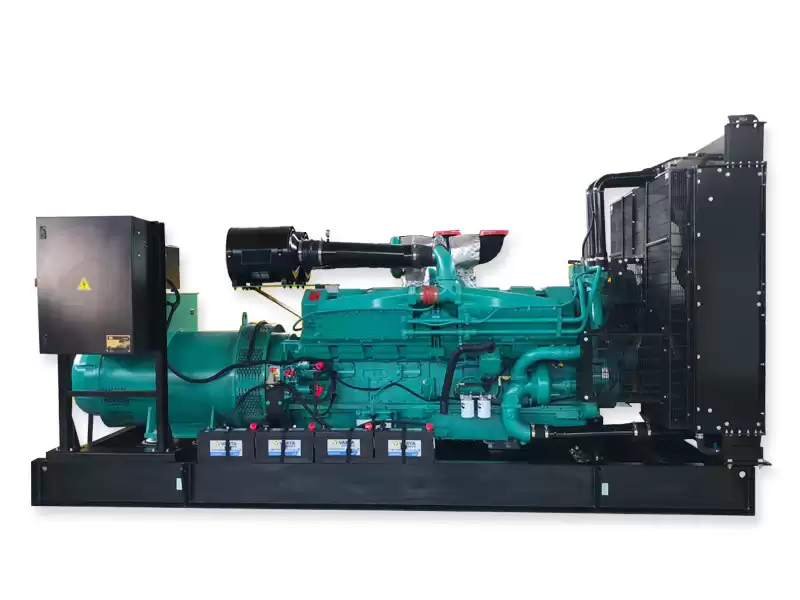

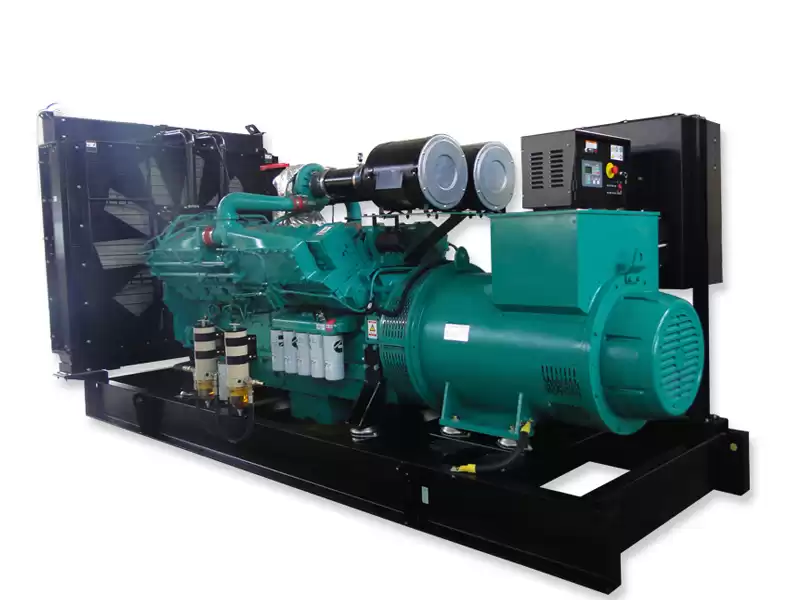

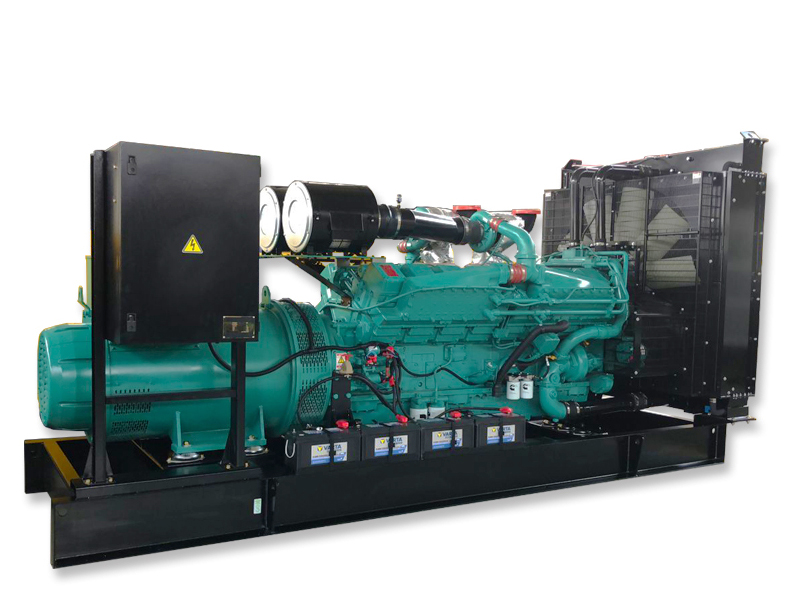

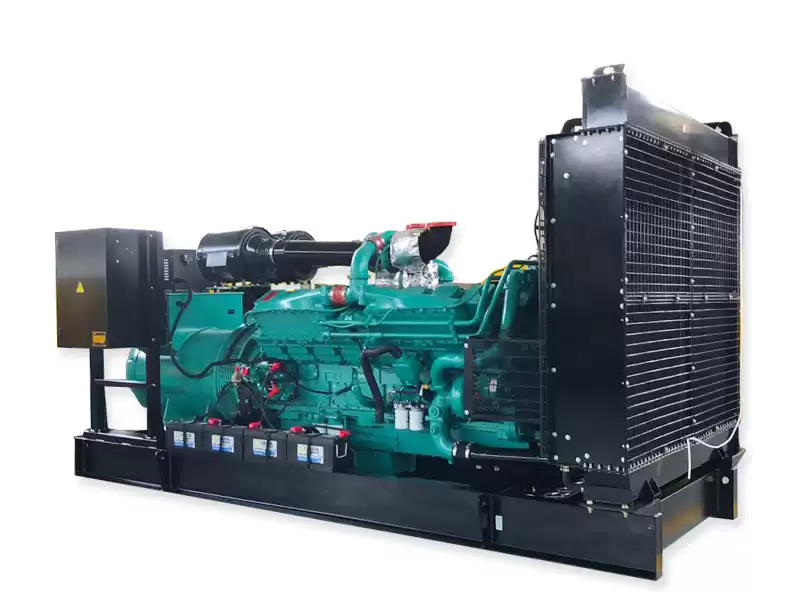

+ Assembled by Cummins diesel engine and Leroy Somer/Stanford alternator.
+ Three filters as standard， fuel and water separator as optional.
+ Radiator and fan with safety guard.
+ Single bearing alternator IP 23， Insulation Class H.
+ Heavyduty steel as base frame and 8hrs operation base fuel tank.
+ Automatic controlpanel and 3poles circuit breaker， internal cable
+ 12V battery， battery wires.
+ Battery charger and float battery charger as standard supply scope.
+ Optional soundproof canopy，ATS，synchronization panel，trailers.

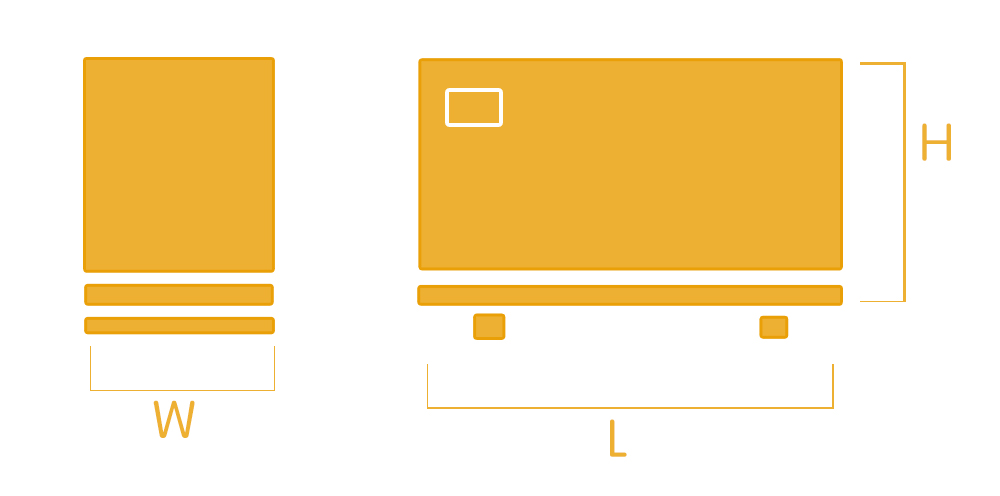

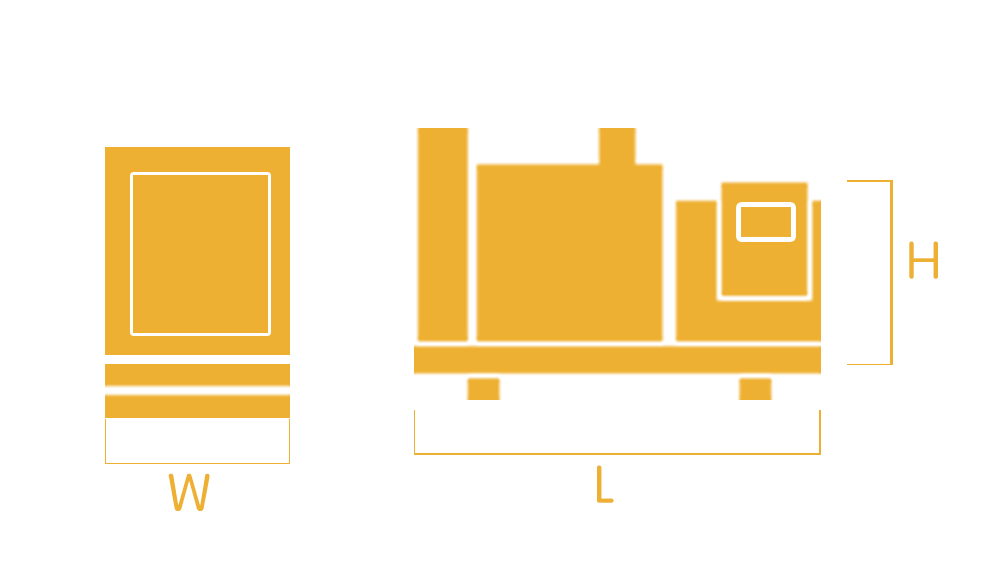

Model	1500 rmp/400v 3P 4W/50HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
CCW-1250T5	1250	1000	1375	1100	KTA50-G3	5000*2060*2500	9400	6058*2438*2591	15000
CCW-1375T5	1375	1100	1650	1320	KTA50-G8	5250*2110*2550	10600	12192*2438*2896	16200
CCW-1475T5	1475	1180	1650	1320	KTA50-GS8	5250*2110*2550	10600	12192*2438*2896	16200

Model	1800 rmp/480v 3P 4W/60HZ/0.8PF				Engine Type	Dimensions(LxWxH)&Weight				DOWNLOAD
	Prime Power		Standby Power			Open Genset		Silent Genset
	KVA	KW	KVA	KW		Dimension(mm)	weight(kg)	Dimension(mm)	weight(kg)
CCW-1375T6	1375	1100	1575	1260	KTA50-G3	4900*2060*2500	9400	6058*2438*2591	15000
CCW-1575T6	1575	1260	1875	1500	KTA50-G9	5250*2110*2550	10600	12192*2438*2896	16200
