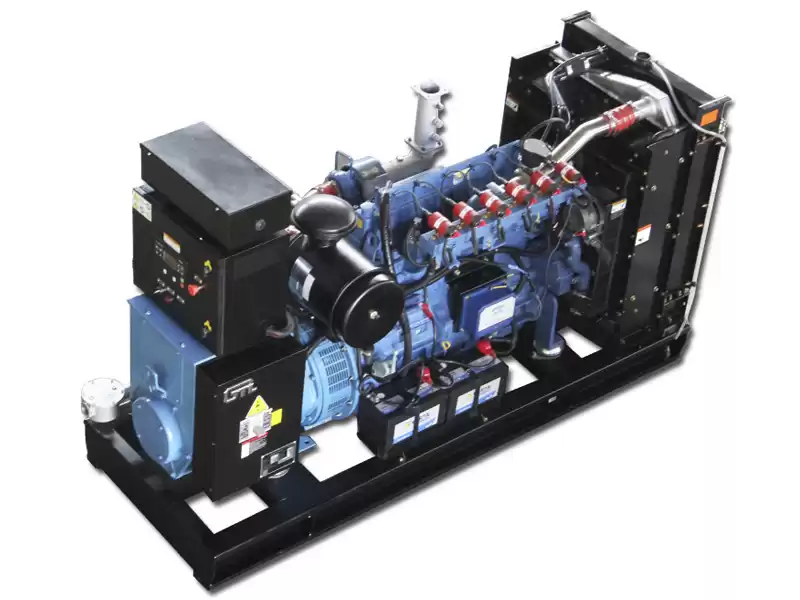

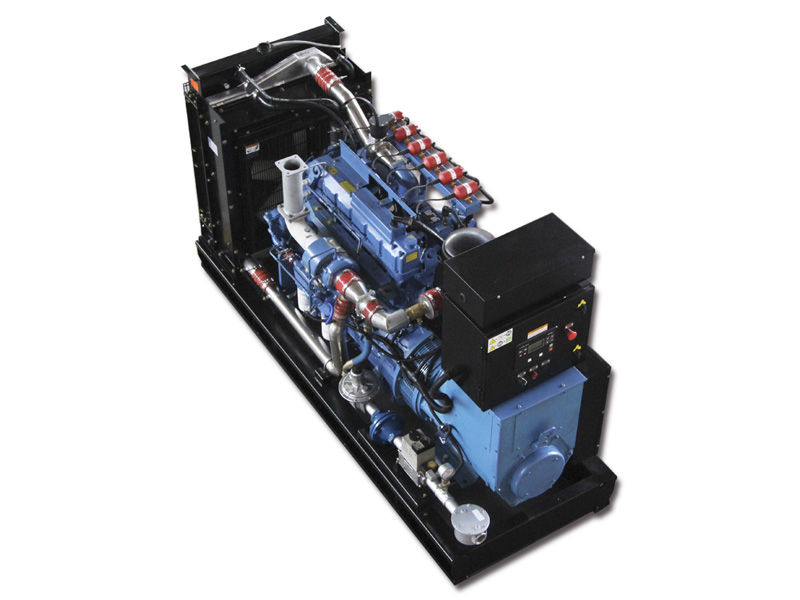

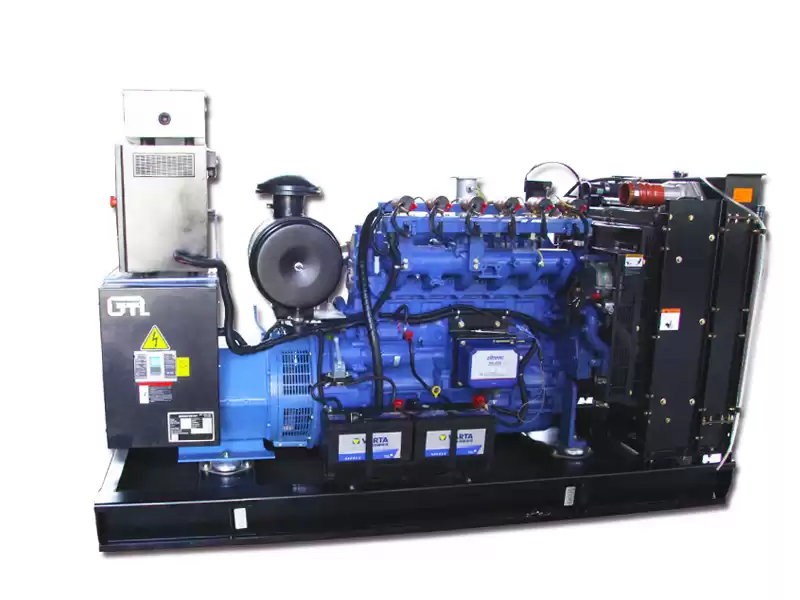

GTL Gas Generator

GTL manufactures gas generator sets with a wide power range.

Facebook Twitter Pinterest LinkedIn 分享
Model Item GC30-BG GC40-BG GC50-BG GC80-BG GC120-BG GC200-BG GC300-BG GC500-BA
Max. kVA/kW 37.5/30 50/40 63/50 100/80 150/120 250/200 375/300 625/500
Power
Continuous Power kVA/kW 30/24 40/32 50/40 75/60 150/100 200/160 313/250 563/450
Fuel Biogas
Consumption(m³/h) ￥13.42 ￥16.69 ￥20.87 ￥29.35 ￥48.91 ￥75.89 ￥111.80 ￥201.24
Rate Voltage(V) 380V-415V
Voltage Stabilized Regulation ≤±1.5%
Voltage Recovery Time(s) ≤1
Frequency(Hz) 50Hz/60Hz
Frequency Fluctuation Ratio ≤1%
Rated Speed(Min) 1500
Idling Speed(r/Min) 700
Insulation Level H
Rated Currency(A) 54.10  72.10  90.20  144.30  216.50  360.80  541.30  902.10
Noise(db) ≤95 ≤95 ≤95 ≤95 ≤95 ≤100 ≤100 ≤100
Engine Model C4B C4BT C6B C6BT C6CT C14T C19T C38T
Aspration Natural Turboch arged Natural Turboch arged Turboch arged Turboch arged Turboch arged Turboch arged
Arrangement Inline Inline Inline Inline Inline Inline Inline V type
Engine Type 4 stroke, electronic-control spark plug ignition, water cooling,premix proper ratio of air and gas before combustion
Cooling Type Radiator fan cooling for closed-type cooling mode,or heat exchanger water cooling for cogeneration unit
Cylinders 4  4  6  6  6  6  6  12
Bore 102x120 102x120 102x120 102x120 114x135 140x152 159x159 159x159
X Stroke(mm)
Displacement(L) 3.92  3.92  5.88  5.88  8.30  14.00  18.90  37.80
Compression Ratio 11.5:1 10.5:1 11.5:1 10.5:1 10.5:1 11:01 11:01 11:01
Engine Rate Power(kW) 36.00  45.00  56.00  100.00  145.00  230.00  336.00  570.00
Oil Recommended API service grade CD or higher SAE 15W-40 CF4
Oil Consumption ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤1.0 ≤0.5 ≤0.5 ≤0.5
(g/kW.h)
Exhaust Temperature ≤680℃ ≤680℃ ≤680℃ ≤680℃ ≤600℃ ≤600℃ ≤600℃ ≤550℃
Net Weight(kG) 900  1000  1100  1150  2500  3380  3600  6080
Dimension(mm) 1800  1850  2250  2450  2800  3470  3570  4400
720  750  820  1100  850  1230  1330  2010
1280  1480  1500  1550  1450  2300  2400  2480
Natural Gas Generator Set
