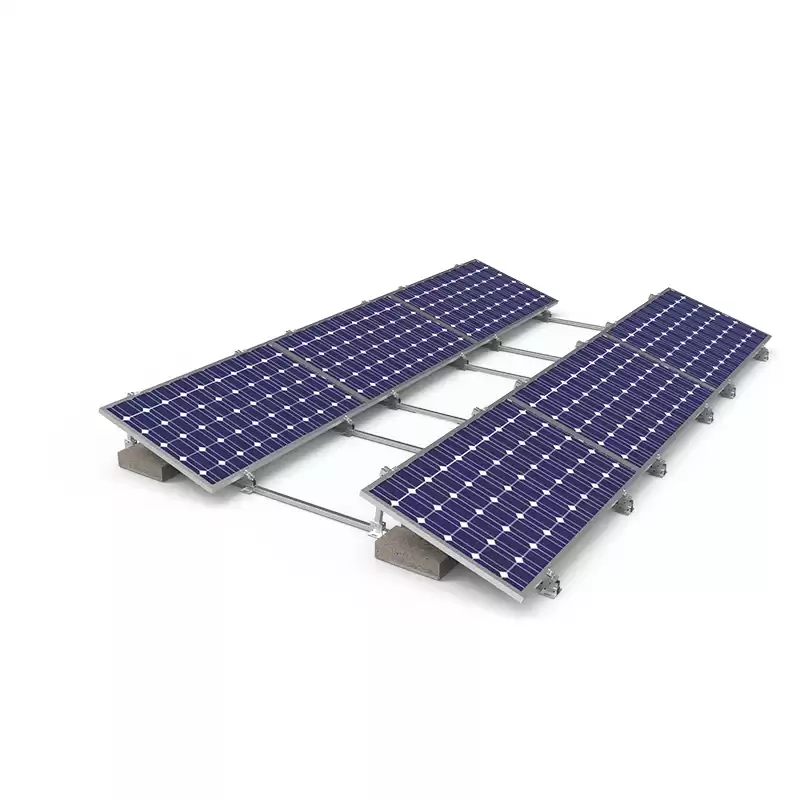

Flat Roof Mounting Solution
CORIGY SOLAR Adjustable Triangle Solar Racking System is specially designed for easy installation of solar panel to tilt a certain angle with flat roof. The mounting system design provides a strong and sturdy support for solar modules, it can be adjustable angle such as
10~20degree, 20~30 degree for your requirement.this Adjustable Triangle
Roof Mounting makes the installation easy and quick to save your labor cost and time.
TECHNICAL INFORMATION
|
Install Site
|
Flat Roof or Lower Profile Roof
|
|
Tilt Angle
|
10~60 Degree
|
|
Building Height
|
20 m
|
|
Max Wind Speed
|
<60m/s
|
|
Snow Load
|
1.4KN/m2
|
|
Standard
|
AS/NZS 1170 and Other International Standard
|
|
Material
|
High Class Aluminum Alloy Al6005-T5 & Stainless Steel 304
|
|
Anticorrosive
|
Anodized Aluminum & Stainless Steel
|
|
Color
|
Natural and Customized
|
|
Warranty
|
Ten Year Warranty and Twenty Year's Service Life
|

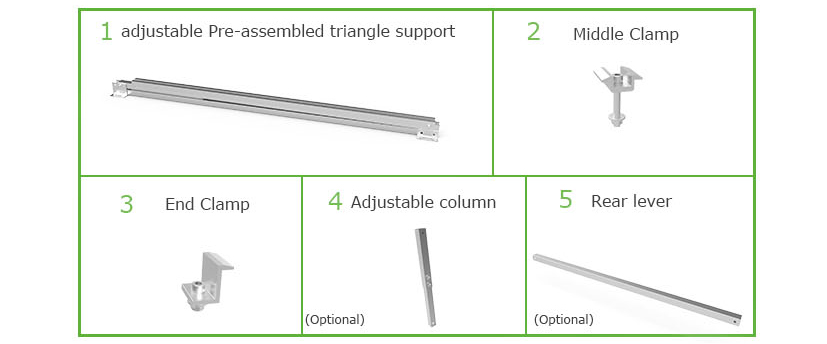

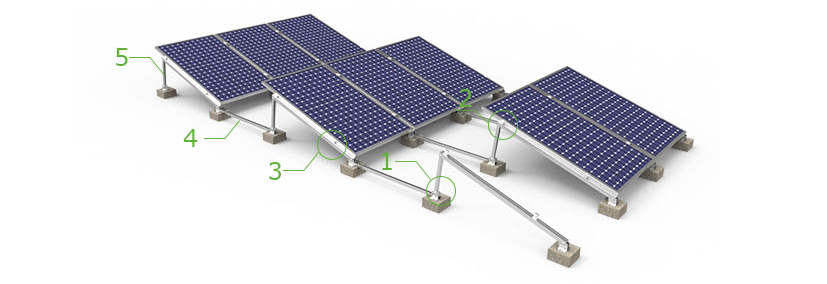

COMPONENT OVERVIEW
CORIGY SOLAR Non-penetrating Ballast Solar Racking is designed for solar mounting on commercial or residential flat-roof.
ADVANTAGE
1. High Pre-assembled, saving installation time and labor cost
Before
delivery, we will assemble and fix the solar accessories to be
positioned in advance, so that you can save a lot of installation time
and labor cost.

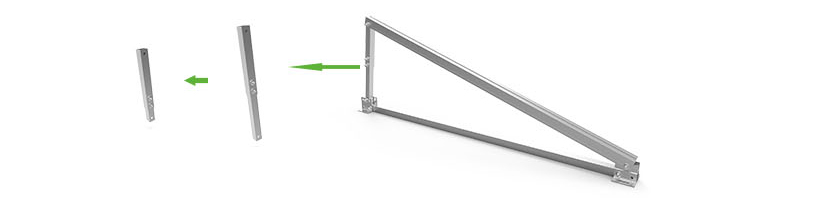

2. Adjustable rear leg can be installed to meet your different needs.

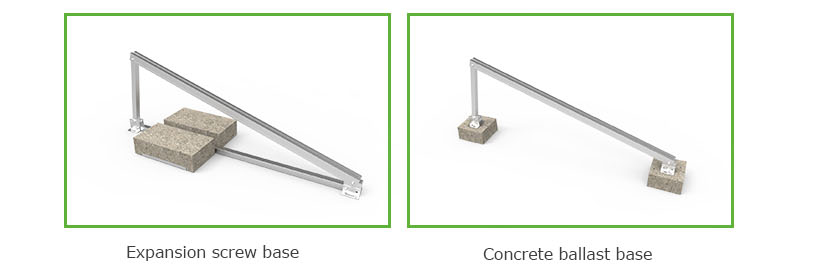

FOUNDATION
Two different installation methods to meet your various needs for installation.

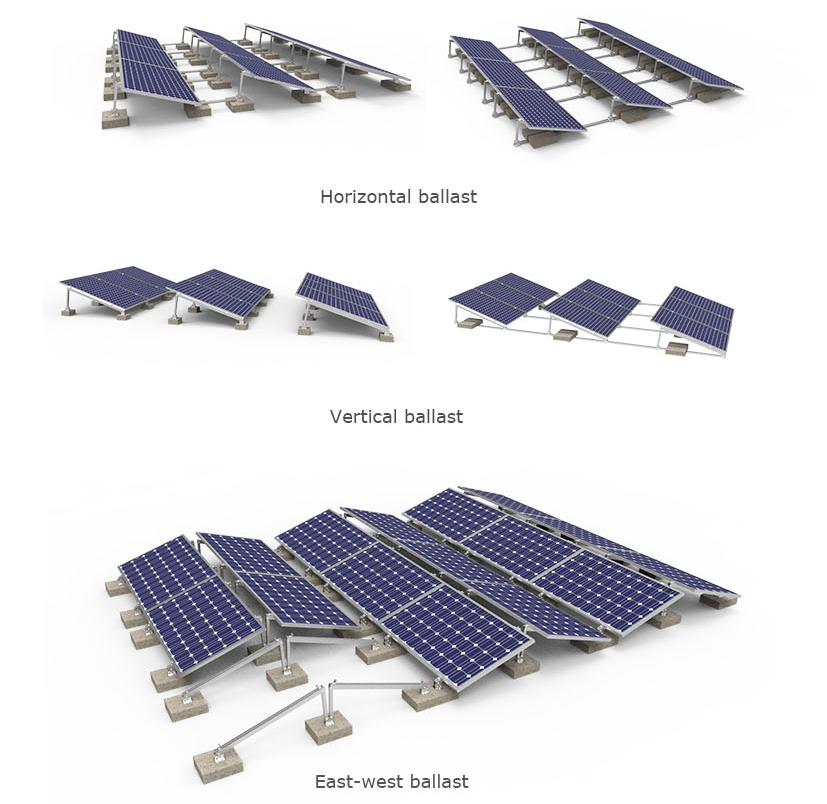

DIY LAYOUT
You can DIY to customize your own layout
PACKAGE
