King Long 10 meters 43 seats tour bus

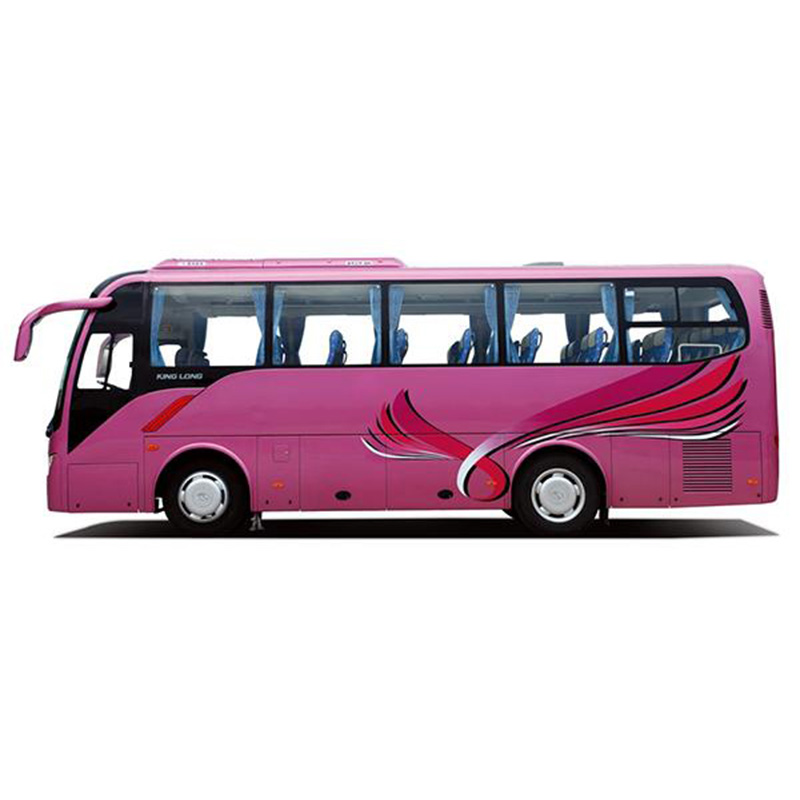

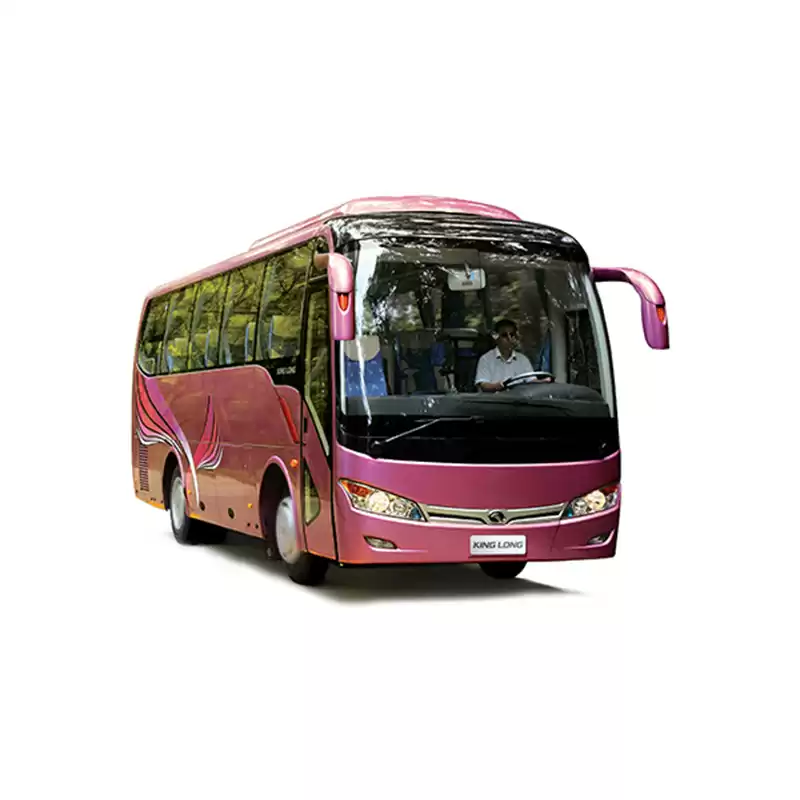

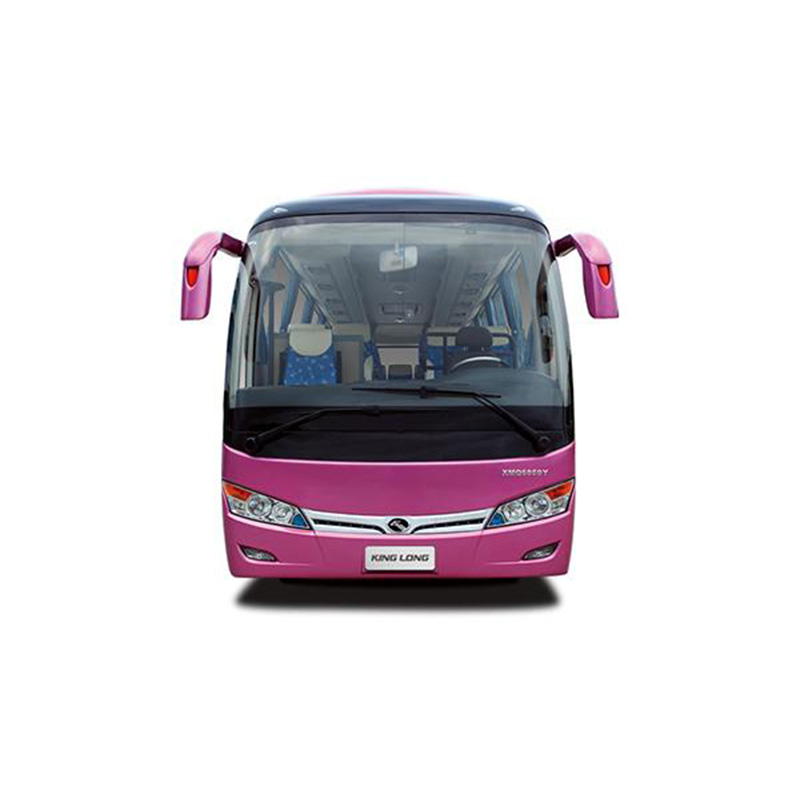

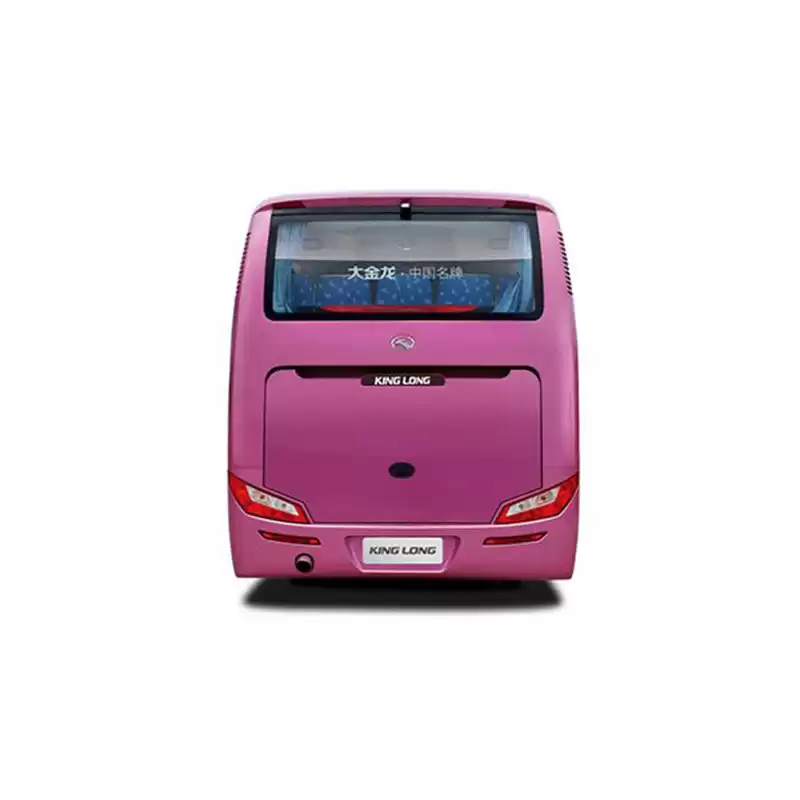

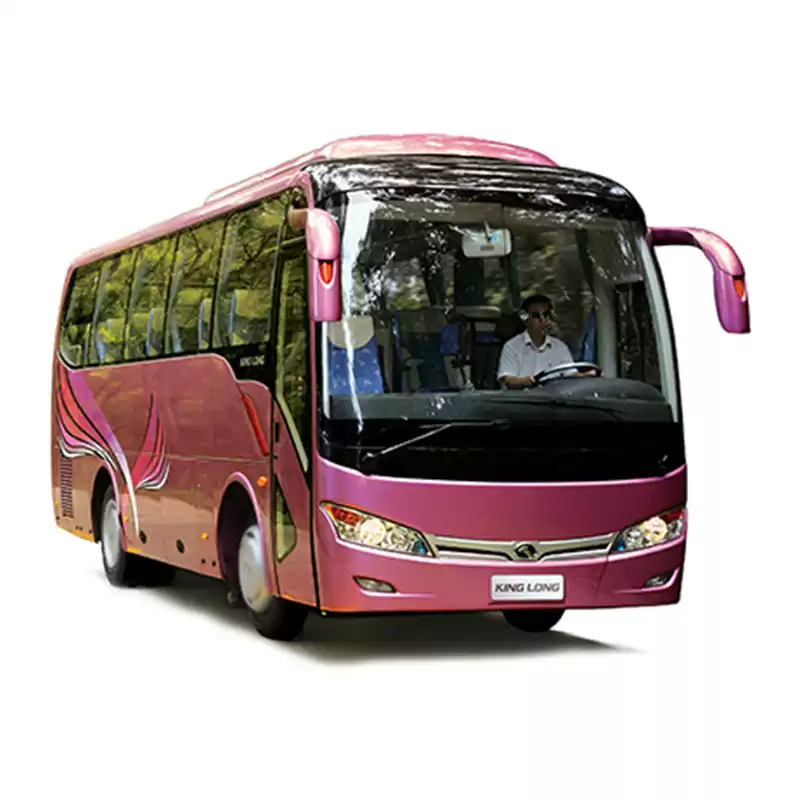

Exterior of 10m 43 Seater Coach
With the widened car body and moulded roof in the front and rear, you could feel the spacious space once you step into this coach. In combination with the scientific seat layout and space optimization design, the grades and seat quantity are optimal to satisfy the high load-bearing demand of the passenger transportation market and to provide the comfortable travel experience for passengers.

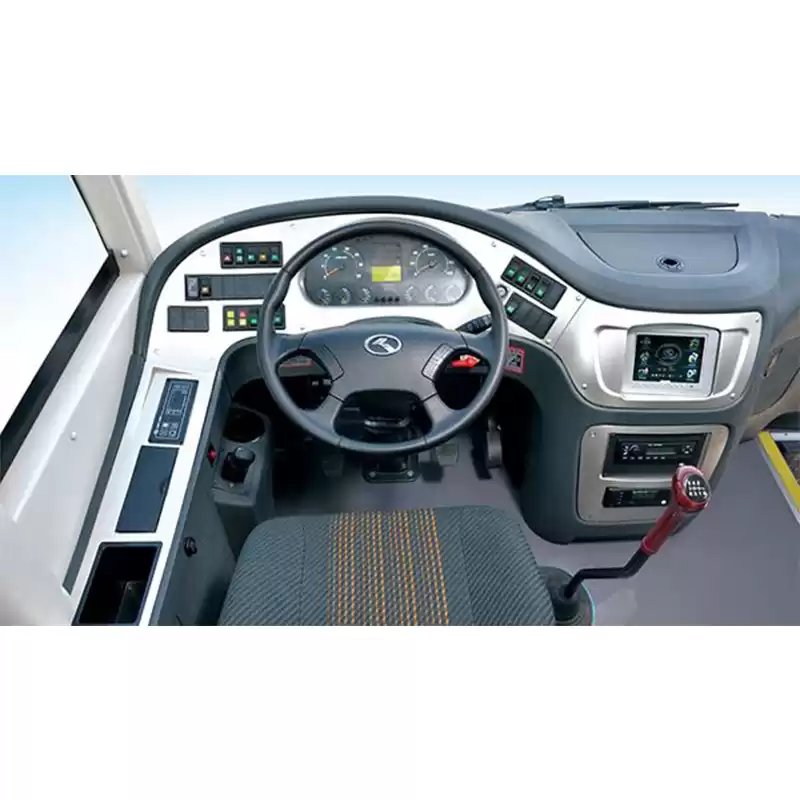

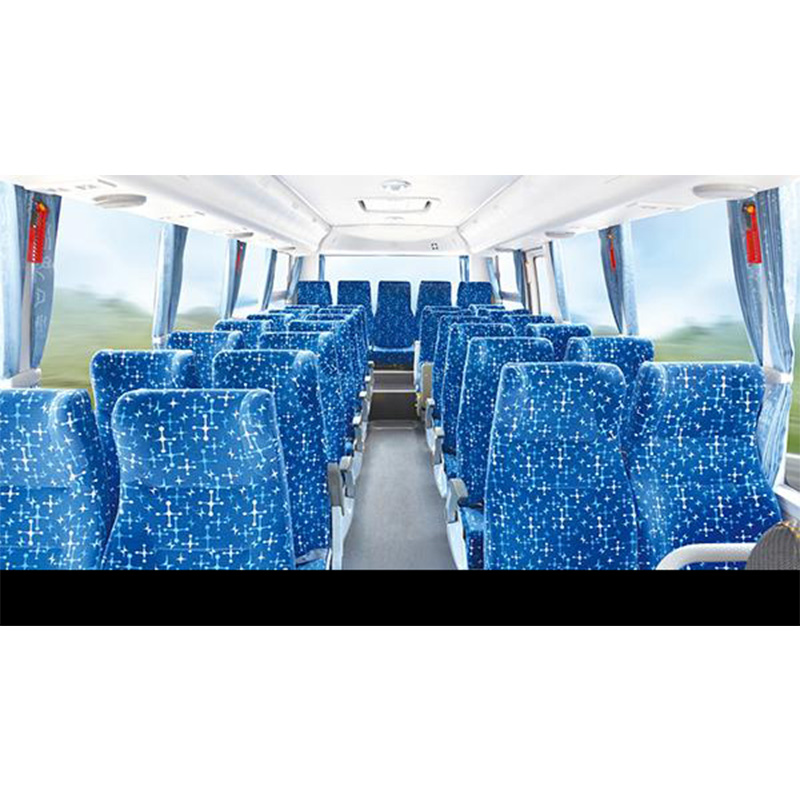

Interior of 10m 43 Seater Coach
The interior design takes full consideration of the sightseeing demand of the tourists. The coach has the largest side window glass compared with those at same level, provide a comfortable ride and wide vision. The blue and white interior decoration of the vehicle makes the passengers feel at ease and enjoy the comfortable journey all along.



Technical Specifications of 10m 43 Seater Coach

MODEL XMQ6101Y
DIRECTION LHD
DIMENSIONS
Length*Width*Height (mm) 10490×2480×3304/3404(With A/C)
Wheelbase(mm) 5450
Front overhang/rear overhang(mm) 1975/3065
Minimum ground clearance(mm) 200
CAPACITY
Seating arrangement 43+1+1
Fuel tank capacity (L) 256
ENGINE
Brand YUCHAI WEICHAI
Model YC6J245-42 WP7.270E40
Emission standard EuroⅣ EuroⅣ
Rated power(kw/rpm) 180/2500 199/2300
Rated torque (N.m/rpm) 890/1200-1700 1000/1200-1600
Displacement (L) 6.5 7.14
TRANSMISSION & CLUTCH
Clutch Chinese
Transmission (Brand & Type) Manual 6-gear transmission
AXLES
Front Chinese Axle
Rear Chinese Axle
SUSPENSION
Suspension system Leaf spring
STEERING
Steering system Chinese
Brake system
Brake system(Disc/Drum) Front/Rear Drum
Tyre (Brand & Type) Tubeless Tires
ABS(domestic/imported) Chinese ABS
Body
DOOR & WINDOW
Doors Aluminum,remote control,out-swing doors
Side Windows Toughened glass
SEATS
Driver Velet adjustable damping suspension driver seat
Passenger KING LONG

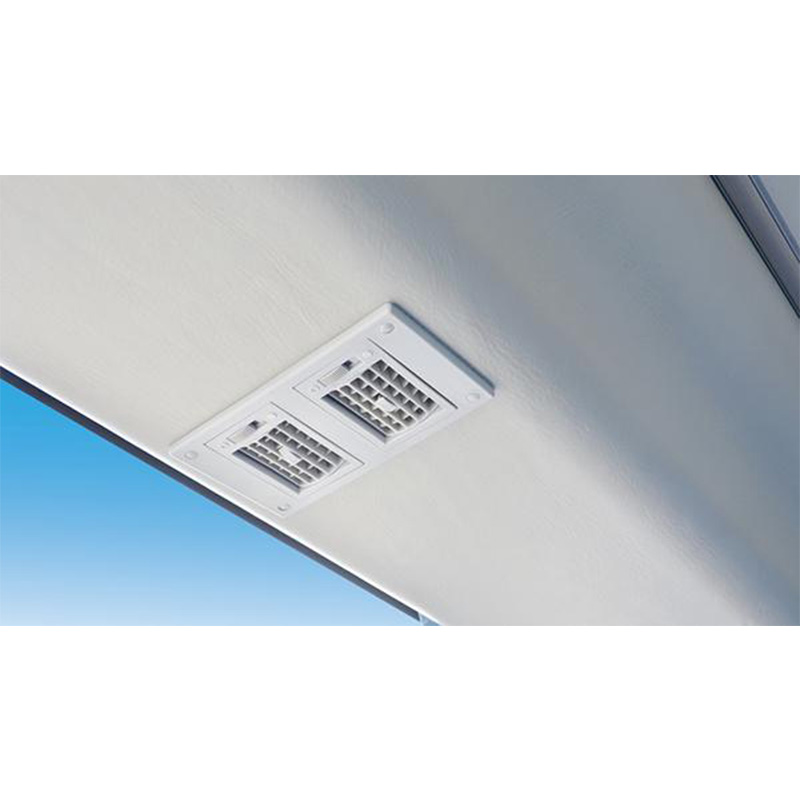

AIR CONDITIONER
Type KING LONG roof-mounted non-independent A/C
HEATER
Type No heater, with independent defrosting device
MIRROR
Type Wide vision manual rear view mirror
OTHER STANDARD EQUIPMENTS
CAN Bus (Digital tachographer with print & display), luxurious both-side internal baggage rack (H-type), flat paint, MP3 player
