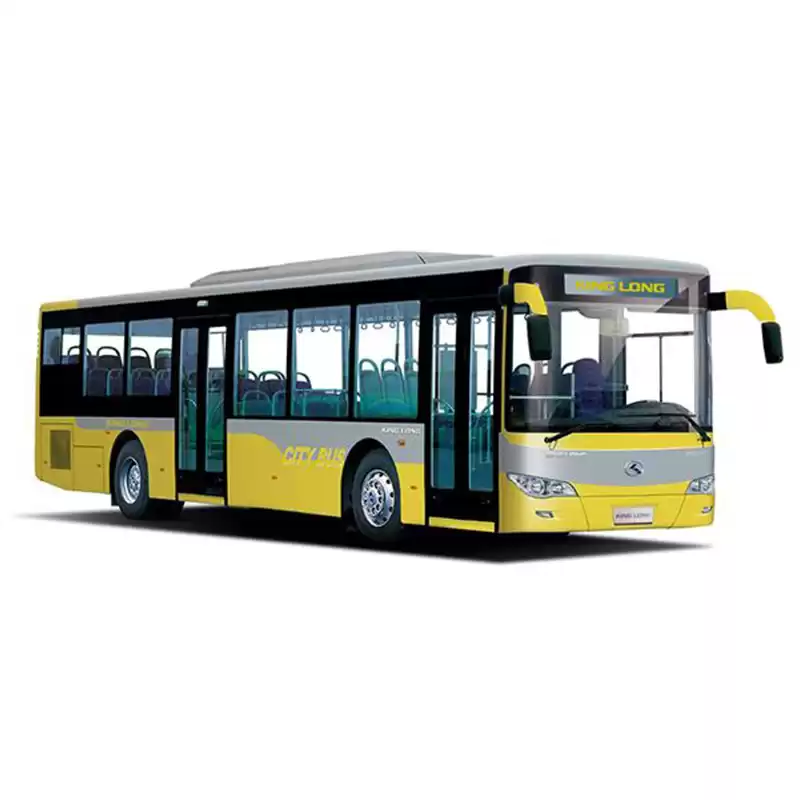

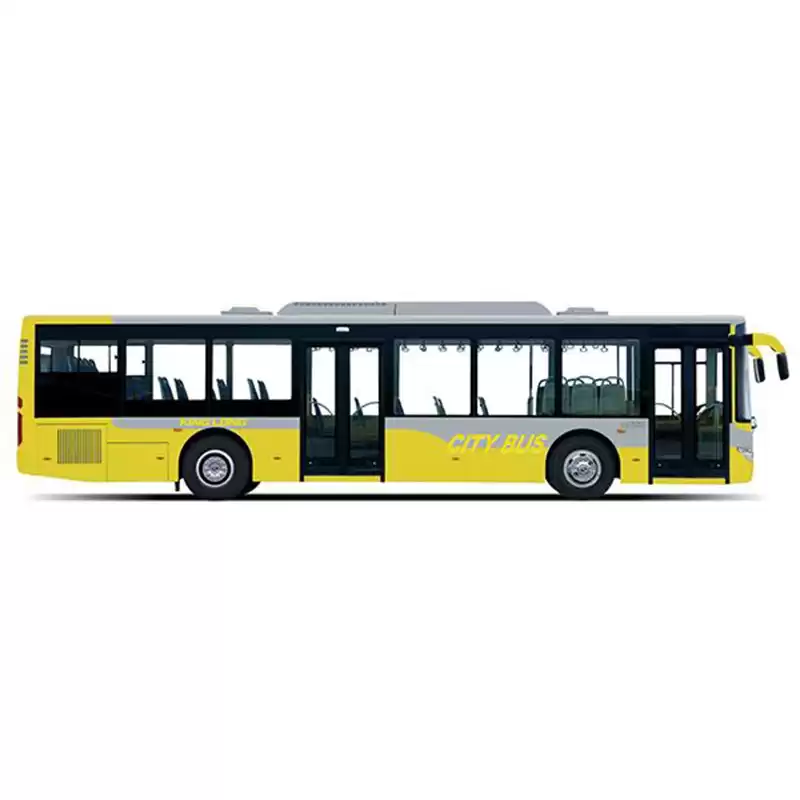

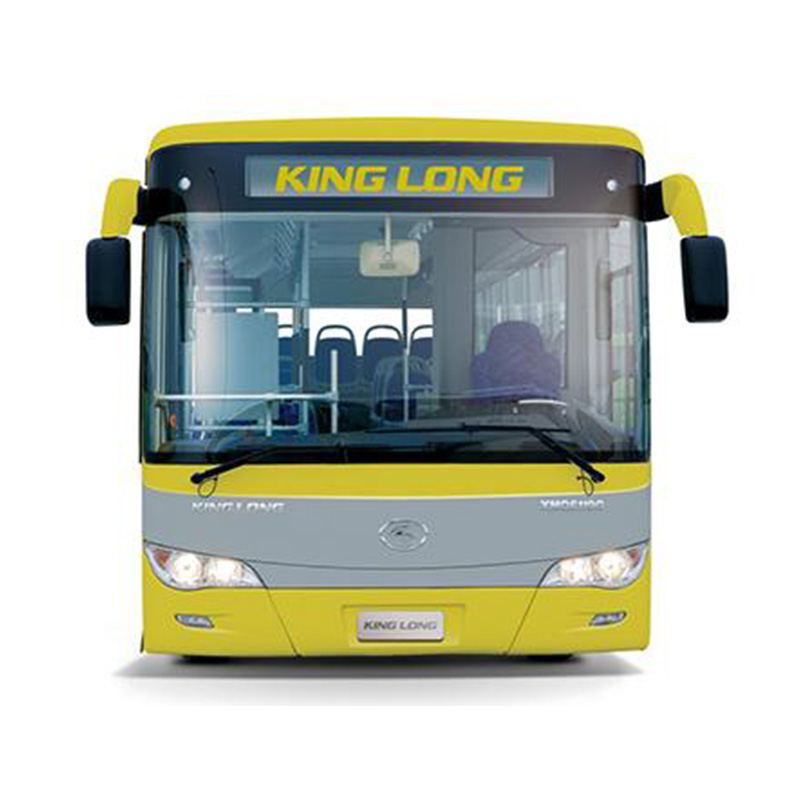

KIng Long 12 meters 40 seats diesel engine / pure electric city bus

Description
The XMQ6127G city bus is a newly developed upgraded version of King Long's public transit buses. It comes with a steadier chassis, offering reliable performance. Its brand new exterior structure is designed based on international popular bus-design philosophy and Chinese traditional aesthetical element, which makes it attractive and eye-catching. Designed with 40 seats for passengers, the XMQ6127G public transit bus has a large carrying capacity. We use Chinese Yuchai engine, Dongfeng Cummins engine and Hino engine to satisfy customers' demands.

Facebook Twitter Pinterest LinkedIn 分享

Technical Specifications of 12m City Bus

Model XMQ6127G 6127G
Dimensions
Length* Width* Height (mm) 11980×2550×3070/3190 (With air conditioner) (CNG status, with a height of 3370)
Wheelbase (mm) 6000
Front overhang/rear overhang (mm) 2670/3310
Minimum ground clearance (mm) 150
Capacity
Seating arrangement 40+1
Fuel tank capacity (L) 220L (CNG gas cylinder 7*120L, LNG gas cylinder 375L)
Engine
Brand Chinese YUCHAI DONGFENG CUMMINS DONGFENG CUMMINS Chinese YUCHAI DONGFENG CUMMINS DONGFENG CUMMINS HINO
Model YC6G270-30 ISDe270 30 ISBE4+250B YC6M290-30N C245 20 ISLE+280B J08E-UL
Emission standard Euro Ⅲ Euro Ⅲ Euro Ⅳ Euro Ⅲ Euro Ⅱ Euro Ⅲ Euro Ⅲ
Rated power (kw/rpm) 199(270)/2200 199(270)/2500 250/2500 214(270)/2100 180/2200 280 @ 2100 199(270)/2200
Rated torque (N.m/rpm) 1080/1200-1500 1070/1400 1020 @1500 1220/1300 1025/1400 1060 @ 1100-1700 1000/1500
Displacement (L) 7.8 6.7 6.7 9.839 8.3 8.9 7.684
Transmission & Clutch
Clutch Chinese Chinese Built-in clutch
Transmission Chinese manual 6-gear transmission Chinese manual 6-gear transmission ZF
Axles
Front Chinese
Rear Chinese ZF
Suspension
Suspension system Leaf spring Chinese 2-airbag and ZF 4-airbag air suspension
Steering
Steering system Domestic steering gear
Brake system
Brake system (Disc/Drum) Drum brake Front/Rear Disc
Tire Chinese 275/70R22.5
ABS None
Body
Door & Window

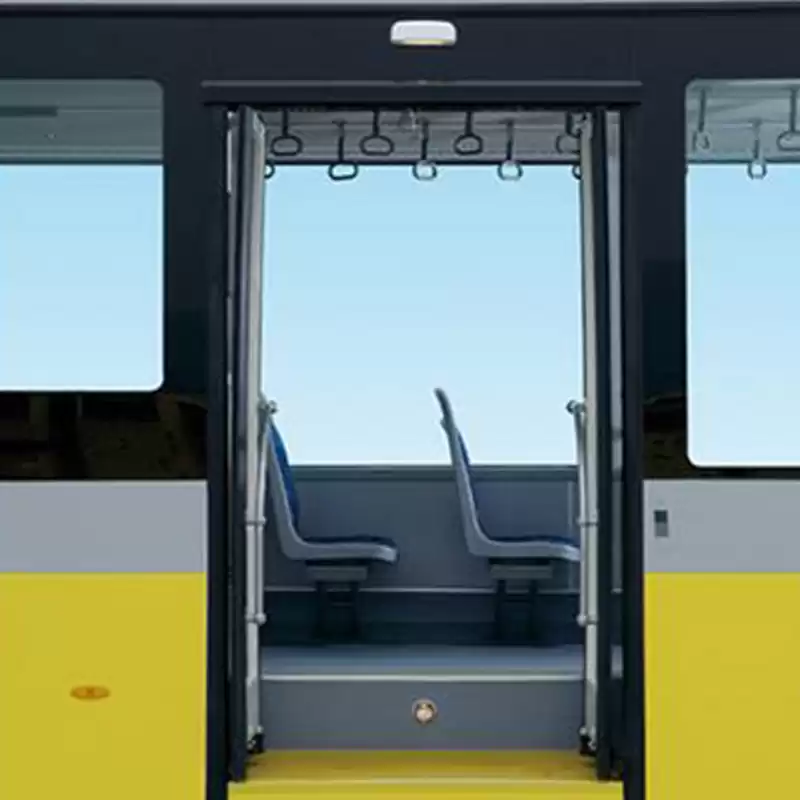

Doors Front double and rear double inner-swinging door
Side Windows Toughened glasses (Sliding window on last one both sides)
Seats

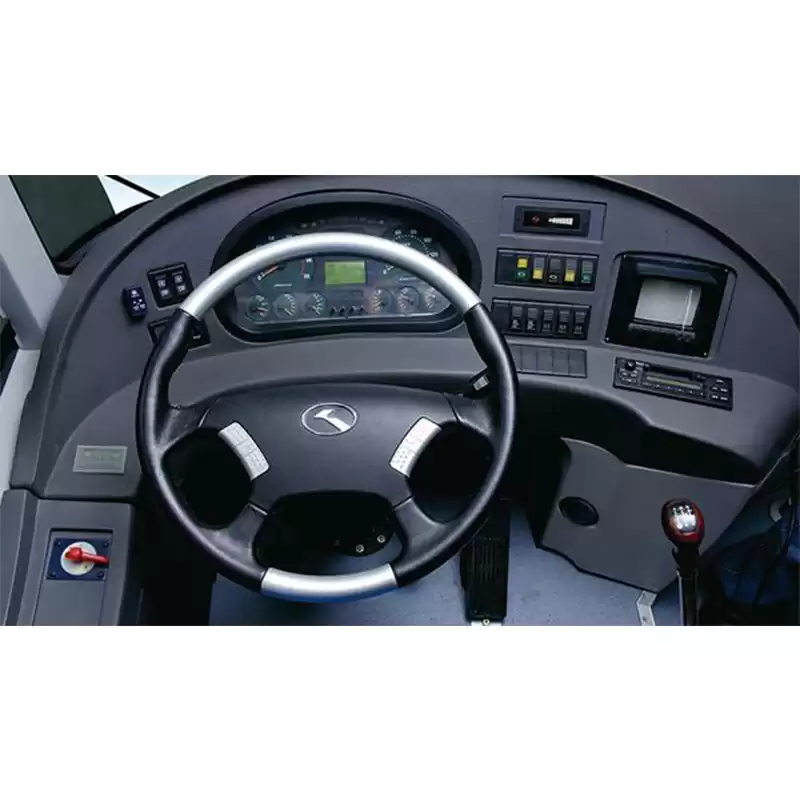

Driver Fabric cover, KL model-J08-A, high back, adjustable

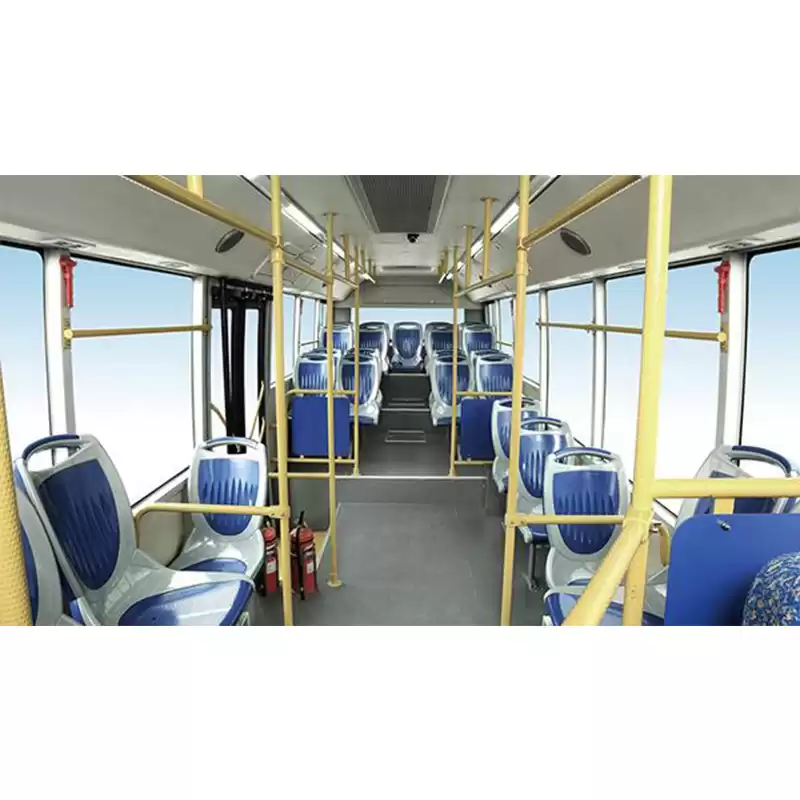

Passenger Public transit bus special seat
Air Conditioner
Type No air conditioner
Heater
Type No hot-water, with defroster
Mirror
Type Steel-rack rear view mirror, broad view rear view mirror
Other Standard Equipment
With hot-water and defroster, sun visor (one-spoke), MP3/Radio player, extinguisher 2×4kg, engine compartment automatic fire extinguisher, 4 units safety hammer, exit bell
