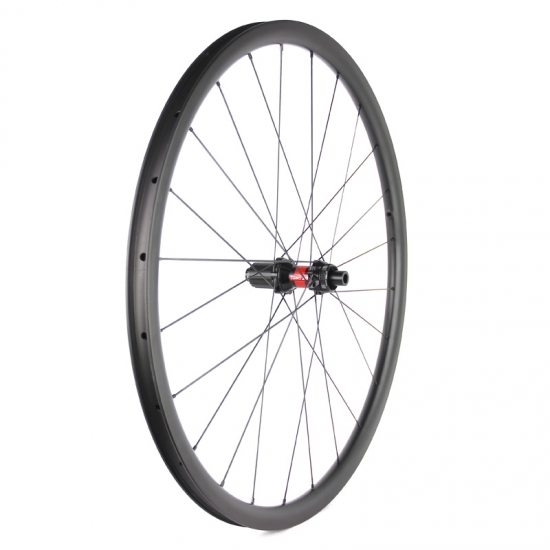

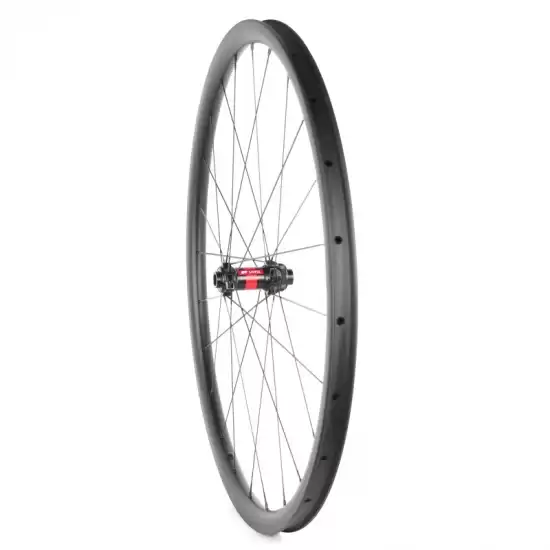

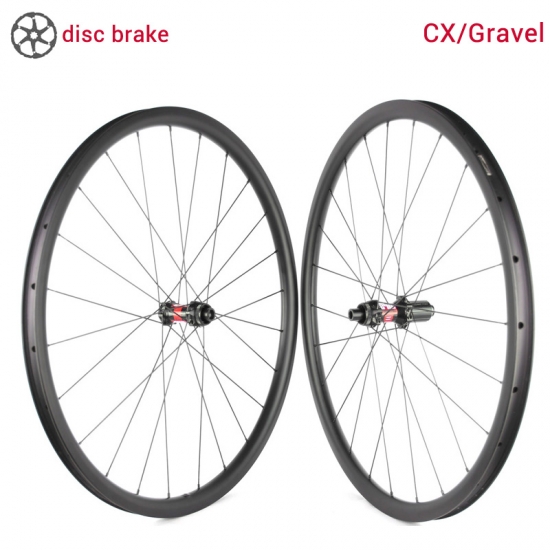

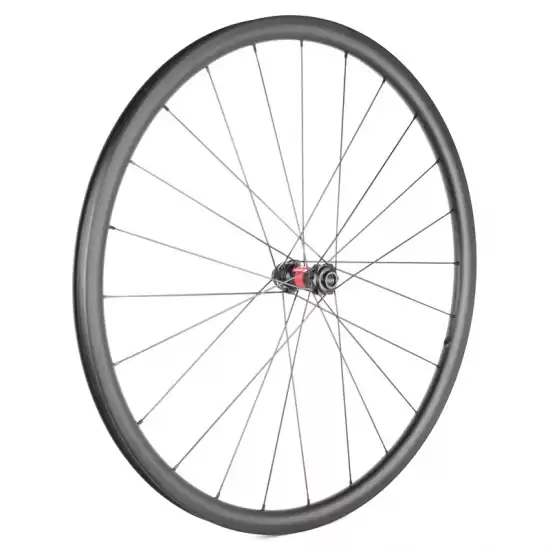

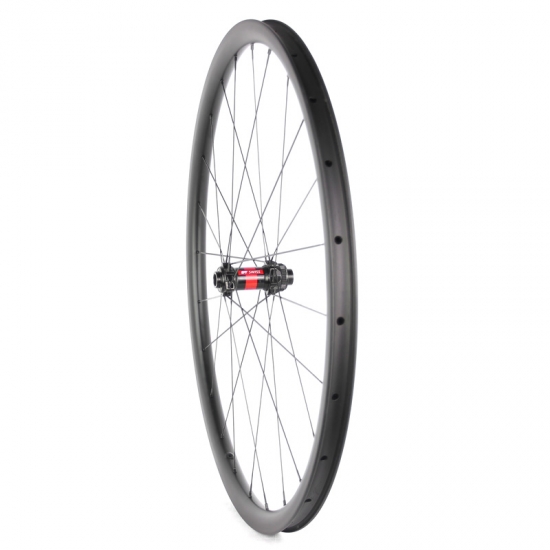

LightCarbon Cyclocross carbon wheel disc brake Gravel carbon wheel

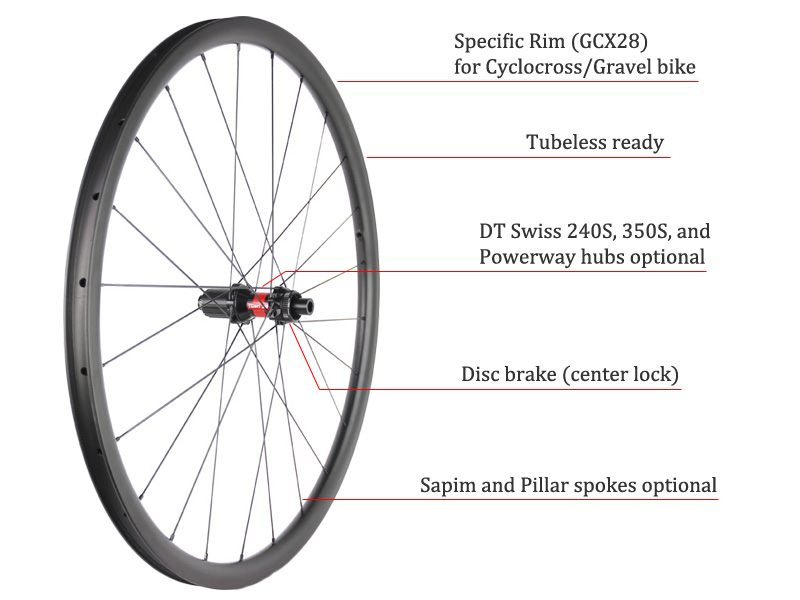

Features:
- Built with specific GCX28 carbon rim , designed for 700C Gravel or Cyclocross bike use.
- GCX28 rim is wider than normal road rims, for better strength.
- 3mm asymmetric design, help to equalize spoke tension between drive side and non-drive side.
- New bead lock system, better fit tubeless tire, prevent air leaking.
- Different hubs optional: DT Swiss 240S, 350S or Powerway CT31 hub. (M12x100mm/M12x142mm).
- Sapim and Pillar spokes optional.2 years' quality warranty.
700C Gravel/Cyclocross carbon Wheels (tubeless ready) Specification
| Model |
Hub |
Rim |
Tire Type |
Spoke |
Brake |
Front Hub |
Rear Hub |
Front
Count
|
Rear
Count
|
Weight
(+/-3%)
|
| 31DB-28C-1423 |
Powerway CT31
Disc Brake
|
GCX28 |
Clincher/TLR |
Pillar
1423
|
Disc Brake
(center lock)
|
12/100mm TA |
12/142mm TA |
24H |
24H |
1550g |
| 350DB-28C-1423 |
DT350S Road
Disc Brake
|
GCX28 |
Clincher/TLR |
|
Disc Brake
(center lock)
|
12/100mm TA |
12/142mm TA |
24H |
24H |
1540g |
| 240DB-28C-CX-Ray |
DT240S Road
Disc Brake
|
GCX28 |
Clincher/TLR |
Sapim
CX-Ray
|
Disc Brake
(center lock)
|
12/100mm TA |
12/142mm TA |
24H |
24H |
1345g |

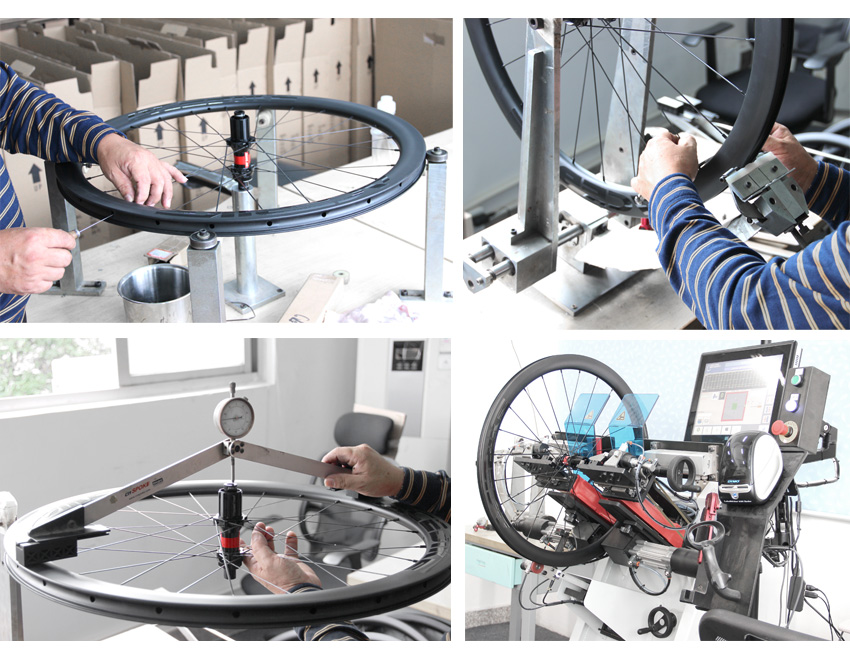

Precise Handbuilt Carbon Wheels
Wheel Building Technology:
Our carbon wheels are precise hand built, then trued by Holland Mechanics Pro Truer.
The perfect allocation of spoke tension in every spoke, and relatively high spoke tension give many advantages:
- High radial, lateral and torsional stiffness.
- Less spoke tension loss over time.
- Longer durability.
- Less maintenance needed.
Wheel roundness tolerance: ≤0.3mm
Wheel lateral tolerance: ≤0.3mm
Wheel center tolerance: ≤0.3mm
