Solar PV Mounting System for Tin Roof
Solar First tin roof mounting system is designed with great flexibility for both commercial and residential roof solar system. It is suitable for tin roofs from 10 degrees to 60 degrees. To samplify the brackets mounting, We have designed rails that can put into clamp fixture block easily.
Solar First Technical Specification
| Mount type |
Solar First Tin Roof Mounting Brackets
|
|
Installation site
|
Tin Roof
|
|
Structural materials
|
Aluminum alloy and stainless steel
|
|
Survival wind speed
|
60m/s
|
|
Design snow load
|
1.4KN/m2
|
|
System tilt angle
|
10-45°
|
|
Module orientation
|
Vertical or horizontal
|
|
Design standard
|
AS/NZS 170
|
|
Life
|
Design life is 25years, Qaultity assurance for 10years
|
|
Delivery time
|
With 20-30 days
|
|
Package
|
Carton, wooden pallet for solar mounting
|
Advantages of Solar First Tin Roof Mounting Brackets
1.Easy Installation
The innovative Solar First rail and D- modules have greatly simplified the installation of PV modules.The System can be installed with a single Hexagon Key and standard tool kits. Pre-assembled and pre-cut processes will highly prevent corrosion and save your installation time and labor cost.
2.Great Flexbilitity
Solar First Tin roof mounting brackets has mounting accessories designed for use on almost every roof and ground with excellent compatibility. Designed as a universal racking system,framed modules from all the popular manufacturers can be used.
3.High Accuracy
Without the need for onsite cutting, the use of Solar First unique rail extending allows the system to be installed with millimeter accuracy.
4. Long Lifespan
All components are made of quality extruded aluminium, C-steel and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable. Maximum lifespan - 10 years warranty, at least 20 years duration
5.Hight Quality
With ISO, AS/NZS1170, ASCE 7-05 and DIN1044 certificated, Solar First provides a guarantee of 10 years on the durability of all components used.

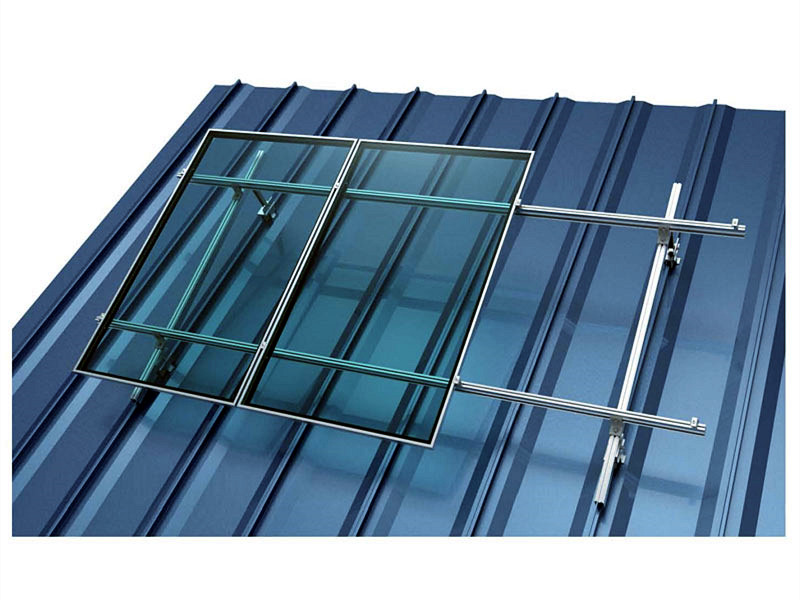

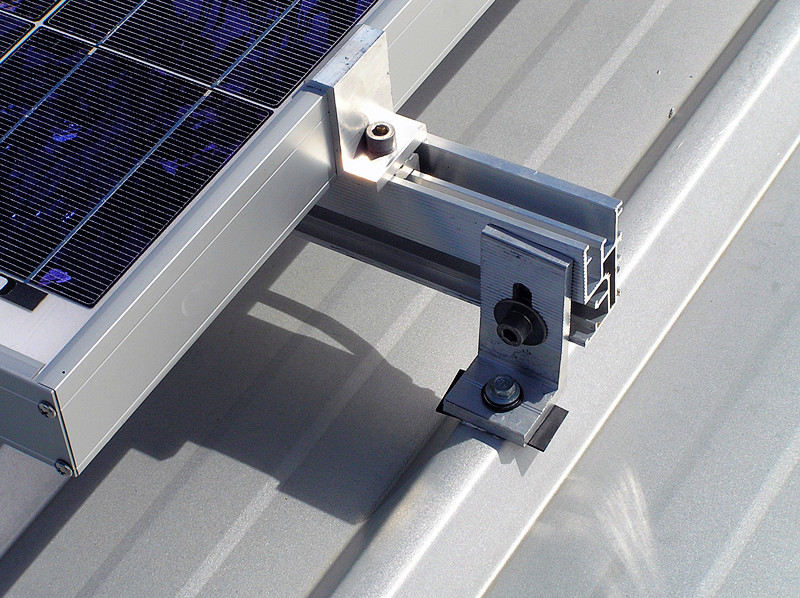

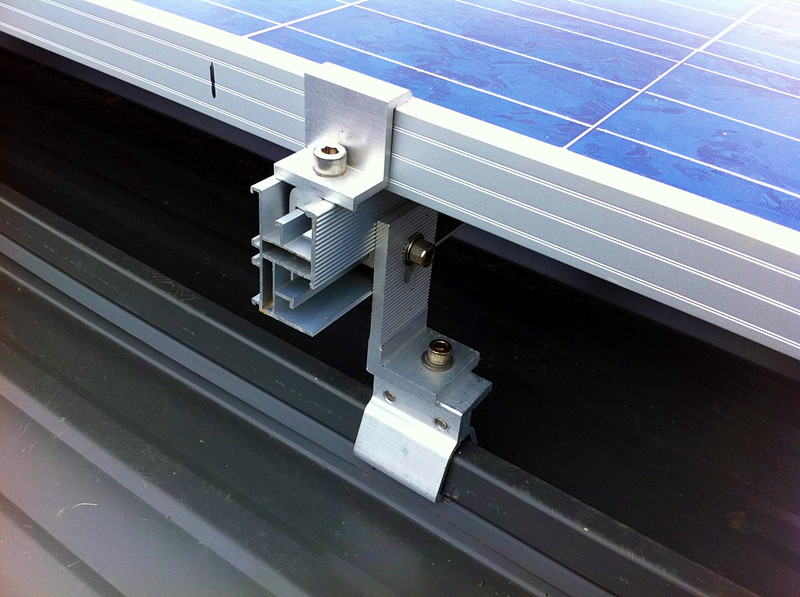

Details of Soar First Tin Roof Mounting Brackets

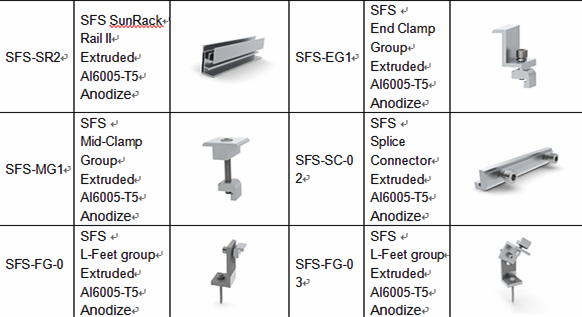

Component list of Soar First Tin Roof Mounting Brackets

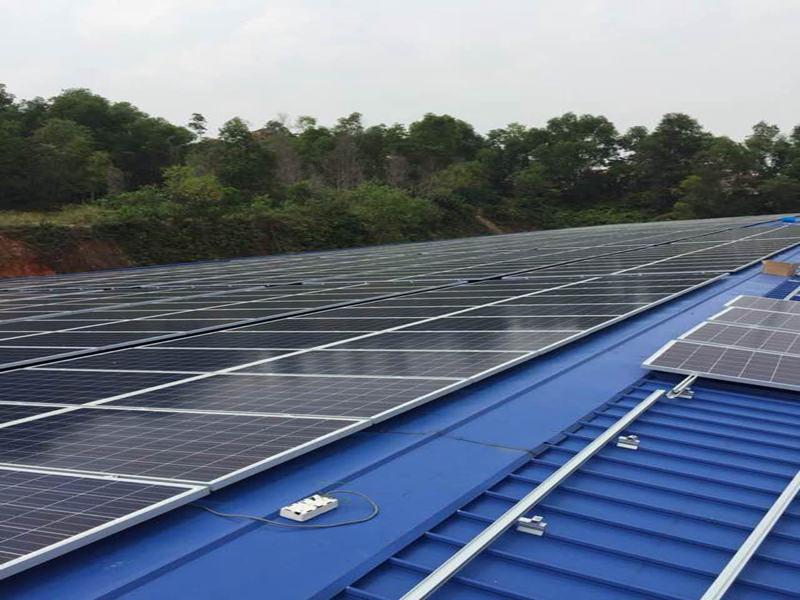

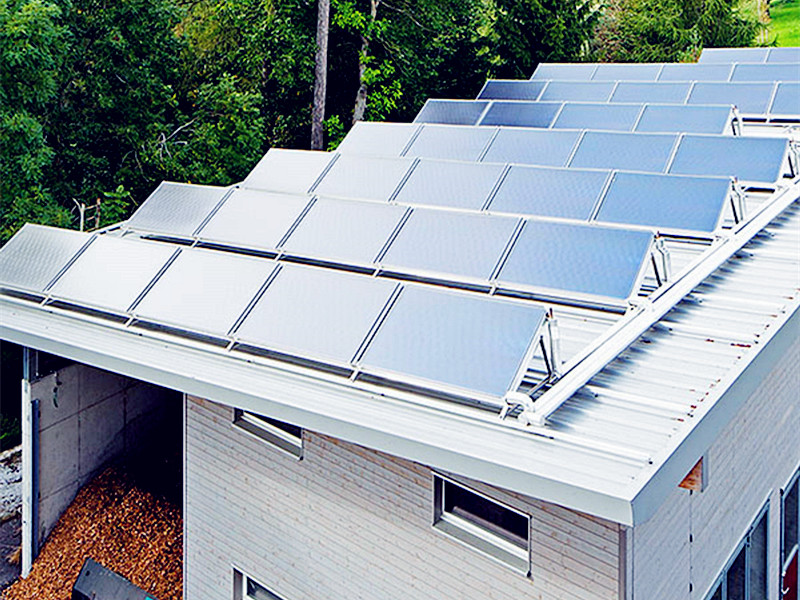

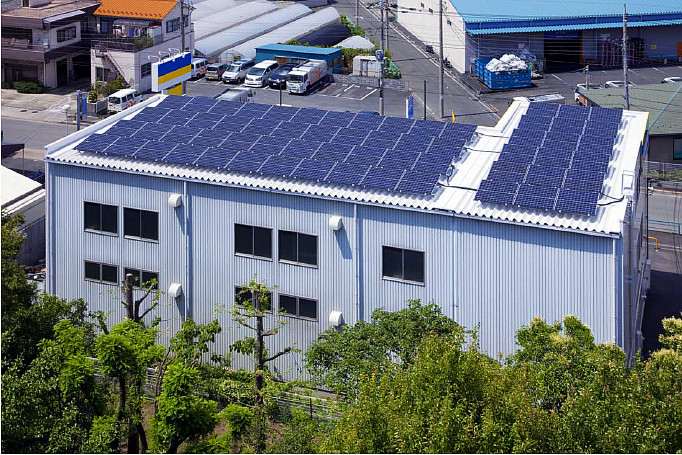

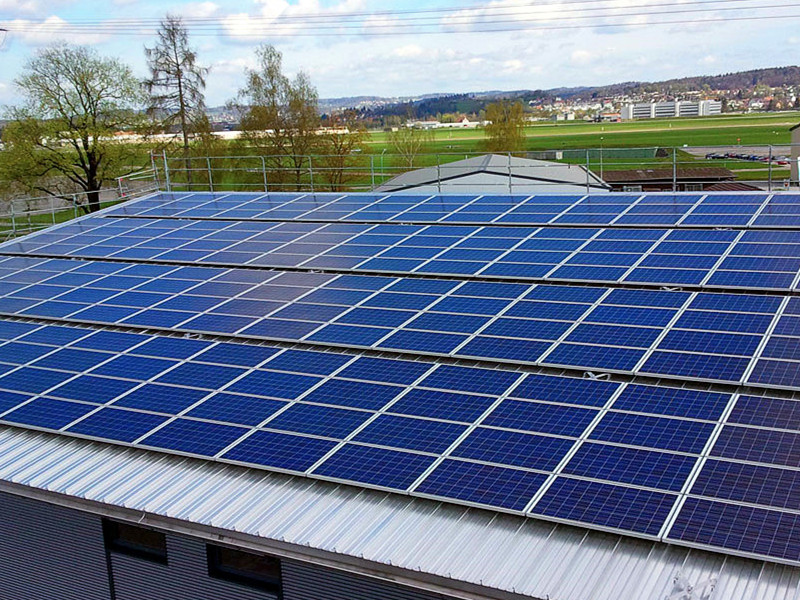

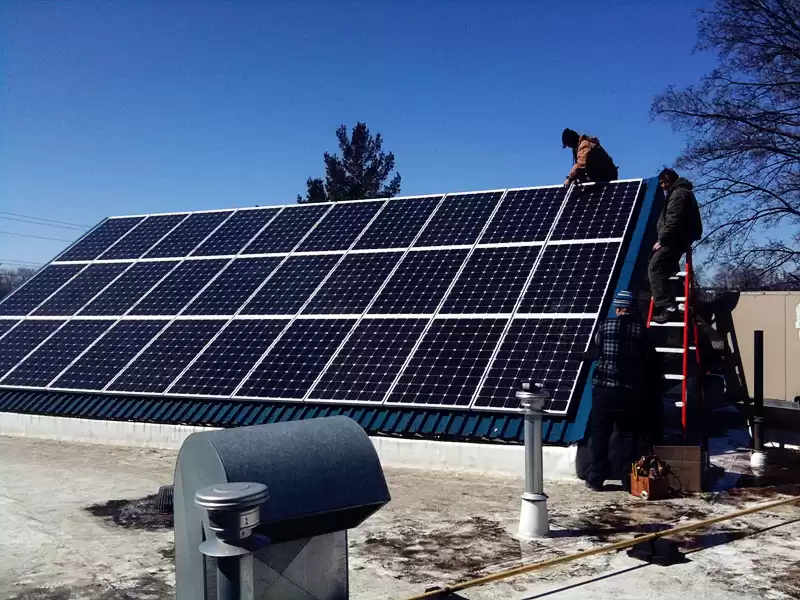

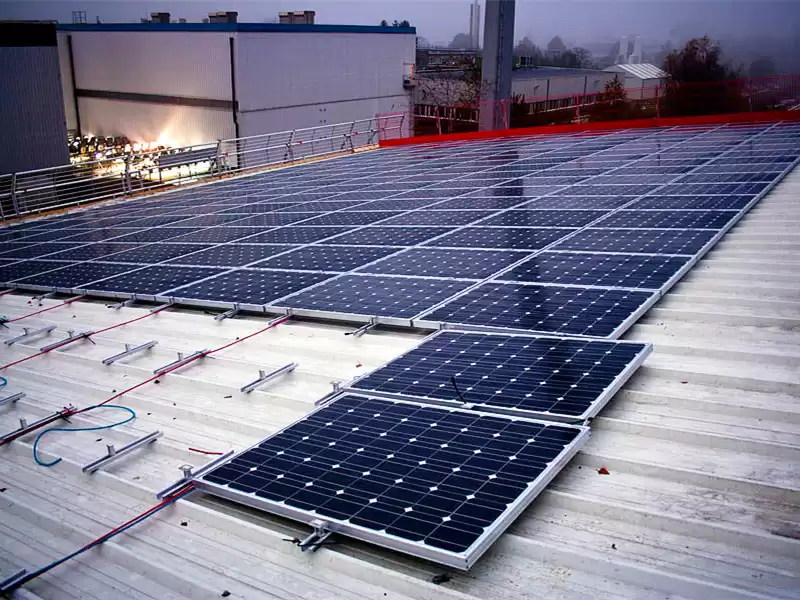

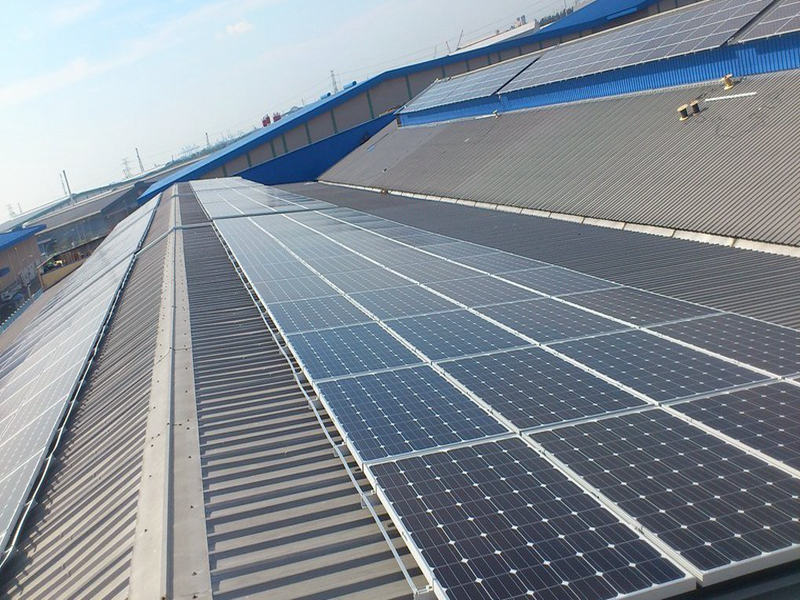

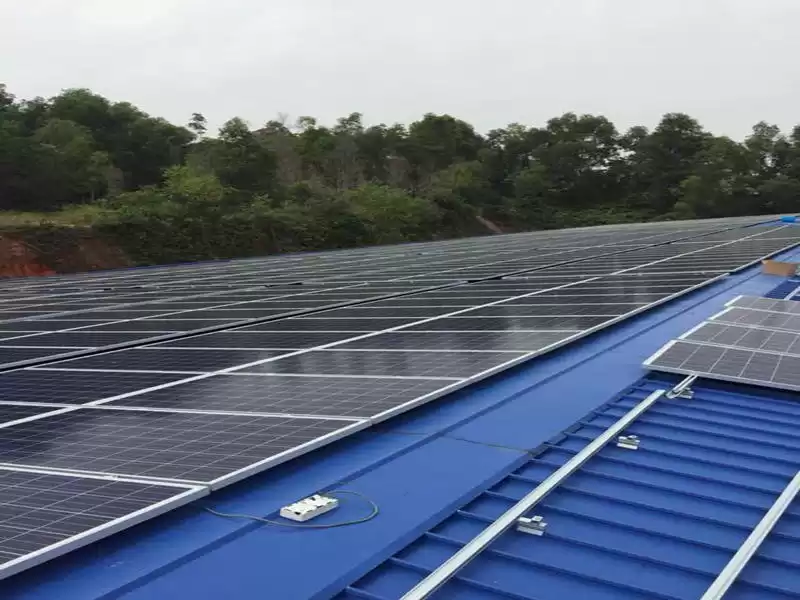

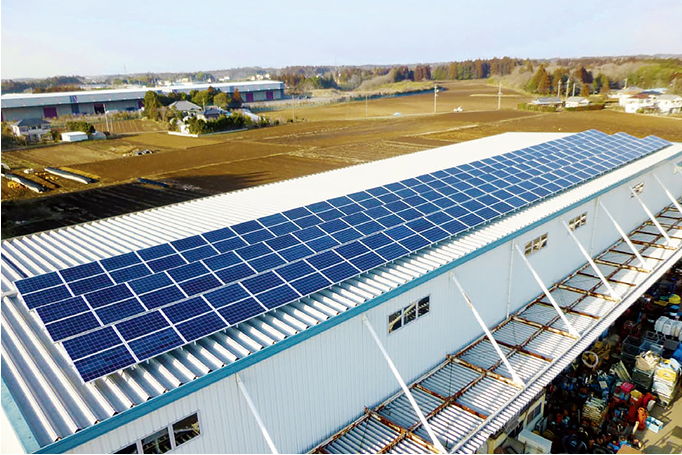

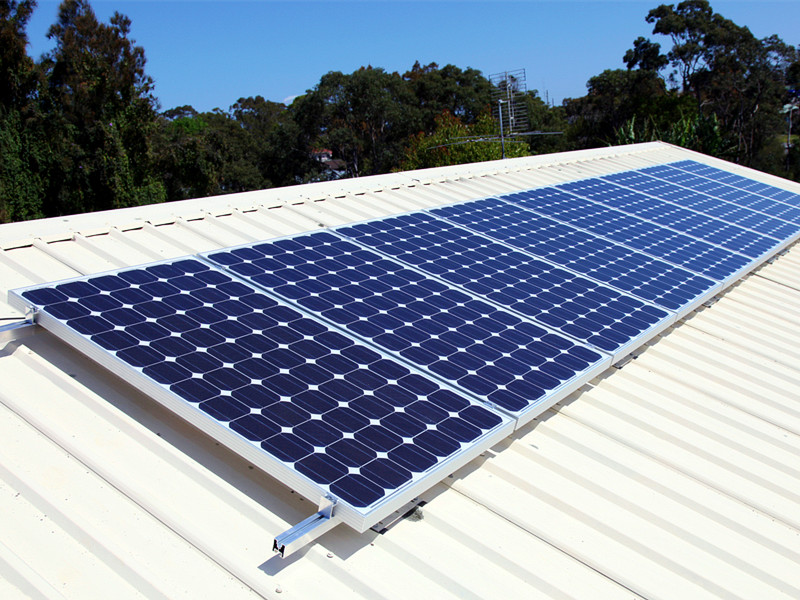

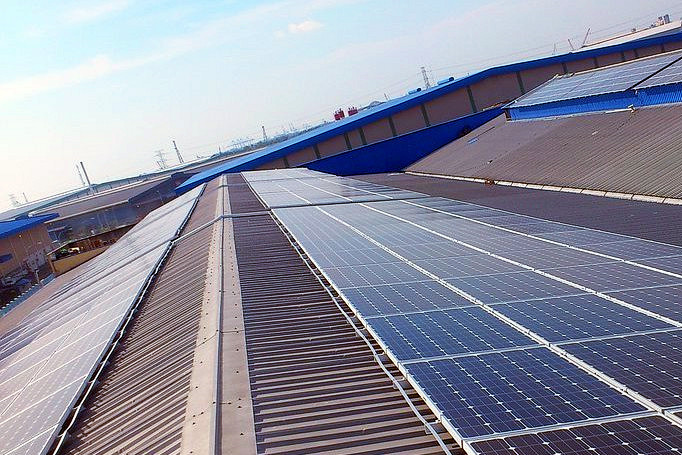

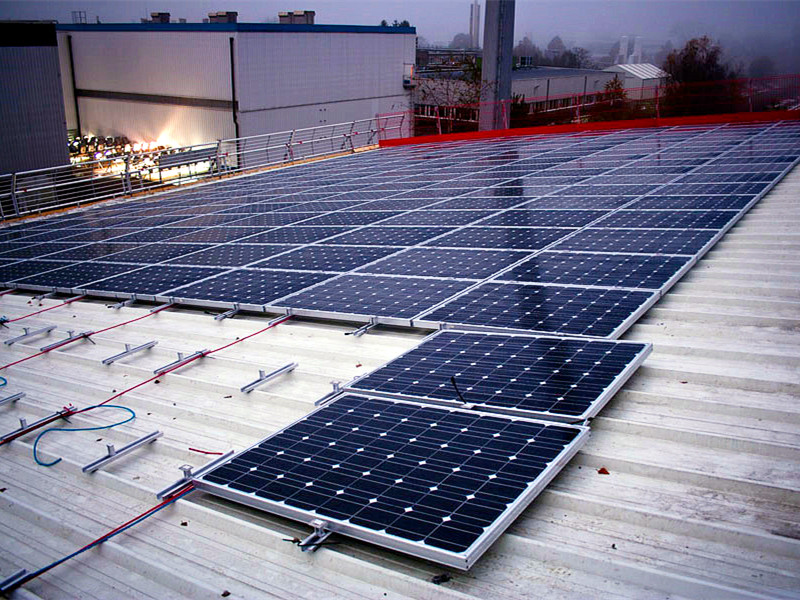

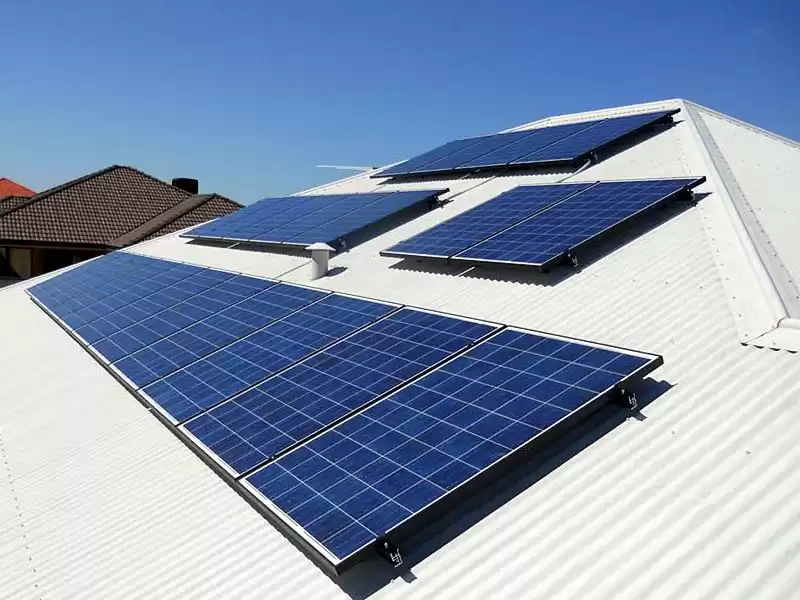

Product Show
