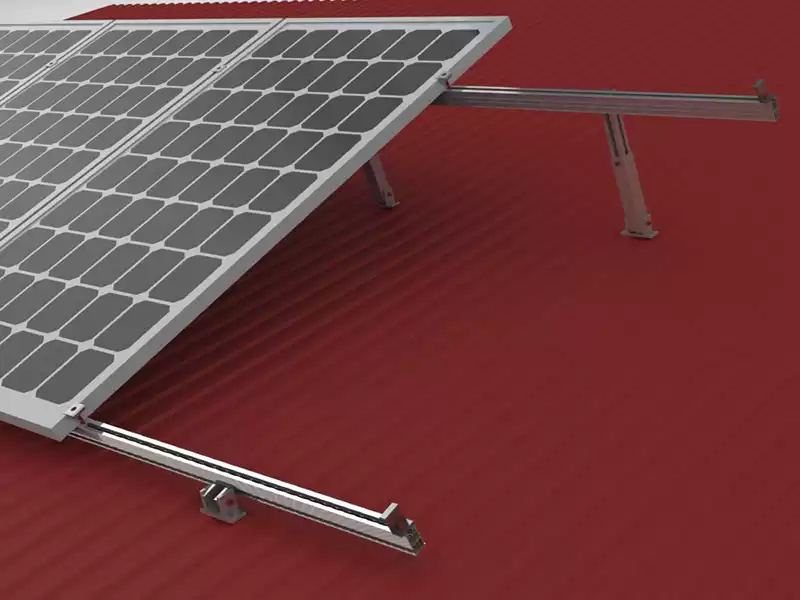

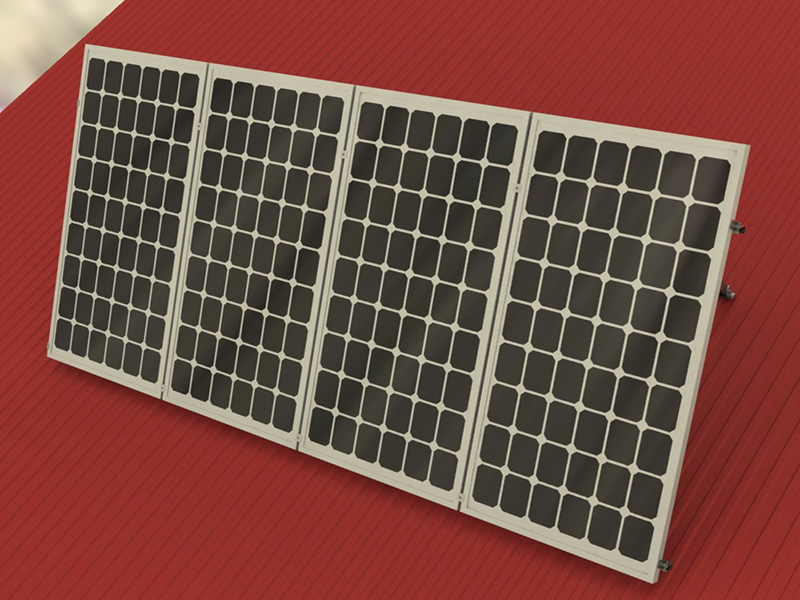

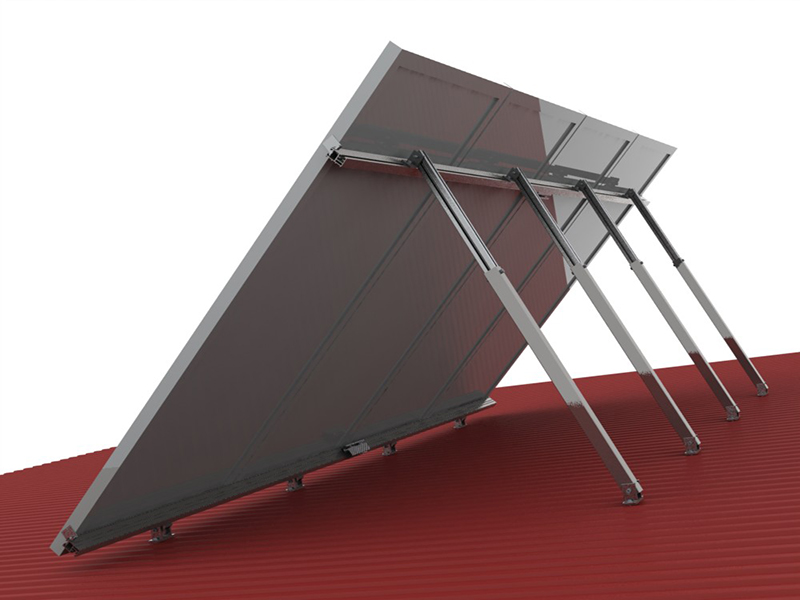

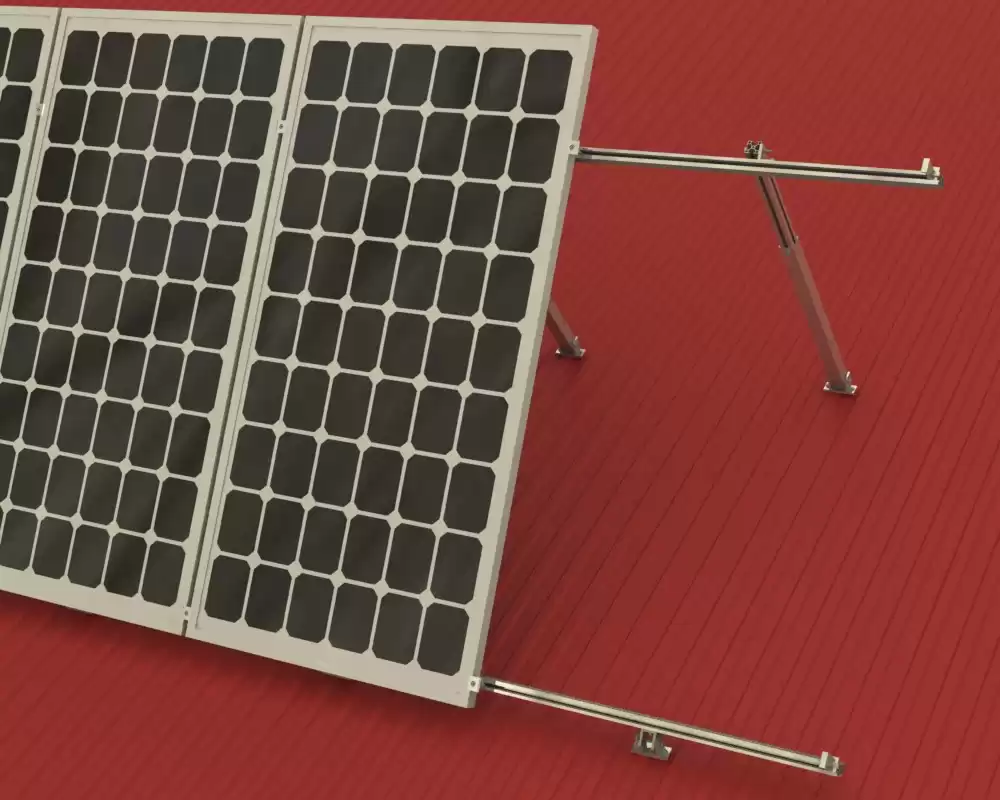

Metal Roof Tilt Adjustable Kit Installation System

Project Site:

Metal sheet roof, flat roof

Slope of roof: Up to 60°
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standard: AS/NZS 1170, MCS, JIS &SGS
Material:

Stainless steel 304, Al6005-T5



     Product Features

1. Adjustable flat roof mounting structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Only 3-4 kinds of components and no more than two kinds of tools in whole system fixation

4. All flat roof components are made with high quality aluminum & stainless steel

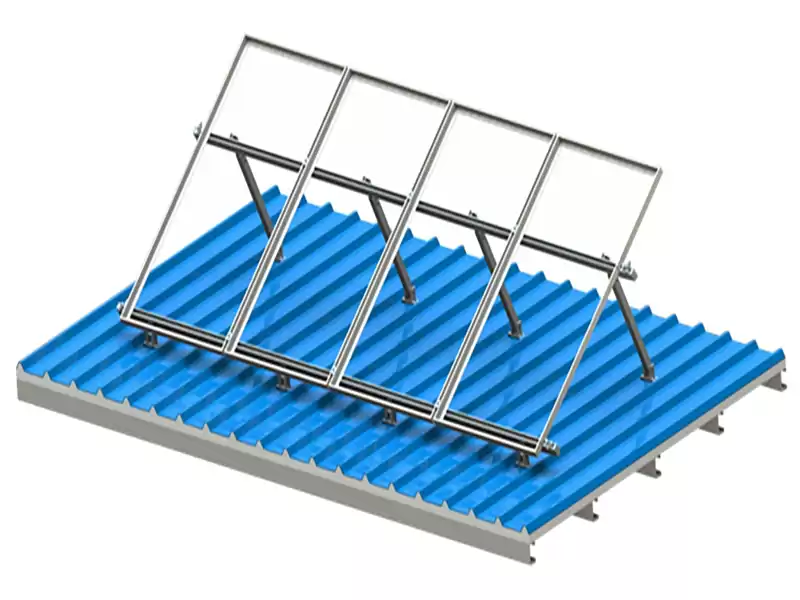

     System Overview

Adjustable flat roof mounting structures

     Key Components



Rail in Customized Length Rail Connectors Mid Clamps End Clamps Front Leg Rear Leg

Rail in Customized Length

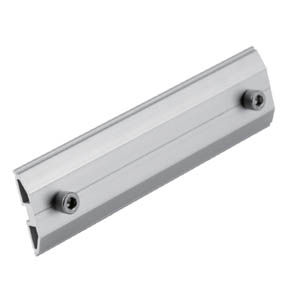

Rail Connectors

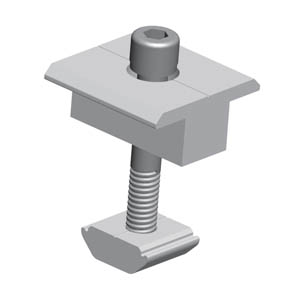

Mid Clamps

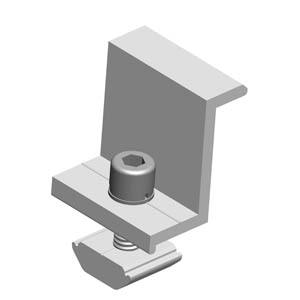

End Clamps

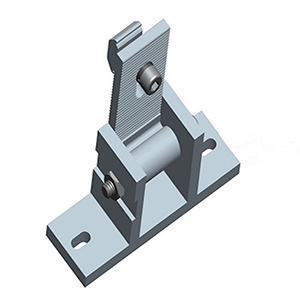

Front Leg

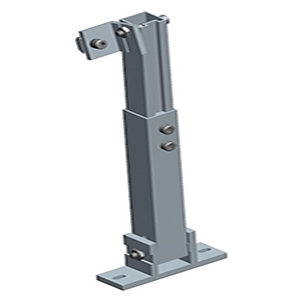

Rear Leg
