MiniRail system for trapezoidal sheet metal

  • Snow Load<1.4KN/M2
  • Wind Load<60M/S
  • LengthCustomized
  • MaterialAL6005-T5
  • Installation SitePitched roof
  • Shipping PortXiamen

MiniRail system for trapezoidal sheet metal

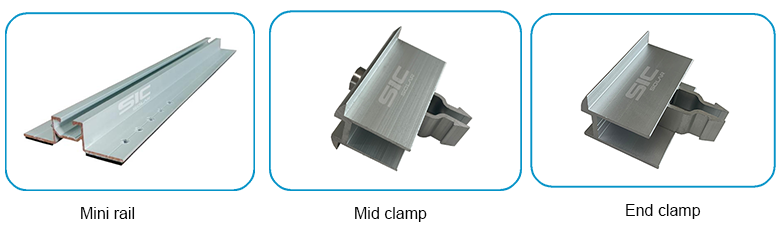

Solar mini rail is use for trapezoidal metal roof and corrugated metal roof, it can make the solar panel orientation both in landscape and portrait, which is a smart design for solar metal roof installation. It's cost-effective mounting solutions which just request only 3 compoments--Mid and end clamp and minirail.

It can come with different length according to traperzpidal sheet dimension. Cooperate with EPDM cam make it waterproof.

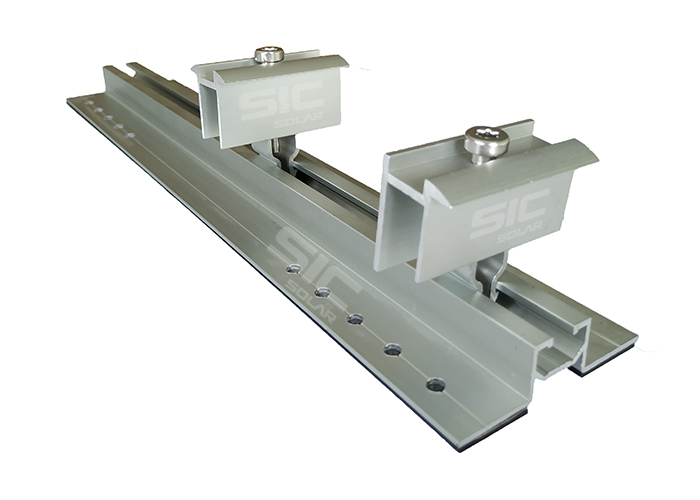

Metal roof mini rail



Category: metal roof solar mounting system


Name Solar mini rail

Installation Site

Pitched roof

Wind Load


Snow Load



SUS304 and AL 6005-T5


Natural or Customized


Anodized aluminum & stainless steel


10 years and 25 years service time

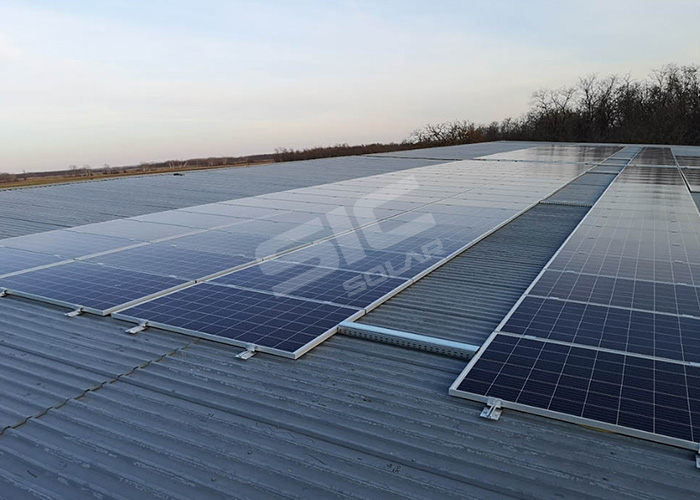

Photovoltaic minirail mounting system





Advantages as follow:

☆ Easy Installation--Using quickly clamp, which is easy and quickly for installation.

☆ Waterproofing--The rubber can perfectly prevent water.

☆ Pre-assembled components  – highly save the labor cost at your installation site.


Related certificate

Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.



Package for solar mini rail


Product Tags Aluminum short rail racking          Solar short rail mounting system          Solar mini rail system          Solar pv mounting short rails          Quick rack rail-free mounting system


Contact us for all information about the product
