Features:

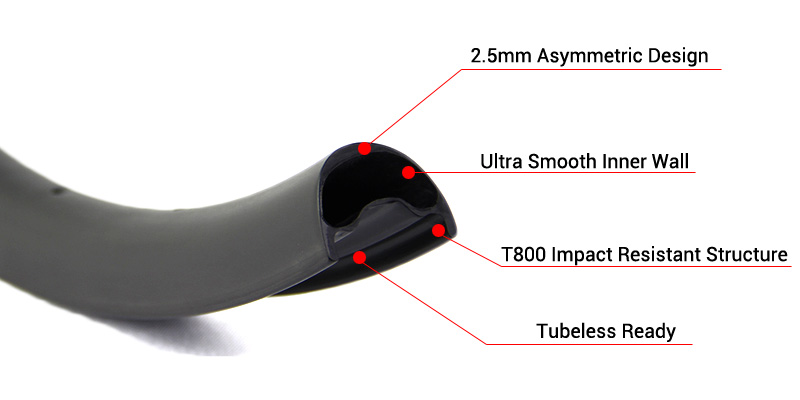

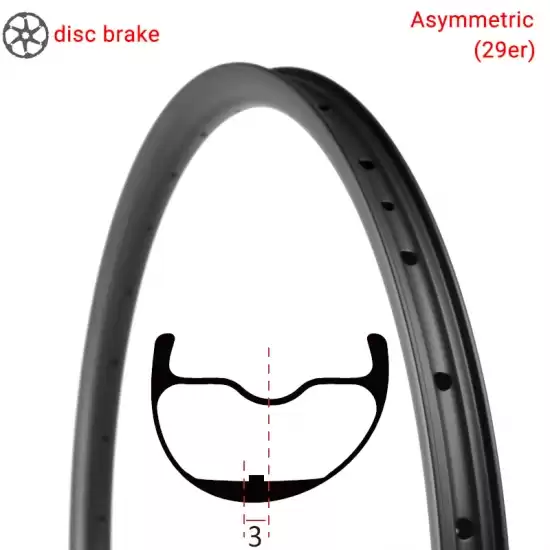

- Asymmetric design, help to equalize the spoke tension between drive side and non-dirve side of wheels.

- Thick side wall design for better impact resistance.

- Radius support nipple bed design, distribute spoke pull force evenly around each spoke hole.

- Ultra smooth inner wall, for even wall thickness and strength.

- Tubeless Ready.With super light weight (Graphene) version optional.

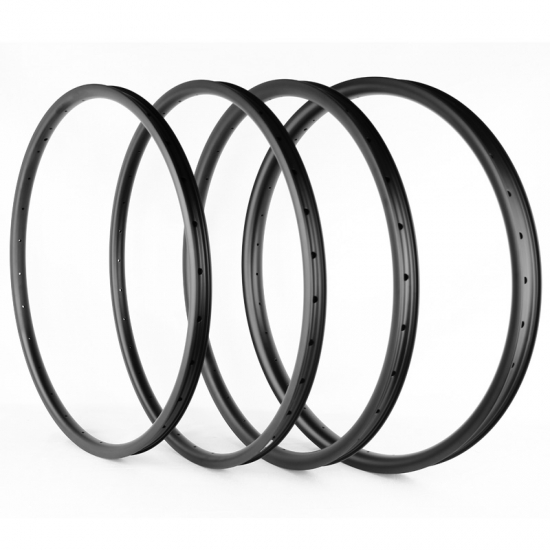

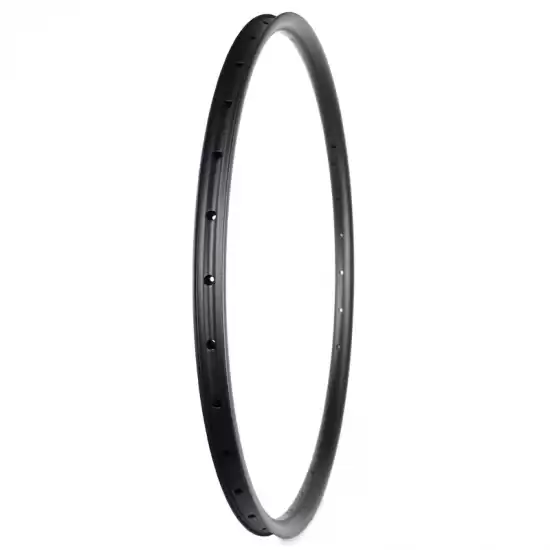

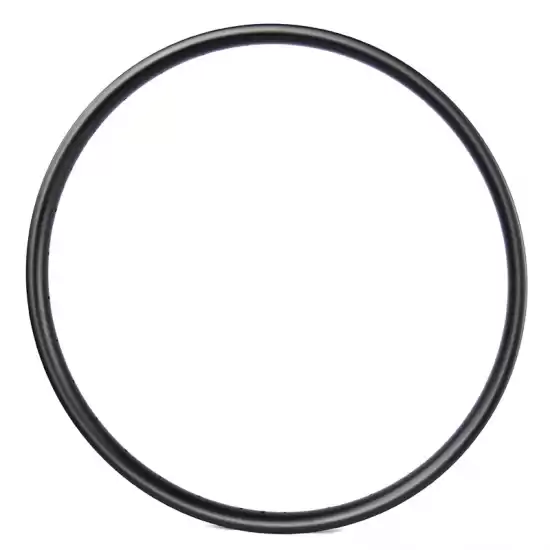

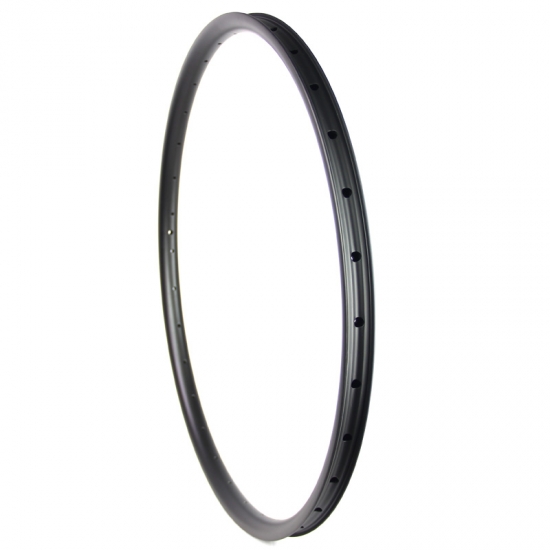

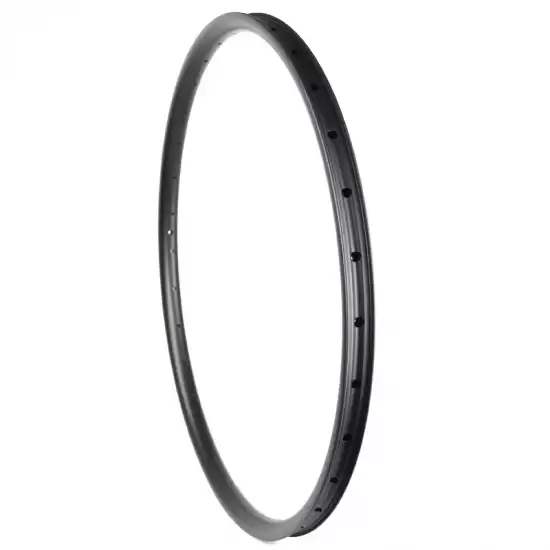

29er Mountain Bike Rims Asymmetric Design MTB Carbon Rims

Model	AD930-XC	AD930GP-XC	AD933GP-XC	AD933GP-TR	AD938-AM	AD940-EN
Cross Section
Terrian Recommended	Cross Country	Cross Country	Cross Country	Trail	All Mountain/Enduro	Enduro
Material	Toray T700	Toray T700 + Graphene	Toray T700  + Graphene	Toray T700  + Graphene	Toray T700	Toray T700
Weight	360±15g	310±15g	340±15g	380±15g	440±15g	460±15g
Max Weight Limit	100kg/220lb	85kg/188lb	85kg/188lb	115kg/250lb	115kg/250lb	115kg/250lb
Sectional Drawing
Width	30mm	30mm	33mm	33mm	38mm	40mm
ERD	596mm	596mm	590mm	590mm	584mm	584mm
Carbon Weave	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K	UD/3K/12K
Max Tire Pressure	40psi/2.7bar	40psi/2.7bar	40psi/2.7bar	40psi/2.7bar	35psi/2.4bar	35psi/2.4bar
Tire Size Recommended	29*2.0''-2.4''	29*2.0''-2.4''	29*2.1''-2.5''	29*2.1''-2.5''	29*2.3''-2.8''	29*2.35''-3.0''

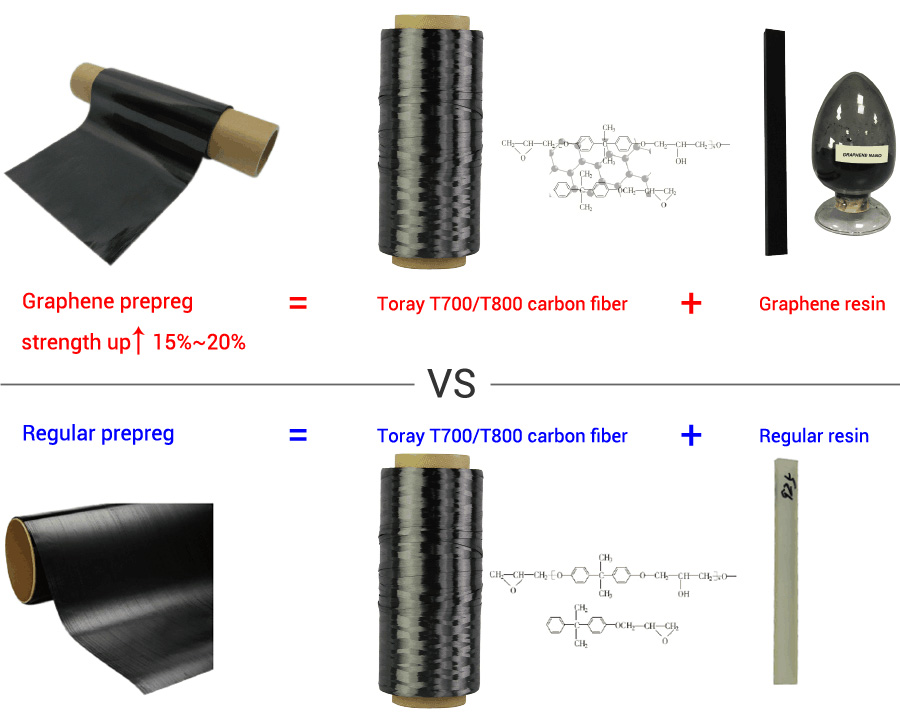

Graphene prepreg helps to improve the strength of carbon rims up to about 20% (if weight unchanged), or reduce 15% weight (keep strength unchanged).

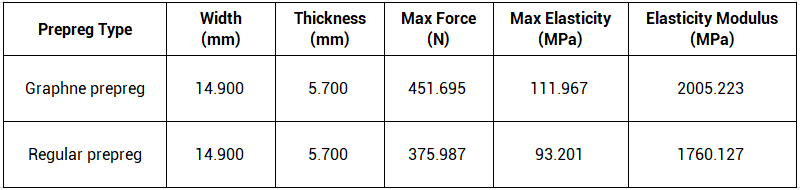

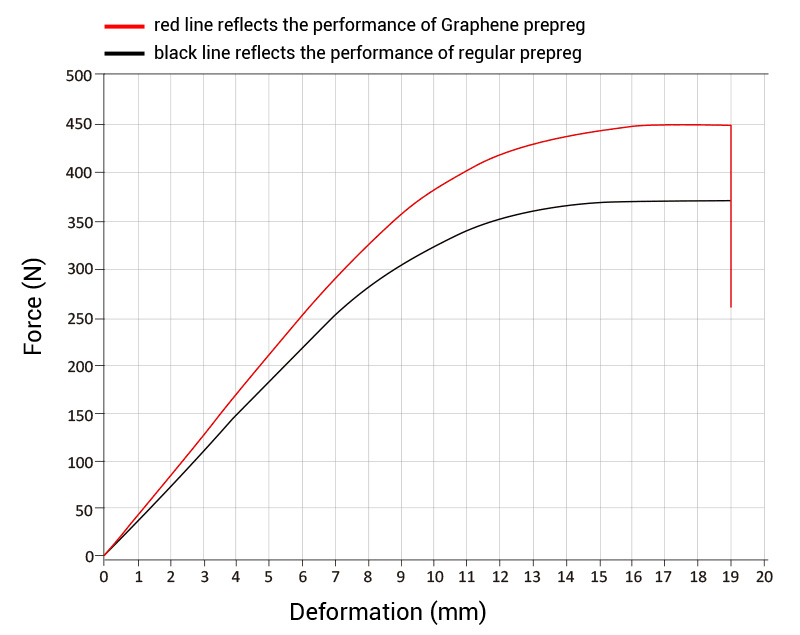

The testing result can be found as following:
