New All Mountain Suspension Enduro Frame



- 27.5 plus&29er full carbon Enduro frameset

- Rear shock compatible size 200*50/57mm or 210*47.5/50/55mm

- Rear travel 135-152mm, 180mm disc rotor

- Side Swing E-type front derailleur

- Virtual 4 Link suspension system

  • Item No.: LCFS713

  • Product Orgin: China

  • Payment: Paypal, Bank Transfer, West Union

  • Color: UD Matt(Customized Painting Acceptable)

Facebook Twitter Pinterest LinkedIn 分享

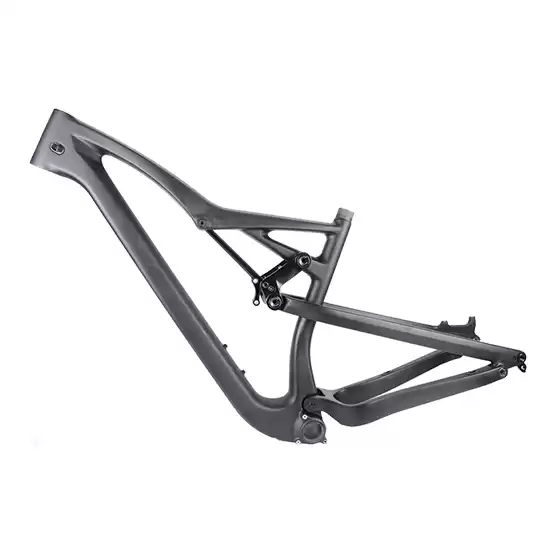

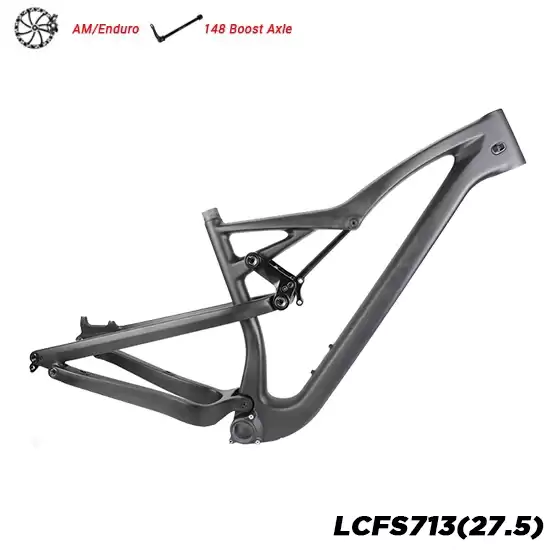

LightCarbon 2019 new all-mountain suspension enduro frame

Frame  LightCarbon 2019 new all-mountain suspension enduro frame
Material High modulus Toray T700  carbon fiber
Size 15.5, 17.5, 19.5, 21 inch
Rear Travel 135~152mm

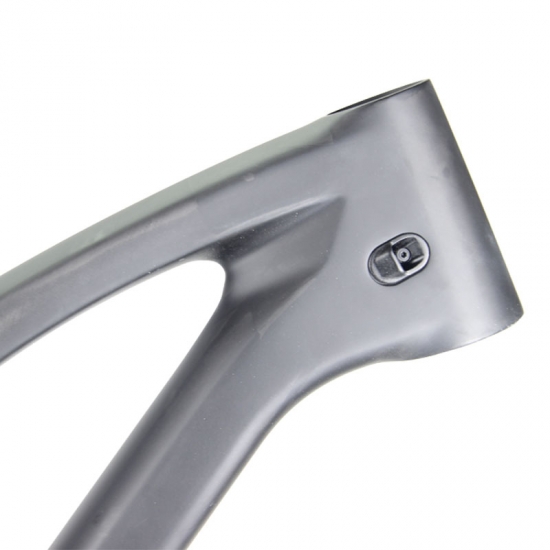

Headtube Tapered headtube ID φ44/56mm（use the Press-fit 44/56mm headset bearings）
Weight 2600g/17.5
Seatpost Diameter 31.6mm(dropper seat post insert length S-300/M-350/L-400mm

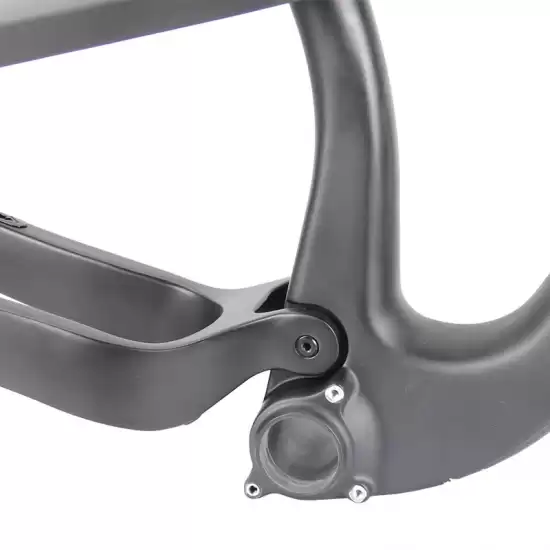

Bottom Bracket Press Fit BB92 boost （Compatible with ISCG-05 chain guide）
Max Tire Clearance 27.5* 2.6 ~3.0''  &29*2.4''
Max Compatible Chainring 34T
Brake Type Post Mount Disc brake 180mm（Rear）
Front Derailleur Side Swing front derailleur compatible with Shimano E-type/Sram S3
Rear Shock

Shock eye-eye: 200-22-22x∅8.0   SHOCK TRAVEL:57MM   rear travel 152mm

Shock eye-eye: 200-22-22x∅8.0   SHOCK TRAVEL:50MM   rear travel 136mm

Shock eye-eye: 210-22-22x∅8.0   SHOCK TRAVEL:55MM   rear travel 152mm

Shock eye-eye: 210-22-22x∅8.0   SHOCK TRAVEL:50MM   rear travel 141.5mm

Shock eye-eye: 210-22-22x∅8.0   SHOCK TRAVEL:47.5MM   rear travel 136mm
Dropout Thru Axle 12*148mm boost
Test Standard ISO4210
Warranty  2 years

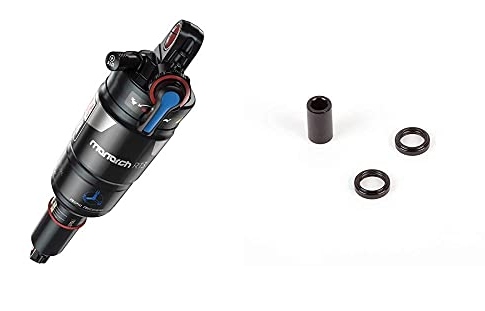

Compatible Rear Shock and Bushing Kits




LCFS713 Enduro Frame Geometry



LCFS713 Enduro Frame Geometry



  15.5“ 17.5” 19.5“ 21“
SEATPOST INSERT LENGTH 200mm 250mm 280mm 320mm
REACH 415mm 440mm 460mm 480mm
TOP TUBE LENGTH, HORIZONTAL 579.4mm 606.9mm 630.6mm 653mm
STACK 613.6mm 622.8mm 636.5mm 645.7mm
WHEELBASE 1165.8mm 1194.8mm 1220.8mm 1244.8mm
CHAINSTAY LENGTH 440mm 440mm 440mm 440mm
FRONT CENTER 727mm 755.9mm 781.9mm 805.9mm
BB DROP 25mm 25mm 25mm 25mm
BB HEIGHT 350mm 350mm 350mm 350mm
SEAT TUBE ANGLE 75° 75° 75° 75°
HEAD TUBE ANGLE 66.5° 66.5° 66.5° 66.5°
SEAT TUBE LENGTH 395mm 445mm 495mm 533mm
HEAD TUBE LENGTH 100mm 110mm 125mm 135mm
BIKE STANDOVER HEIGH(29“*2.35”) 766.5mm 785.5mm 799.9mm 817.9mm
FORK RAKE/OFFSET 51mm 51mm 51mm 51mm
FORK LENGTH, FULL 564mm 564mm 564mm 564mm
TRAIL 104mm 104mm 104mm 104mm

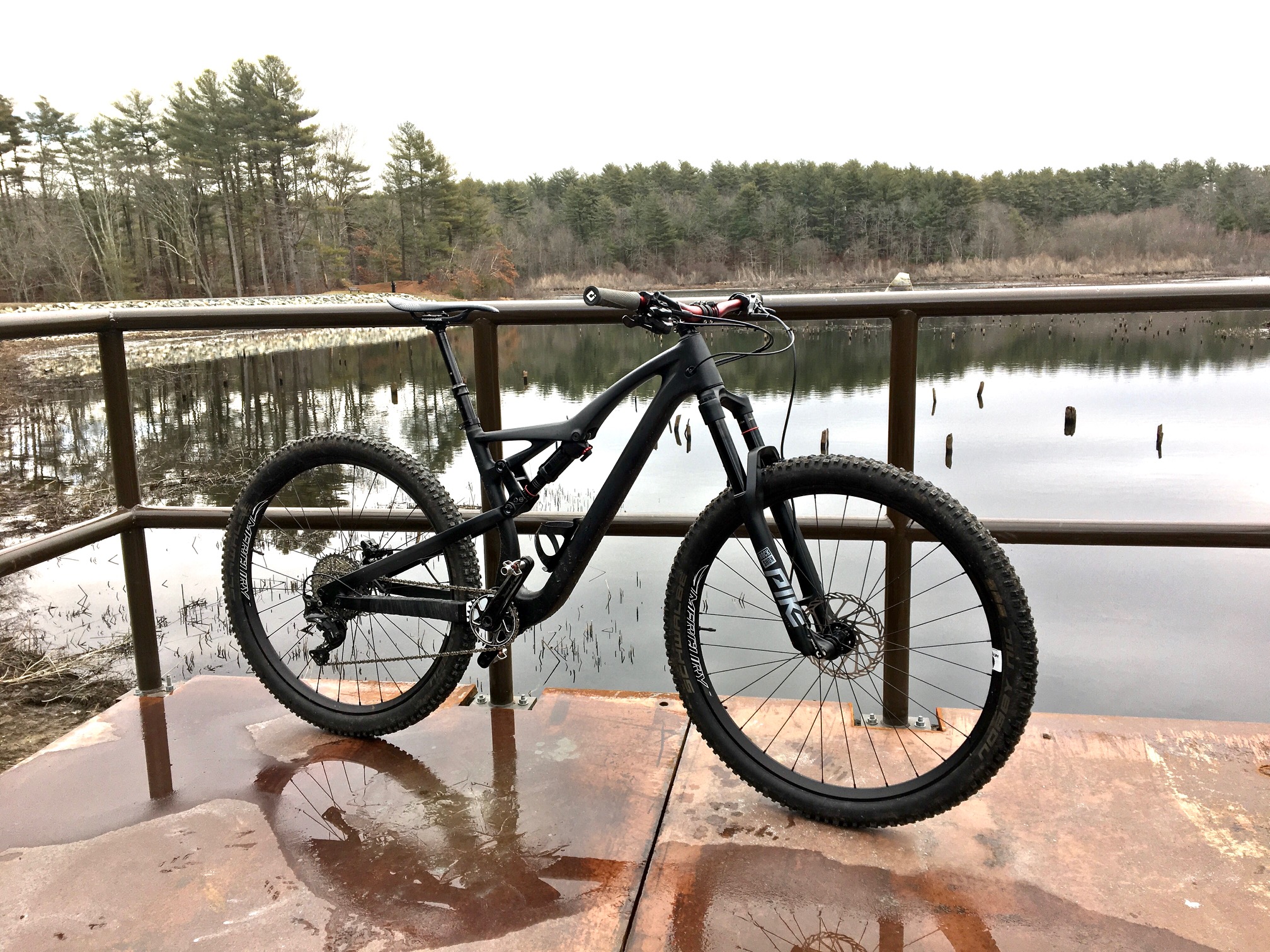

Complete Bike Frame Show
