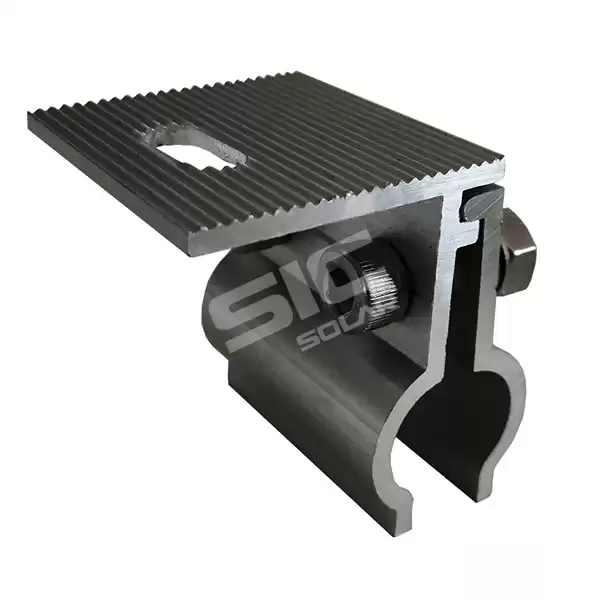

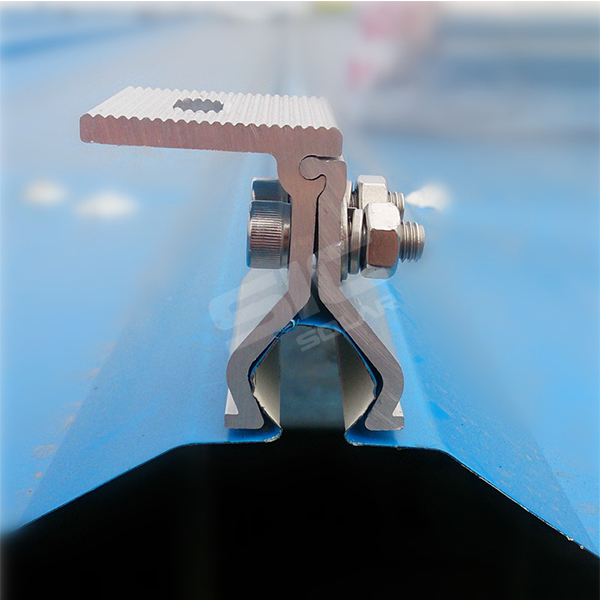

Standing seam roof clamp for metal roof
Solar standing seam clamps will not damage the roof. Diverse tin clamps can suit many types metal roof. Some clamps do not need rail to support solar panel,which can help customer to save more cost and help installers to save installation time.
SIC use advance design with good aluminum AL6005-T5 high corrosion resistance material, the EPDM container between clamp and metal roof help to prevent water dropping.
Category: Solar Components
|
Installation Site
|
Roof
|
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Material
|
Aluminum 6005-T5 & Stainless Steel 304
|
|
Color
|
Natural or Customized
|
|
Anticorrosive
|
Anodized aluminum & stainless steel
|
|
Warranty
|
10 years and 25 years service time
|

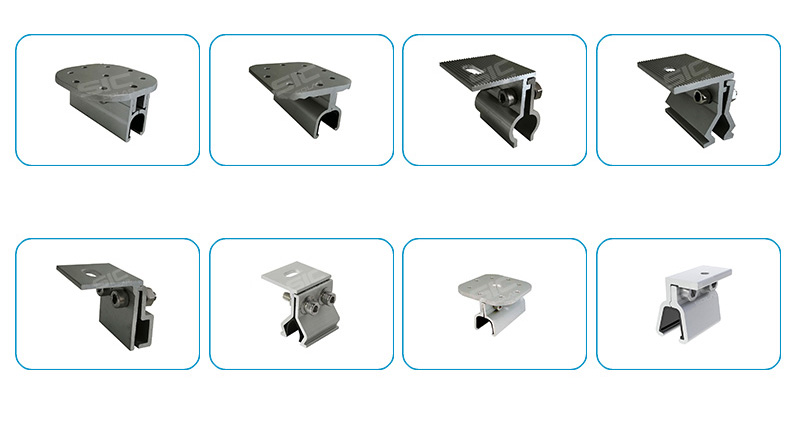

Check more non-penetrating solar clamps as follow.
Advantages as follow:
☆ Standing seam roof clamps will not damage the metal roof sheet.
☆ High Durability – Best Aluminum profile AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆High Pre-assembly – Save labor cost at the installation site
Related Certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
Our standard package is cartons with plywood pallet as below.
