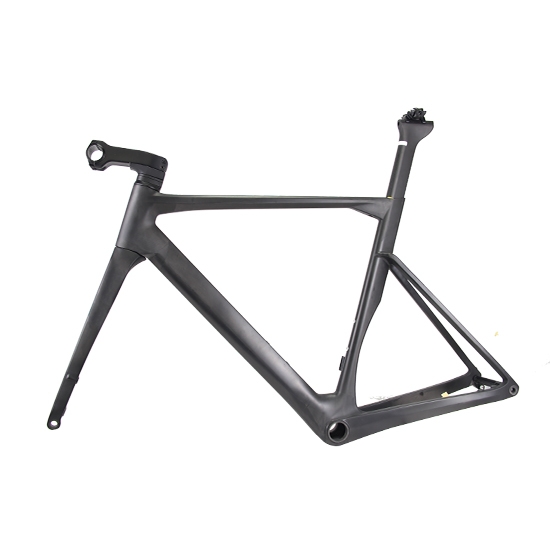

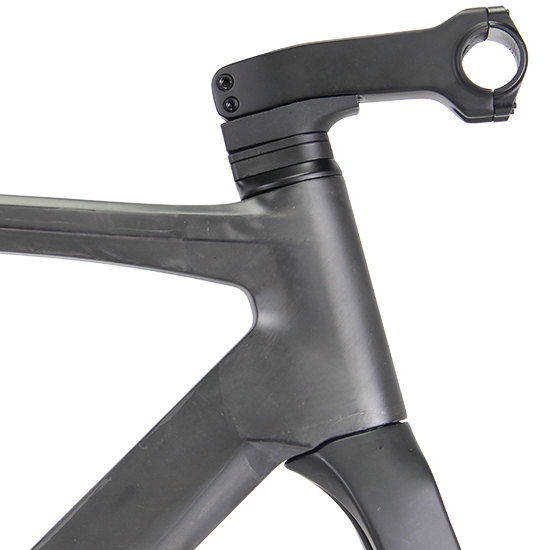

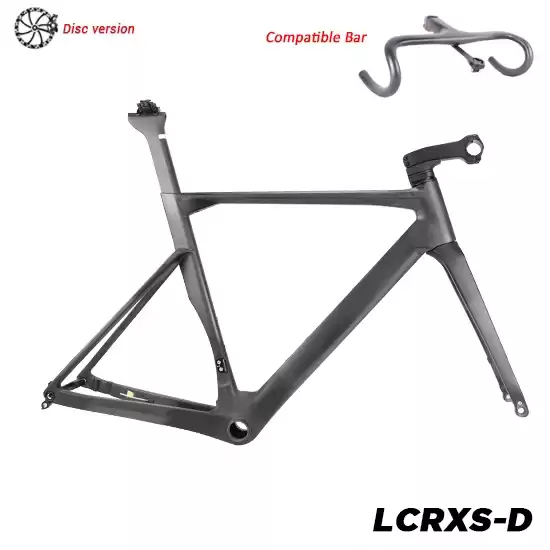

Road Disc Brake Frame With Integrated Carbon Stem

- New aero road disc brake frame
- Flat mount disc brake mount
- 140mm disc rotor

- Full internal cable routing
- Mechanical and Di2 groupset compatible
- High modulus carbon fiber

Frame	Lightcarbon new road disc brake frame with integrated carbon stem
Material	High modulus Toray T700 carbon fiber
Size	48, 51, 54, 56, 59
Fork	Lightcarbon specify aero carbon fork
Stem	90/100/110/120mm
Headtube	Straight 1 1/2" head tube
Weight	1160g/54cm
Seatpost length	specify setback adjustable seatpost
Bottom bracket	PressFit BB86
Max tire clearance	700*28c
Brake mount type	Flat mount Disc brake 140mm
Dropout	Front 12100mm thru axle Rear 12142mm thru axle
Groupset	Recommended install electronic shifting groupset
Handlebar&stem	Integrated handlebar - Compatible with HBR07
Test Standard	ISO4210
Warranty	2 years

Frame Geometry Data

Frame internal cable routing instruction

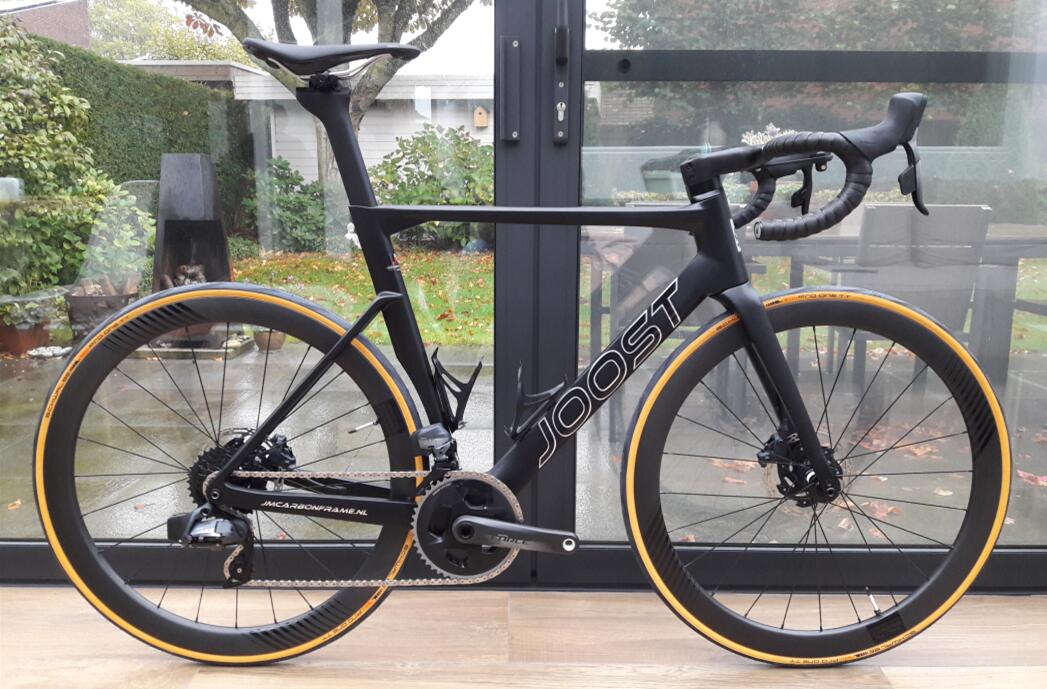

Complete bike photo show

700c Carbon Road Disc Brake Frameset
