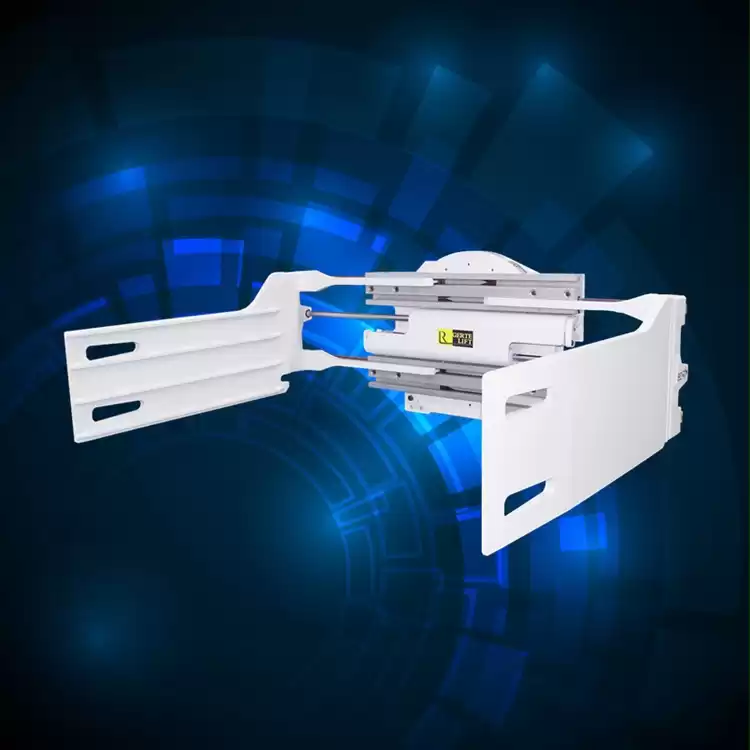

Revolving bale clamp is almost same as regular bale clamp. It has rotating function when handling pulp bales, waste papers, tobacco, textiles and other packages. Bale clamps are designed with high visibility are mainly used for in-plant, palletless transportation of bales of paper, waste paper, tobacco, textiles, boxes and other containers. It makes most efficient for non-palletized handling and stacking operation.
Model No.
|
Capacity
(kg/mm)
|
Mounting
Class
|
Opening
Range
(mm)
|
BC-1.9TD-R1730-01
|
1900/500
|
II
|
450-1730
|
BC-1.9TD-R1730-02
|
1900/500
|
II
|
450-1730
|
BC-2.7TD-R1910-01
|
2700/500
|
III
|
560-1910
|
BC-2.7TD-R1910-02
|
2700/500
|
III
|
560-1910
|
BC-3.2TD-R2100-01
|
3200/600
|
IV
|
570-2100
|
BC-3.2TD-R2100-02
|
3200/600
|
IV
|
570-2100
|
BC-3.2TD-R2100-03
|
3200/600
|
IV
|
570-2100
|
