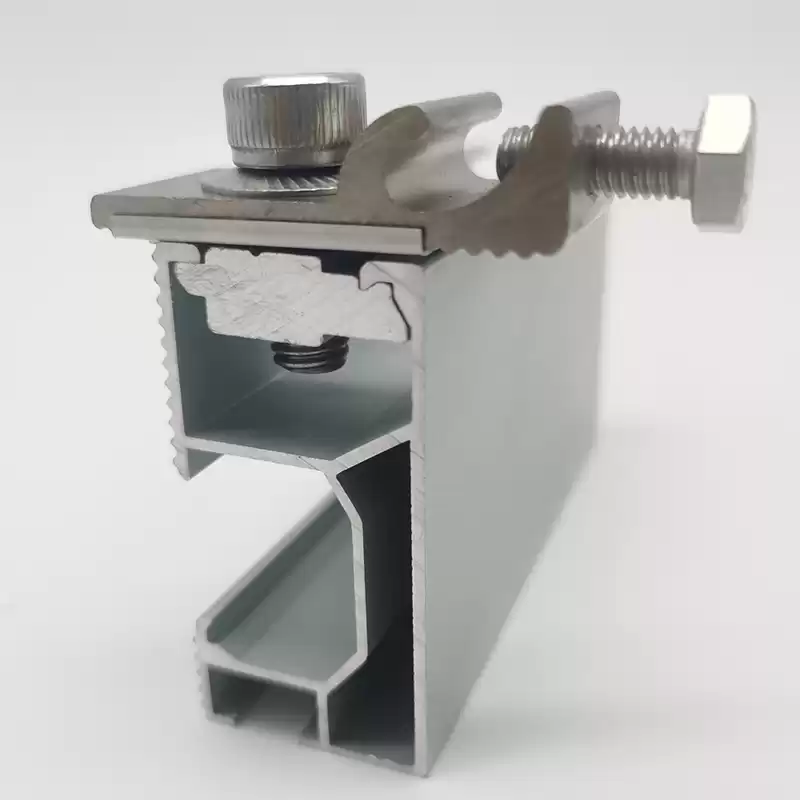

Solar Grounding Lug ensures a quick and easy installation. The low profile of the grounding lug allows it to be installed in a variety of positions with one solid or stranded copper wire (14AWG to 6 AWG) or two copper wires (12 AWG to 10 AWG). It is installed using stainless steel mounting hardware. When the hardware is tightened, the conductive plate specialized teeth embed into anodized aluminum or any electrically conductive metal to establish a gas tight electrical connection.
|

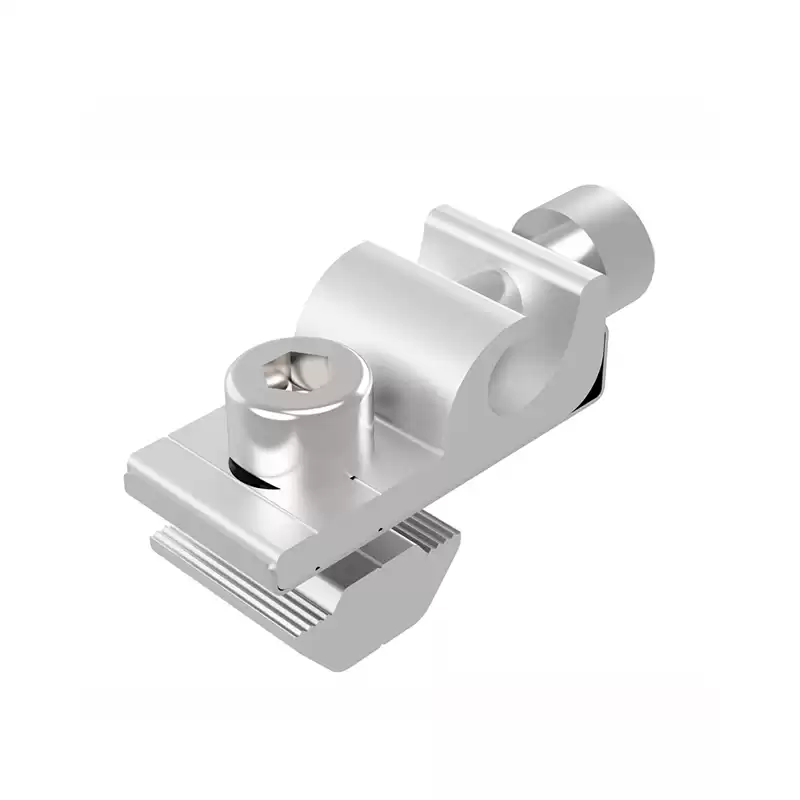

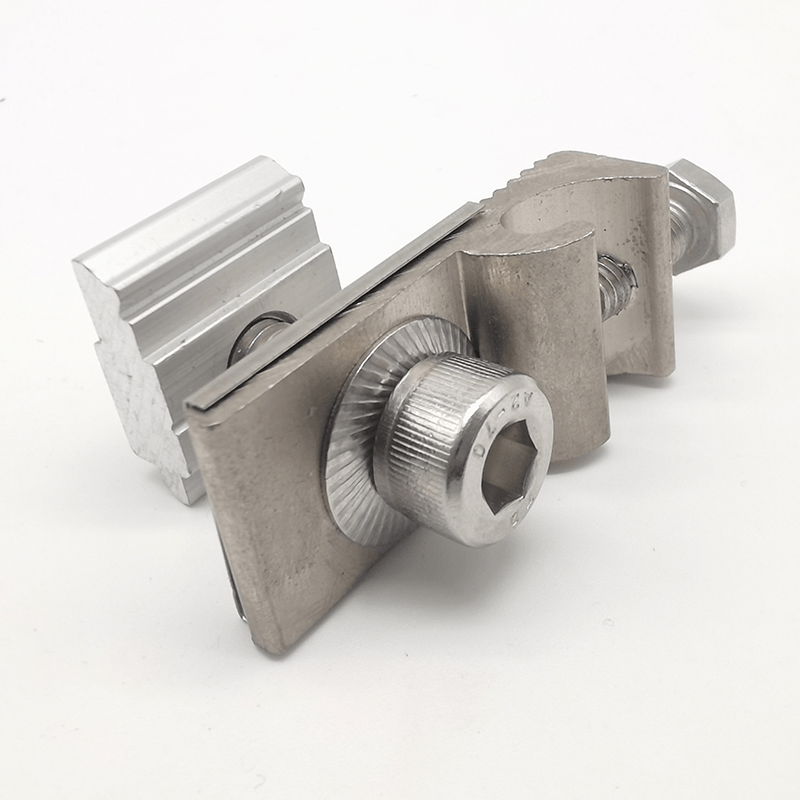

Solar Mounting Grounding Lug
|
|
Material
|
Al 6005-T5 & SUS304
|
|
Size
|
Customized
|
|
Surface
|
Anodized, Black Electrophoresis, Customized
|
|
Certification
|
ISO, SGS, Aluminum testing report.
|
|
Usage
|
Solar ground mounting system, solar carport, solar rooftop mounting system
|
