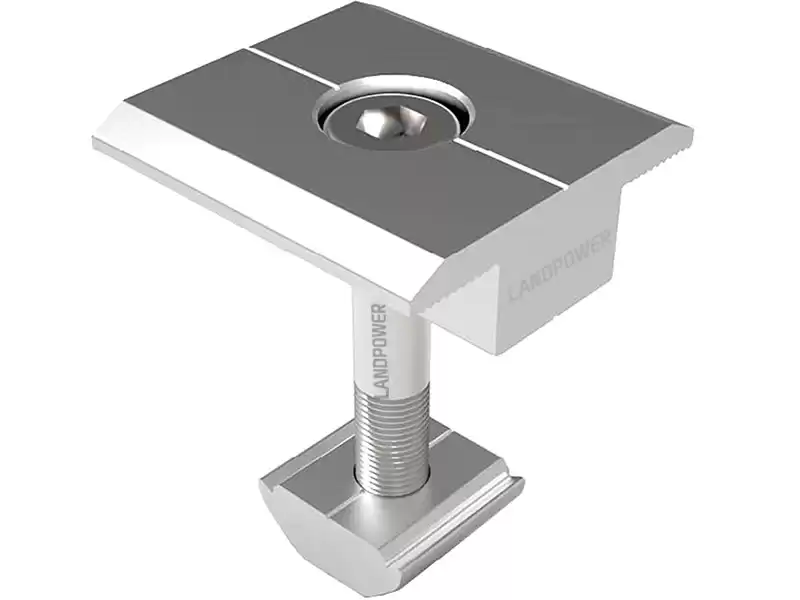

Mid Clamp(also known as middle clamp) is one of important solar mounting accessories, which used for to clamp solar panels between two solar modules.It’s assembled with bolt and nut together,by fixing with rail to firmly clamping panels from wind and any other shaking. Mid Clamp is made of aluminum 6005 T5 with anodized. It comes with 30/35/40/45/46/50mm to compatible various different solar panels.

Composition

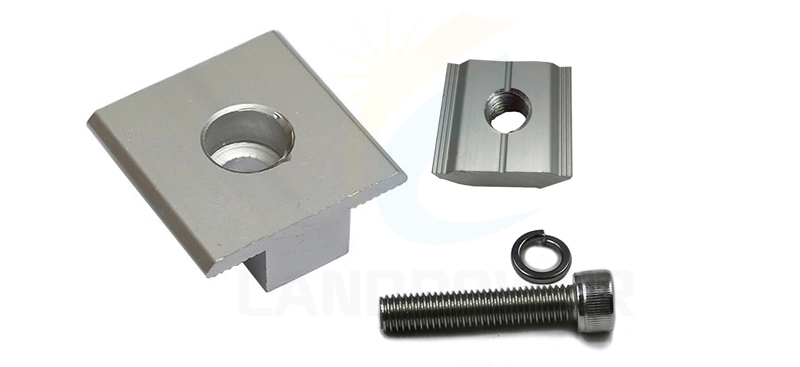

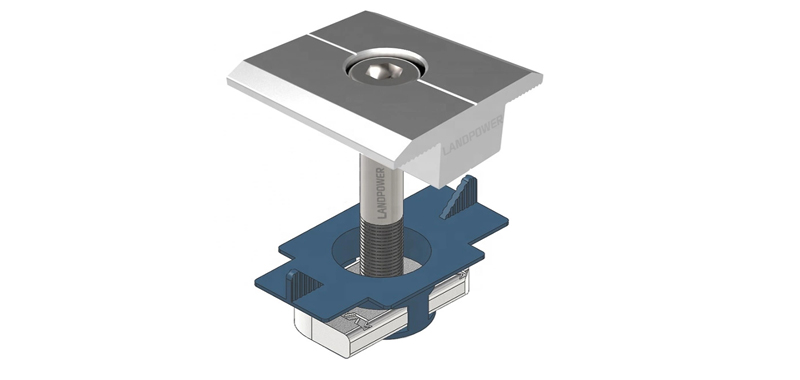

It comes with mounting aluminum base,stainless steel hexagon bolt and Landpower T module, it can be came with customized nut and bolt if requested.

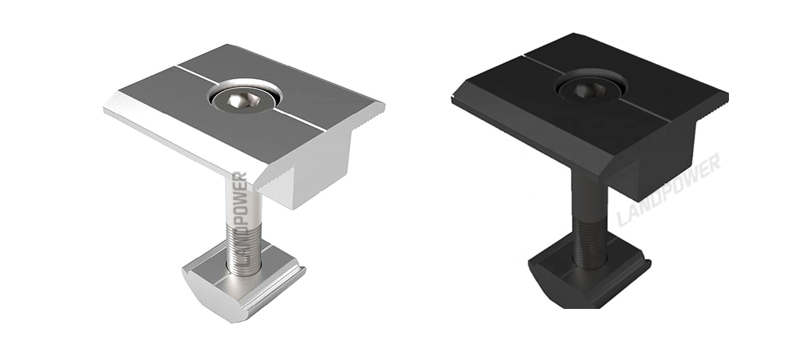

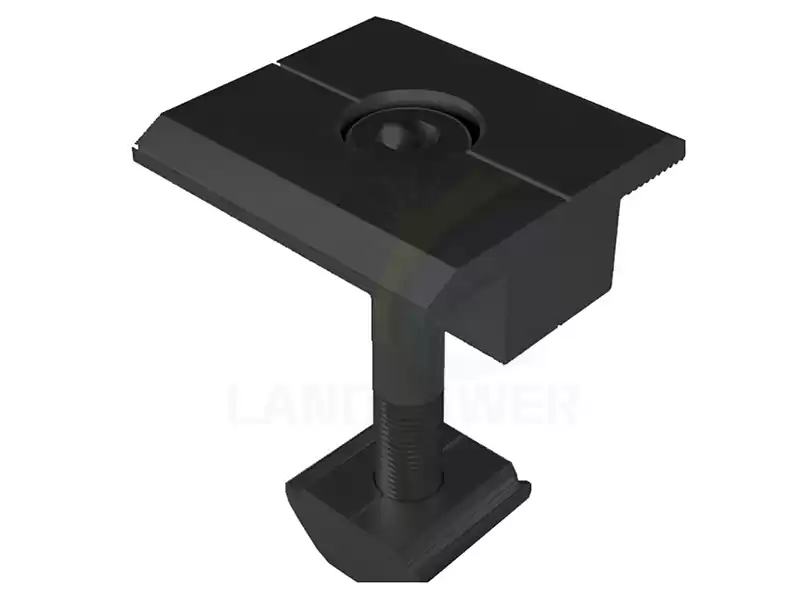

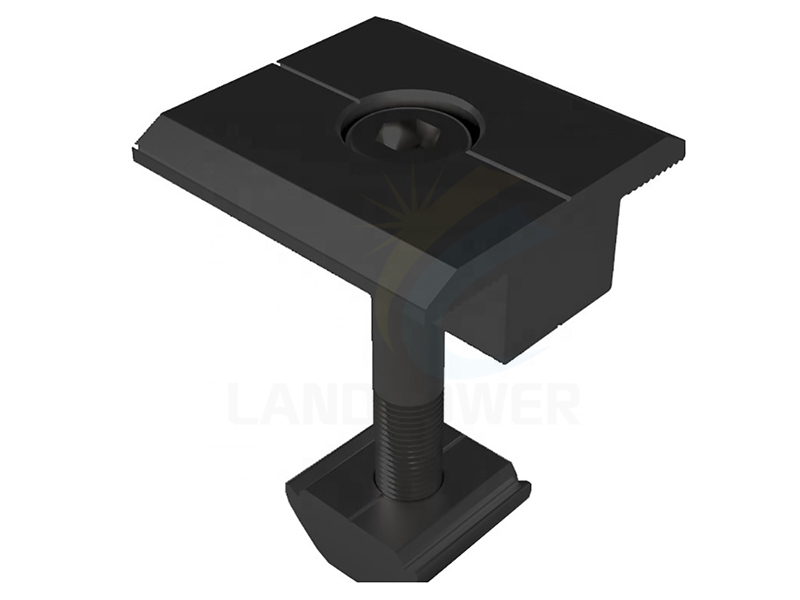

Normally mid clamp is anodized on surface finish, some time as request, it can be mill finish.We can also do black anodized on the surface to meet with black framed solar panels.

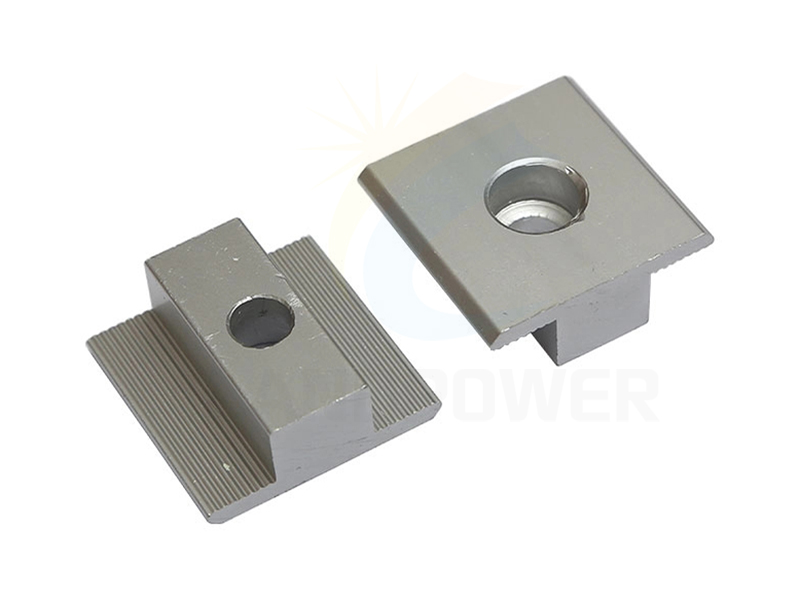

It is quite common the mid clamp come with standard T-module(aluminium nut),but some time there are steel ground mounting with C shape rail, we need to make some change on nut, see below photo:

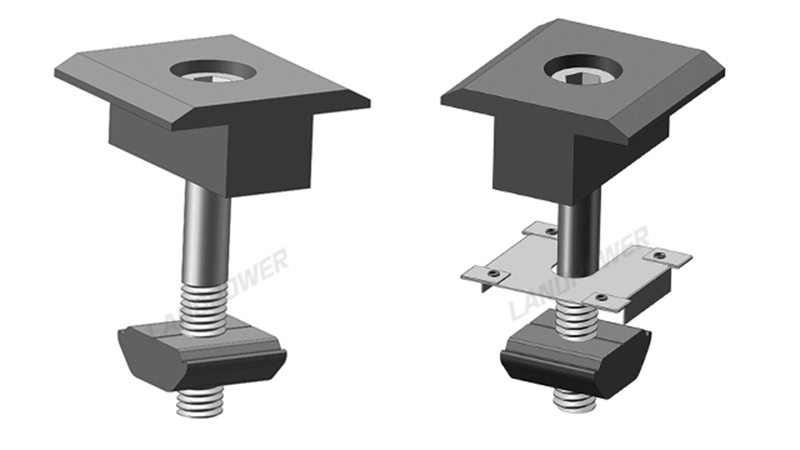

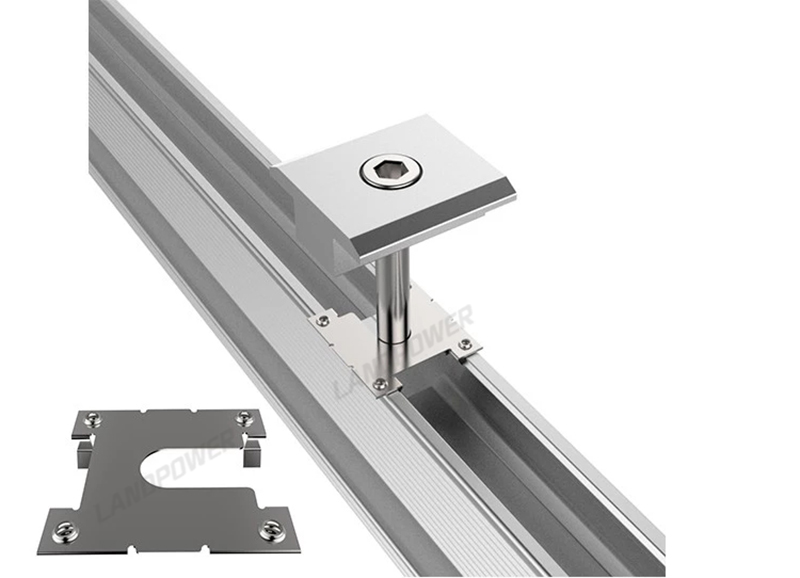

It also can equip with earthing clip to fix into mounting rail to reach grounding purpose,for the further earthing information, please refer to : Solar Mounting Earthing Systems

We design different mid clamp for different rail, please feel free to contact us for customized mid clamp,we offer OEM service!
