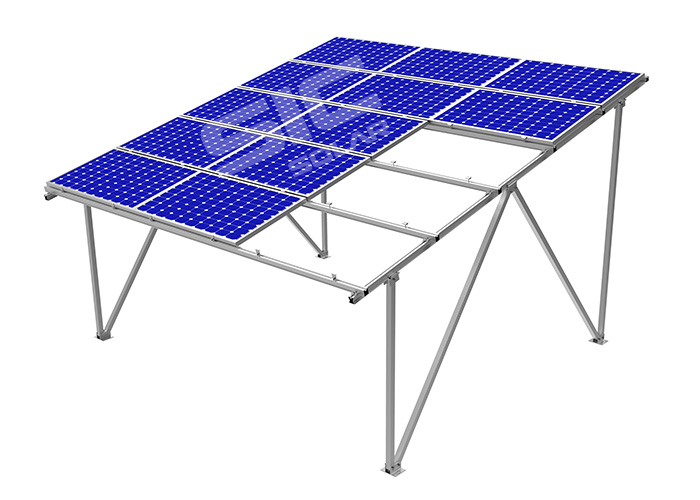

Aluminum solar ground mounting systems
Solar PV ground mounting systems is made of 100% aluminum, which could be used together with Ground Screw or Concrete Foundation. Its mainmaterial is anticorrosive for outdoor use. Meanwhile, it's light, strong, which is very easy for installation.
Category: Ground mounting system
|
Installation Site
|
Roof or Ground
|
| Foundation |
Concrete or Ground Screw Foundation |
| Material |
Aluminum 6005-T5 & Stainless Steel 304 |
| Color |
Natural or Customized |
| Anticorrosive |
Anodized aluminum & stainless steel |
| Tilt Angle |
0°~60° |
|
Wind Load
|
<60M/S
|
|
Snow Load
|
<1.4KN/M2
|
|
Standards
|
AS/NZS 1170.2, JIS C 8955:2011
|
|
Warranty
|
10 years warranty and 25 years service time
|
Advantages as follow:
☆ Ground mounting array could be customized according to your ground size.
☆ High Durability – Best AL6005-T5 Ensure 10 years warranty and 25 years service time.
☆ Aluminum profile is very light and easy for installation. It is also anti-corrosion.
☆ Pre-assembled main frame – highly save the labor cost at your installation site.
Related certificate
Strength Analysis report -- mountings will be test to meet your target strength, Like wind speed and snow load.
Our standard package is steel pallet for long alu profile, while small alu components will be packed into cartons with plywood pallet.
