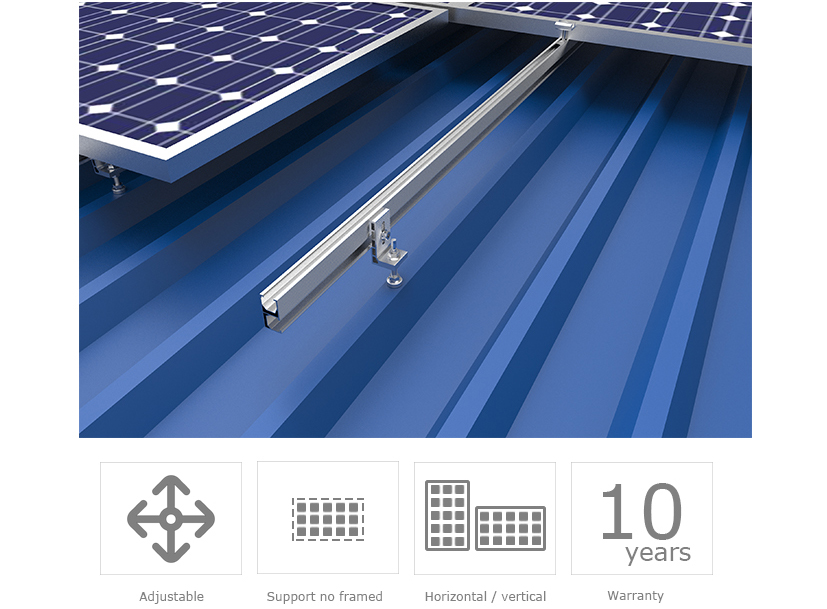

Universal type of Metal Roof Solar Mounting Brackets
|
Product Name
|
Universal types of metal roof Solar Panel Mounting System
|
|
Mount Location
|
Sloped Roof
|
|
Mount Base
|
Other types of metal roof
|
|
Mount Angle
|
0-15°
|
|
Wind Load
|
60m/s
|
|
Snow Load
|
1.6KN/m2
|
|
Applicable Solar Panels
|
Framed Panels & Frameless Panels
|
|
Solar Panel Layout
|
Horizontal Panel Installation & Vertical Panel Installation
|
|
Design Standard
|
AS/NZS 1170 , DIN 1055 ,JIS C8955 2017
|
|
Rack Material
|
Al6005-T5 (Surface Anodic Oxidation）
|
|
Fastener Material
|
SUS304/SUS410
|
|
Mounting Accessories Material
|
Al6005-T5 (Surface Anodic Oxidation）
|
|
Column color
|
Natural Silver or According to Customer
|
|
Warranty Period
|
10 years
|
|
Service Life
|
25 years
|
|
Loading Port
|
Xiamen Port,China
|
Advantage:
1. There are many types of metal roof solution for your needs, such as budget, shape of tin roof, installation methods, etc.
2. The tin roof solar mounting solution is simple and easy to install.
3. High-quality after-sales service to solve your worries.

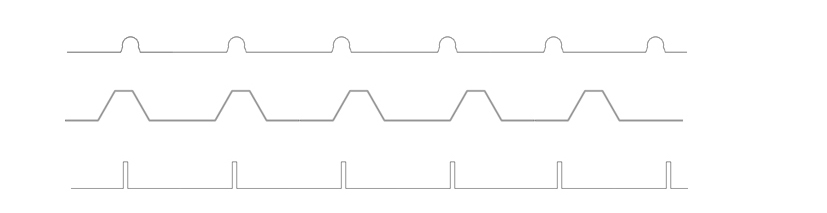

Suitable for trapezoidal metal roof

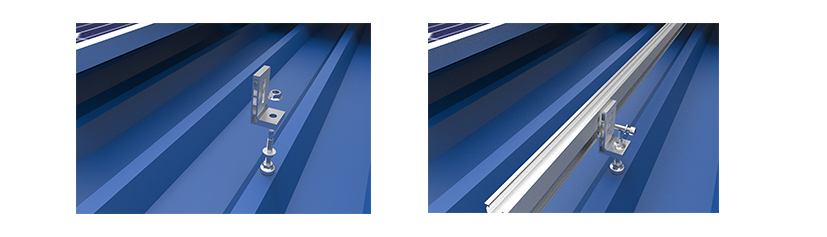

Fix the fixture on the trapezoidal metal roof first, and then lock the track
|
|
Roof mounting with Bolts,Washers,EPDM Washers,Self-tapping Screws
|
|
|
Solar rails
|
|

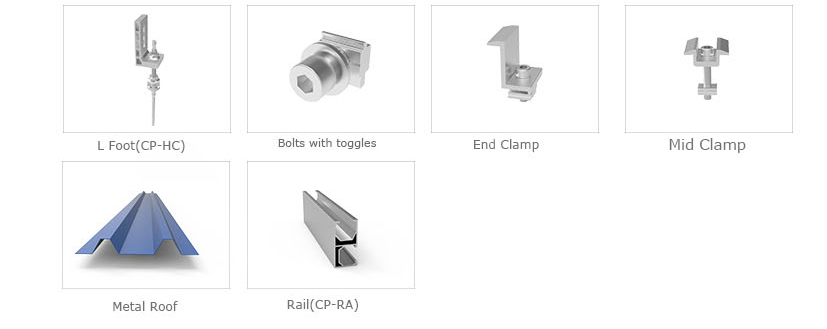

Racking Accessories
|

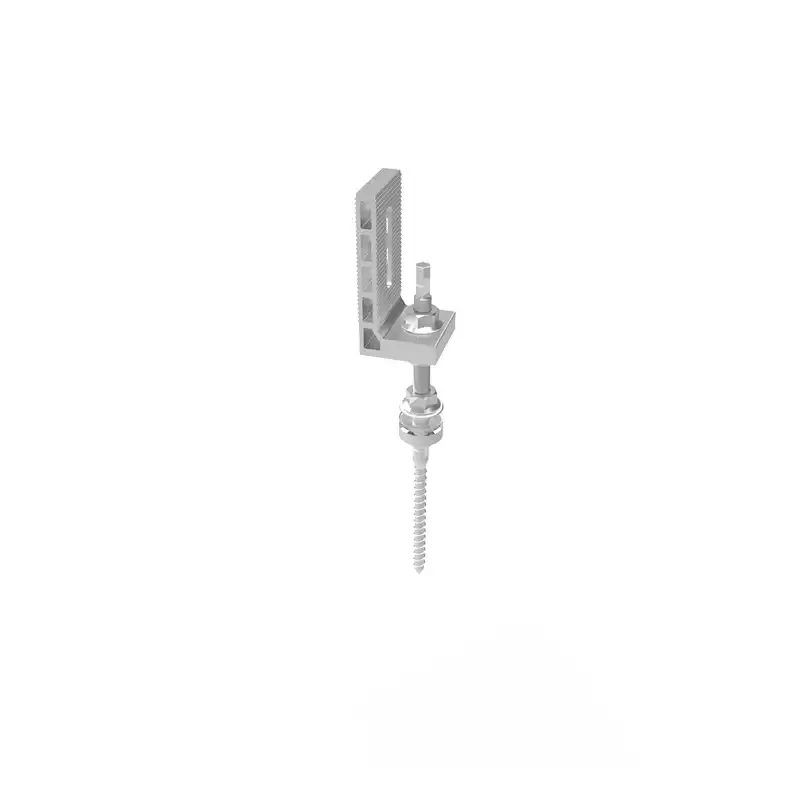

L-foot with bolts,Washers
|
|
|
End Clamp with Hex Socket Head Bolts M8,Toggles
|
|
|
Mid Clamp with Hex Socket Head Bolts M8,Toggles
|

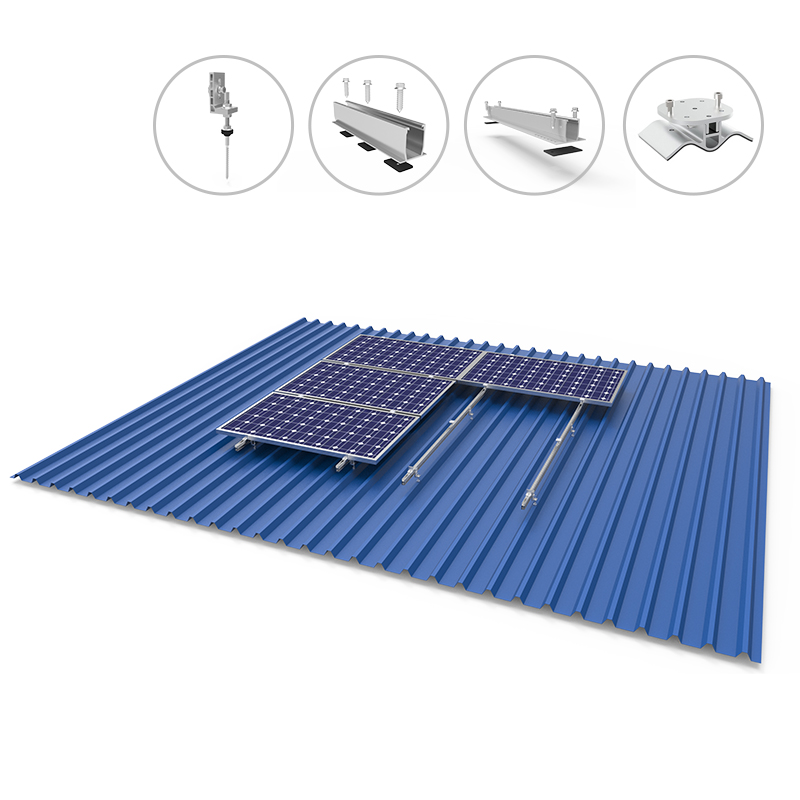

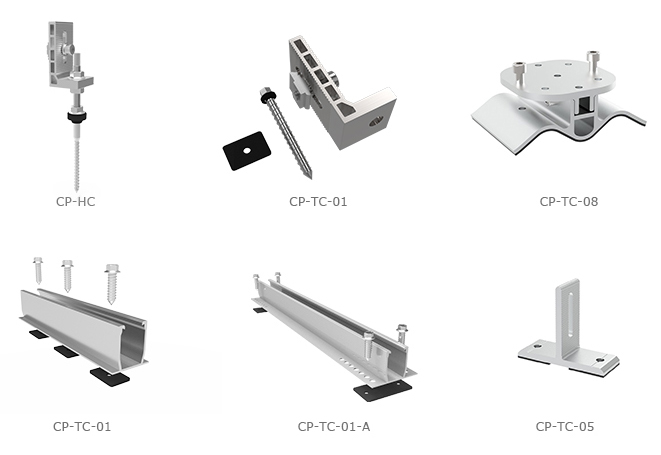

More Similar Products:
1. The same shape of the metal roof system can choose different fixtures according to different application needs or budget.
2. We can provide corresponding solutions for different tin roof shapes and different customer needs
