XJ-AC800 7KW Home AC charging pile

One-stop operation solutions:

charging piles, site planning and design, smart parking barriers, supporting construction general contracting (site, power distribution, membrane structure carport)Advertising resources；

Brand and R&D:

dual-brand strategy, continuous R&D capabilities;

System compatibility and upgrade:

A professional system development team ensures continuous upgrades and reserves seamless access to third-party stake enterprises and operating platforms;

Worry-free after-sales service:

24-hour equipment status monitoring, complete training system, and timely on-site technical support!

Facebook Twitter Pinterest LinkedIn 分享

Description

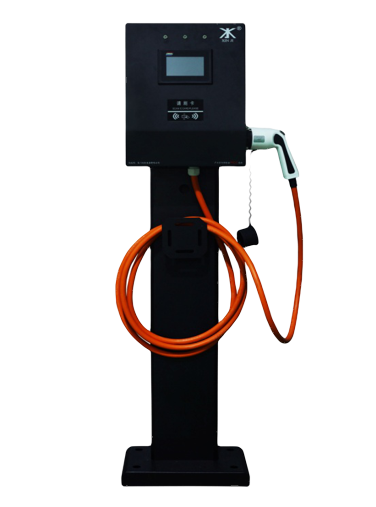

XJ-AC800 7KW AC charging pile

Technical parameters and functions
1. Input voltage: AC220V/AC380V
2. Input frequency: 50Hz
3. Output voltage: AC220V
4. Rated output current: 32A/63A
5. Maximum output power: 7KW/21KW
6. Protection level: IP54
7. Noise: ≤60DB
8. Working environment temperature: -20℃+50℃
9. Relative humidity of working environment: 5%~95%
10. Altitude: ≤2000 meters
11. Communication method: Ethernet/2G/3G/4G
12. Payment method: credit card/scan code payment (WeChat/Alipay/Bank Merchant Aggregation Code)
13. MTBF: ≥8760h
14. Safety function: residual current protection device, over/under voltage, over/under current, overload, short circuit and Lightning protection

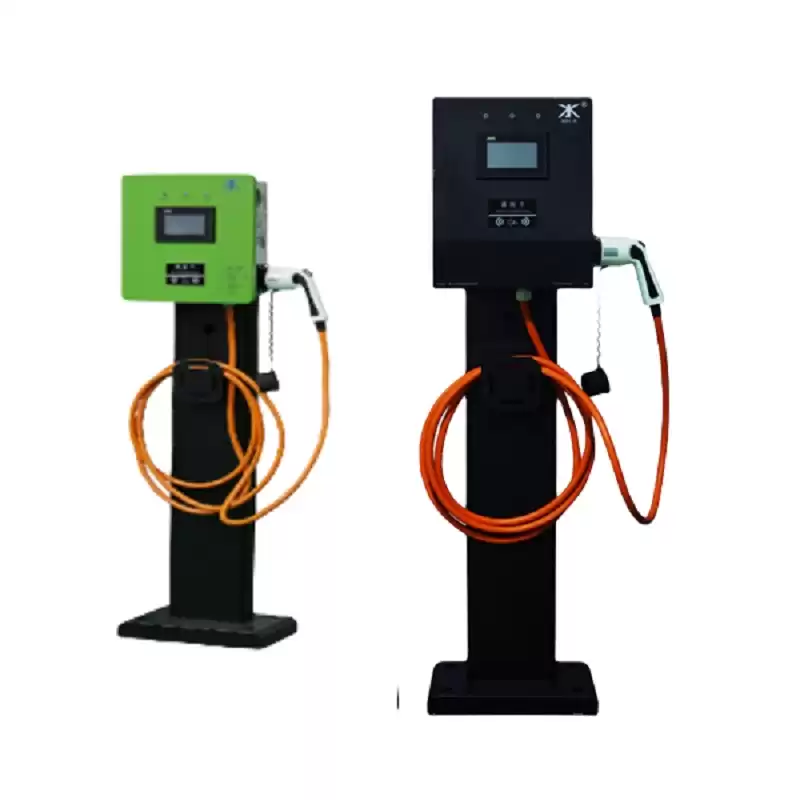

15. Dimensions: 315×130×360mm (green version)
310×130×410mm (black version)

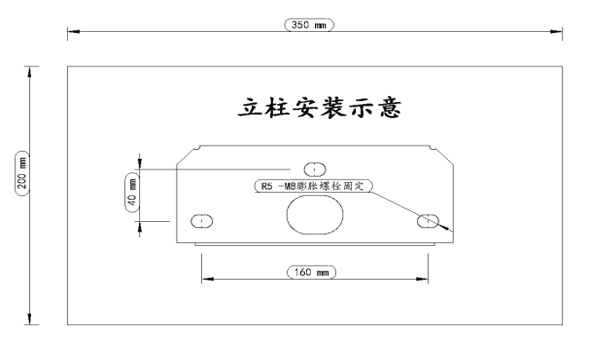

16. Installation method: wall hanging/post

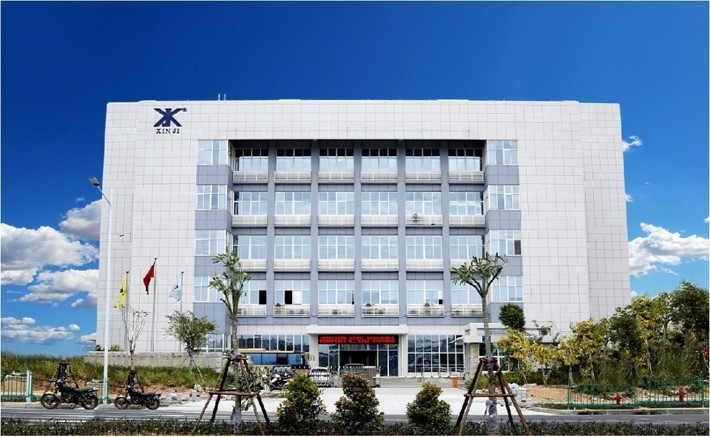

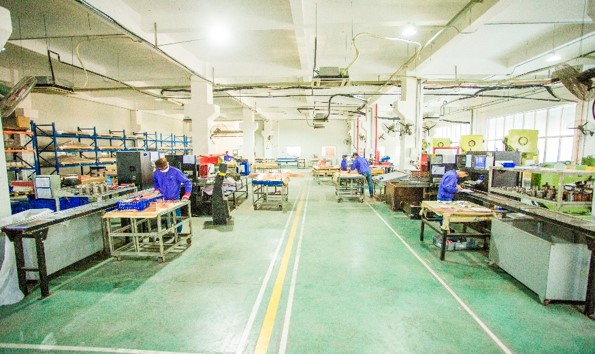

Xiamen Xinji Electrical Apparatus Co., Ltd. was founded in February 2011, with a registered capital of 100 million yuan. The company has a self-built workshop of 38,000 square meters in Xiang′an. The company is a qualified supplier of non-standard sheet metal and copper product for Xiamen ABB Low voltage equipment Co,Ltd and also a supplier for Kehua, Hengsheng and Xuji Electrical Appliance Co,Ltd . The company has complete sheet metal and copper product processing capacity, including copper raw materials extrusion, sheet metal and copper platings of stamping, bending, heat shrinking, welding, spray painting, screen printing and assembling. Meanwhile, the Company has R & D, design, production, sales and operation qualification for Anti-Seismic Bracket and Charging Stations.
