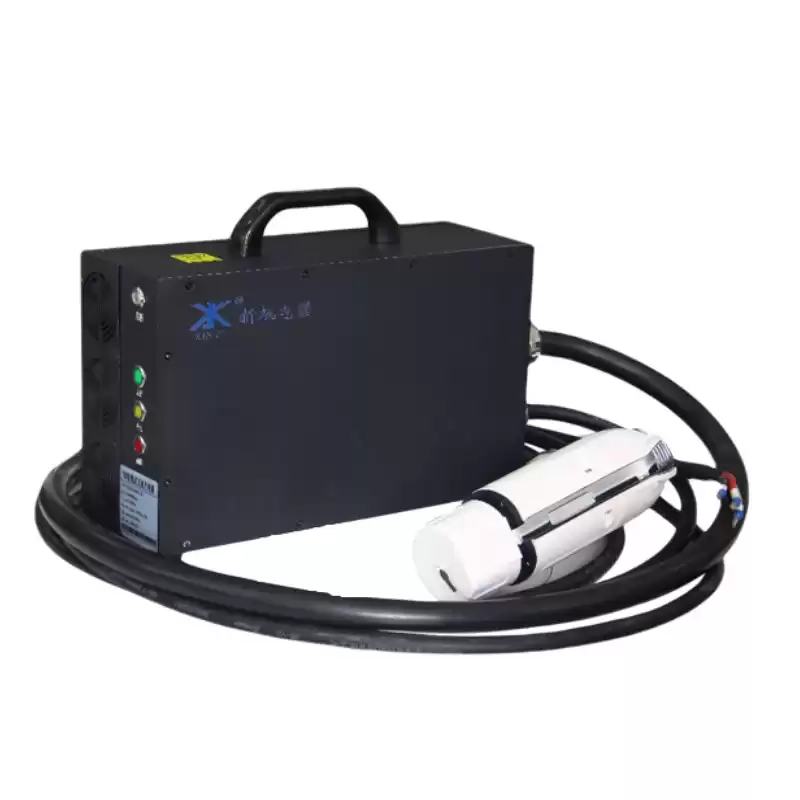

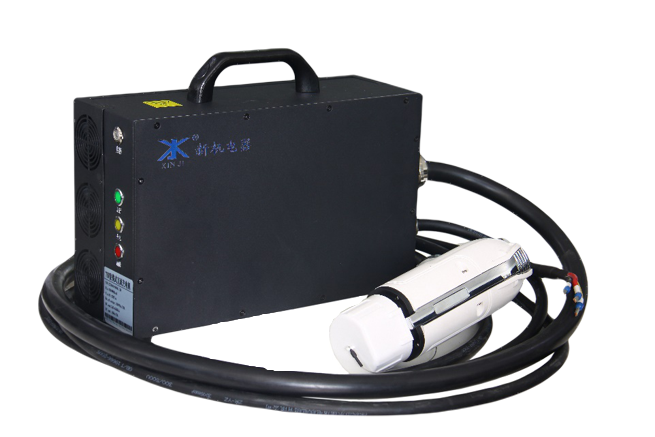

Technical parameters and functions
1. Input AC voltage (V): 95Vac~265Vac
2. Input voltage frequency (Hz): 50Hz (45Hz~65Hz)
3. Input current (A): ≤ 32A@full range input, full load
4. Input power (KW): 7KW (maximum)
5. Input impulse current (A): <32A @25℃, cold state
6. Input undervoltage protection (V): undervoltage protection point: 95Vac, recovery point: 110Vac
7. Input overvoltage protection (V): Overvoltage protection point: 265Vac, recovery point: 255Vac
8. Input power factor: 50% load: ≥0.98; 100% load: ≥0.99
9. Input harmonic content: 50% load: ≤ 10%; 100% load: ≤ 5%
10. Output rating: 330Vdc/20A; 550Vdc/12A
11. Output voltage range (V): 200~420Vdc; 350Vdc~680Vdc
12. Maximum output current (A): 20A/12A
13. Rated working efficiency: above 50% load: ≥93%; full load: ≥94%
14. Output voltage ripple: ≤ ±3%
15. Low voltage output: 12Vdc/6A

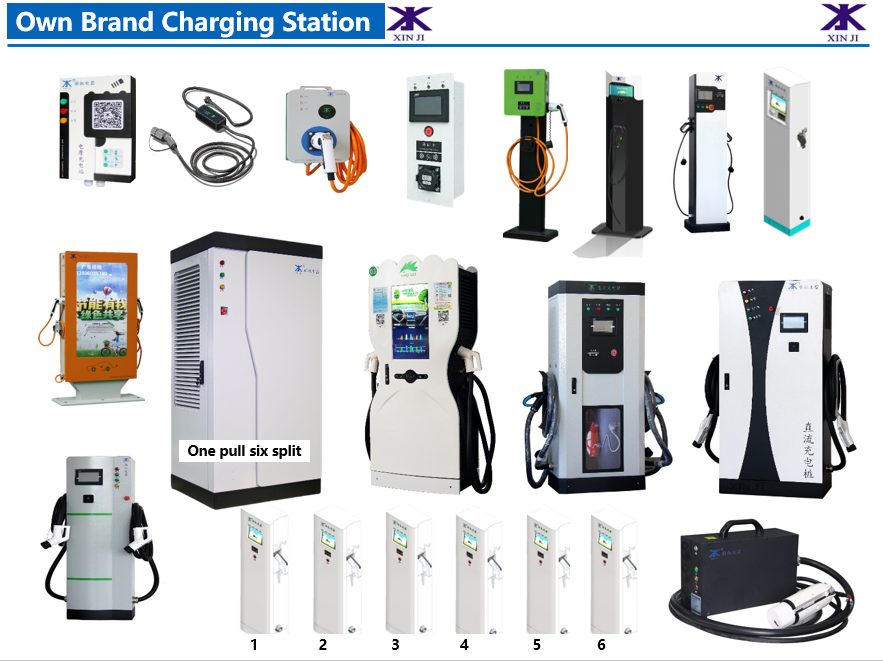

One-stop operation solutions: charging piles, site planning and design, smart parking barriers, supporting construction general contracting (site, power distribution, membrane structure carport)Advertising resources；
Brand and R&D: dual-brand strategy, continuous R&D capabilities;
System compatibility and upgrade: A professional system development team ensures continuous upgrades and reserves seamless access to third-party stake enterprises and operating platforms;
Worry-free after-sales service: 24-hour equipment status monitoring, complete training system, and timely on-site technical support!
Xiamen Xinji Electrical Apparatus Co., Ltd. was founded in February 2011, with a registered capital of 100 million yuan. The company has a self-built workshop of 38,000 square meters in Xiang′an. The company is a qualified supplier of non-standard sheet metal and copper product for Xiamen ABB Low voltage equipment Co,Ltd and also a supplier for Kehua, Hengsheng and Xuji Electrical Appliance Co,Ltd . The company has complete sheet metal and copper product processing capacity, including copper raw materials extrusion, sheet metal and copper platings of stamping, bending, heat shrinking, welding, spray painting, screen printing and assembling. Meanwhile, the Company has R & D, design, production, sales and operation qualification for Anti-Seismic Bracket and Charging Stations.
