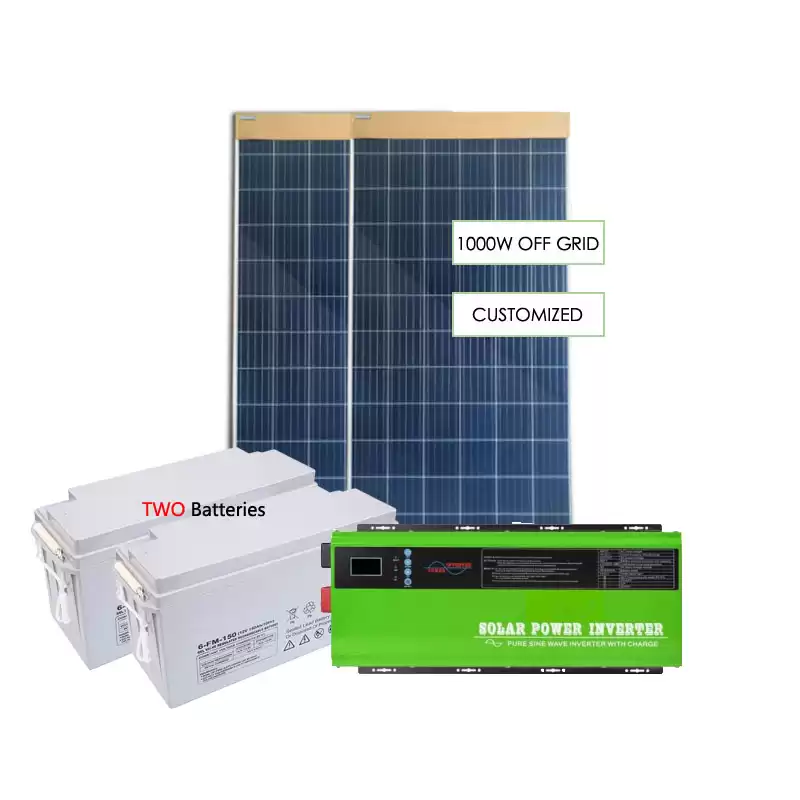

1000W outdoor and home solar power generation system

We have 24V 3000W 2000W 1000W off grid Solar power system for home use and outdoor use. Different solution for your choice.
This 1000W solar system supports AC TO DC and can supply power to the following loads. The electrical appliances that can be powered and the duration of independent support are as follows:

• Refrigerator (200W): Use alone for about 18 hours
• Rice cooker (500W): Use alone for about 7 hours
• Microwave oven (700W): Use alone for about 5 hours
• TV (100W): Use alone for about 36 hours
• Water pump (400W): Use alone for about 9 hours

1000W MPPT Solar Charge Controller:		Pure sine wave output, full power Sine wave output Built-in MPPT solar controller 30A-100A (optional) With UPS automatic switching function, mains charging function, AVR voltage stabilization function (three-stage voltage stabilization) Specific overload, high voltage, low voltage, short circuit and other perfect protection functions DSP intelligent chip control, excellent performance Strong inverter capacity, one-time soft start, triple output peak power, can carry all inductive loads Fully personalized LCD display, at the same time display solar controller, inverter related information Mains power priority, energy saving mode, solar power priority can be set freely to meet different occasions Battery type, charging voltage, mains charging current (0-35A) can be set freely to meet different types Battery charge management
Default battery system voltage (VDC)	12VDC/24VDC/48VDC
Inverter Output	Rated power	1000W
	Surge rating (20ms)	3000W
	Capable of starting electric Motor	0.5HP
	Wave form	Pure sine wave/ Same as input (AC mode)
	Nominal output voltage RMS	110/120VAC 220/230/240VAC(±10RMS)
	Output frequency	50Hz60Hz±0.3Hz
	Inverter efficiency(Peak)	>85%
	Line mode efficiency	>95%
	Typical transfer time	8ms(Max)
Solar Charge Controller	Max solar charging current	30A,40A,50A,60A,80A
	Voltage	12V,24V,48V,96V
	Max PV input power	12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W
		24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W
		48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
		96V-80A:7680W,96V-100A:9600W,96V-120A:11520W
	PV array MPPT voltage range	12V:18V-100V,24V:36V-130V,48V:72V-160V,96V:144V-280V
	Peak conversion efficiency	>99%
Other	Mounting	Wall mount
	Display	LCD+LED
	Cooling fan	Intelligent fan cooling system
	Audible noise	<60dB
	Coommunications	RS-232,SNMP,WI-FI,Dry Contact(Optional）
	Operation temperature range	-10℃~50℃
	Storage temperature	-10℃~60℃
Protection	Over load protection	Rated power over 110%,shut down automatically
	Temperature protection	Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine
	Short circuit protection	Automatic Shutdown
Battery	Low battery protection	10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC)
	Low battery cutoff	10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC)
	High Battery alarm	15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC)
	High Battery protection	16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC)

Solar panels:

Batteries:

Accessories:

Remarks: Accessories can be configured according to personal requirements.

Exquisite appearance design, fine craftsmanship, pure sine wave output, sufficient power, sufficient capacity, and easy to carry.

This MPPT Solar Charge Controller, solar system can solve the problem of power shortage and unstable power in places such as homes, pastoral areas, communication base stations, outdoor advertising projects, island fishing boats, border posts, emergency power supplies for special vehicles, and public places.

Factory & workshop:

Mailely, as a professional solar power system manufacturer and supplier, we value user experience, product quality, and customer satisfaction is our pursuit.
If you want to wholesale or customize solar power systems, you can rest assured to contact us, the price is favorable, and the quality is guaranteed.
