2000W AC DC Residential Solar Power Solutions

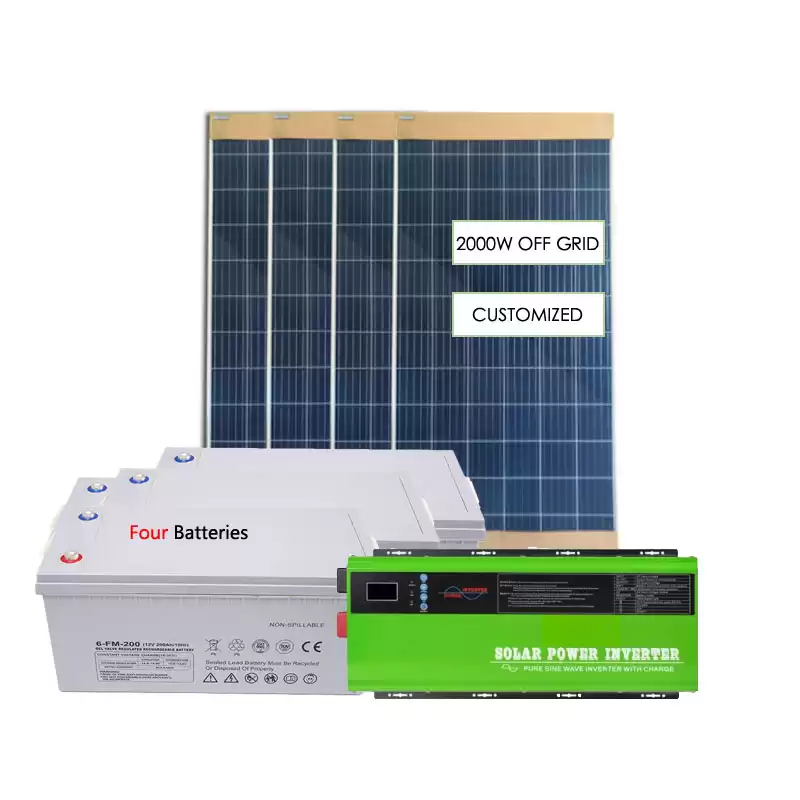

This home solar power solution is equipped with our best quality products, fine craftsmanship, exquisite appearance:

• Four polysilicon solar panels
• Inverter-a smart combination of high-efficiency solar controllers
• Pure sine wave inverters
• 4 storage batteries, and is integrated in one unit.

This 2000W off-grid solar power system is usually used to power common household appliances, such as high-efficiency refrigerators, mobile phones, tablets and laptops, lights, TVs, fans, washing machines, other machines, etc..

Besides used for household it is also used for outdoor farm, greenhouse, wedding scene in a fixed outdoor place, etc.

MPPT Solar Charge Controller:		Multifunctional protection Sine wave output Built-in MPPT solar controller 30A-100A (optional) With UPS automatic switching function, mains charging function, AVR voltage stabilization function (three-stage voltage stabilization) Specific overload, high voltage, low voltage, short circuit and other perfect protection functions DSP intelligent chip control, excellent performance Strong inverter capacity, one-time soft start, triple output peak power, can carry all inductive loads Fully personalized LCD display, at the same time display solar controller, inverter related information Mains power priority, energy saving mode, solar power priority can be set freely to meet different occasions Battery type, charging voltage, mains charging current (0-35A) can be set freely to meet different types Battery charge management
Default battery system voltage (VDC)	12VDC/24VDC/48VDC
Inverter Output	Rated power	2000W
	Surge rating (20ms)	6000W
	Capable of starting electric Motor	1HP
	Wave form	Pure sine wave/ Same as input (AC mode)
	Nominal output voltage RMS	110/120VAC 220/230/240VAC(±10RMS)
	Output frequency	50Hz60Hz±0.3Hz
	Inverter efficiency(Peak)	>85%
	Line mode efficiency	>95%
	Typical transfer time	8ms(Max)
Solar Charge Controller	Max solar charging current	30A,40A,50A,60A,80A
	Voltage	12V,24V,48V,96V
	Max PV input power	12V-30A:360W,12V-50A:600W,12V-60A:720W,12V-80A:960W,12V-100A:1200W,12V-120A:1440W
		24V-30A:720W,24V-50A:1200W,24V-60A:1440W,24V-80A:1920W,24V-100A:2400W,24V-120A:2880W
		48V-30A:1440W,48V-50A:2400W,48V-60A:2880W,48V-80A3840W,48V-100A:4800W,48V-120A:5760W
		96V-80A:7680W,96V-100A:9600W,96V-120A:11520W
	PV array MPPT voltage range	12V:18V-100V,24V:36V-130V,48V:72V-160V,96V:144V-280V
	Peak conversion efficiency	>99%
Other	Mounting	Wall mount
	Display	LCD+LED
	Cooling fan	Intelligent fan cooling system
	Audible noise	<60dB
	Coommunications	RS-232,SNMP,WI-FI,Dry Contact(Optional）
	Operation temperature range	-10℃~50℃
	Storage temperature	-10℃~60℃
Protection	Over load protection	Rated power over 110%,shut down automatically
	Temperature protection	Built-in temperature sensor real-time induction, ,≥85 alarm, ,≥85 shut down the whole machine
	Short circuit protection	Automatic Shutdown
Battery	Low battery protection	10VDC±0.3V (12VDC),20VDC±0.3V (24VDC),40 VDC±0.3V (48VDC),80 VDC±0.3V (96VDC)
	Low battery cutoff	10.5VDC±0.3V (12VDC),21VDC±0.3V (24VDC),42 VDC±0.3V (48VDC),84VDC±0.3V (96VDC)
	High Battery alarm	15VDC±0.3V (12VDC),30VDC±0.3V (24VDC),60 VDC±0.3V (48VDC),120 VDC±0.3V (96VDC)
	High Battery protection	16.5VDC±0.3V (12VDC),33VDC±0.3V (24VDC),66VDC±0.3V (48VDC),132VDC±0.3V (96VDC)

Solar panels:

Batteries:

Accessories:

Supportable household appliances:

-- Water heater (1000W): Use alone for about 9.6 hours
-- Rice cooker (800W): Use alone for about 12 hours
-- Microwave oven (700W): Use alone for about 13 hours
-- TV (300W): Use alone for about 32 hours
-- Water pump (800W): Use alone for about 12 hours
-- Electric kettle (1500W): Use alone for about 6 hours

Applications

Factory & workshop

Mailely, as a professional solar power system manufacturer and supplier, we value user experience, product quality, and customer satisfaction is our pursuit.
If you want to wholesale or customize solar power systems, you can rest assured to contact us, the price is favorable, and the quality is guaranteed.
