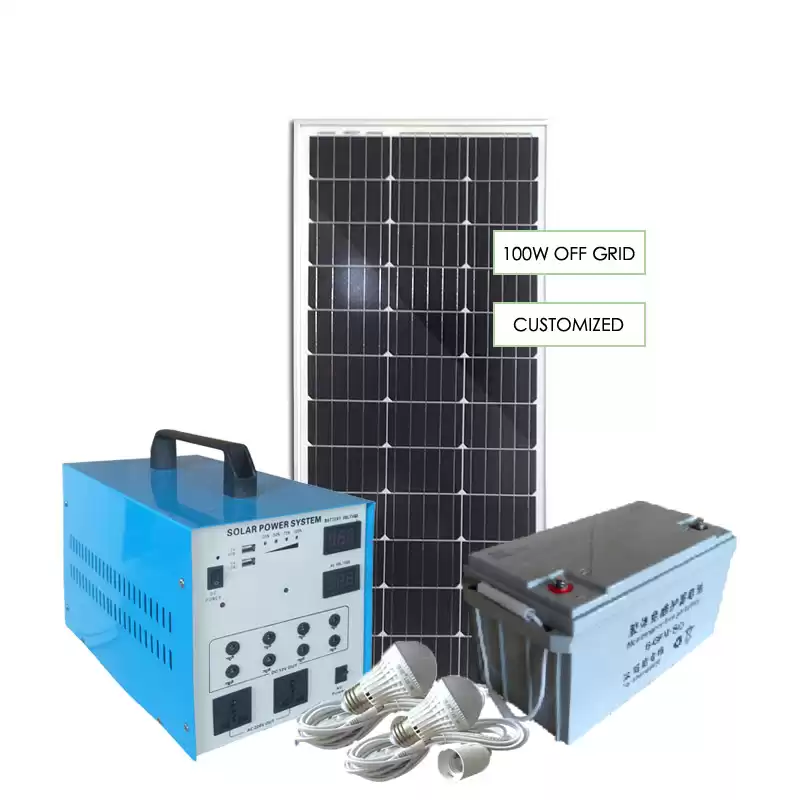

100W 12V Portable home off grid solar power system
This off grid solar power systems includes a host (built-in inverter), a solar panel (maximum output power) 100W, a 12V battery (valve-regulated, maintenance-free gel battery), and accessories that can be equipped according to personal needs.
It can support electrical appliances within 300W, such as a 150W TV, which can be used alone for 4 hours; a 50W fan, which can be used alone for 12 hours; a 5W light bulb, which can be used alone for about 120 hours.
It is a mobile home solar power system, the best all in one solar power system for your home.
Product Specifications:
|
Host *1
|
Input voltage
|
DC12V
|
|
Maximum charging current
|
15A
|
|
Maximum discharge current
|
25A
|
|
USB
|
1A/5V
|
|
LED indicator
|
Switch, battery
|
|
AC220V output interface
|
2PCS
|
|
DC12V output interface
|
8PCS
|
|
Charging control method
|
PWM Controller
|
|
Temperature difference supplement
|
-4MV/0°/2V
|
|
Load protection
|
Overcharge, overdischarge, overload, short circuit
|
|
Size
|
345*210*245mm
|
|
Weight
|
4.03KG
|
|
Built-in inverter
|
300W
|
|

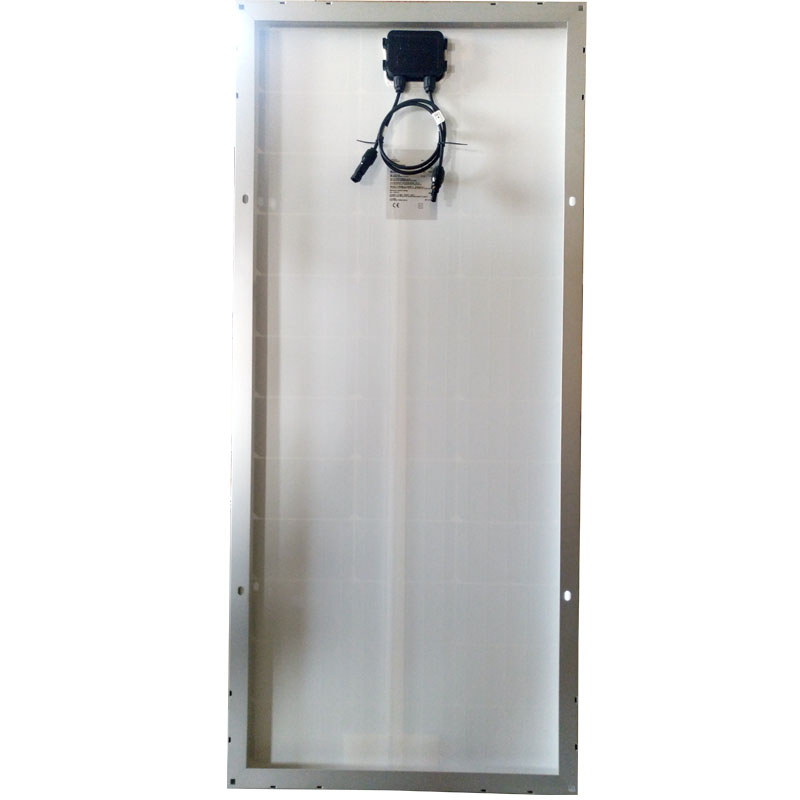

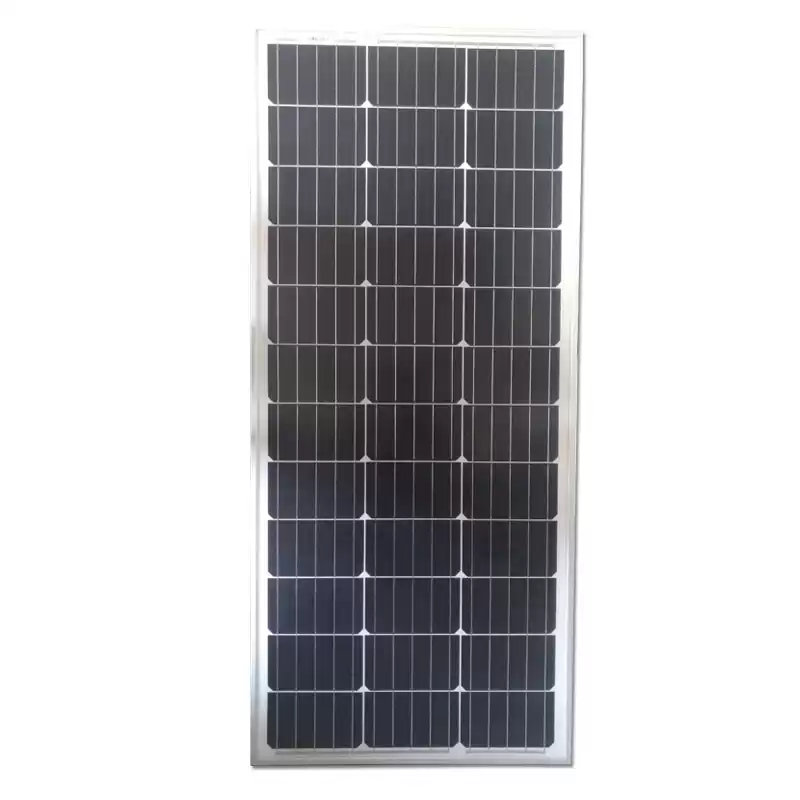

Solar panel *1
|
Maximum output power（Pm）
|
100W
|
|
Optimal power voltage (Vmp)
|
17.6V
|
|
Optimal power current (Imp)
|
5.71A
|
|
Open circuit voltage (Voc)
|
21V
|
|
Short circuit current (Isc)
|
6.4A
|
|
Size
|
1200*540*30mm
|
|
Weight
|
7KG
|
|
Conversion efficiency
|
18%
|
|
Power deviation
|
3%
|
|
Cell
|
Monocrystalline silicon
|
|
Service life
|
More than 25 years
|
|
Battery *1
|
Battery Type
|
Valve-controlled maintenance-free gel battery
|
|
Voltage
|
12V
|
|
Capacity
|
50AH
|
|
Size
|
229*138*211mm
|
|
Weight
|
15.5KG
|
|
Accessories
|
LED lights *2
|
12V/3W
|
|
LED light wire *2
|
5M
|
|
Data line *1
|
|
|
* All accessories such as brackets and connecting wires can be configured according to personal installation environment requirements
* Your requirements can be customized.
|
Key features:
1.Environmental,no pollution &noise
2.High-efficient panel,Durable battery
3.DIY installation and free of maintenance
4.Reliable quality with 5 protection function
Applications:
Mailely, as a professional solar power system manufacturer and supplier, we value user experience, product quality, and customer satisfaction is our pursuit.
If you want to wholesale or customize solar power systems, you can rest assured to contact us, the price is favorable, and the quality is guaranteed.
