200W DC12V solar power system for homes

This Household solar power system is a home solar power system that is worth buying, and it can continuously power your home appliances for up to 190 hours. Support household appliances within 300W, such as TVs, electric fans, and light bulbs.


  • Warranty25Years
  • Product NameOff grid solar power system
  • Battery capacity80AH
  • OEM/ODMYes
  • Voltage12V
  • CertificateRoHS, CE, Patent
  • TypePortable solar system

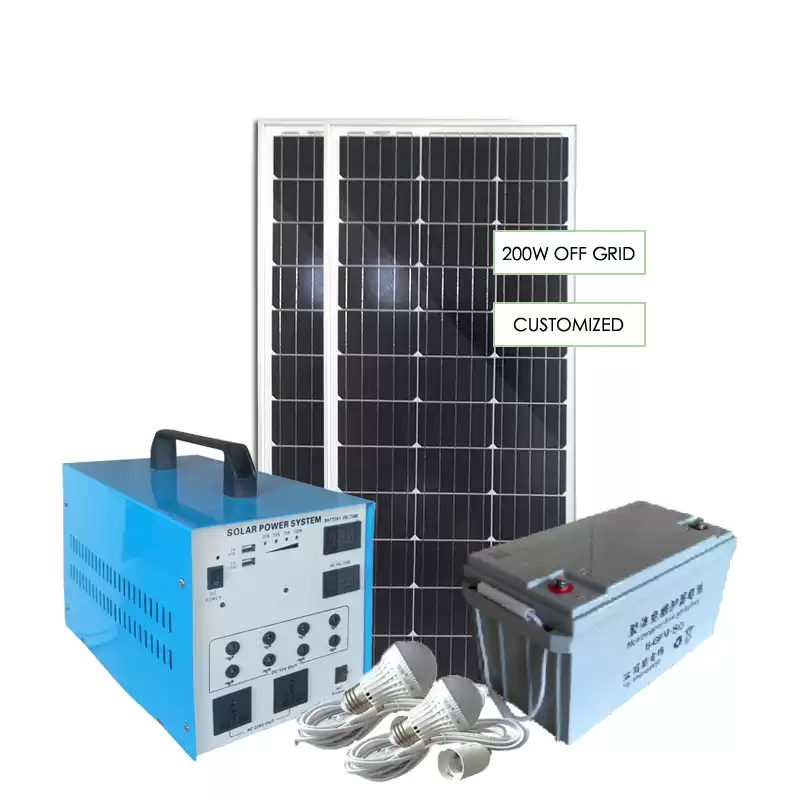

200W DC12V solar power system for homes



This portable household 12V solar power system has load protection, 2 solar panels, with a lifespan of up to 25 years, and can power electrical appliances within 300W, such as a 150W TV set for 6 hours; a 50W fan, power supply for 19 hours; 5W bulb power supply can reach 190 hours. It is definitely a cost-effective home solar power system, outdoor solar power system, easy to carry, it can meet the basic power supply even when the family is camping or performing.



200W Solar Power System Specifications:

Host *1

Input voltage

DC12V

Maximum charging current

15A

Maximum discharge current

25A

USB

1A/5V

LED indicator

Switch, battery

AC220V output interface

2PCS

DC12V output interface

8PCS

Charging control method

PWM Controller

Temperature difference supplement

-4MV/0°/2V

Load protection

Overcharge, overdischarge, overload, short circuit

Size

345*210*245mm

Weight

4.03KG

Built-in inverter

300W

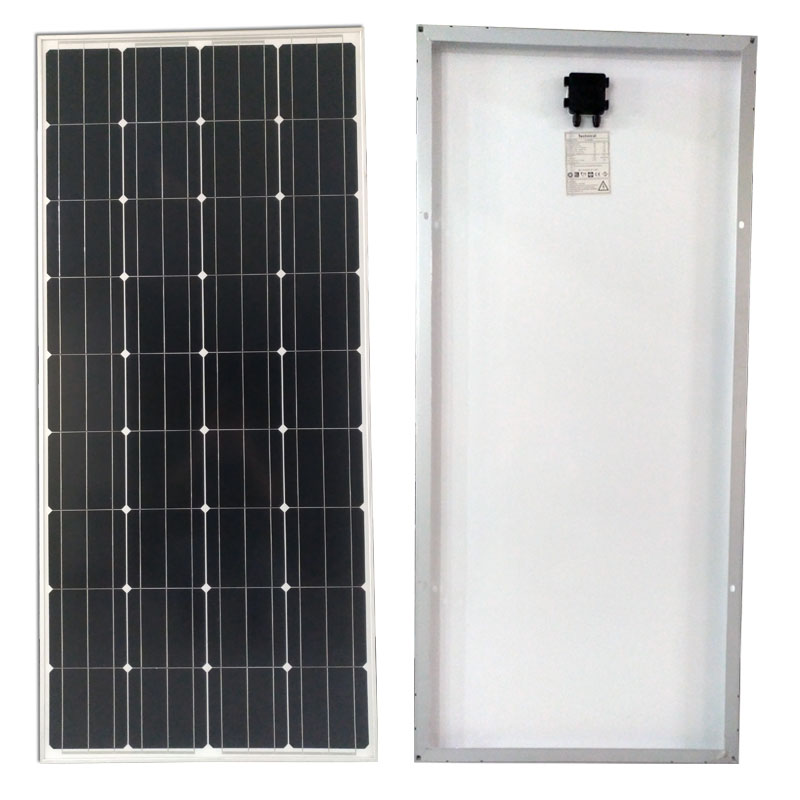

Solar panel *2

Maximum output power(Pm)

100W

Optimal power voltage (Vmp)

17.6V

Optimal power current (Imp)

5.71A

Open circuit voltage (Voc)

21V

Short circuit current (Isc)

6.4A

Size

1200*540*30mm

Weight

7KG

Conversion efficiency

18%

Power deviation

3%

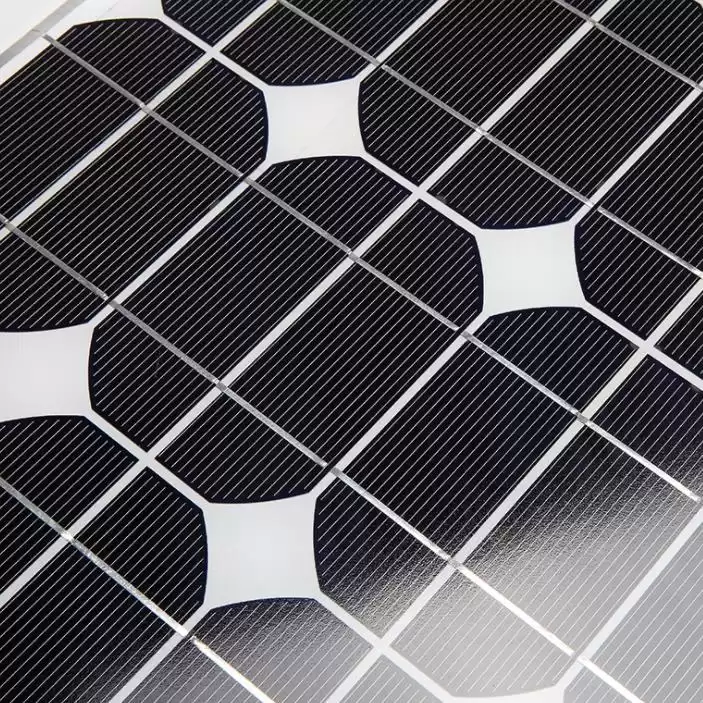

Cell

Monocrystalline silicon

Service life

More than 25 years

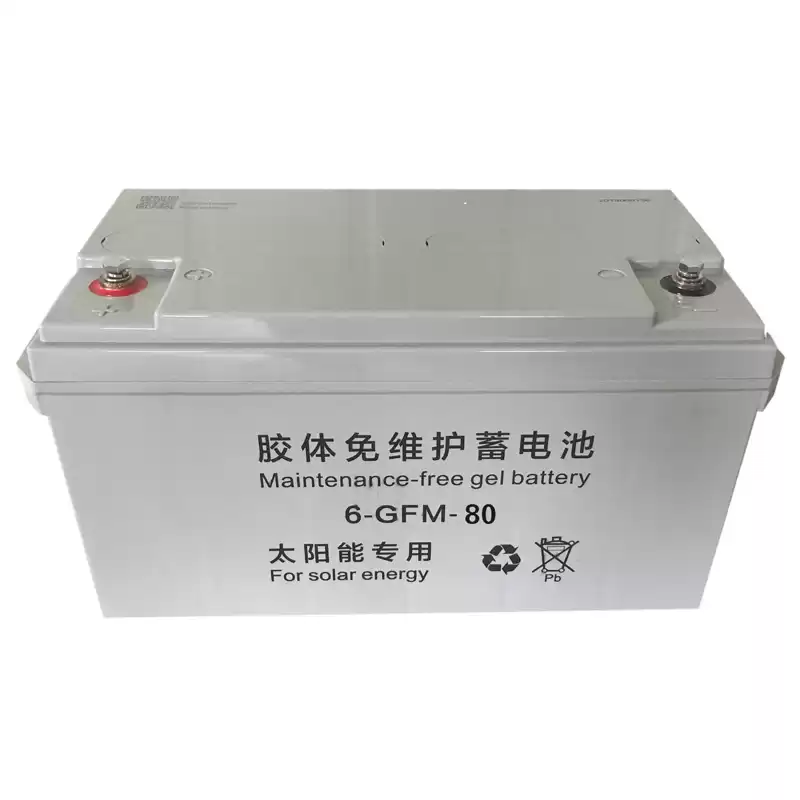

Battery *1

Battery Type

Valve-controlled maintenance-free gel battery

Voltage

12V

Capacity

80AH

Size

324*200*230mm

Weight

24.5KG

Accessories

LED lights *2

12V/3W

LED light wire *2

5M

Data line *1





* All accessories are equipped according to the ordered products and user needs.

* Your requirements can be customized.





Advantages of solar power system:


Compared with commonly used thermal power generation systems, the advantages of solar power system are mainly reflected in:

1. No risk of fatigue
2. Safe and reliable, no pollution discharge, clean and tidy (no pollution)
3. It is not restricted by the geographical location of resources, and can take advantage of the geographical location and the roof of the building
4. There is no need to consume fuel, and no need to erect transmission lines to generate electricity
5. High energy quality
6. Short construction period and short energy acquisition time
7. Save money

solar panel, solar power system for homes



Applications:




We focus solar system solution for many years, as a professional solar power system manufacturer and supplier, we value user experience, product quality, and customer satisfaction is our pursuit.

If you want to wholesale or customize solar products, you can rest assured to contact us, the price is favorable, and the quality is guaranteed. Contact today!
