27.5plus 29er Cross Country Mountain Bike Frame



- Carbon 650B plus/ 29er full suspension XC frame

- 165*38mm or 165*40mm rear shocks

- rear travel 100mm, front travel 100~120mm

- 12*148mm boost thru axle


  • Item No.: LCFS911

  • Product Orgin: China

  • Payment: Paypal, Bank Transfer, West Union

  • Color: UD Matt(Customized Painting Acceptable)

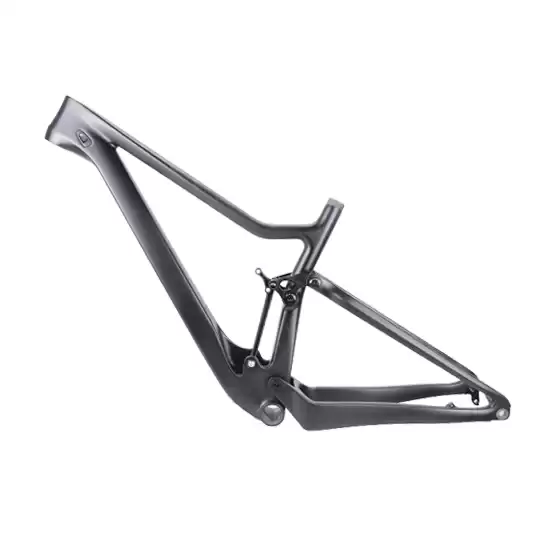

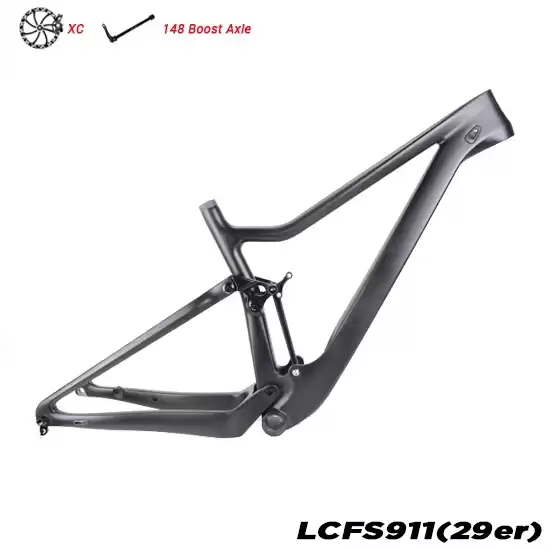

LightCarbon New 27.5plus 29er cross country mountain bike frame LCFS911

Frame LightCarbon New 27.5plus 29er cross country mountain bike frame
Material High modulus Toray T700  carbon fiber
Size 15.5'', 17.5'', 19'' (Small, Medium, Large)
FrontTravel 100~120mm
Rear Travel 100mm
Headtube Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
Weight 1980g/size 17.5''
Seatpost Diameter 31.6mm(34.9 clamp)- Droper seat post insert length 15.5--150MM  17.5-180MM  19--210MM
Bottom Bracket                                      Press Fit BB92
Max Tire Clearance 27.5er*2.8'' or 29er*2.35''
Max Compatible Chainring                 34T
Brake Type Post Mount Disc brake 160mm  (Not compatible with 4 pistons brakes, Eg: Magura M5 and Shimano Deore 4 pitons brakes)
Rear Shock

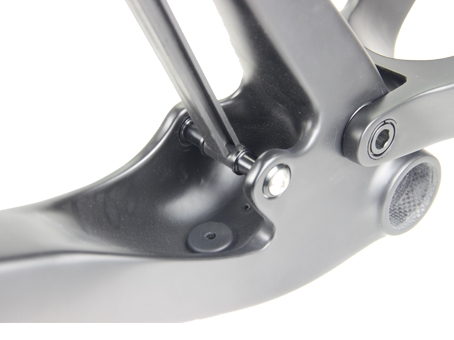

Mount 165*38mm or 40mm shocks get 100mm travel -Up M8*22 mm/down M10*54mm hardware compatible

(compatible with standard mount and trunnion mount)

Dropout Thru Axle 12*148mm
Test Standard ISO4210
Warranty  2 years

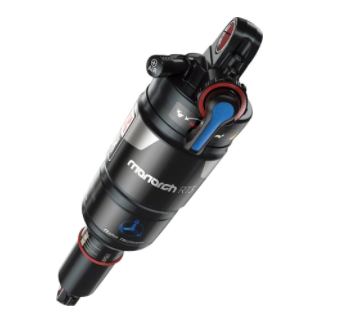

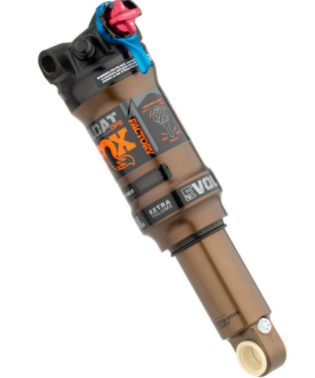

Compatible Rear Shocks standard and trunnion mount shocks




LCFS911 XC MTB frame geometry



lcfs911 xc frame geometry

  S M L
SEATPOST INSERT LENGTH 150mm 180mm 210mm
REACH 393.3mm 420.9mm 454.2mm
TOP TUBE LENGTH, HORIZONTAL 567mm 597mm 630mm
STACK 592mm 592.3mm 601.3mm
WHEELBASE 1122.5mm 1155.5mm 1186.7mm
CHAINSTAY LENGTH 443mm 443mm 443mm
FRONT CENTER 681.6mm 718.6mm 745.7mm
BB DROP 36mm 36mm 36mm
BB HEIGHT 339mm 339mm 339mm
SEAT TUBE ANGLE 73° 73° 73°
HEAD TUBE ANGLE 68° 68° 68°
SEAT TUBE LENGTH 410mm 440mm 490mm
HEAD TUBE LENGTH 95mm 95mm 105mm
BIKE STANDOVER HEIGH(29“*2.35”) 710mm 733.5mm 756mm
FORK RAKE/OFFSET 51mm 51mm 51mm
FORK LENGTH, FULL 502mm 502mm 502mm
TRAIL 105mm 105mm 105mm

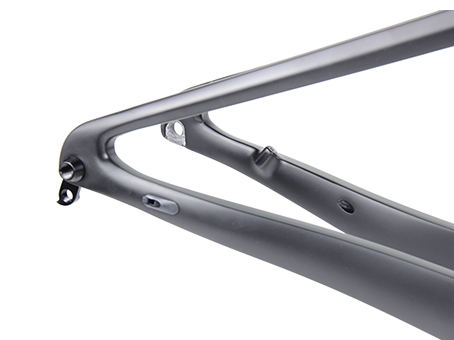

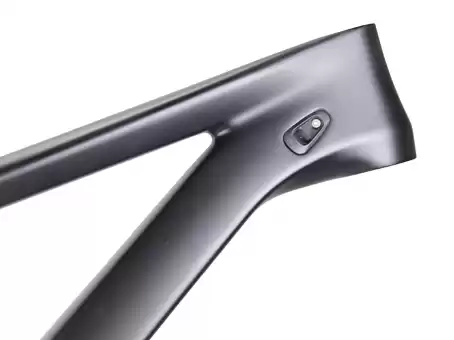

LCFS911 full internal cable routing

LCFS911 internal cable routing instruction

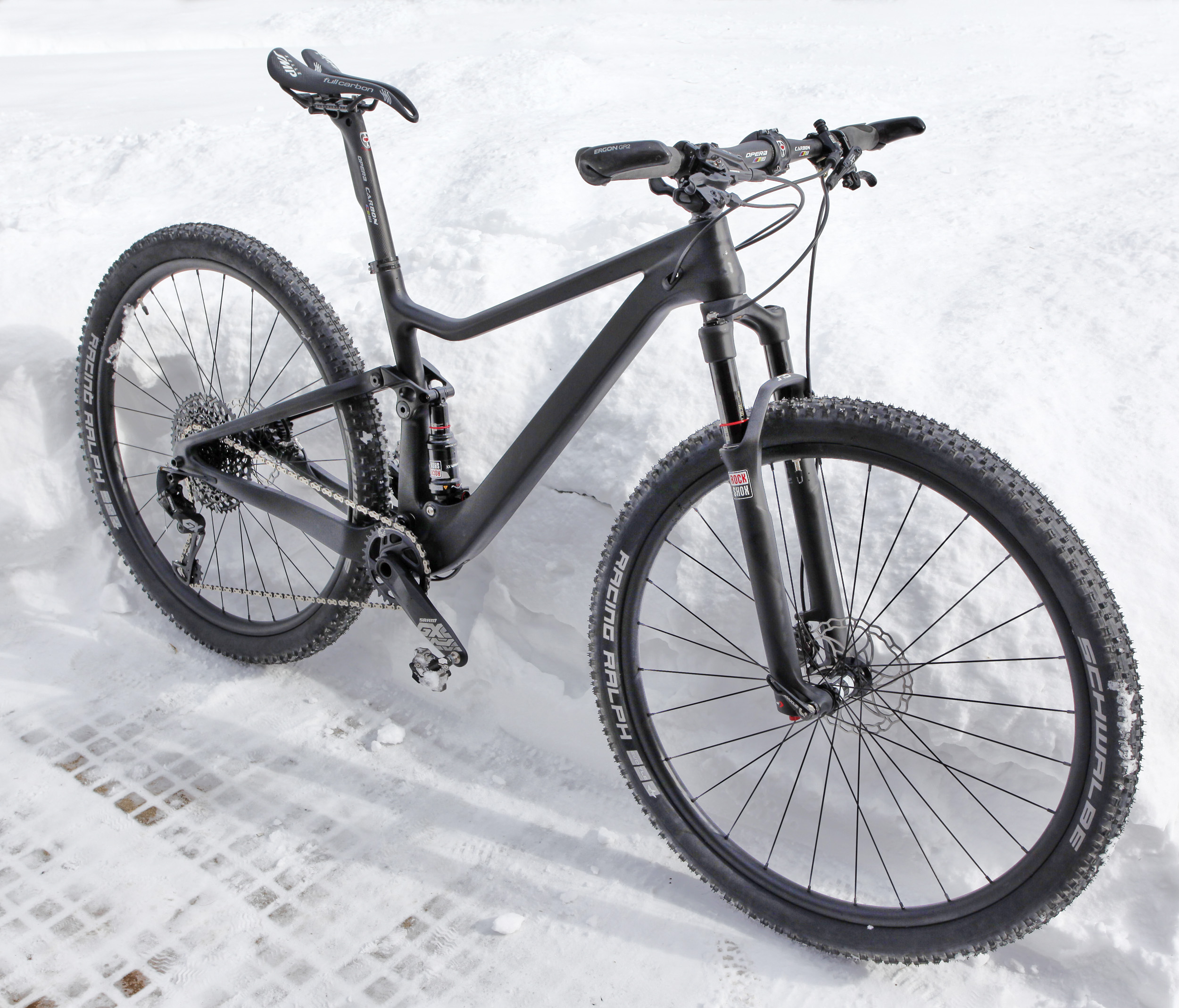

Complete Frame Show
