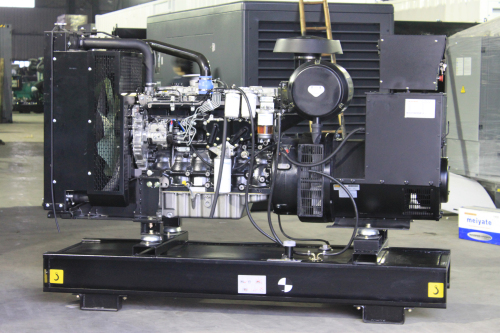

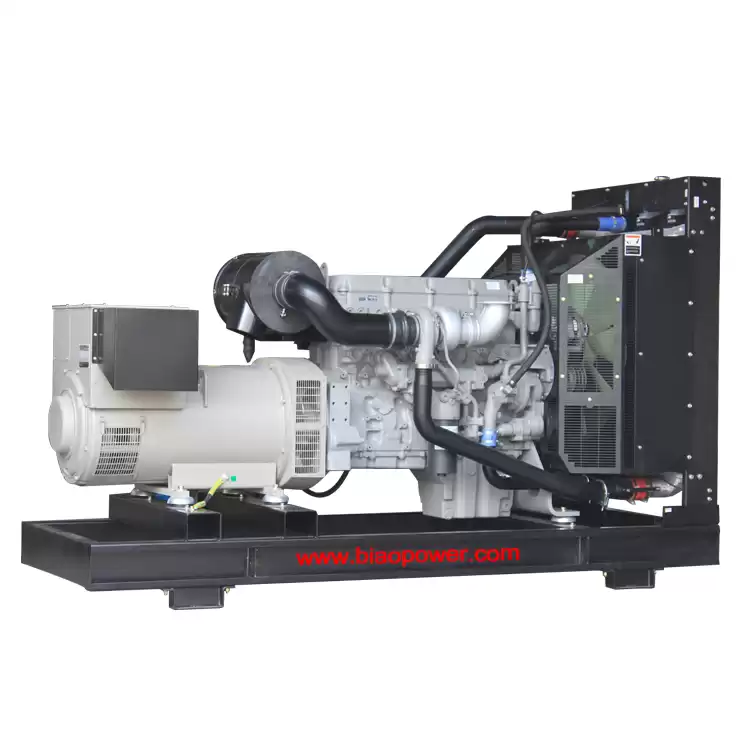

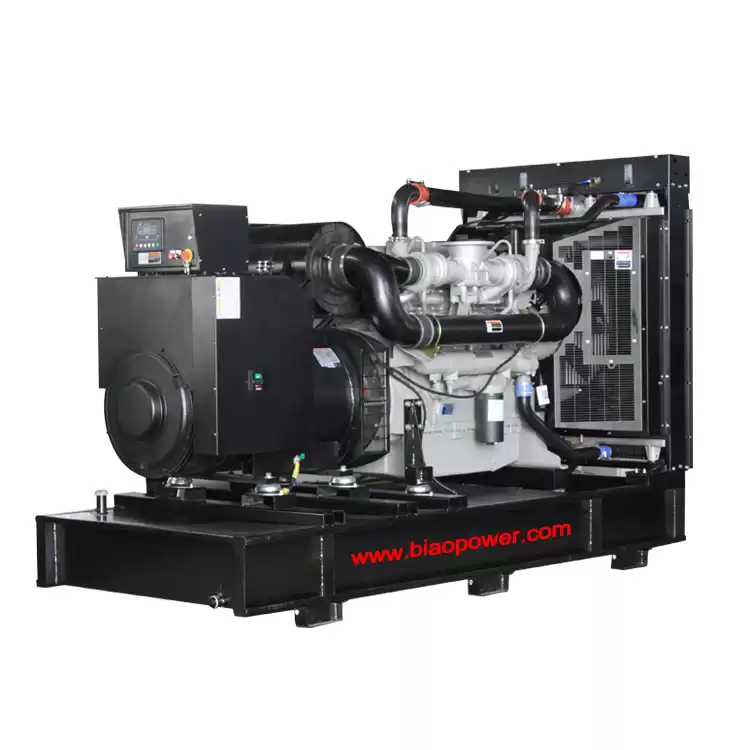

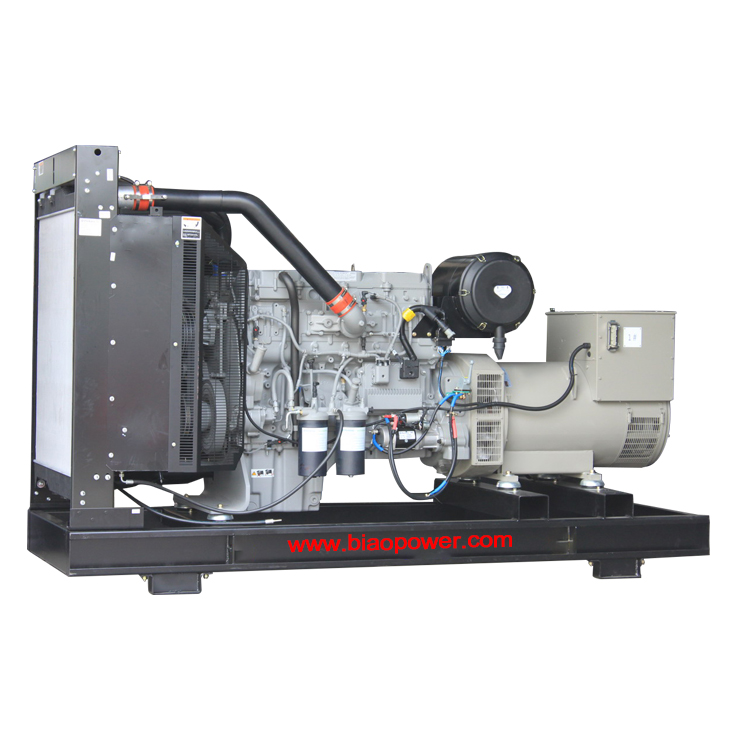

Perkns Series Power Generators

BA Power use High Efficiency Diesel Generator and Stamford brand alternator.

Power by Perkins Diesel Engine Specs

perkins diesel generator

provides the full year 365/24 hours service with rapid and effective response.

Basic technical data
Number of cylinders .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ..6
Cylinder arrangement.. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. In-line
Cycle .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... ..4 stroke
Induction system .. .. ... .. ... .. ... .. . Turbocharged and air charge cooled
Combustion system .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . Direct injection diesel
Compression ratio .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . ..16:1
Bore .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. 105 mm
Stroke .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . 135 mm
Cubic capacity .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. ... 7.01 litres
Direction of rotation .. .. ... .. ..Anticlockwise when viewed from flywheel
Firing order .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. .1, 5, 3, 6, 2, 4
Estimated total weight (dry) .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 743 kg
Estimated total weight (wet) .. .. ... .. ... .. ... .. ... .. ... .. ... .. ... .. .777 kg

Fuel consumption

Load Type of operation and application  g/kWh         litres/hr
110% Prime power                                  207.3            45.1
100%Prime power                                  209.2           41.4
75% Prime power                                   211.3            32.0
50% Prime power                                   200.2           20.2
25% Prime power                                   214.8           11.0

Lubrication system
Maximum total system oil capacity.. .. .. . .. .. . .. .. . .. .. . .. .. . .. .18.0 litres
Minimum oil capacity in sump .. .. .. . .. .. . .. .. . .. .. . .. .. . .. .. . .. .12.5 litres
Maximum oil capacity in sump .. .. ... .. ... .. ... .. ... .. ... .. ... .. 16.1 litres
Maximum engine operating angles -
Front up, front down, right side, left side.. .. ... .. ... .. ... .. ... .. ... .. ... 25°
Sump drain plug tapping size.. .. ... .. ... .. ... .. ... .. ... .. ... .3/4 - 16 UNF
Shutdown switch setting (where fitted)

This is available on perkins generator, Cummins Generator and all generator set.
