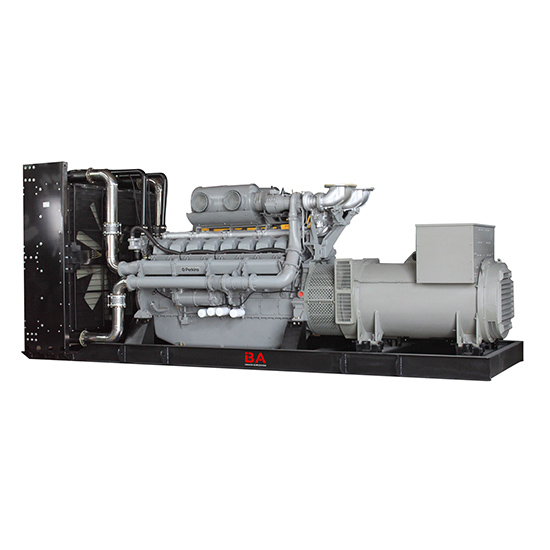

Perkins Series Power Generators
BA Power Commercial diesel generators for sale and famous brand alternator.
| Manufacturer |
Perkins Engines Company Limited |
| Model |
4006-23TAG3A |
| Engine speed |
1500rpm |
| --------------------Continuous Baseload |
566kw |
| ----------------------------Standby power |
786kw |
| --------------------------Prime Power |
705kw |
| Combustion system |
Direct injection |
| Type |
4 stroke cycle , Verticle In-line, 6-cylinder |
| Aspiration |
Turbocharged,air-to-air charge cooled |
| Bore * Stroke |
160 x 190 mm |
| Displacement |
22.921 litres |
| Compression ratio |
13.6:1 |
| Direction of rotation |
Anti-clockwise, viewed
on flywhee |
| Firing order |
1, 5, 3, 6, 2, 4 |

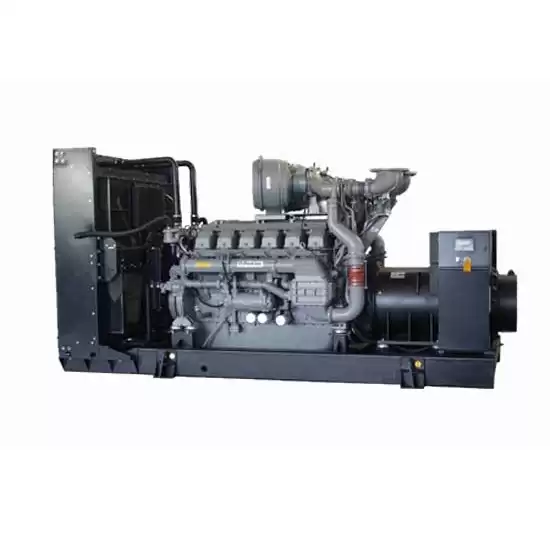

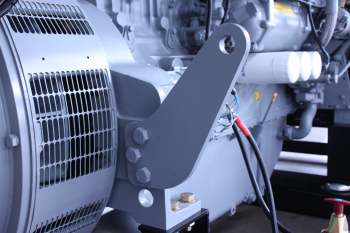

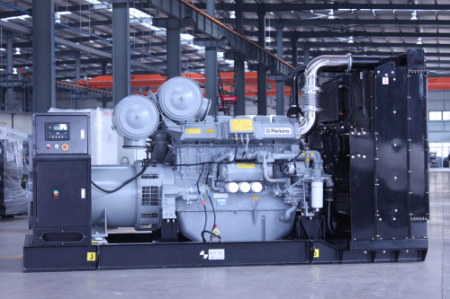

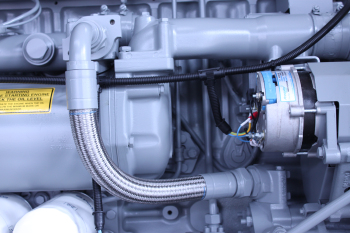

Perkins Generator Set 4006-23TAG3A 640KW Detail Show

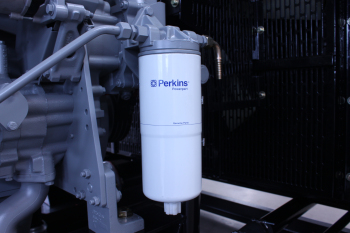

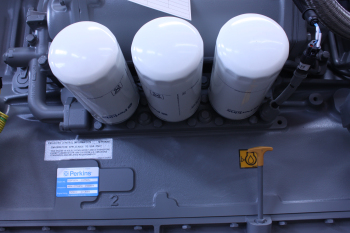

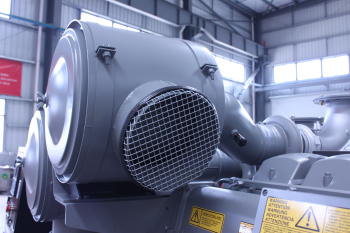

FILTERS

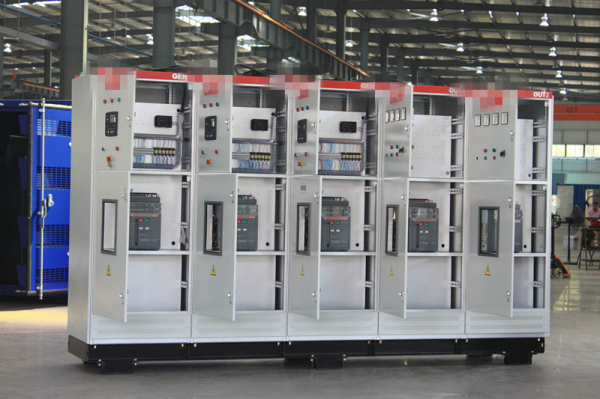

ATS (generator automatic transfer switch), Synchronize System
FAQ:
2. What is your standard diesel generator suppliers Supply Scope?
Brand new Engine, Brand new Alternator,brand new brushless alternator, single bearing, flange connection, IP23, H insulation class, with AVR. If you want on IP 44 or higher standard we also can supply, this need on extra cost.
Heavy duty industrial type silencer with flexible bellow.
3. Vibration Pad:Vibration damping supports between Engine/Alternator and base frame.
6.Radiator:Standard 40 or 50 Degree Radiator with safety guard.

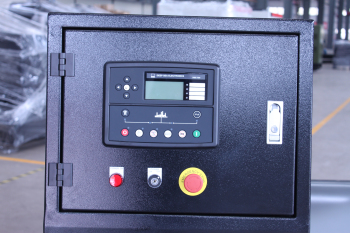

7.Control Panel：Auto mains failure control panel, Deep sea 6120 model as standard supply.
8. Battery: High capacity lead acid battery c/w battery cables.

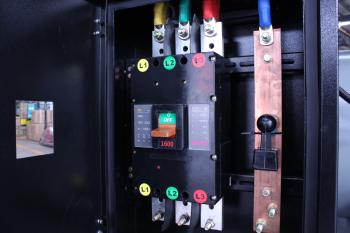

9. Circuit Breaker:3-pole or 4 -Pole output manual circuit breaker.
10.Base Fuel Tank:Below 500KW, skid-mounted bottom fuel tank for 8hrs full load as standard supply. Above 500kw, storage fuel tank is provided at extra cost.
11. Shipping Docs:Standard tool kits and complete operation//manuals to Engine/Alternator/control panel,etc, Invoice, Packing List
