BA Power Perkins Series Power Generators
Perkins Engine, which is one of the world's leading diesel engine manufacturers since 1932, produced nearly 400,000 units for one year and quickly occupied the world market for the full specification, good structure, reliable performance, low exhaust and easy and long period maintenance. Perkins Networks covers more than 180 countries and areas.
Engine
Perkins Engine has a big power ranges from 7kw/8.75kva to 1800kw/2250kva, including 403, 404, 1103, 1104, 1506, 2206, 2806, 4006, 4008, 4012, 4016 Series Engines in different power capacity for each series engine. It's available for the 50hz and 60hz.

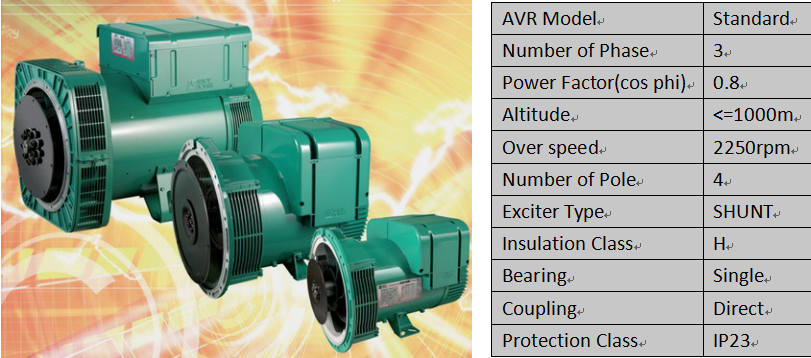

Alternator
BA Power adopts world famous brand alternator like Leroy-somer, stamford, Marathon, etc. brushless synchronous alternator, based on a variety of operating voltage requirement, optimizing winding design and effectively eliminating the third harmonic voltage, which together with the superior performance of automatic voltage regulator and PMG(optional), in with superior performance in generating non-linear loads.
- Form: Single/Double Bearing
- Protection: IP23 (IP44 is optional)
- Balance: Rotator Balance in accordance with ISO1940 and NFC51-112 Standard
- Overspeed: 2250rpm
- Insulation Class: H
- Mechanical Structure: Steel Base Frame

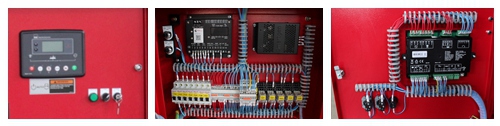

Control System
BA Power adopts UK deepsea 6120 as the standard supply model, and Smartgen and Czech Comap is optional.
Features and protection function:
- Low oil Pressure
- High water temperature
- High voltage and low voltage
- Over current and over speed
- Voltage adjuster and Frequency Adjuster
- Emergency power stop
- Low fuel alarm and shutdown
- Low coolant alarm and shutdown

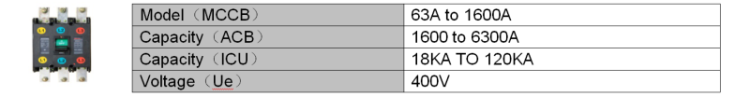

Circuit Breaker
Starting Battery
Soundproof Canopy
BA Power silent canopy with normal silent, super silent, imitate container and standard sea container type canopy are all available, which has below features:
- More than 2mm thick steel to make the canopy
- High quality paint materials and strict powder paint
- Impedance combined type silencer
- Stainless steel door locks and hinges and 180 degree revolvable and disassemble door
- High quality soundproof and insulation materials
- Transparent viewing window
- Lifting ears mounted in the base frame
- Standard 20 feet, 40 feet and 40HQ container canopy for option
Other Optional Supply Scope
ATS, Syn.panel, Trailer, External Fuel tank, Lub.oil Heater, Electrical Coolant Heater, Water and Fuel Separator, Fuel Drain Pump, Auto Fuel Pump, other spare parts etc.
